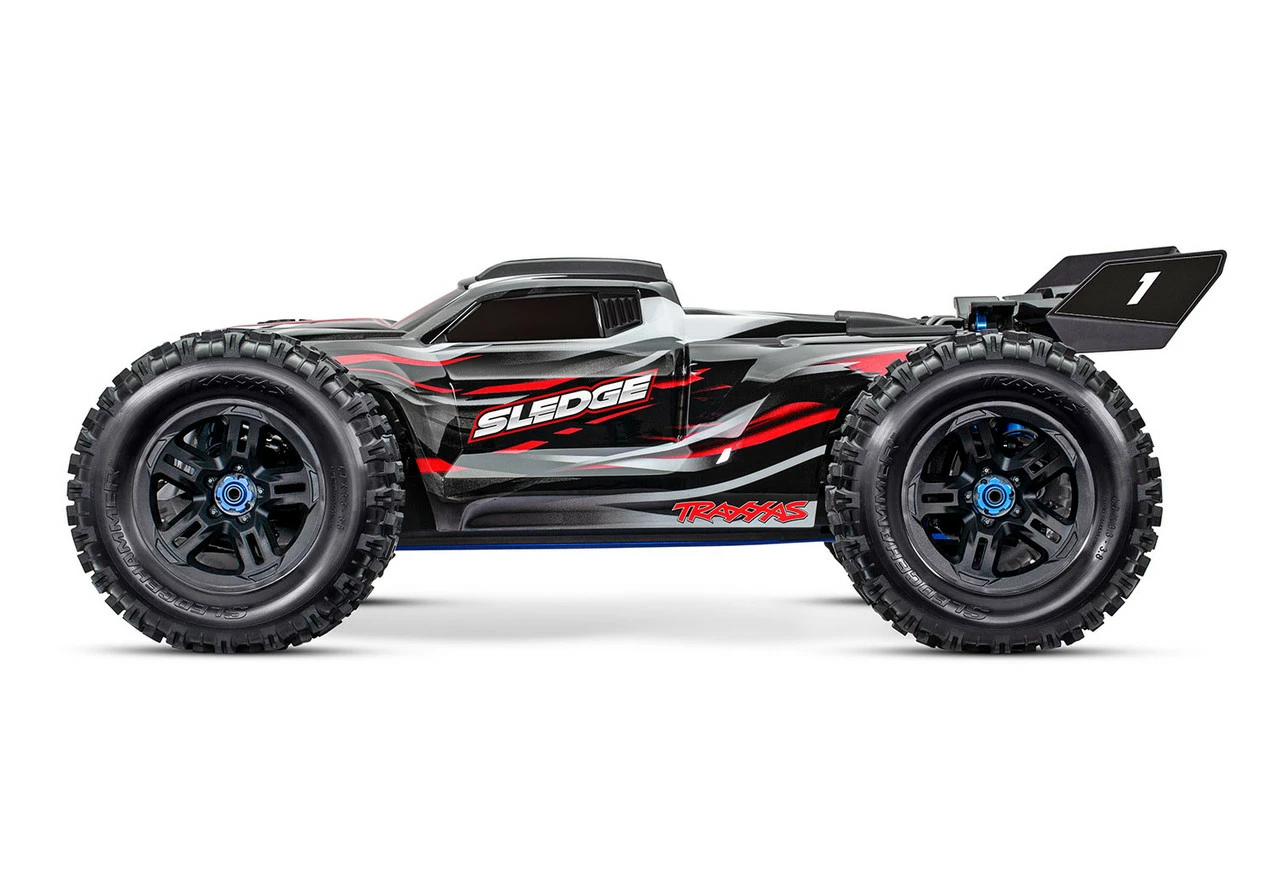

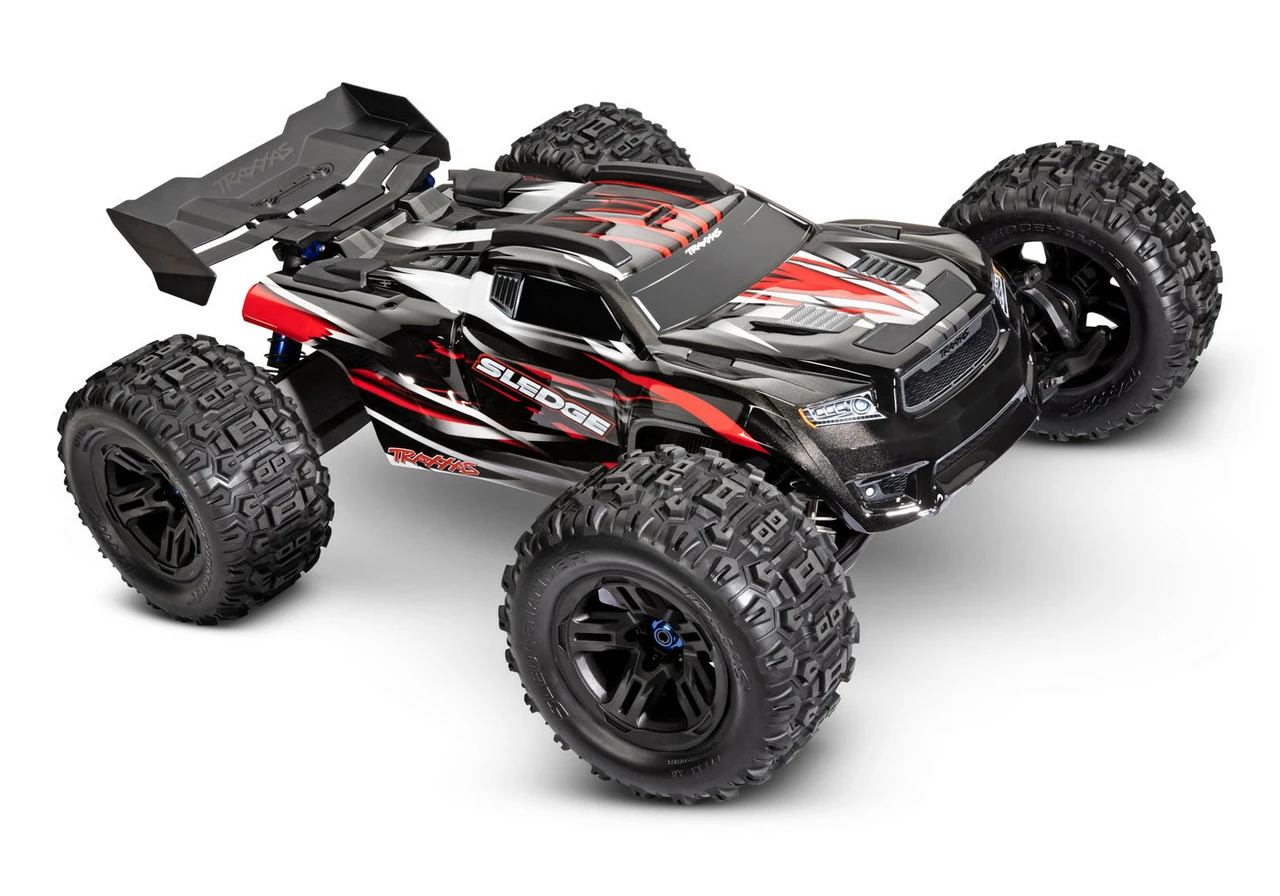

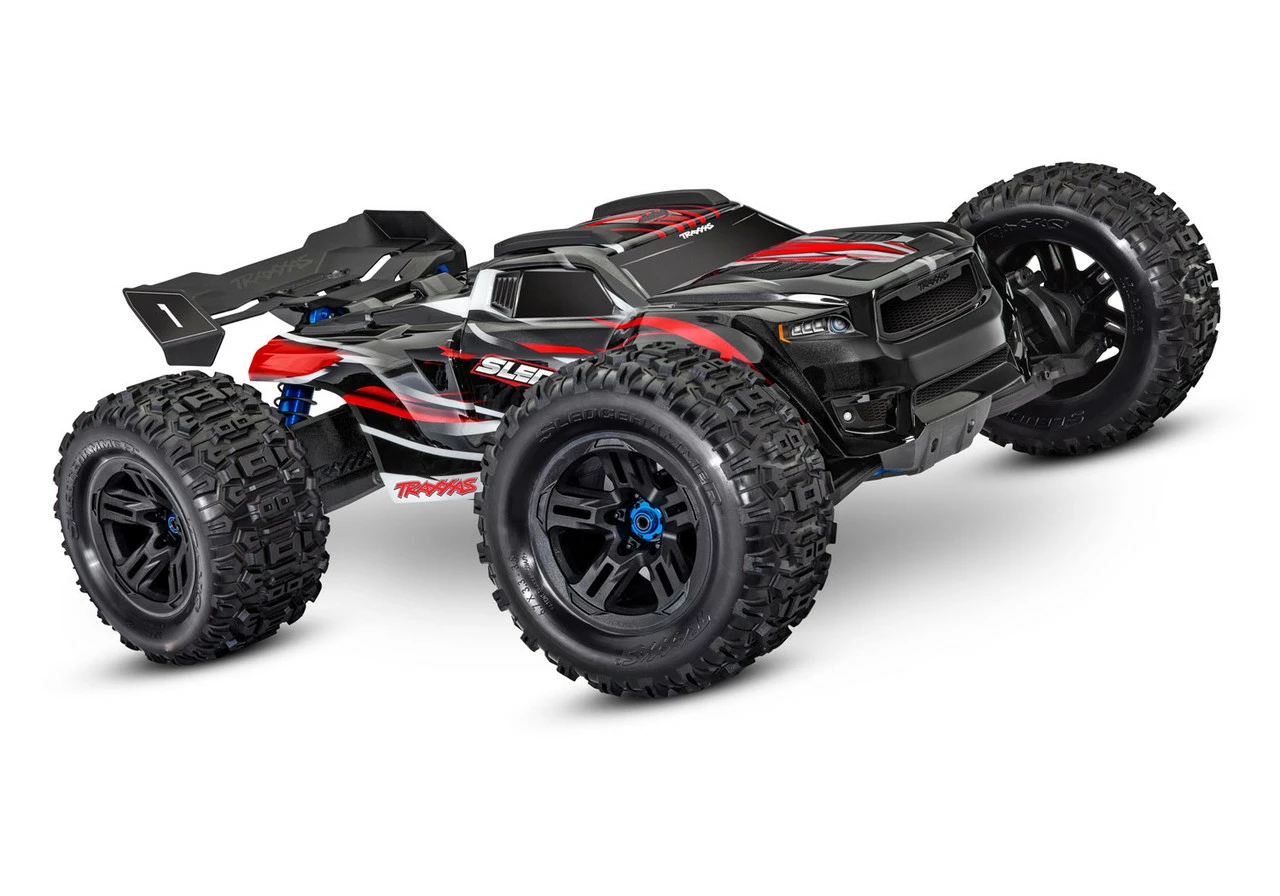

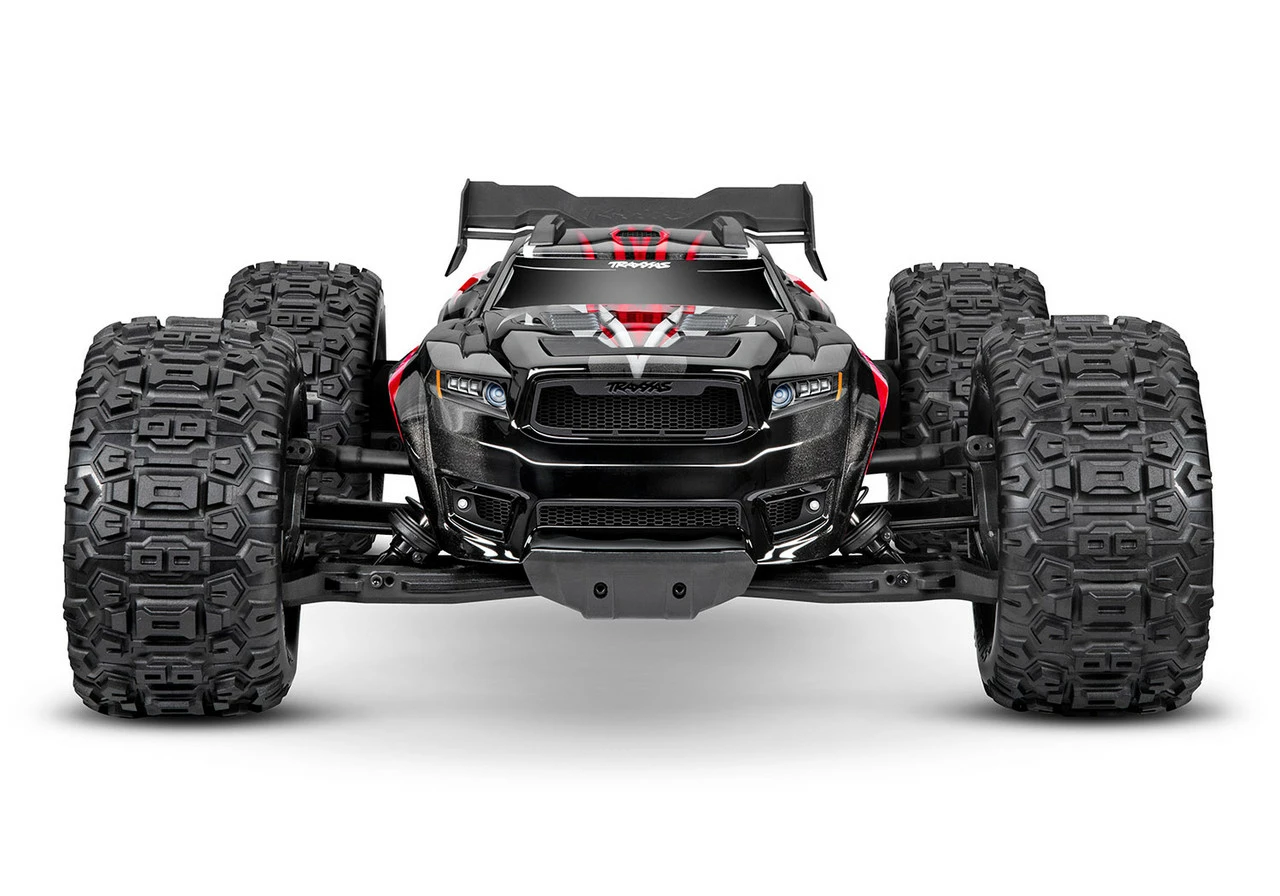

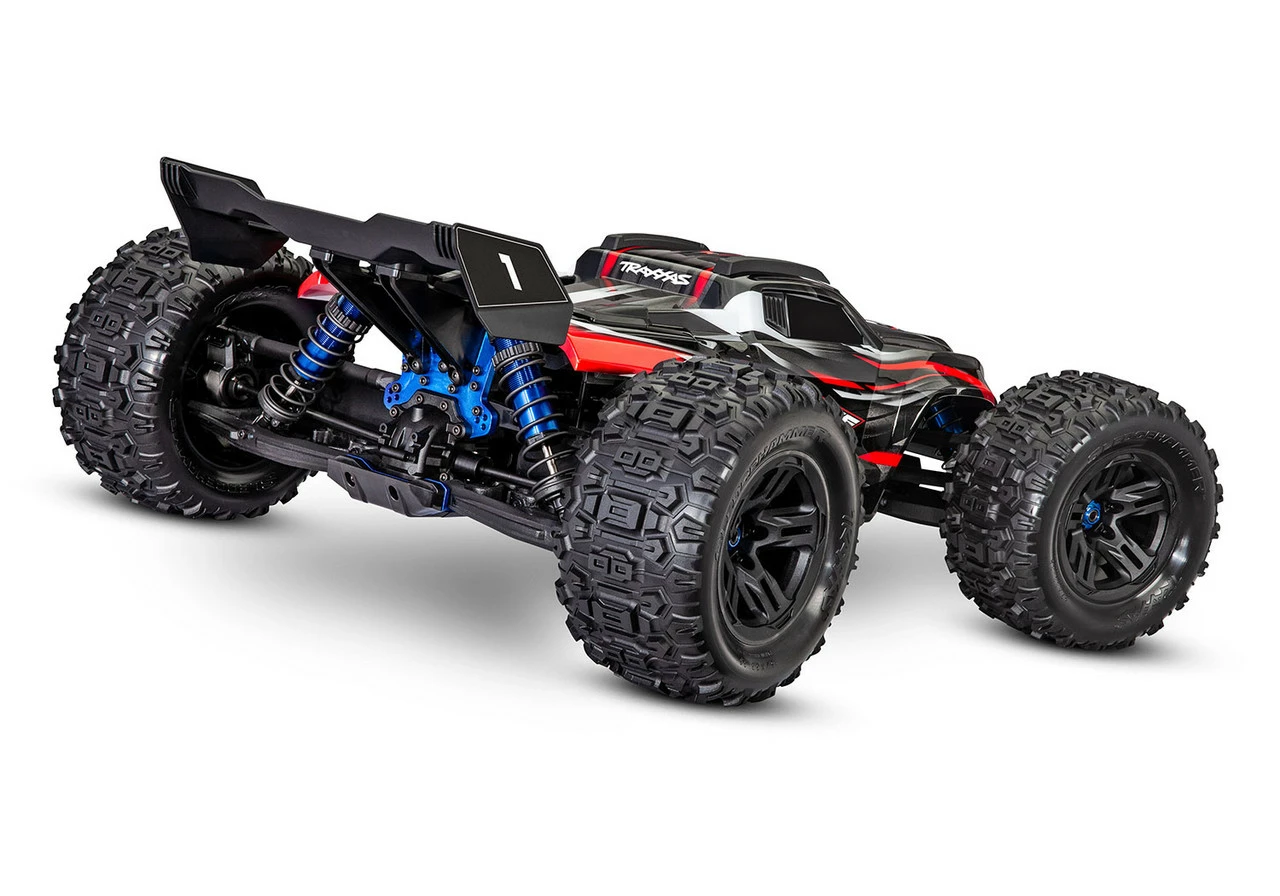

TRA95076-4RED TRAXXAS Sledge 1/8 Scale 4WD Brushless Electric Monster Truck With TQi 2.4GHz Traxxas Link – Red

TRA95076-4RED TRAXXAS Sledge 1/8 Scale 4WD Brushless Electric Monster Truck with TQi 2.4GHz Traxxas Link – Red

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES:

• VXL-6s Waterproof Electronic Speed Control
• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Patented Traxxas High-Current Connectors
• Velineon® 2000kV Brushless Motor
• 4-pole 2000kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation
• Aluminum motor cradle mount
• Supports entire motor
• Reduces flex for longer gear life
• Up to 70+ mph with Two 3s LiPo Batteries
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4GHz High Output Radio System
• TQi™ 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Drivetrain
• Heavy-duty steel driveshafts
• Large 8mm steel stub axles
• Steel dogbone center driveline
• Protective rubber boots on differential inputs
• Transmission
• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque-Biasing Center Drive
• Differentials
• Heavy-duty sealed 4-gear design
• Large scale steel ring and pinion gears
• Oversize 8mm output shafts
• Steel drive cups
• Easy-access bulkheads
• Oil-filled GT-Maxx® Shocks
• Longer rear shocks for more travel
• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower cartridge with dual X-rings
• Height-adjustable spring retainer
• Lower spring perches bolted on
• Suspension
• Performance-optimized geometry
• Ultra-tough composite arms
• Made from our strongest cold-weather material
• Molded insert for clean look
• Rear rock deflectors
• Press-in hinge pins to reduce play
• Oversize molded toe and camber links
• Heavy-duty C-hubs
• Stronger than conventional designs
• Require no adjustments
• Multiple mounting points for suspension tuning
• Chassis
• 3.2mm ribbed aluminum chassis
• Formed edges for improved strength
• Thick T-Bar™ for added rigidity
• Stronger than round bars
• High-strength buttressing on shock towers
• Ultra-thick 5mm 6061-T6 aluminum shock towers
• Rugged locking battery compartment with quick-release door
• Low-CG design for improved handling
• Interlocking components for tight tolerances
• Tough front and rear bumpers double as skid plates
• Hidden wire management for clean appearance
• ProGraphix® Body
• Clipless body mounting system
• Rigid internal frame
• Molded body reinforcements for tear-through protection
• Protective roof skids
• Rugged high-downforce rear wing
• Wheels and Tires
• Huge 6.7” Sledgehammer® all-terrain tires
• TSM-rated construction resists ballooning
• Tough 3.8” black wheels
• Splined 17mm aluminum axle hubs
• Steering
• High-throw bellcrank steering design
• Heavy-duty servo saver with aluminum posts
• Metal servo horn
• Powerful #2275 metal gear servo
• 347 oz-in torque
• Fully waterproof
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

INCLUDES:

• Sledge, Ready-To-Race® monster truck with Traxxas 2000kV brushless motor
• VXL-6s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools
• Jumper plug (for 4s battery use)

REQUIRES:

• LiPo Batteries
• Traxxas recommends dual 5000mAh 3-cell 11.1V Power Cell LiPo batteries for maximum performance. Dual 7600mAh 7.4V LiPo batteries or a single 6700mAh 14.8V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
• LiPo Balance Charger with iD™
• Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries
• Four AA alkaline batteries for the transmitter.

SPECIFICATIONS:

• Length (including wing): 23.78 inches (604mm)
• Front Track: 18.10 inches (459mm)
• Rear Track: 18.10 inches (459mm)
• Ground Clearance: 1.95 inches (50mm)
• Weight (no battery): 12.74 pounds (5.77kgs)
• Height (overall): 8.43 inches (214mm)
• Wheelbase: 15.10 inches (384mm)
• Shock Length (front): 5.12 inches (128mm)
• Shock Length (rear): 5.67 inches (144mm)
• Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
• Wheel Diameter: 3.8 inches (97mm)
• Speed Control: Velineon® VXL-6s (#3485)
• Motor (electric): Velineon® 2000kV Brushless
• Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0
• Chassis Structure/Material: 3.2mm aluminum plate
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Double-shear bellcrank w/metal servo arm
• Wheels & Tires: 3.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 6.7×3.8
• Radio System: 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver
• Servo: 2275 Waterproof, metal-gear (347oz-in torque)
• Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)
• Skill Level: 4
• Battery Tray: Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm*
• Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm*
• Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
• Motor Specs
• Type: 2000 kV sensorless brushless
• Weight: 14.32oz (406g)
• Length: 2.97 inches (76mm)
• Diameter: 1.65 inches (42mm)
• Connector Type: Traxxas 6.5mm bullet connectors
• ESC Specs
• Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
• Case Size: 2.28 inches (58mm) x 2.83 inches (72mm) x 1.81 inches (46mm)
• Weight: 7.30oz (207g)
• BEC Voltage: 6.0 V
• BEC Current Continuous: 10 A
• BEC Current Peak: 20 A
• Reverse Delay: Yes, with lockout
• Ports: RX input, auxiliary fan, Traxxas accessory port
• Servo Specs
• Motor Type: Brushed
• Operating Voltage: 6.0V DC 7.4V DC
• Torque: 347 oz-in 486 oz-in
• Speed: 0.25 sec/60° 0.16 sec/60°
• Weight: 67g
• Gears: Metal
• Output Spline: 25T
• Case: Plastic top/bottom, anodized aluminum center
• Controller: Digital
