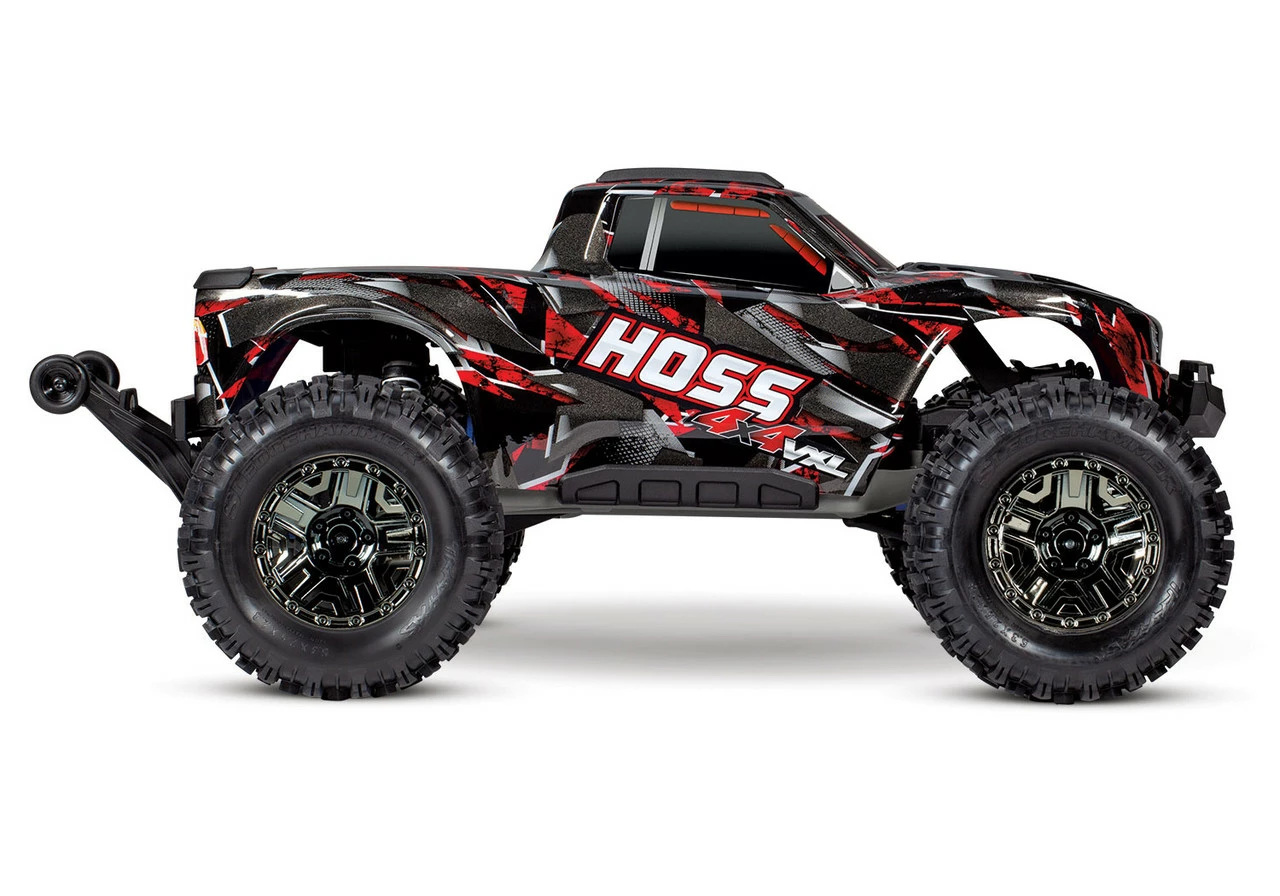

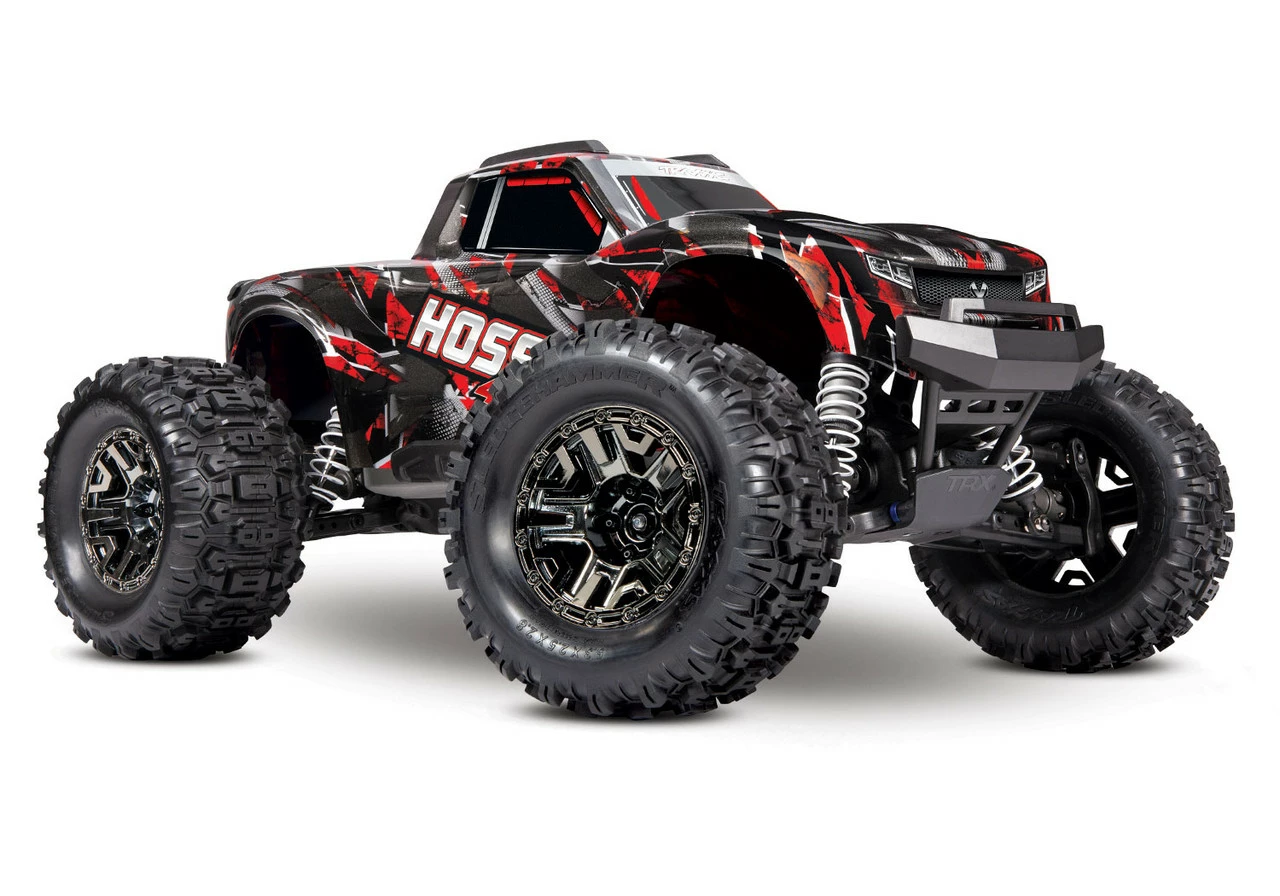

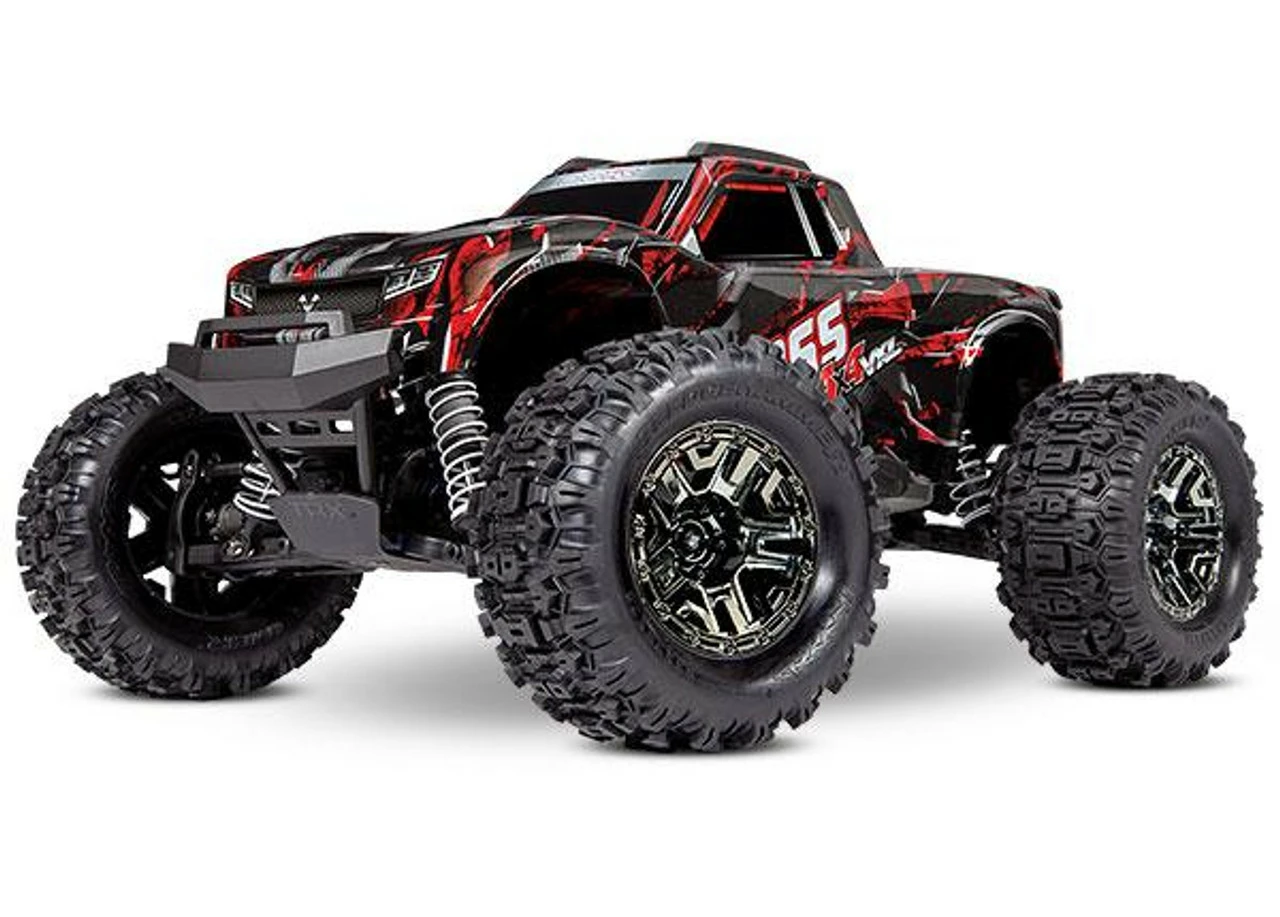

TRA90076-4SRED Traxxas Hoss 4X4 VXL 1/10 Monster Truck – Shadow Red

TRA90076-4SRED Traxxas Hoss 4X4 VXL 1/10 Monster Truck – Shadow Red

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



Features:

• VXL-3s™ Waterproof Electronic Speed Control
• Cooling fan with large heat sink
• Three Programmable Drive Profiles:
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
• Velineon® 540XL Brushless Motor
• Long-format brushless motor
• 4-pole 2400 kV
• 5mm output shaft
• Precision-balanced rotor
• Brilliant blue-anodized finish
• Up to 60+ mph with 3S LiPo battery
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4GHz High Output Radio System
• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Clipless ProGraphix® Body
• Easy one-handed removal
• Reinforced inner cage
• Strong oversized latch
• Rugged roof rollover protector
• Tailgate protector
• Chassis
• Modular composite tub design
• Secure battery hold-down latch
• Reinforced integrated wheelie bar
• High-approach bumpers
• Integrated nerf bars for side impact resistance
• Suspension
• Adjustable 4mm steel toe and camber links
• New impact-resistant suspension arm composite
• Oil-filled Ultra Shocks
• Rugged front and rear shock towers
• White powder-coated springs
• Steering
• Chassis-mounted #2075 servo
• Dual bellcrank design with integrated servo saver
• Drivetrain
• Full-time shaft-driven 4-wheel drive
• Torque-Biasing Center Drive™ absorbs shocks and distributes power evenly
• Extreme heavy-duty driveshafts
• Oil-filled steel gear front and rear differentials
• Large 32-pitch steel spur gear
• Anodized-aluminum center driveshaft
• Wheels and Tires
• Large 2.8” black chrome wheels
• Tall 5.3” Sledgehammer™ tires
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

Includes:

Hoss 4X4 VXL with Velineon® VXL-3s and 540XL
Quick Start Guide
TQi™ 2.4GHz radio system
High quality maintenance tools

Requires:

Batteries: Hoss 4X4 VXL requires a single NiMH or LiPo battery. See full list of batteries
Charger: Traxxas EZ-Peak Live charger (#2971) is recommended for easy and fast charging performance
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter

ESC Specifications:

Input Voltage (cells): 7.2V (6–9 cells NiMH), 2S–3S LiPo
Case Size: 2.19” (56mm) x 1.54” (39mm) x 1.65” (45mm)
Weight: 3.84oz (109g)
BEC Voltage: 6.0 V
Reverse Delay: Yes, with lockout
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan

Motor Specifications:

Type: Velineon 540XL 2400kV sensorless brushless
Weight: 11.18oz (317g)
Length: 3.58 inches (91mm)
Diameter: 1.41 inches (36mm)
Connector Type: Traxxas 6.5mm bullet connectors

Truck Specifications:

Width: 13.10 inches (333mm)
Ground Clearance: 2.75 inches (70mm)
Weight: 6.3lbs (2.9kgs) without batteries
Height: 8.34 inches (212mm)
Wheelbase: 11.62 inches (295mm)
Front Shock Length: Long
Rear Shock Length: XX-Long
Tires (pre-glued): 5.3 inches (133mm) Tall Sledgehammer™
Wheels: 2.8 inches (71mm) Black Chrome
Speed Control: VXL-3s™
Motor (electric): Velineon® 540XL Brushless
Transmission: Single speed with Torque-Biasing Center Drive
Overall Drive Ratio: 10.99:1
Differentials: Sealed, 2-gear
Chassis Structure / Material: Modular composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Dual bellcrank with integrated servo saver
Radio System: TQi™ 2.4GHz 2-ch transmitter with #6533 TSM receiver
Servo: Waterproof #2075
Top Speed (optional gearing): 60+ mph with 3-cell LiPo and 23/50 gearing
Skill Level: 1
Battery Compartment: 162mm x 50mm x 26mm / *35mm with optional battery strap (#9026, sold separately)
