TRA86086-4GRN Traxxas E-Revo VXL 2.0 GREEN

TRA86086-4GRN Traxxas E-Revo VXL 2.0 GREEN

Note: Graves RC Coupons are not applicable with this product



PRODUCT DESCRIPTION

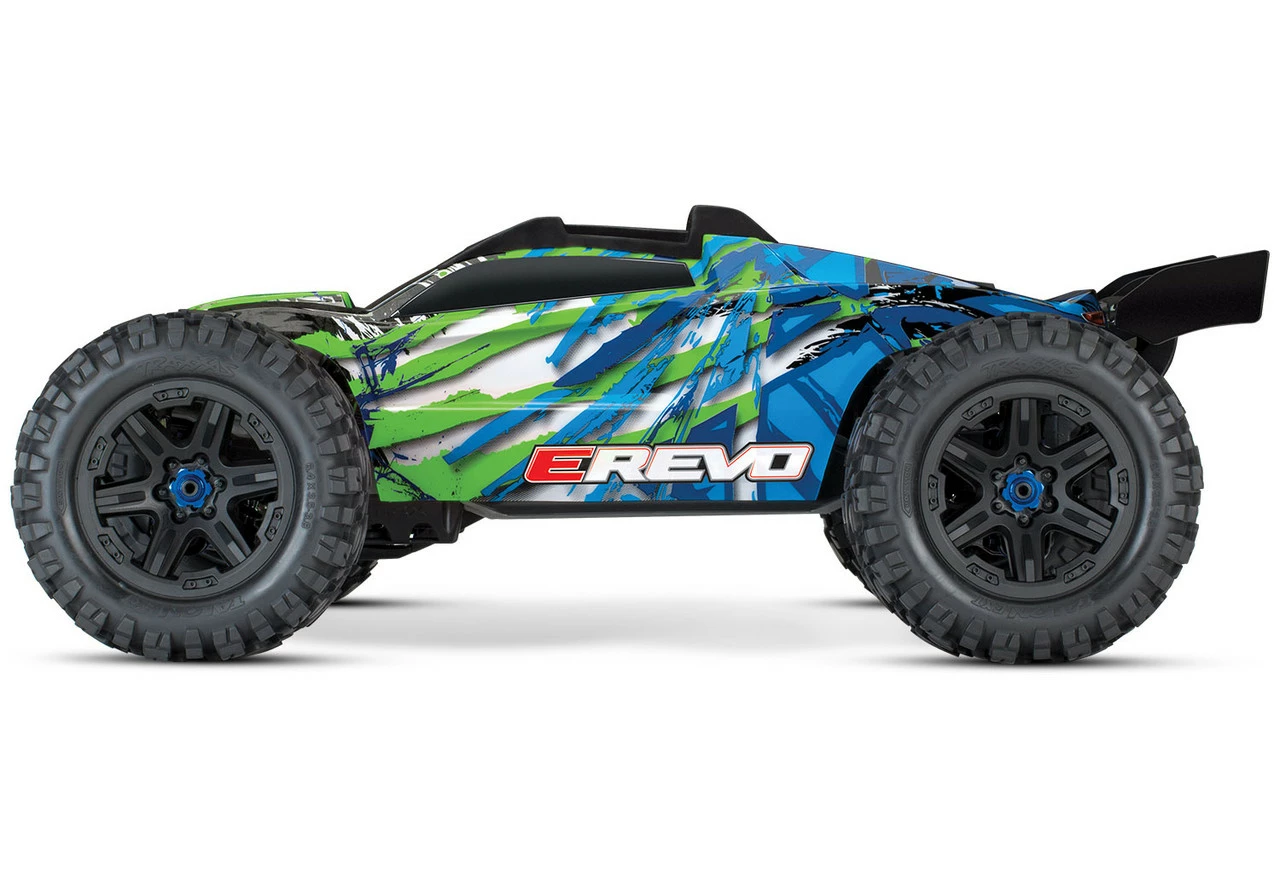

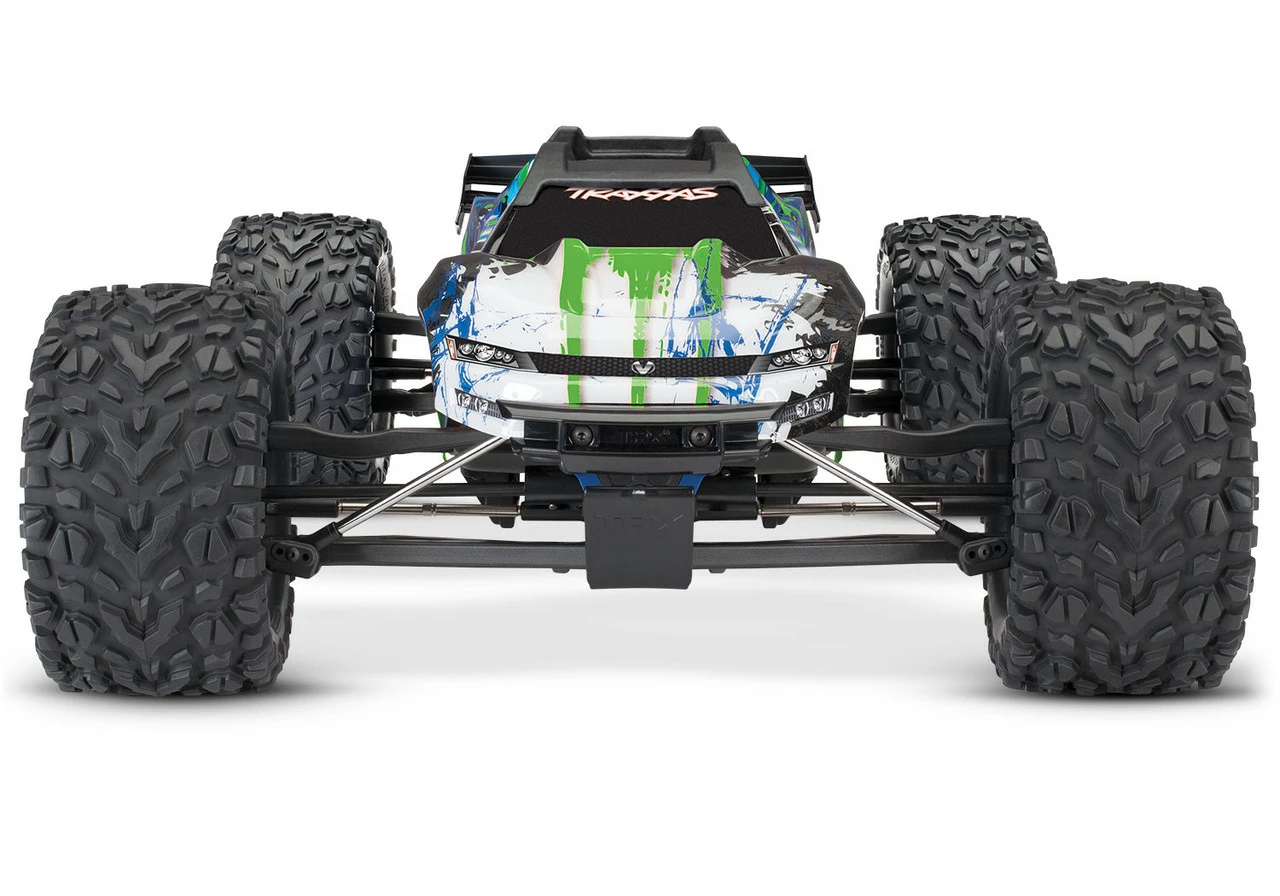

Traxxas E-Revo VXL 2.0 RTR 4WD Electric Monster Truck

Power. Strength. Speed. There is no other monster truck like E-Revo. It embodies the highest level of creativity in design and engineering that unleashed a stunning array of new technology, new innovation, and unheard of speed that reset every benchmark for racing monster truck performance. Now there is a new generation of E-Revo. This E-Revo retains all the benefits of its original ground-breaking, award-winning design, but fortifies them with brute strength and an intense, take-no-prisoners attitude to deliver what is simply the ultimate 6s monster. Get ready for a whole new level of power, strength, and speed.

Maxx-Spec™ Driveline
Taking inspiration from its big brother X-Maxx, E-Revo’s drive system has evolved to meet today’s demands for punishing 6s performance. Jump higher. Rip harder. Release your inner beast mode. E-Revo comes out of the box ready to attack, ready for wherever your imagination takes you.

Self-Righting
E-Revo’s over-the-top power can sometimes land you upside down. Traxxas’ exclusive Self-Righting system keeps the fun going with minimal interruption. Simply press a button on the transmitter and, in most circumstances, E-Revo will be back on its wheels in just seconds.

Brutal 6s Power
Armed with a fortified drivetrain, E-Revo’s VXL-6s power system now pounds out more tire-scorching motivation than ever before, all the way to 70+ mph. Advanced design and sophisticated microprocessor control make this the most punchy and reliable high-voltage VXL power system ever. Traxxas Extreme Power is the new normal and E-Revo comes ready for any challenge.

Next Generation E-Revo

With just a handful of parts carrying over from the previous generation, the next generation E-Revo packs dozens of upgrades to make it the ultimate go-to vehicle for insane stunts and backyard bashing.

• 70+ MPH Speeds
• Updated Tires & Wheels
• Updated Suspension Arms
• Updated Differentials
• Heavy-Duty 5mm Suspension Links
• Stronger Low CG Chassis
• MAXX-Spec Driveline
• Self Righting
• Brutal 6S Power

Specifications:
Length: 23.05 inches (585mm)
Width: 18.32 inches (465mm)
Ground Clearance: 2.9 inches (73mm)
Weight: 11.2lb (5.08kg)
Height: 8.7 inches (221mm)
Wheelbase: 14.94 inches (380mm)
Front Shock Length: 3.42 inches (87mm)
Rear Shock Length: 3.42 inches (87mm)
Tires (pre-glued): 6.4 x 3.5 inches (162mm x 88mm)
Wheels: 3.8 inches (97mm)
Speed Control: Velineon® VXL-6s
Motor (electric): 2200kV
Transmission: Single speed
Gear Pitch: 1.0 Metric pitch (Mod-1)
Final Drive Ratio: 20.49:1
Differential Type: Sealed, 4-gear
Center Differential Type: Sealed, 4-gear (20M weight oil)
Chassis Structure / Material: Composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Bellcrank
Radio System: TQi™ 2-channel transmitter with TRA6533 TSM receiver
Servo: Dual 2075
Top Speed (optional gearing): 70+ mph
Skill Level: 3
Battery Compartment: 156mm x 50mm x 29mm

Includes:

• E-Revo with VXL-6s ESC and 2200kV motor
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools

Needed to Complete:

• (2) 2S LiPo or 3S LiPo Battery w/Traxxas iD Connector
• (1) Compatible Battery Charger
• (4) “AA” Batteries (for transmitter)

Manuals:

TRA86086-4-Manual-English

TRA86086-4-Parts-List-English
