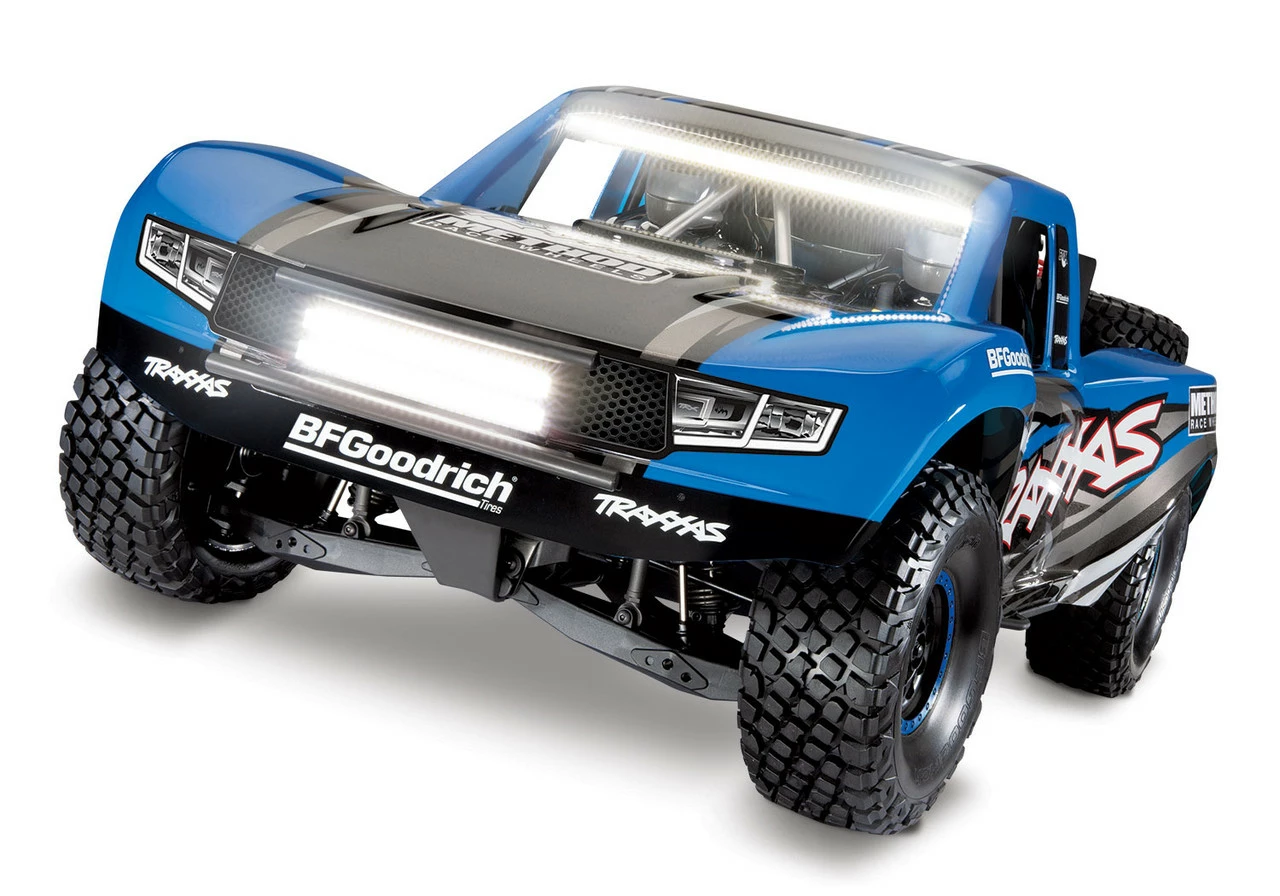

TRA85086-4BLE TRAXXAS Unlimited Desert Racer (UDR) 4wd 6S Desert Racing Truck W/ Lights – Blue

TRA85086-4BLE TRAXXAS Unlimited Desert Racer (UDR) 4wd 6S Desert Racing Truck w/ Lights – Blue

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



Features:

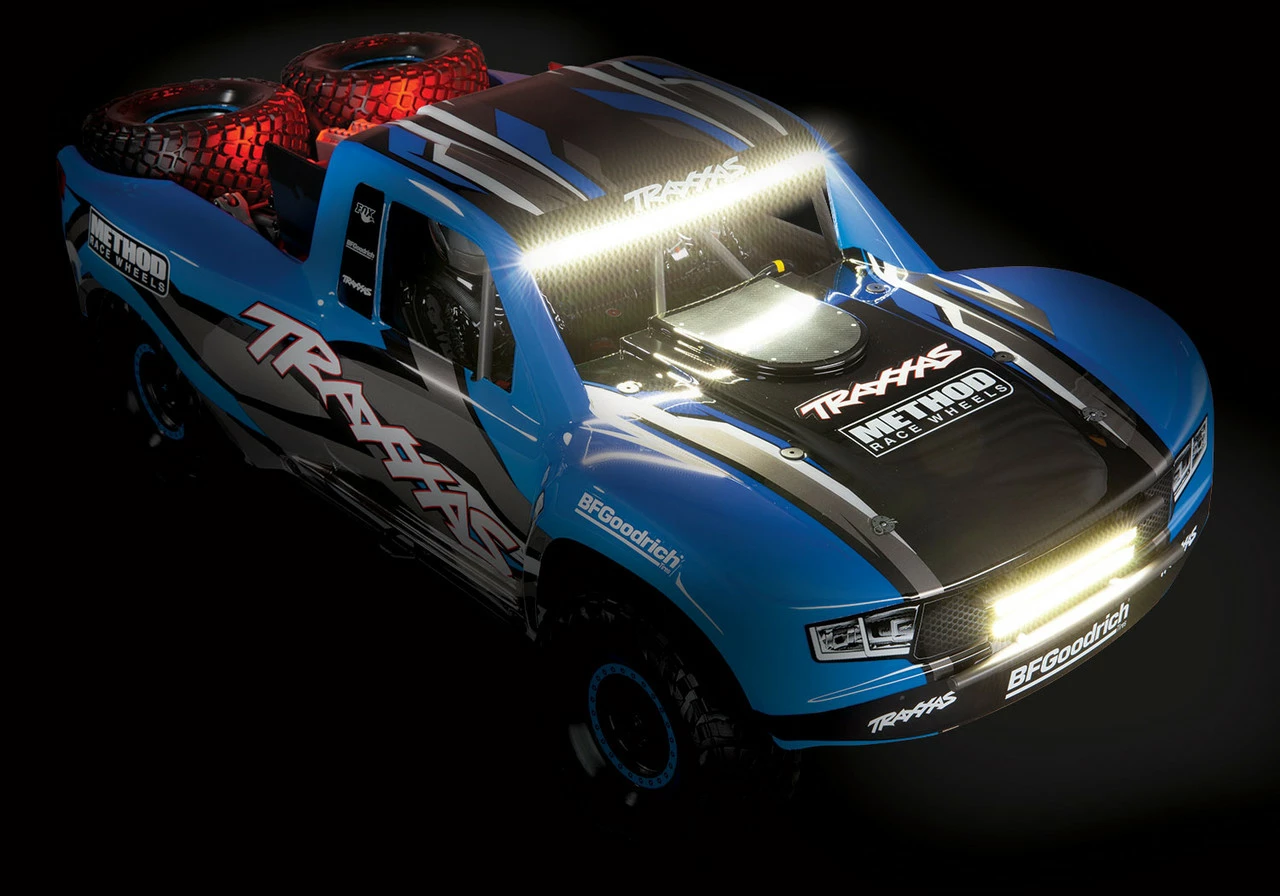

High-Voltage LED Lights

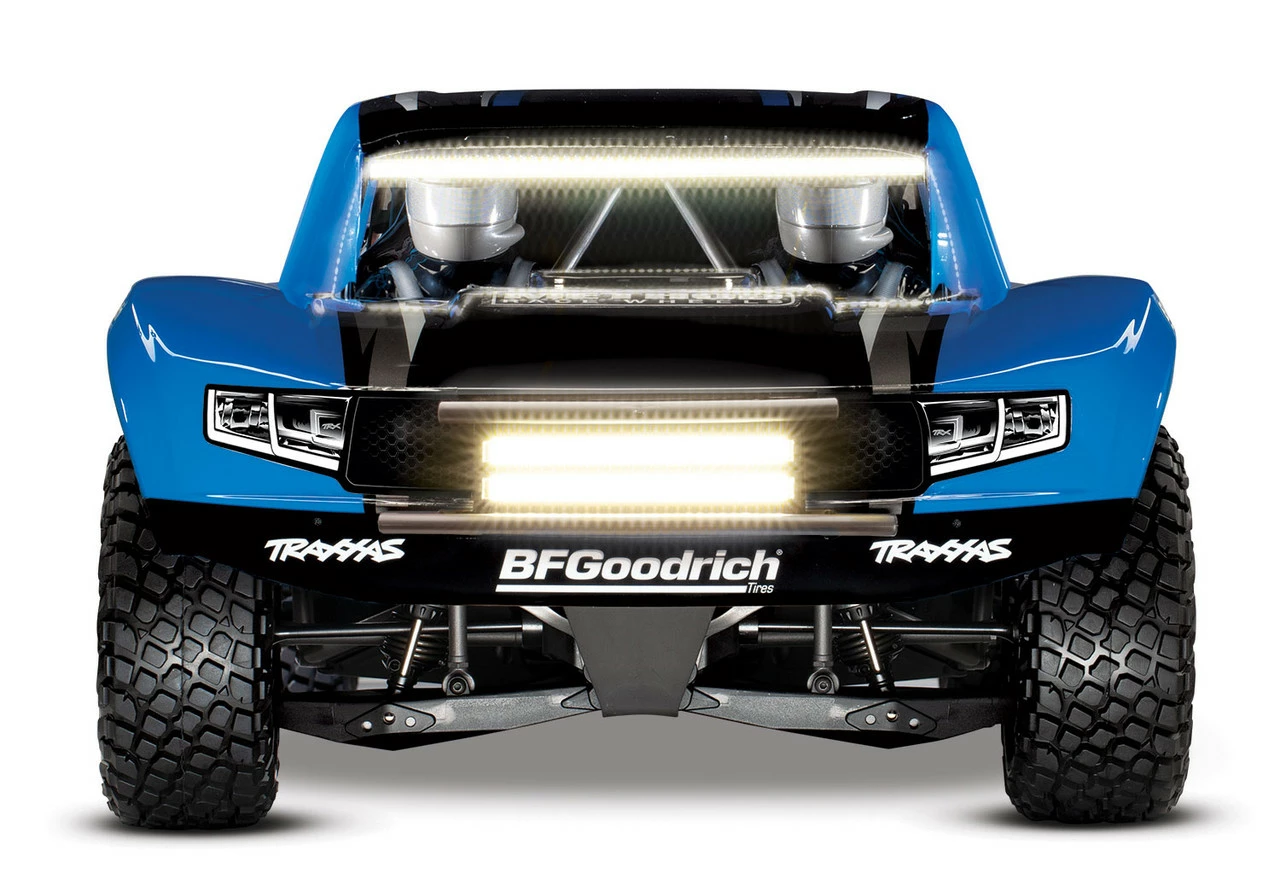

• Dual straight LED bumper-mounted LED light bars (52 LEDs each)
• Curved roof light bar (52 LEDs)

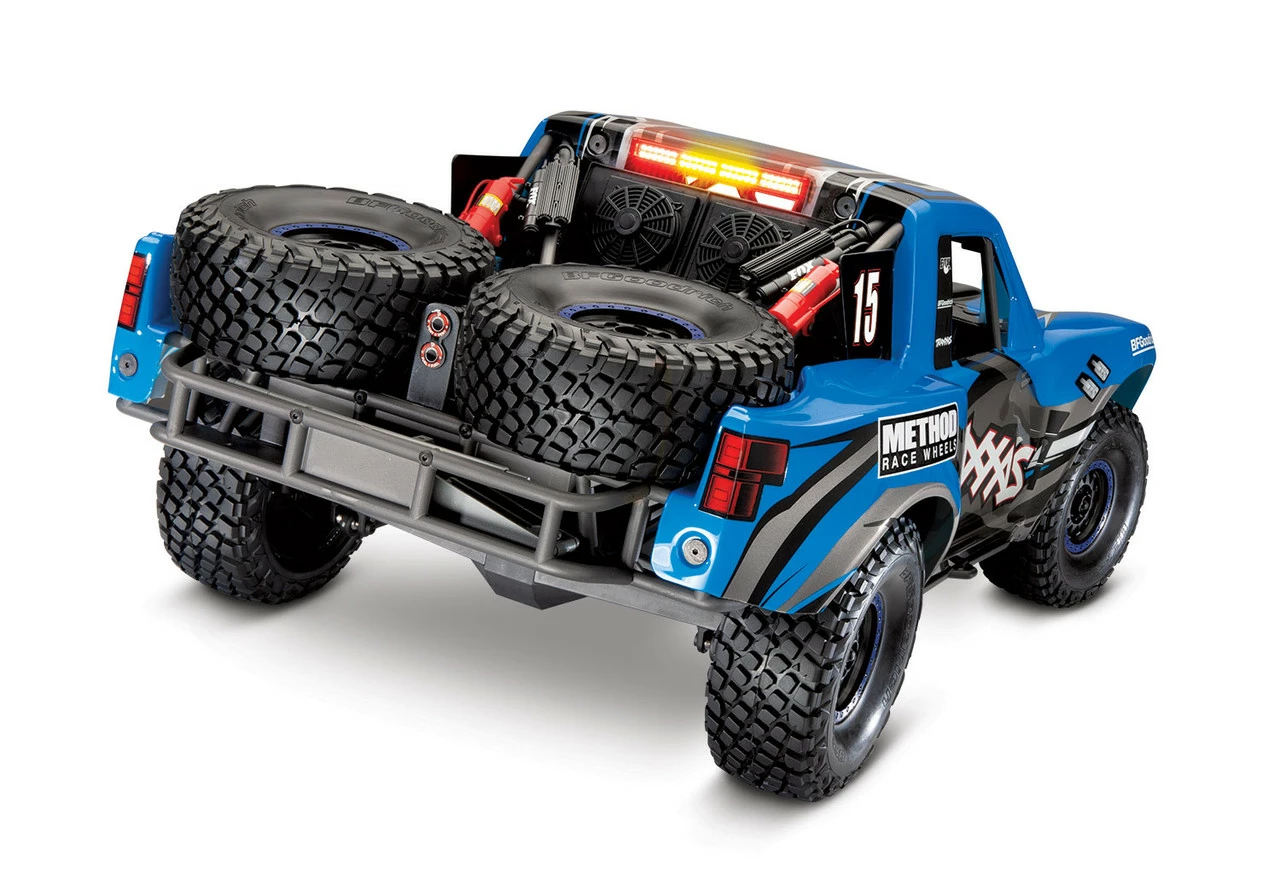

• Multifunction red and amber brake light/class light bar
• High-voltage 8-channel power amplifier for intense, brilliant LED lighting
• Regulated output for stable lighting performance
• (no flickering or dimming as the battery voltage changes)

VXL-6s™ Waterproof Electronic Speed Control

• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sink
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire

Velineon® 2200kV Brushless Motor

• 4-pole 2200kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation

Up to 50+ mph with Two 3s LiPo Batteries
Traxxas Stability Management® (TSM)

• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

Innovative Battery Compartment

• Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
• Opens from underneath without removing body
• Fixed oversized battery strap locks batteries securely into place
• Separate skid plate to protect batteries

TQi™ 2.4GHz High Output Radio System

• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

Large Pro-Scale® Body with Highly Detailed Replica Parts

• Heavy-duty truck body mounts to chassis in multiple locations
• Strong and functional tube frame mimics full-size off-road racers
• Detailed interior cabin with driver figures
• Replica brake calipers and discs with integrated 17mm wheel hubs

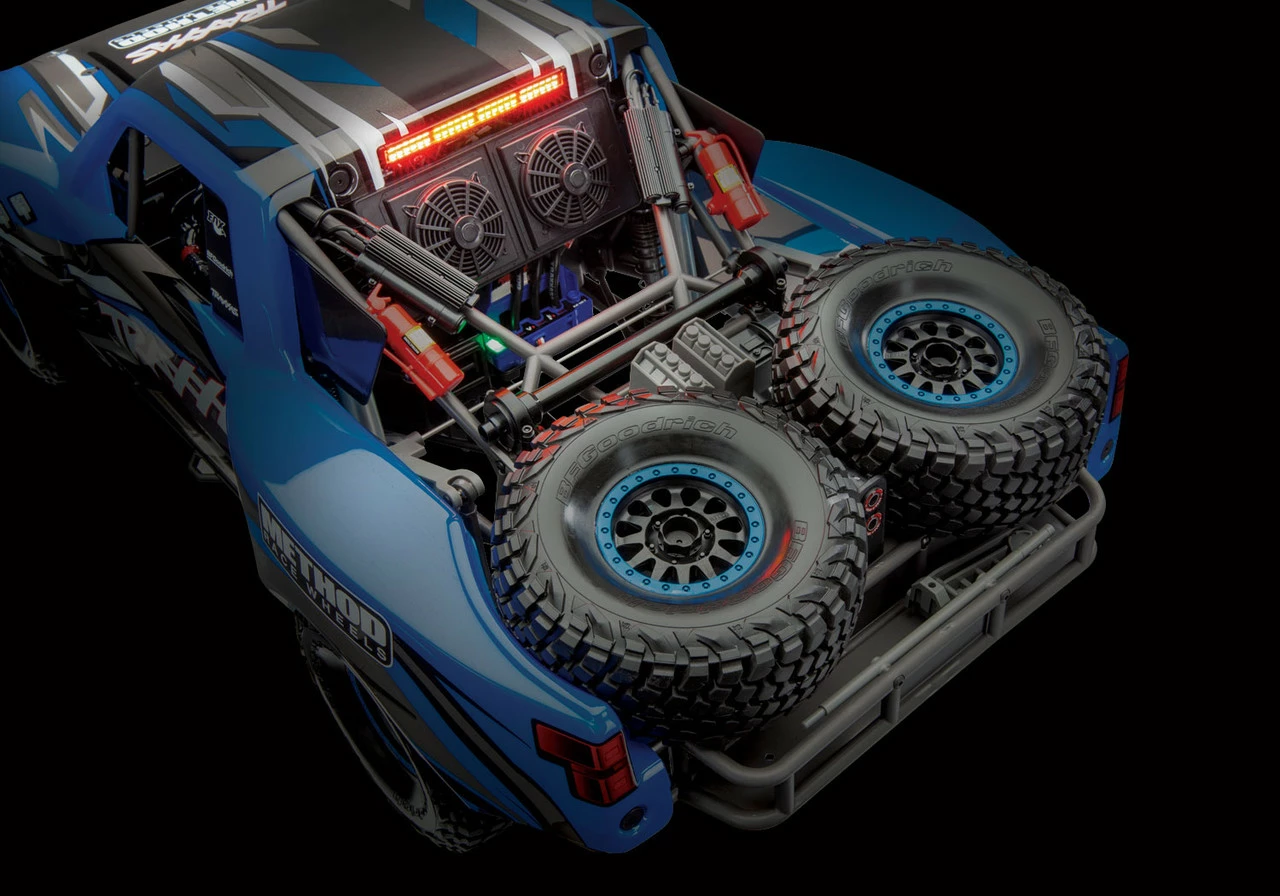

• Two fully-functional spare tires and functional spare driveshaft
• Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
• Realistic side plates mount to tube frame

Chassis

• Composite inverted tub design
• Makes maintenance easier
• Lowers center of gravity (CG) for improved handling
• Allows easy access to components
• Tough skid plates protect critical components
• Fully integrated tube frame for scale appearance and added rigidity
• Reinforced bumpers to absorb impacts
• ESC battery plugs hard mounted to chassis

Suspension

• Provides scale looks and authentic off-road driving dynamics
• Tough independent double-wishbone front suspension with captured rod ends
• Triangulated 4-link rear suspension with solid rear axle (patent pending)
• Tough composite trailing arms
• Steel upper links with 3 optional positions for suspension tuning
• Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
• Realistic and functional front and rear sway bars
• Detailed functional limit straps on rear axle

Steering

• Chassis mounted #2075R metal-gear servo
• Dual bellcrank design with bearings and integrated servo saver
• Solid non-adjustable steering links for rugged durability

Drivetrain

• Steel CV driveshafts (front) with 6mm stub axles
• Steel straight axle (rear)
• Oil-filled limited slip front differential
• Locked steel spool (rear)
• Heavy-duty splined front driveshaft
• Fixed-length steel rear driveshaft

Transmission

• All-steel gear direct drive transmission
• Torque-Biasing Center Drive™
• Removes as a single piece for easy maintenance
• Fixed-pin gear mesh system

Wheels and Tires

• Replica BFGoodrich® KR3 off-road tires
• Beadlock-style 17mm dual-diameter wheels

Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating



Includes:

Unlimited Desert Racer with VXL-6s ESC and 2200kV motor
Quick Start Guide
TQi™ 2.4GHz radio system
High quality maintenance tools

Requires:

Batteries:Unlimited Desert Racer accepts a single 4s LiPo battery or dual 2s LiPo batteries or dual 3s LiPo batteries
Charger:Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter

Technical Specifications:

Length: 27.32 inches (694mm)
Front Track: 13.57 inches (345mm)
Rear Track: 13.57 inches (345mm)
Ground Clearance: 2.27 inches (58mm)
Weight: 13.4lb (6.1kg)
Height: 10.29 inches (261mm)
Wheelbase: 16.53 inches (420mm)
Front Shock Length: 5.28 inches (134mm)
Front Threaded Shock Length: 5.28 inches (134mm)
Rear Shock Length: 6.3 inches (160mm)
Rear Threaded Shock Length: 5.55 inches (139mm)
Tires (pre-glued): 134mm x 57mm BFGoodrich® KR3 replicas
Wheels: dual diameter 40mm x 56/81mm
Speed Control: Velineon® VXL-6s
Motor (electric): 2200kV
Transmission: Direct-drive with Torque-Biasing Center Drive
Overall Drive Ratio: 17.89:1
Front Differential Type: Sealed, 4-gear
Rear Differential Type: Locked spool
Center Differential Type: Sealed, 4-gear (1M weight oil)
Chassis Structure / Material: Inverted composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Dual bellcranks with ball bearings
Radio System: TQi™ 2-channel transmitter with 6533 TSM receiver
Servo: 2075R Metal Gear
Top Speed (stock gearing): 4s LiPo – 30+ mph, 6s LiPo – 50+ mph
Skill Level: 5
Battery Compartment: 181mm x 46mm x 56mm

Motor Specifications:

Type: Sensorless brushless
Weight: 14.32oz (406g)
Length: 2.97 inches (75.5mm)
Diameter: 1.65 inches (41.8mm)
Connector Type: Traxxas 6.5mm bullet connectors
ESC Specifications:Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
Case Size: 2.28” (58mm) x 2.83” (72mm) x 1.81” (46mm)
Weight: 7.30oz (207g)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Reverse Delay: Yes, with lockout
Low Voltage Detection (LVD): Yes, programmable
Ports: RX Input, Auxiliary Fan, Traxxas Accessory Port

Manuals:

TRA85086-Manual-English

TRA85086-Manual-Spanish

TRA85086-Parts-List-English
