TRA82076-4ORG TRAXXAS 1/10 TRX-4 1979 CHEVROLET BLAZER ORANGE

TRA82076-4ORG TRAXXAS 1/10 TRX-4 1979 CHEVROLET BLAZER ORANGE

Note: Graves RC Coupons are not applicable with this product



FEATURES LIST:

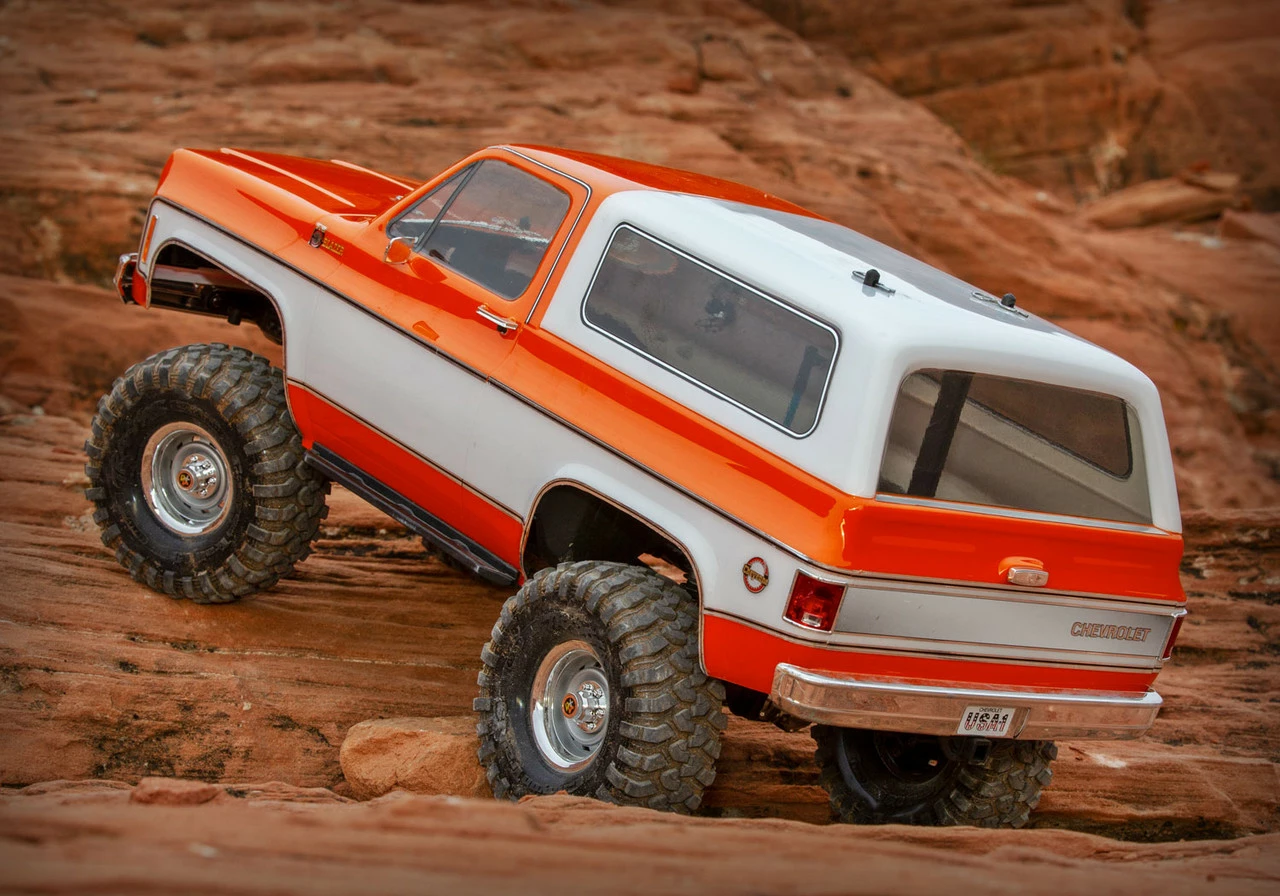

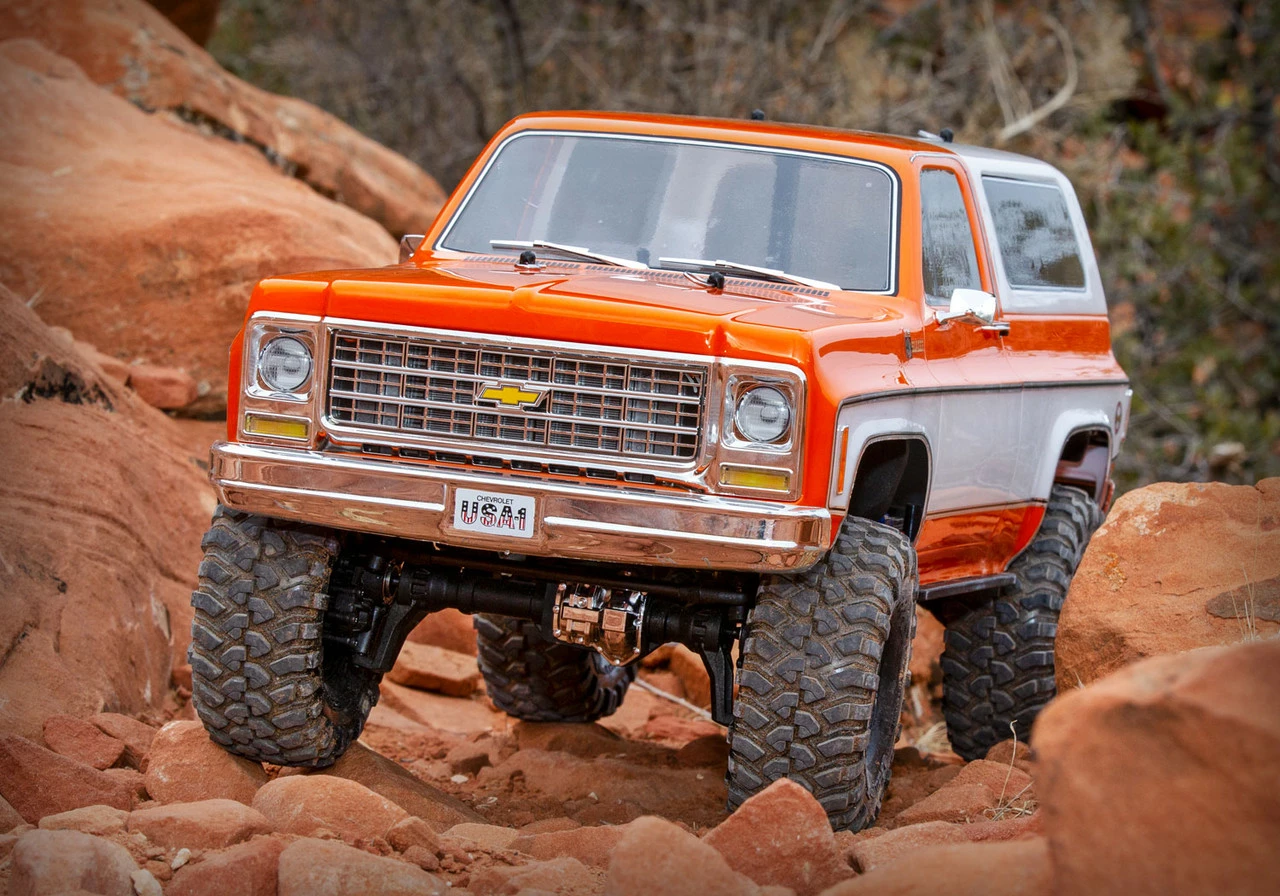

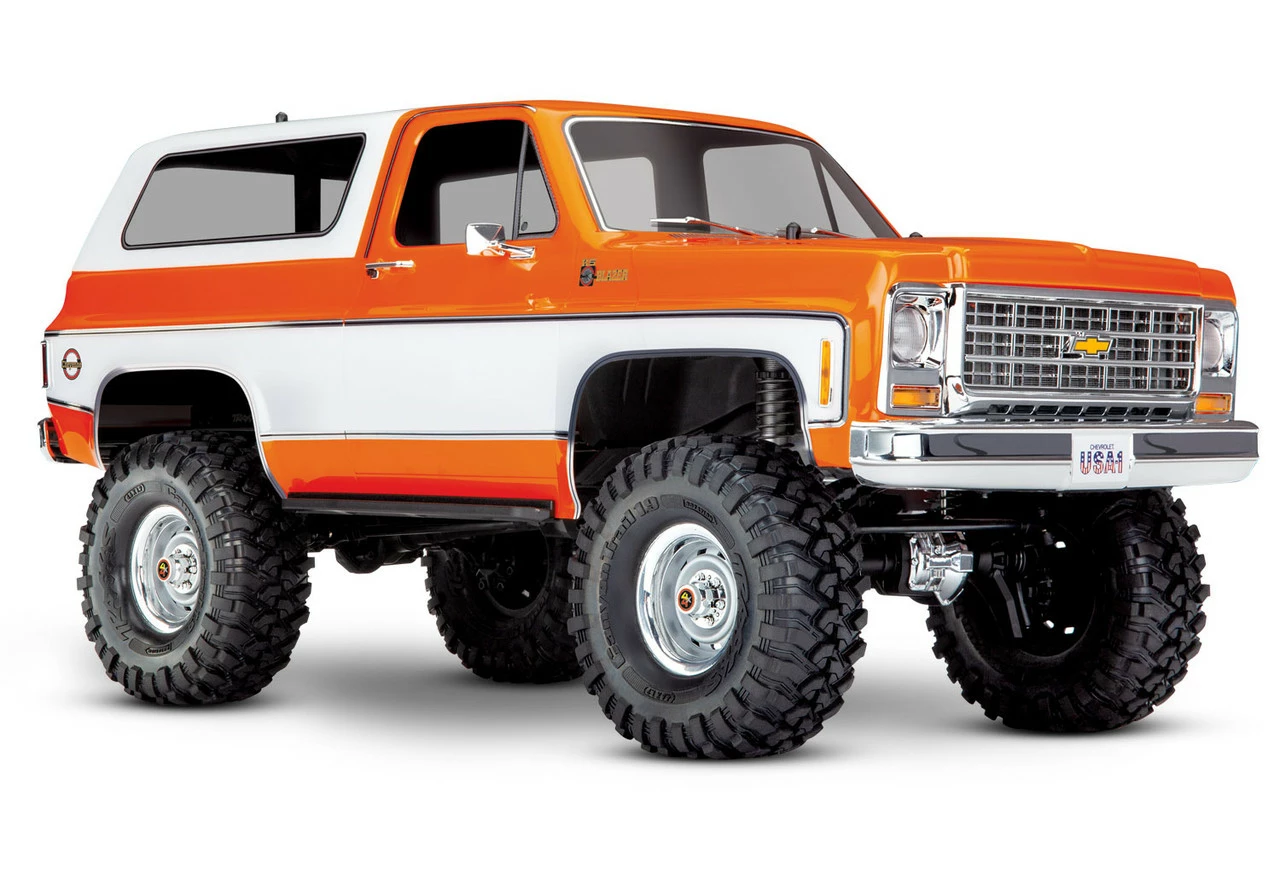

• Custom-Painted Chevrolet Blazer Body
• Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
• LED-ready headlights and tail lights
• Tinted windows
• Authentic decal sheet
• Full Nylon composite wheel wells and floor pans
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five drive profiles
• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
• Two stage low voltage protection (LVD)
• Motor
• Powerful Titan™ 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

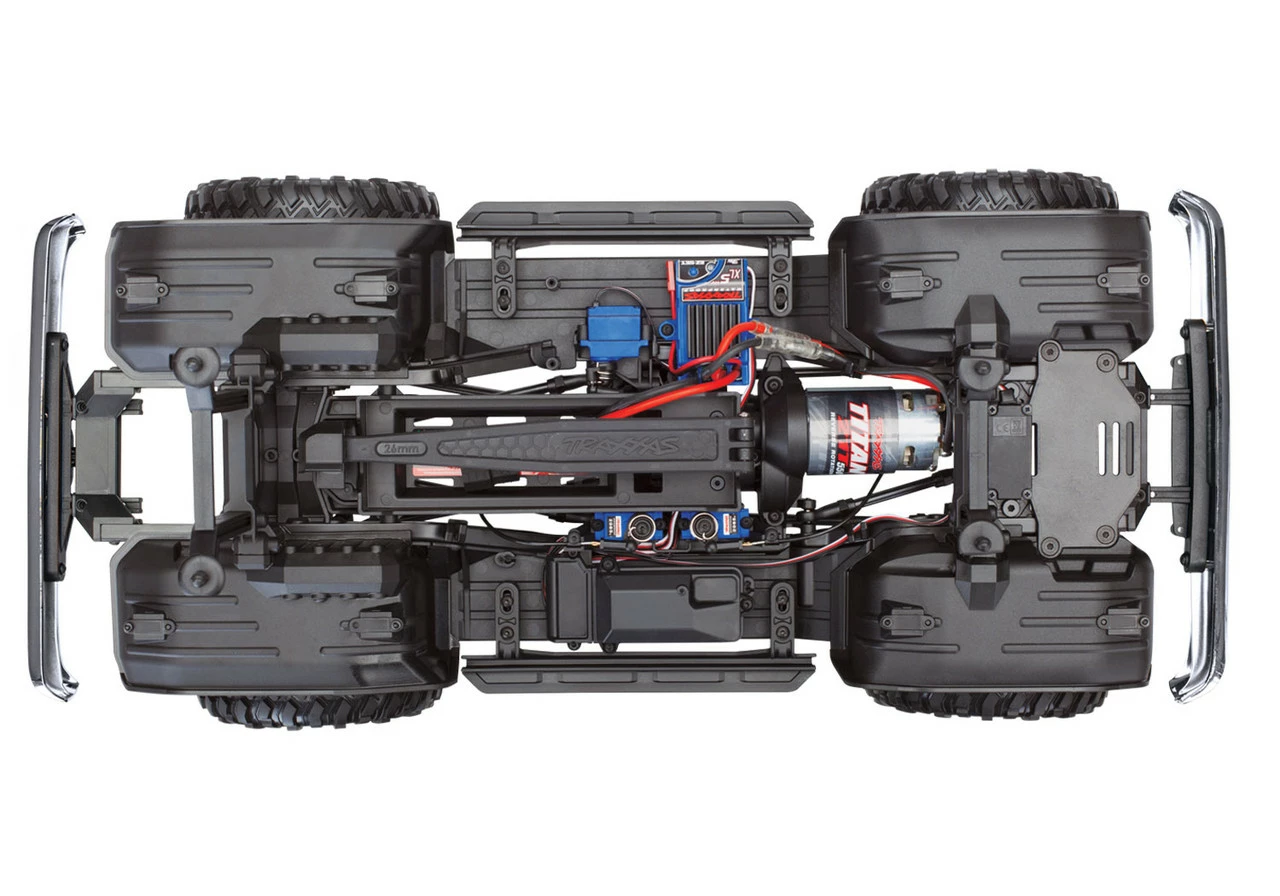

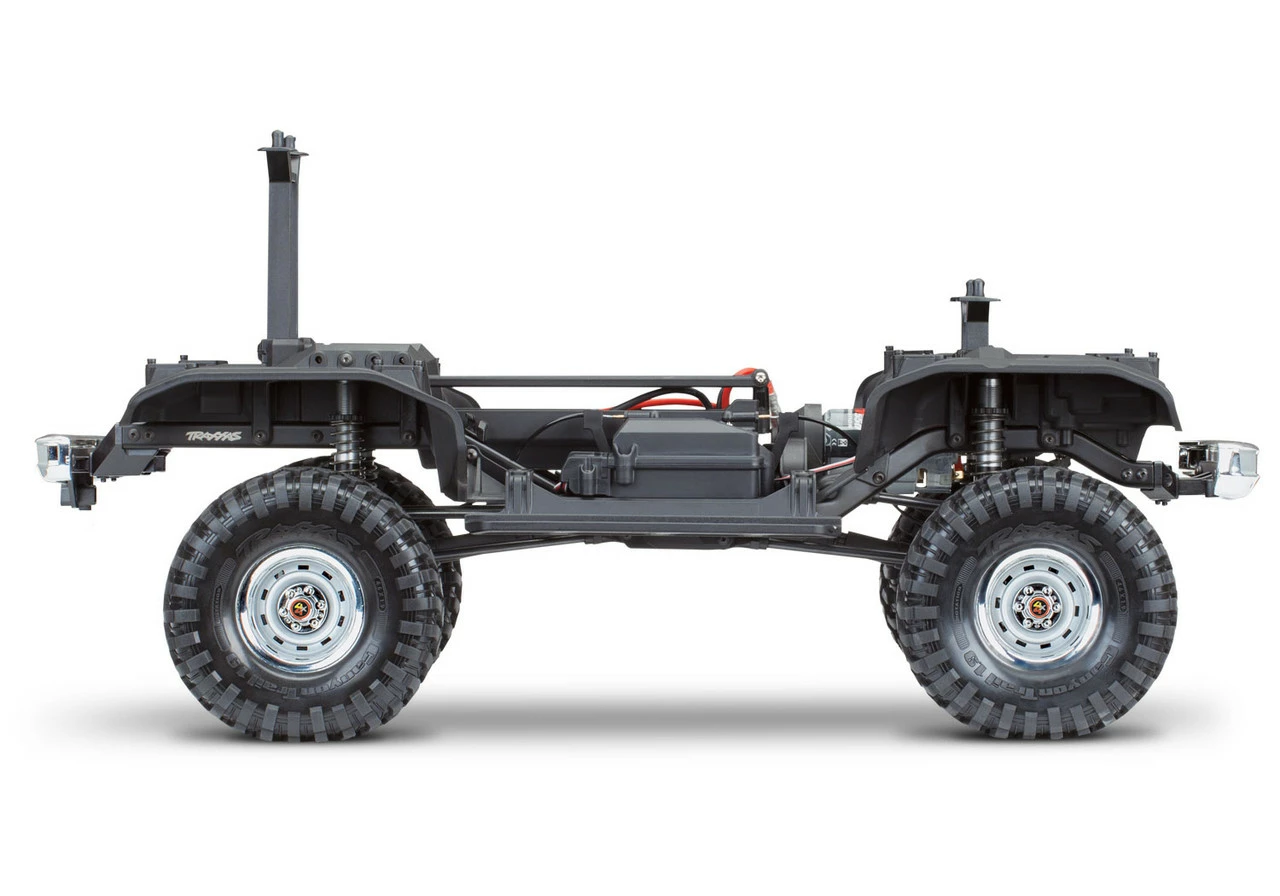

• Rigid Steel Frame
• 1.5mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Drivetrain
• Full-time shaft driven 4-wheel drive
• Tough 6mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing
• Steering
• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

• Suspension
• Front — 3 link with panhard
• Rear — Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5mm diameter steel link rods with 4mm threaded ends
• Aluminum GTS Shocks
• Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals
• Wheels and Tires
• Replica chrome Rally wheels with hub inserts
• Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12mm steel hex
• Transmitter
• TQi™ 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry ready #6533 5-channel micro receiver with failsafe
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near-zero latency for responsive control
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

What’s In The Box:

• TRX-4, Ready-To-Race® model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQi™ 2.4GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need:

• Batteries

TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.

• Charger

Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).

• AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.



VEHICLE SPECS:



Length:	20.62 inches (524mm)
Front Track:	9.78 inches (249mm)
Rear Track:	9.78 inches (249mm)
Ground Clearance:	3.14 inches (80mm)
Weight:	6.26lb (2.84kg)
Height (overall):	10.05 inches (255mm)
Wheelbase:	12.28 inches (312mm)
Approach Angle:	59°
Departure Angle:	47°
Breakover Angle:	59°
Front Shock Length:	3.54 inches (90mm)
Rear Shock Length:	3.54 inches (90mm)
Front Wheels:	1.9 x 1.02 inches (49 x 26mm)
Rear Wheels:	1.9 x 1.02 inches (49 x 26mm)
Front Tires:	4.64 x 1.89 inches (118 x 48mm)
Rear Tires:	4.64 x 1.89 inches (118 x 48mm)



Hex Size:	12mm
Speed Control:	XL-5 HV
Motor (electric):	21T Reverse Rotation
Transmission:	2-speed Hi-Lo, Remote Shifting
Gear Pitch:	32P
Differential Type:	4 Gear, Remote Locking
Chassis Structure / Material:	Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type:	Electronic “Hill Hold”
Drive System:	Shaft Driven 4WD
Steering:	Chassis Mounted Servo
Servo:	2075X Metal Gear
Transmitter:	TQi™ 2.4 GHz 4-Channel Transmitter
Receiver:	6533
Skill Level:	2
Battery Tray:	158.75 L x 47 W x 23/26mm H

MOTOR SPECS:

Type:	High-torque brushed motor
Size:	550
Weight:	390g (13.76oz)
Length:	3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
Turns:	21T reverse rotation
Voltage:	16.8V

ESC SPECS:

Input Voltage:	6–7 Cells NiMH, 2–3s LiPo
Case Size:	1.23” W x 2.18” D x 1.04” H
Weight:	2.6oz (74g)
Motor Limit:	21-turns (550 size)
On Resistance Forward:	0.004 Ohms
On Resistance Reverse:	0.004 Ohms
Peak Current – Forward:	100A
Peak Current – Reverse:	100A
Braking Current:	60A
Continuous Current:	18A
BEC Voltage:	6.0 VDC
BEC Current:	1A
Power Wire:	14 Gauge / 5”
Input Harness Wire:	26 Gauge / 14.5”

Manuals:

TRA82076-4-Manual-English

TRA82076-4-Parts-List-English
