TRA82010-4 TRAXXAS TRX-4 SPORT KIT

TRA82010-4 TRAXXAS TRX-4 SPORT KIT

Note: Graves RC Coupons are not applicable with this product



TRX-4 SPORT KIT FEATURES:

• Easy to follow full-color assembly manual
• True-to-scale part illustrations and ruler charts
• Helpful assembly tips and clear illustrations

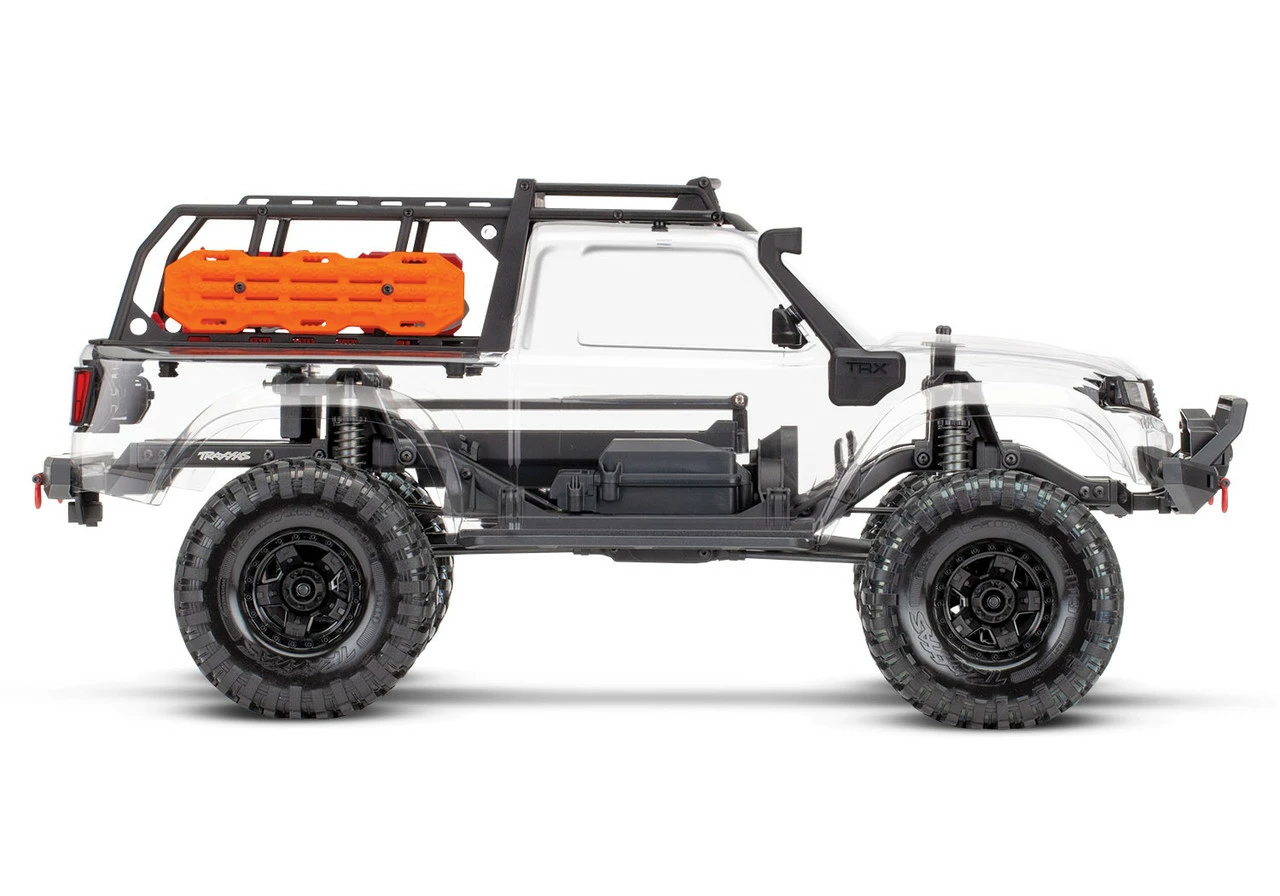

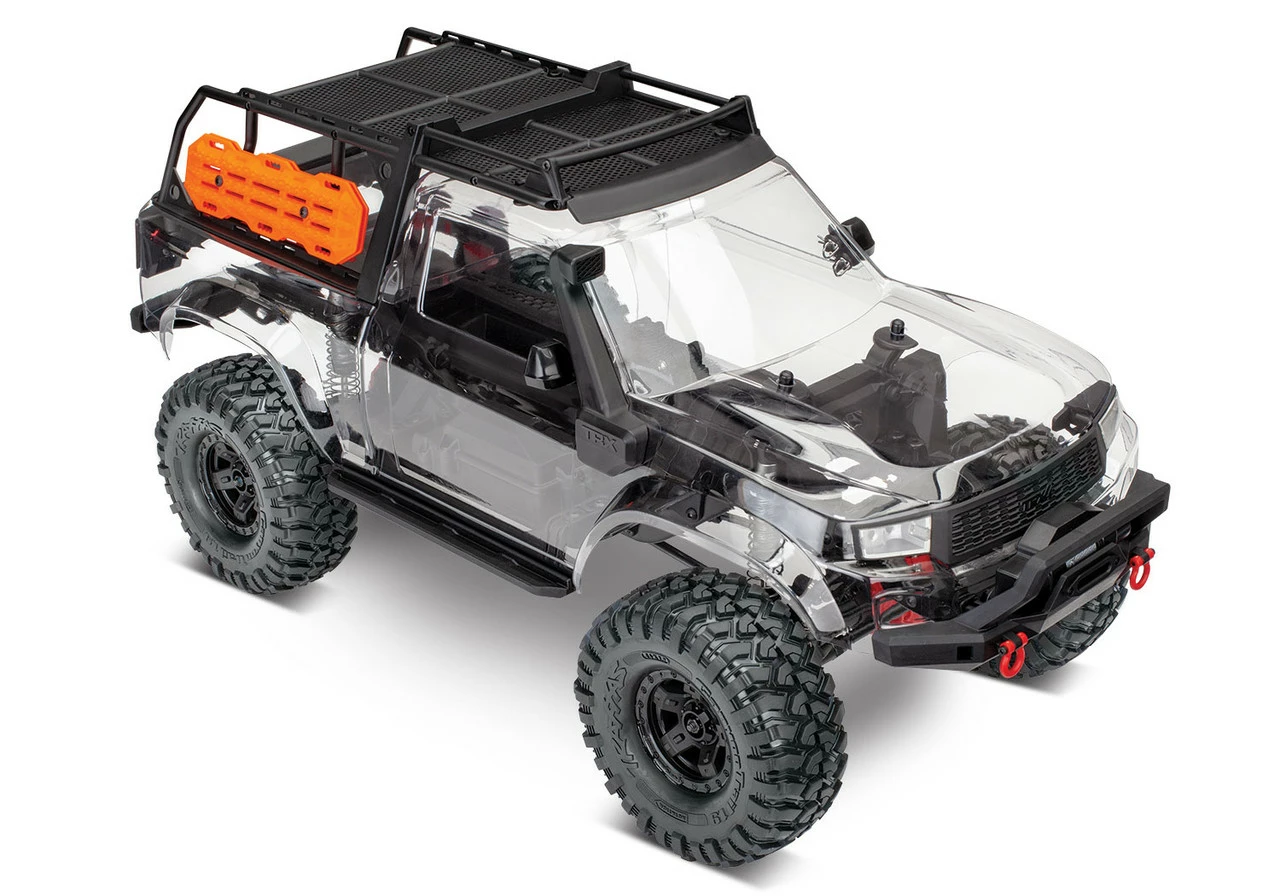

• Clear TRX-4 Sport body
• Body comes pre-cut and ready to mount
• Includes window masking and decals
• Includes Expedition Rack with scale accessories
• Front grille and rear tail gate with lenses for LED lights
• Rugged front and rear bumpers with red D-rings
• (Requires polycarbonate paint)
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

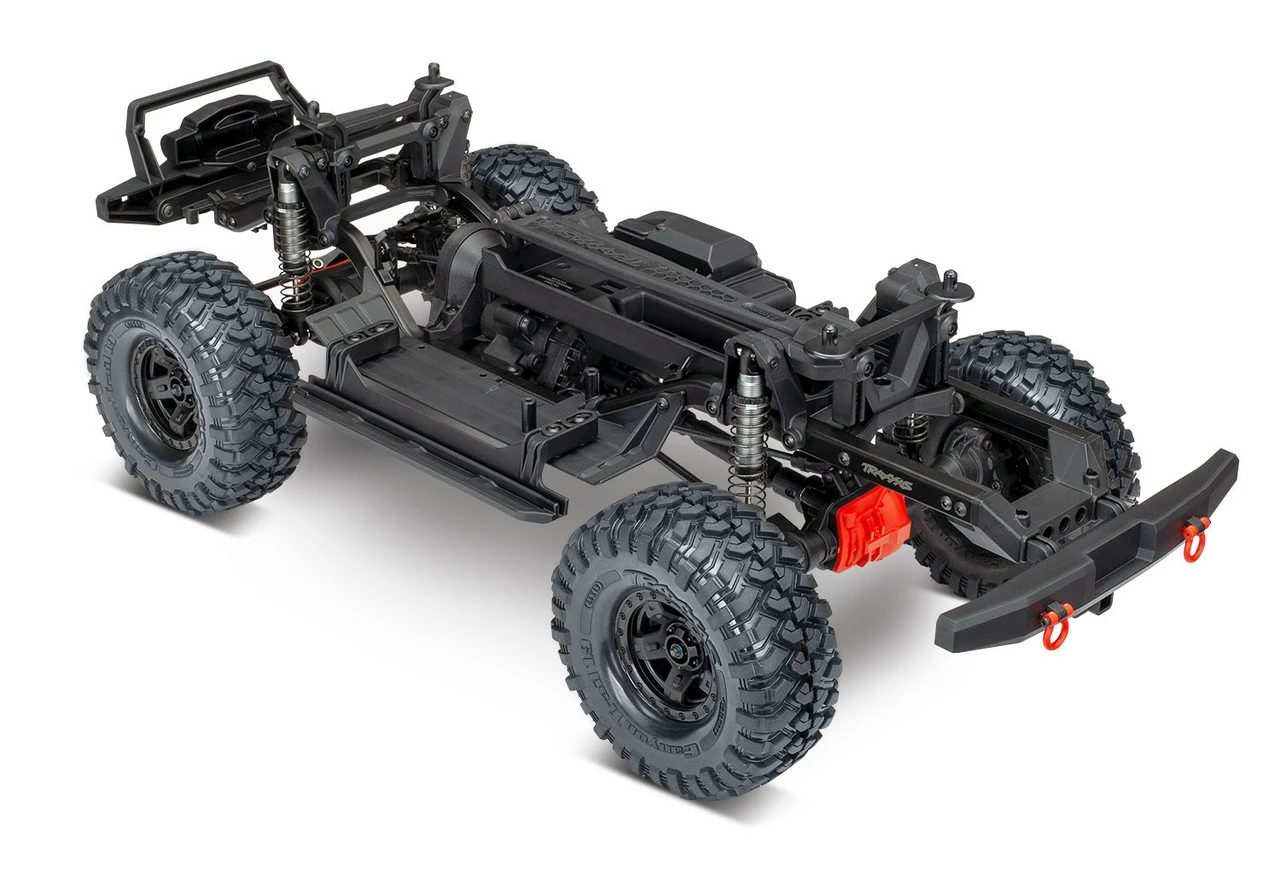

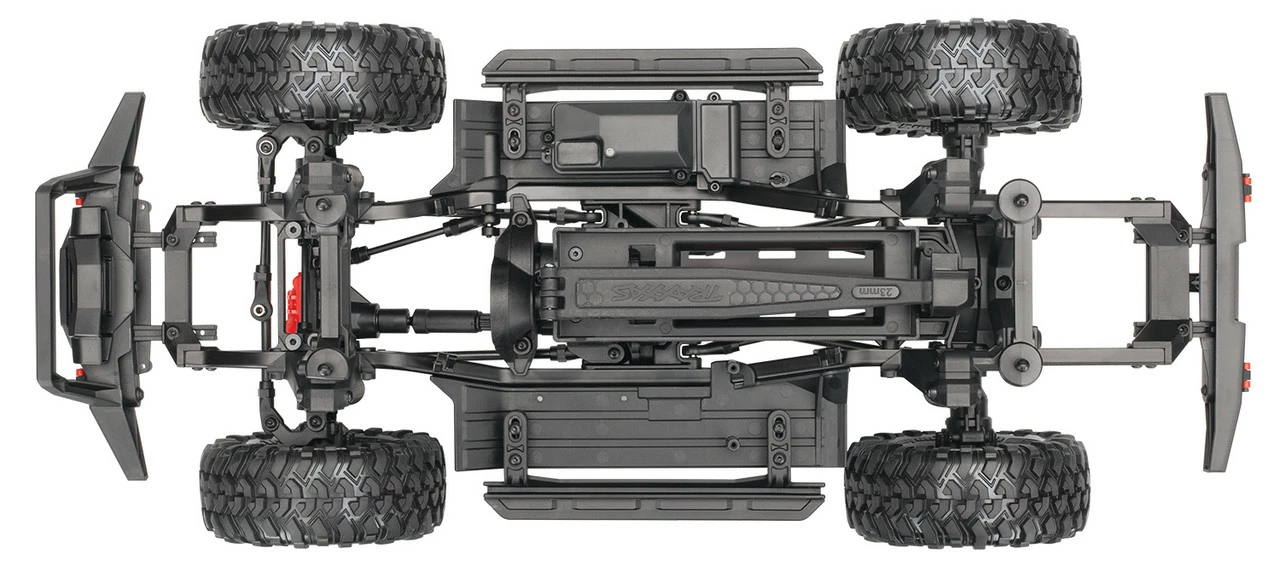

• Rigid Steel Frame
• 1.5mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300mm, 312mm (standard), 324mm, 336mm)
• Adjustable rear shock tower positions
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Drivetrain
• Full-time shaft driven 4-wheel drive
• Tough 6mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Steel gear transfer case
• Innovative Battery Compartments
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
• Single-speed with steel gears
• Twin friction plate slipper clutch
• Easily removed for servicing
• Steering
• Accepts standard size servos
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer
• Suspension
• Front — 3 link with panhard
• Rear — Triangulated 4 link
• Pre-assembled heavy-duty rod ends with steel hollow balls
• 5mm diameter steel link rods with 4mm threaded ends
• Pre-assembled aluminum GTS Shocks
• Coilover GTS shocks exclusive to TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals
• Shock oil included in kit
• Wheels and Tires
• 1.9” Canyon Trail tires with trail-tuned foam inserts
• Tough black scale wheels
• Trail tuned S1 rubber compound
• 12mm steel hex
• Tire glue required
• Patented O-Ring sealed watertight receiver box keeps micro receivers dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

TRX-4 SPORT KIT (#82010-4) SPECS

Length:   21.93 inches (557mm) Front Track:   9.78 inches (249mm) Rear Track:   9.78 inches (249mm) Ground Clearance:   3.14 inches (80mm) Weight:   5.79lb (2.63kg) (with electronics installed) Height:   9.47 inches (241mm) Wheelbase:   12.28 inches (312mm) Front Shock Length:   3.54 inches (90mm) Rear Shock Length:   3.54 inches (90mm) Approach Angle:   58.82° Departure Angle:   45.83° Breakover Angle:   58.93° Front Wheels:   1.9 x 1.02 inches (49 x 26mm) Rear Wheels:   1.9 x 1.02 inches (49 x 26mm) Front Tires:   4.64 x 1.89 inches (118 x 48mm) Rear Tires:   4.64 x 1.89 inches (118 x 48mm) Wheel Hex:   12mm Speed Control:   Sold separately Motor (electric):   Sold separately Differential Type:   Spool (no differential) Transmission:   Single speed Gear Pitch:   32 Chassis  Structure/Material:   Steel Ladder Frame with Nylon Composite Crossmembers Drive System:   Shaft-Driven 4WD Radio System:   Sold separately Skill Level:   2 Battery Tray:   158.75 L x 47 W x 23/26mm H

Manuals:

TRA82010-4-Manual-English

TRA82010-4-Parts-List-English
