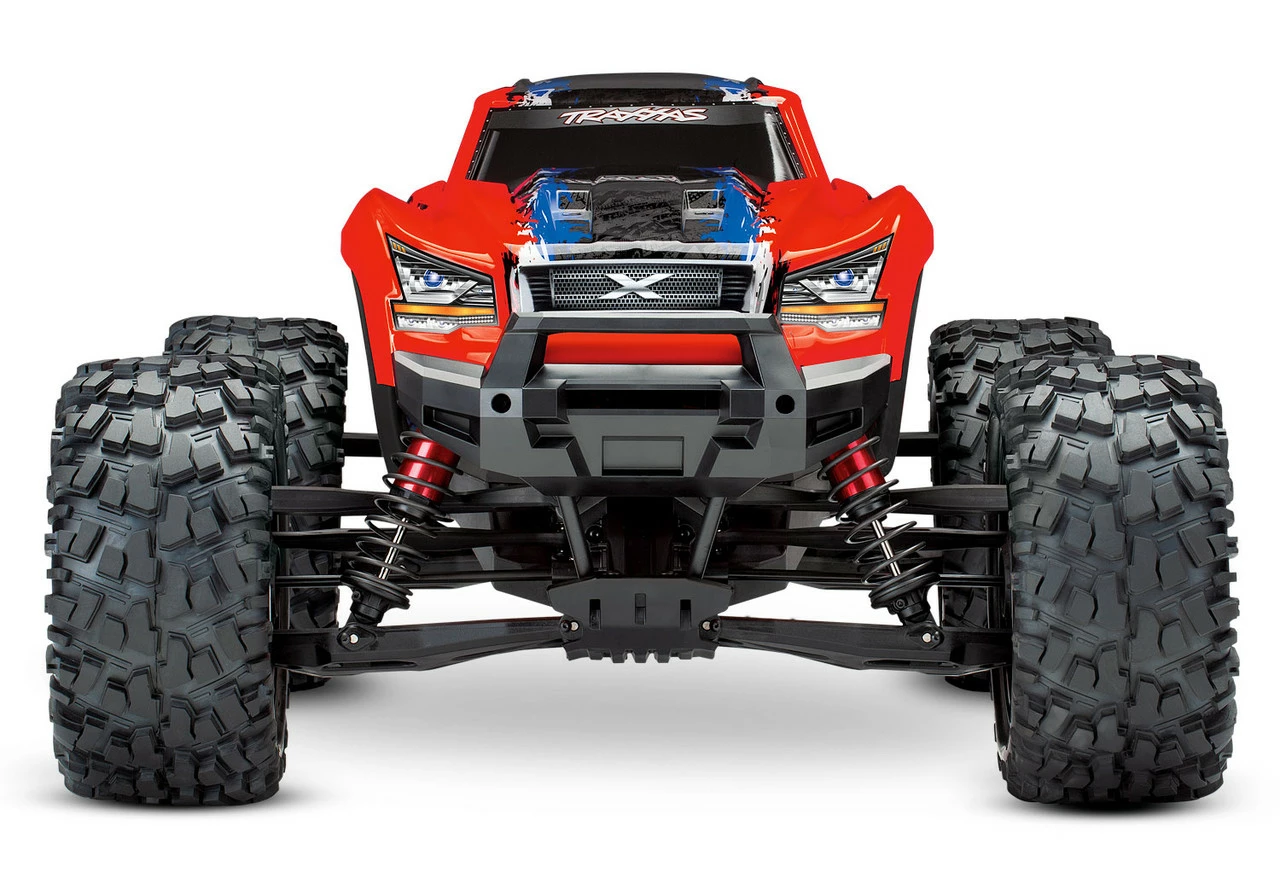

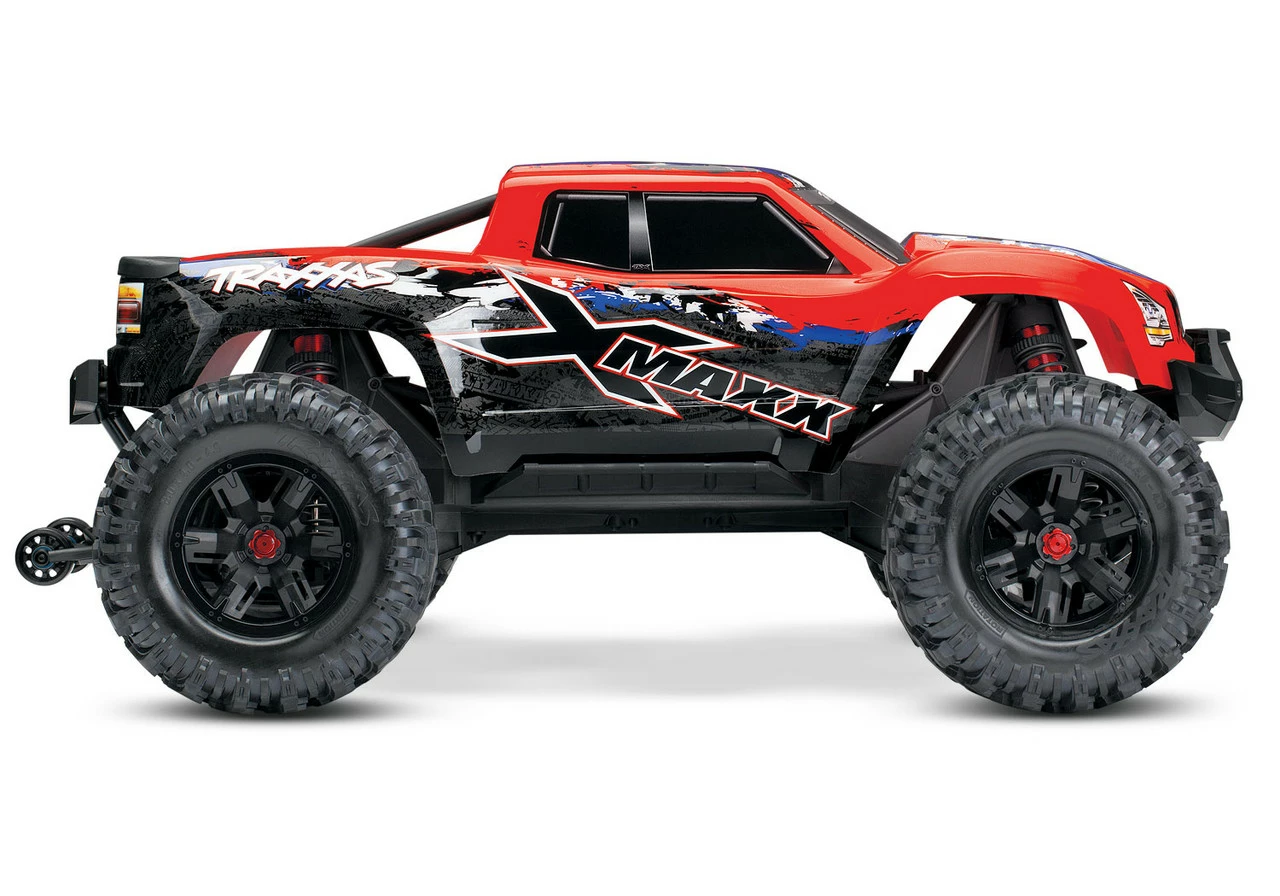

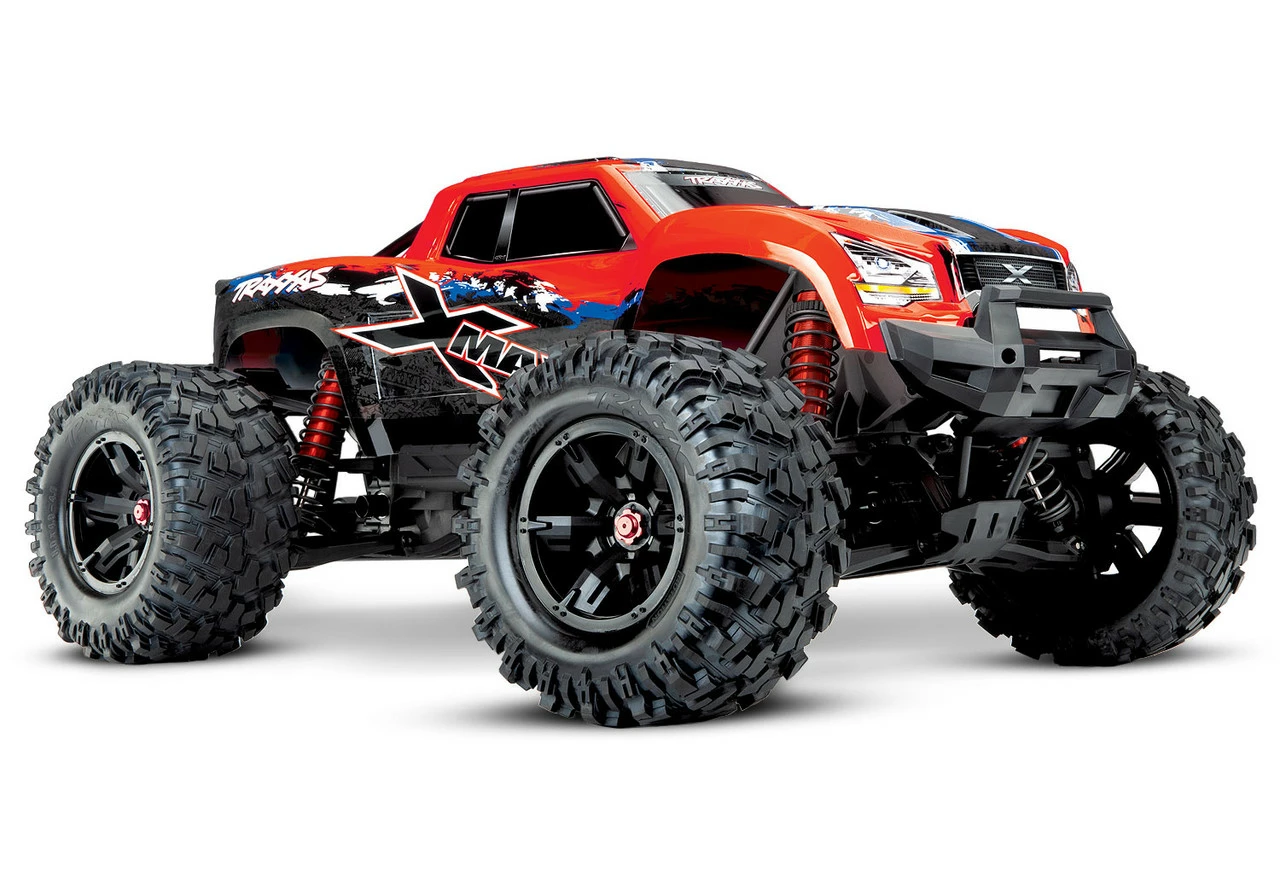

TRA77086-4REDX Traxxas X-Maxx 8S Monster Truck TSM 4WD RTR 29.8″ – RedX

TRA77086-4REDX Traxxas X-Maxx 8S Monster Truck TSM 4WD RTR 29.8″ – RedX

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

• Traxxas Stability Management (TSM): Superior tuning algorithms run on high-speed electronic components to control wheel spin and steering direction on loose dirt, concrete and even ice and snow. TSM can be fine tuned or turned off by adjusting the multi-function knob on the TQi transmitter or the slider in the Traxxas Link app
• Chassis: Composite nylon tub, modular design provides easy access to critical components, lower front and rear skids and integrated nerf bars for front, rear and side impact protection, rear wheelie bar. Drive Four wheel shaft drive, Max Duty drivetrain with new high- strength precision steel gears, new ring and pinions use a larger module and special alloys, new impact absorbing Cush Drive handles massive torque and replaces the slipper clutch new Torque-Biasing Center Drive with cast alloy construction is tuned for instant punch off the line, and improved front and rear
• power distribution
• Brushless Motor: Velineon 1200XL 1200kV, 0.196″ (5mm) diameter output, aluminum heat sink
• Motor Mount: Cradle design eliminates flexing, keyed pins lock gear mesh in place
• Radio: 2.4GHz TQi transmitter with 5-ch micro TSM telemetry ready receiver, BEC voltage and motor temperature sensors installed, self righting button, built-in fail safe, can be equipped with the TQi Docking Base along with the iPhone, iPad or iPod touch* to create a graphical user interface for the vehicle Traxxas Link TQi Wireless Module required (not included)
• Steering Servo: High-torque with aluminum heat sink, double shear
• bearing supported servo horn
• Electronic Speed Control: Velineon VXL-8s 8S LiPo compatible
• Transmission; Single speed
• Differentials: Sealed hardened steel bevel gear, oil filled, limitedslip
• Battery Retention System: Integrated into chassis top brace for greater rigidity, eliminates body clips or hook and loop straps, adjustable for different batteries
• Body: ProGraphix painted and trimmed
• Body Mount System: Quick one-hand body installation and removal, pivoting rear latch mechanism eliminates body posts and clips
• Suspension: Captured high-strength steel pins, double sheer connections, adjustable roll center
• Shocks: GTX aluminum bodied, oil-filled, integrated wiper seal keeps shafts clean reducing seal wear
• Shock Towers: Composite plastic construction, also serve as carrying handles and level supports when vehicle is placed upside down
• Tires: Aggressive all-terrain tread 8 x 4 x 4″ foam inserts
• Wheels: 3.4 x 5.7 inches (87 x 145mm), 17mm hexes
• Steering: Bellcrank
• Bumpers: Front and rear composite plastic with impact cushions behind each bumper to soften blows and add to durability
• Ball Bearings: Sealed, full contact
• Radio Box: Waterproof

INCLUDES

RTR X-Maxx 8S Truck with Brushless Motor, Radio, ESC, Painted Body, Quick Start Guide and Maintenance Tools

REQUIREMENTS

Batteries: Two 4S LiPo 5000mAh or greater
Battery Charger: Compatible with selected LiPo batteries
AA Cells: For for transmitter
LiPo Charging Bag

SPECIFICATIONS

Vehicle;
Length: 29.84″ (758mm)
Front Track: 22.26″ (540mm)
Rear Track: 20.66″ (525mm) distance from outer edges of wheels measured side-to-side
Ground Clearance: 4″ (102mm)
Weight: 19.1lbs (8.66kg)
Ride Height: 13.79″ (350mm)
Overall Drive Ratio: 8.24
Wheelbase: 18.92″ (480mm)
Shock Length: 7.4″ (187mm)
Battery Tray Dimensions: 7.7 x 2 x 1.7″ (197mm x 51.5mm x 44mm)
Body;
Length: 27.7″ (705mm)
Width: 9.2″ (234mm) behind front wheels, narrowest point 11″ (279mm) at rear wheels, widest point
Height: 7.1″ (180.3mm)

Manuals:

TRA77086-4-Manual-English

TRA77086-4-LED-Light-Kit-Installation-Instructions-English

TRA77086-4-Parts-List-English
