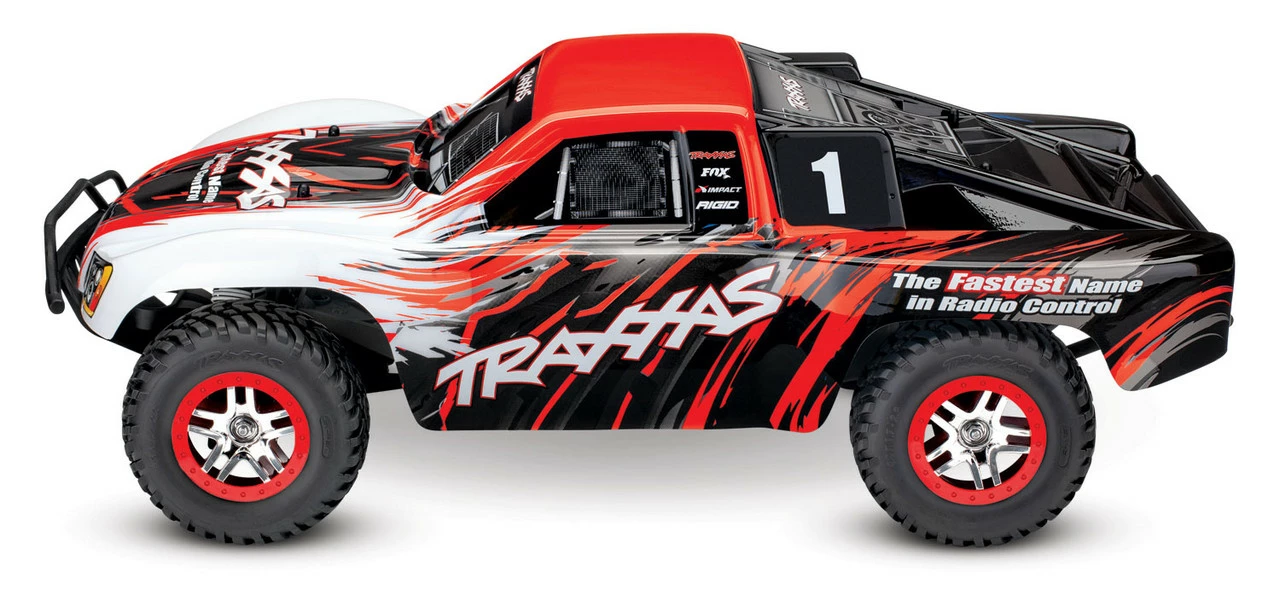

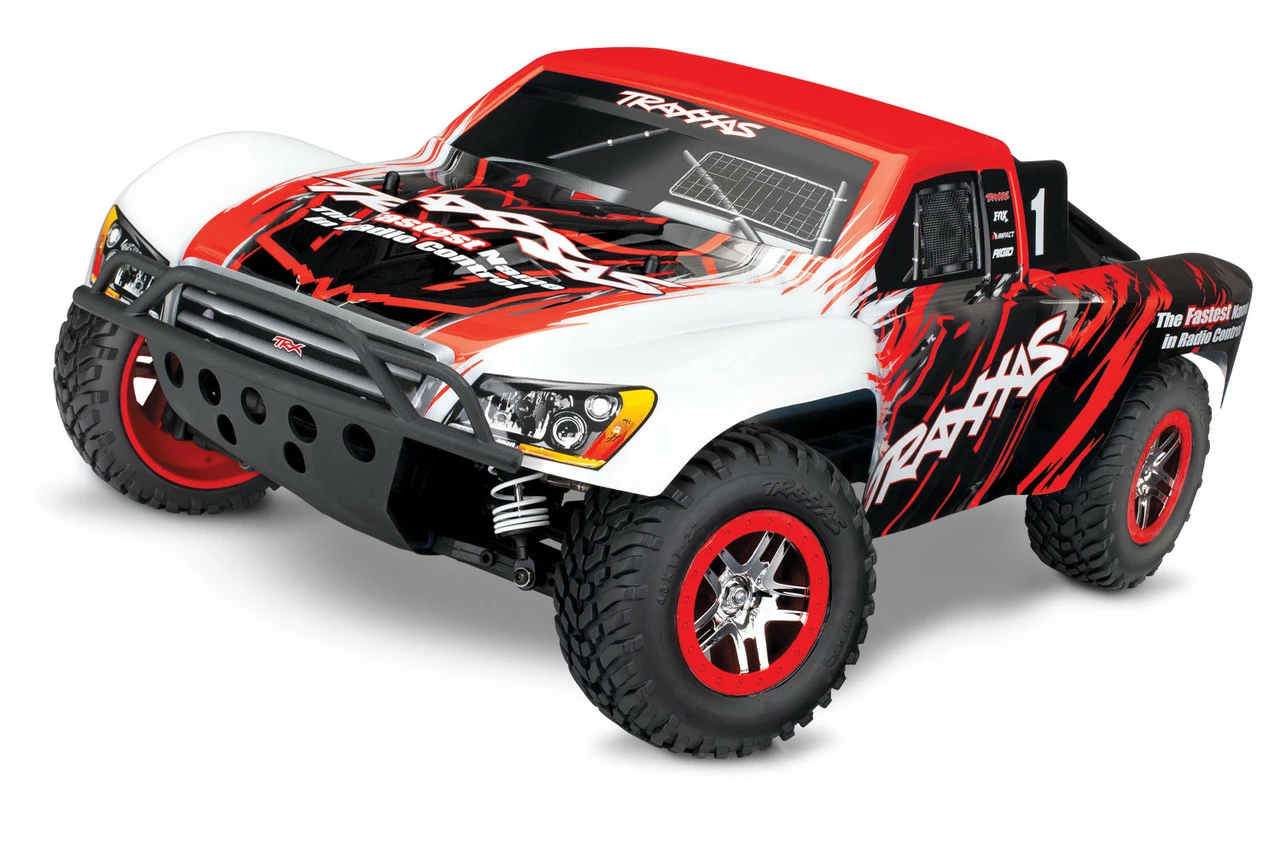

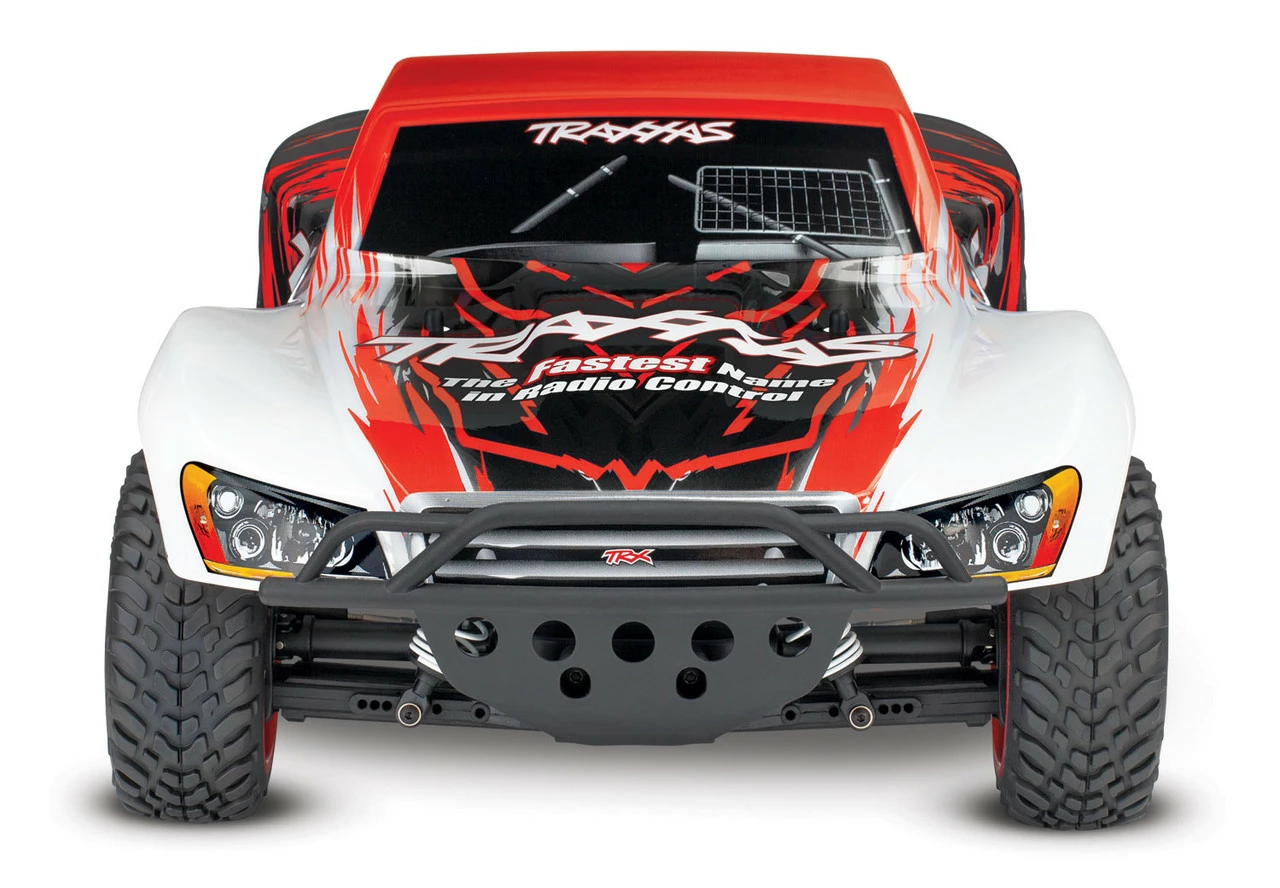

TRA68086-4RED TRAXXAS 1/10 Scale 4WD Brushless Short Course Slash VXL Truck – Red

TRA68086-4RED TRAXXAS 1/10 Scale 4WD Brushless Short Course Slash VXL Truck – Red

Note: Graves RC Coupons are not applicable with this product



Features:

• Traxxas Stability ManagementTM (TSM)
• Powered by the Velineon® Brushless Power System
• Slash 4X4 reaches speeds in excess of 60+mph!*
• Maxx® Cable 12-gauge wire
• Traxxas High-Current Connector (patented) allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow
• Velineon VXL-3s Electronic Speed Control
  • LiPo and NiMH compatible with two-stage low-voltage detection
  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• Velineon 3500 Brushless Motor
  • Consistent, high-power output, run after run
  • Low-maintenance, unique Traxxas design
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
• TQi 2.4GHz transmitter
  • Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App capability Traxxas Link is designed for use with Android 4.4 and up or iOS 4.3 and later.
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533), fail-safe security and integrated telemetry ports
• Durable steel turnbuckles and captured rod ends
• Single-screw motor access makes gear-mesh adjustments fast and easy and the motor can be removed in just seconds
• Modular simplicity, fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated Personal Transponder Mount
• Versatile battery compartment easily adapts to multiple styles of batteries; 6 or 7-cell NiMh battery packs and various configurations of Lithium Polymer packs are no problem for Slash 4X4
• Digital high-torque Traxxas #2075 waterproof steering servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials
• Torque-Control™ slipper clutch system
• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• Scale all-terrain front and rear tires offer superior on- and off-road traction
• Pre-glued all-terrain tires with high-performance foam inserts
• ProGraphix® painted race replica bodies
• Full line of genuine Traxxas accessories available
• Slash 4X4 is backed by unparalleled Traxxas support and parts availability



Specifications:

SLASH 4X4 (#68086-4) SPECS

Length:   22.36 inches (568 mm) Front Track:   11.65 inches (296 mm) Rear Track:   11.65 inches (296 mm) Center Ground Clearance:   2.83 inches (72 mm) Weight:   93.1 ounces (2.64 kg) Height (overall):   7.60 inches (193 mm) Wheelbase:   12.75 inches (324 mm) Shock Length:   Long (front), XXLong (rear) Tires:   Traxxas 2.2 inch pre-glued with foam inserts Tire Diameter:   4.31 inches (109.5 mm) (front and rear) Wheels (front/rear):   2.2 inch Split-Spoke, black or red beadlock Wheel Diameter:   2.2 inches (56 mm) outer 3.0 inches (76 mm) inner Speed Control Type:   VXL-3s™ Electronic Speed Control Motor (electric):   Velineon® 3500 brushless Overall Drive Ratio:   11.82 (stock, out-of-box) Differential Type:   Hardened steel bevel, sealed, limited slip Gear Pitch:   32 Chassis Structure/Material:   Molded tub / Nylon composite Drive System:   Shaft-driven, direct drive 4WD Steering:   Dual-bellcrank with integrated servo saver Radio System (transmitter) ­ TQi™ 2.4GHz (2-channel) Radio System (receiver) ­ Traxxas Stability Management™ (#6533) Top Speed:   60+mph* Skill Level:   1 Battery Tray Dimensions:**   165 mm x 49.5 mm x 23 mm, 25 mm Required Items:   NiMH or LiPo battery, charger, 4 “AA” batteries (for transmitter)



VXL-3s WATERPROOF ESC SPECIFICATIONS

Input Voltage:   NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC) Case Size:   39 mm x 55 mm x 33 mm Weight:   90 grams Motor Limit (Brushless):   No motor limit On Resistance Forward:   0.00075 Ohms On Resistance Reverse:   0.00075 Ohms BEC Voltage:   6.0 V BEC Current:   2.5A Power Wire:   12-Gauge Maxx® Cable Input Harness Wire:   26 Gauge / 100 mm Low Voltage Detection:   2-stage indicators, switchable (on or off) Thermal Protection:   2-stage thermal shutdown Profile selection:   Sport Mode:     100% FWD, 100% BRAKES, 100% REV Race Mode:     100% FWD, 100% BRAKES, NO REV Training Mode:*     50% FWD, 100% BRAKES, 50% REV Single-Button Setup:   Yes, Traxxas EZ-Set® Battery Input Connector :   Traxxas High-Current Connector Motor Types :   Brushless Ports:   RX input, auxiliary fan
