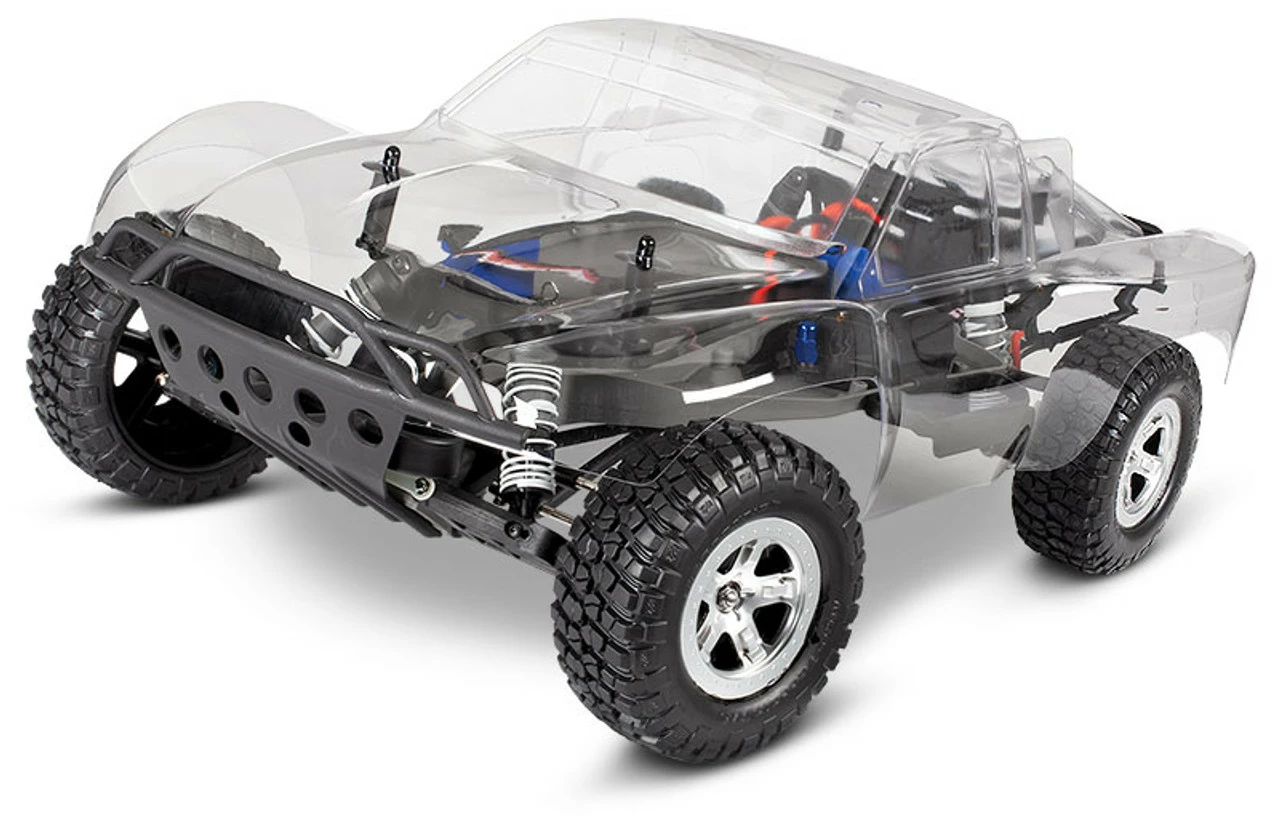

TRA58014-4 Traxxas 1/10 Scale Slash 2WD Short Course Racing Truck Kit

TRA58014-4 Traxxas 1/10 Scale Slash 2WD Short Course Racing Truck Kit

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



Features:

• Clear ProGraphix^® pre-cut body
• Includes window masking, decals, and custom masking decals
• Scale dimensions and looks of actual short course off-road race trucks
• The Slash reaches speeds in excess of 30mph using the included optional 23-tooth pinion gear and accessory 7-cell Power Cell battery (sold separately)*
• Powerful Titan^® 12T 550 modified motor with internal cooling fan
• TQ 2.4GHz Radio System
• Race in dirt, mud, water, and snow thanks to Traxxas’ innovative water-sealed electronics
• XL-5 Waterproof Electronic Speed Control
  • Innovative watersealed design
  • Forward/reverse/brake
  • EZ-Set^® push-button setup
  • Thermal shutdown protection
  • LiPo and NiMH compatible with two-stage low-voltage detection
  • Three easy-to-program drive profiles
  • Equipped with Traxxas High-Current Connectors (patented)
  • Backed by the Traxxas Lifetime Electronics Warranty
• Digital high-torque waterproof steering servo
• O-ring sealed watertight receiver box keeps the micro receiver dry
• Long-wheelbase fiber-composite monocoque chassis
  • 13.2 inch wheelbase
  • Over 3.5-inches of ground clearance
• Easy access battery compartment
• Adjustable battery hold down accepts 6- and 7-cell flat packs and 7-cell hump packs (sold separately)
• Chassis nerf bars absorb impact and support the body
• Scale front and rear tube-style bumpers
• Sturdy body mounts incorporate reinforced washers for additional body support
• Efficient Magnum 272™ metal-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable composite planetary gear differential with a steel ring gear
• Heavy-duty telescoping U-joint driveshafts and yokes
• Adjustable steel turnbuckles and captured rod ends
• Precision hex hardware throughout
• Efficient rubber-sealed ball bearings
• Fully adjustable Ultra Shocks™ with X-ring technology
• Progressive rate white powder coated shock springs with race-tuned responsive spring rate
• Licensed BFGoodrich Mud Terrain T/A tires for superior on- and off-road traction
• Includes performance foam inserts and satin chrome 5-spoke wheels

Includes:

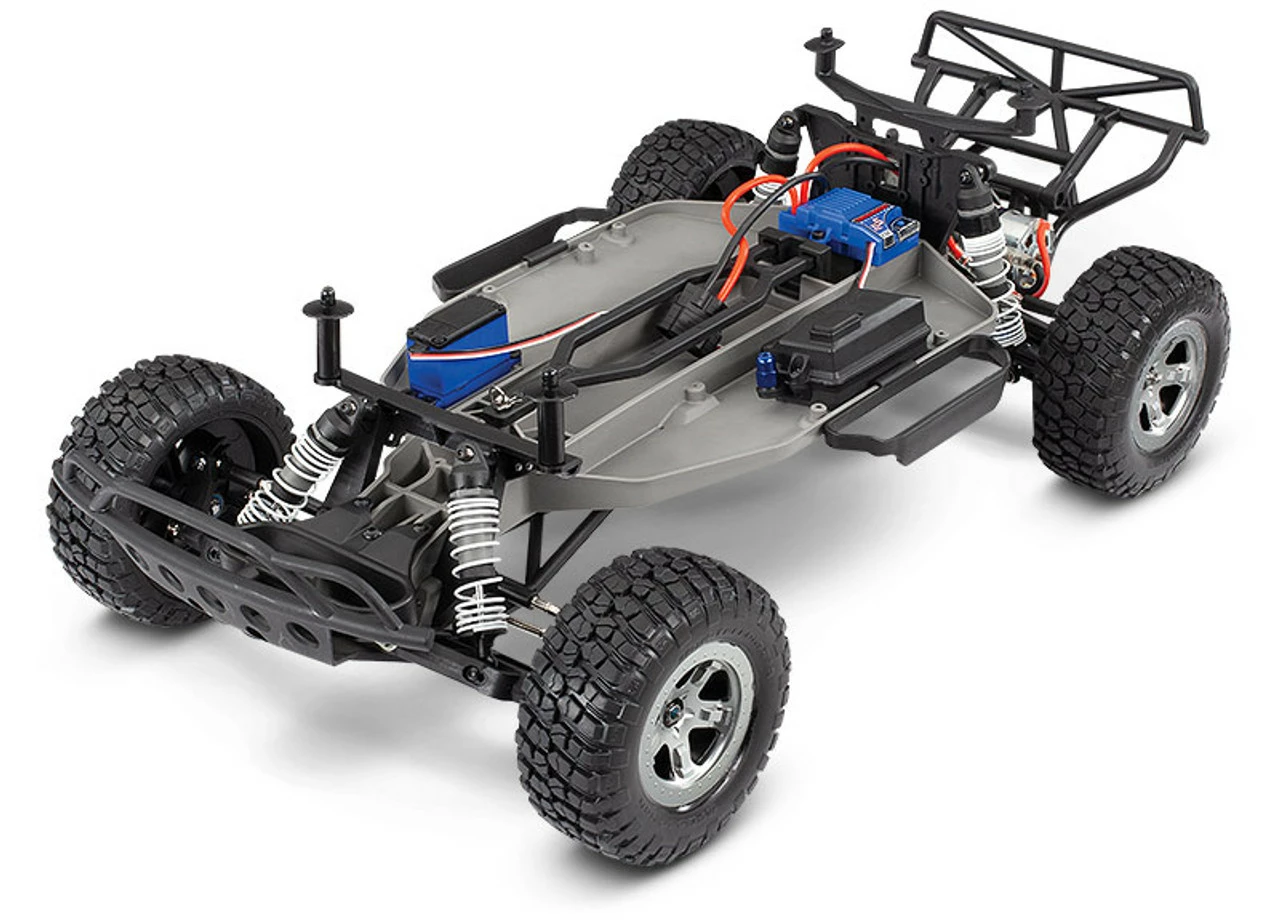

• Unassembled Slash 2WD chassis
• TQ™ 2.4GHz radio system
• Waterproof XL-5™ electronic speed control
• Titan^® 12-Turn 550 motor
• Waterproof high-torque steering servo
• BFGoodrich Mud-Terrain T/A tires with foam inserts, mounted on satin chrome 5-spoke wheels
• Pre-cut clear Slash body with decals and window masking
• Includes custom masking decals for unique paint designs
• Full-color step-by-step assembly manual

Requires:

• Battery with Traxxas High-Current Connector
• 6 or 7 cell NiMH battery pack
• 2s LiPo battery pack
• Battery charger
• Metric hex drivers
• 1.5 mm, 2.0 mm, 2.5 mm
• Basic hand tools
• Screwdrivers, needle nose pliers
• Safety glasses
• Polycarbonate paint

Specifiations:

Length	­	22.36 inches (568 mm)
Front Track	­	11.65 inches (296 mm)
Rear Track	­	11.65 inches (296 mm)
Weight	­	76.2 ounces (2.16 kg)
Height (overall)	­	8.43 inches (214 mm)
Wheelbase	­	13.2 inches (335 mm)
Front Shock Length	­	Long
Rear Shock Length	­	XX-Long
Front Tires	­	BFGoodrich Mud-Terrain T/A
Rear Tires	­	BFGoodrich Mud-Terrain T/A
Front Wheels	­	2.2″ Satin-Finish
Rear Wheels	­	2.2″ Satin-Finish
Speed Control Type	­	Waterproof XL-5 ESC with low-voltage detection
Motor (electric)	­	Titan® 12T 550 (12-turn)
Gear Ratio (internal)	­	2.72 (final drive: 12.58)
Differential Type	­	Steel Composite Planetary
Gear Pitch	­	48-Pitch
Transmission	­	Metal Gear Magnum 272™
Steering	­	Bellcrank
Chassis Type	­	Modified Tub
Chassis Material	­	Composite Nylon
Center Ground Clearance	­	3.5 inches (89 mm)
Top Speed	­	30+mph**
Skill Level	­	1
Radio System	­	TQ™ 2.4GHz Radio System (2-channel)
*Battery Tray Dimensions:	­	165 mm x 49.5 mm x 23 mm, 25 mm
Required Batteries	­	4 “AA” (transmitter), Traxxas Power Cell Battery (7-cell NiMH or 2-cell LiPo)

Manuals:

TRA58014-4-Manual-English
