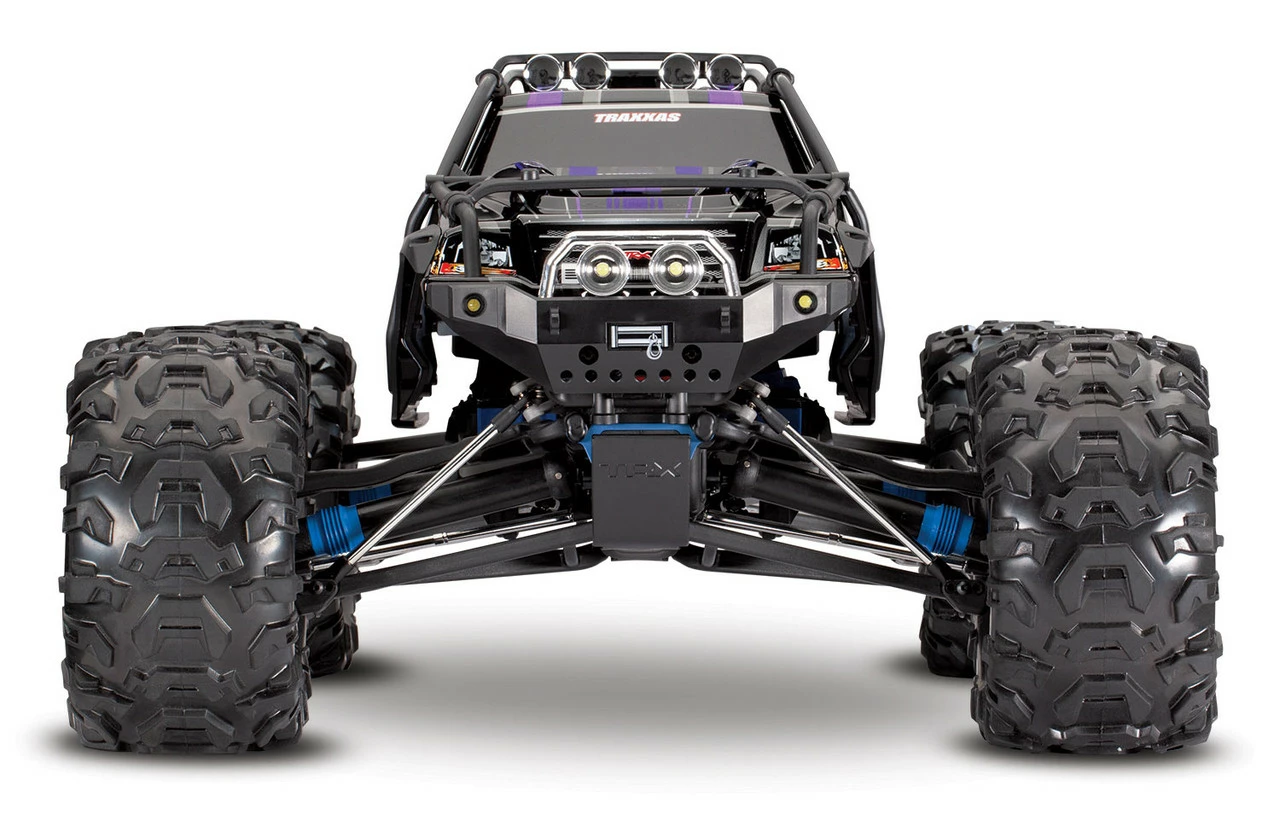

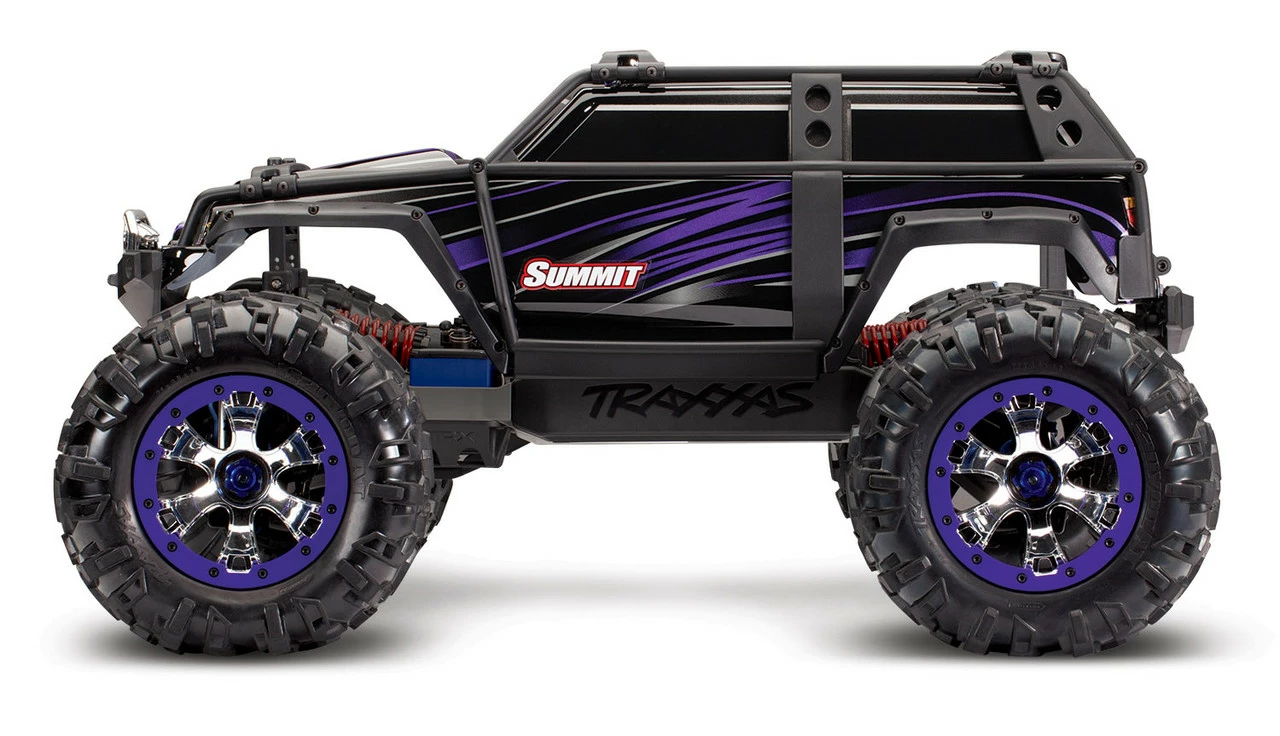

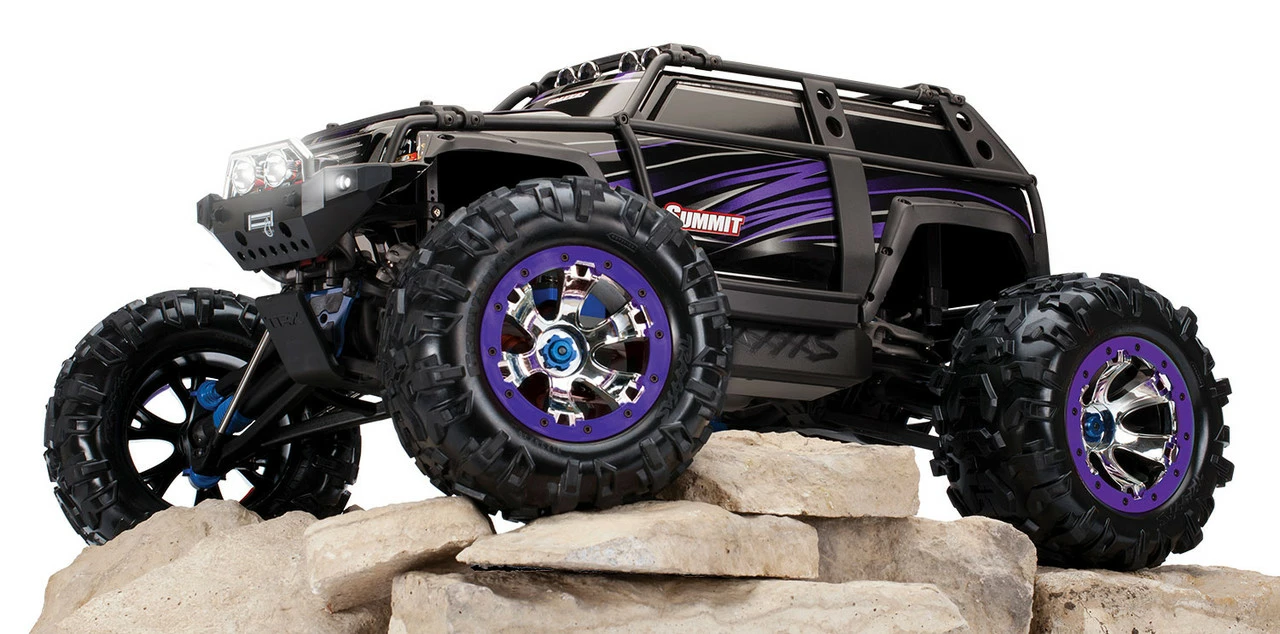

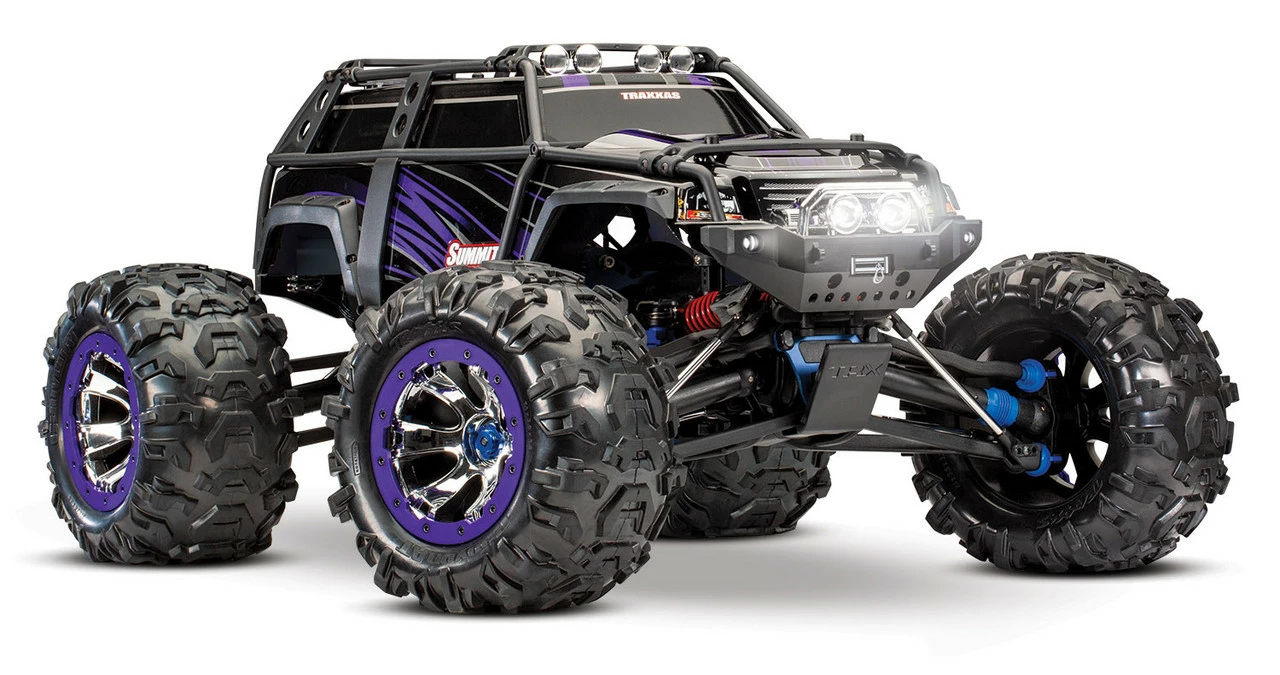

TRA56076-4PRPL TRAXXAS 1/10 Scale 4WD Extreme Terrain Monster Truck – Purple

TRA56076-4PRPL TRAXXAS 1/10 Scale 4WD Extreme Terrain Monster Truck – Purple

Note: Graves RC Coupons are not applicable with this product

Features:

• Waterproof electronics for running in water, mud, and snow
• EVX-2™ 16.8-volt FWD/REV electronic speed control
  • EZ-Set® single button programming
  • LiPo and NiMH compatible with two-stage Low-Voltage Detection
  • Three selectable drive profiles: Sport Mode, Race Mode, and Training Mode

    Three selectable drive profiles: Sport Mode, Race Mode, and Training Mode

  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• Traxxas high-torque Titan® 775 motor
•  TQi 2.4GHz 4-channel transmitter
  • Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App capability with Android, iPhone, iPad or iPod touch (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required.
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
• Innovative T-Lock™ remote locking differentials let you select front and rear locked diffs, front locked diff, or full open differentials via the transmitter
• Transmitter-operated High-Low transmission switches from a 70:1 low-range ratio for climbing torque to a 25:1 high-range ratio for trail speed
• 10-LED lighting system opens the door to night-driving fun
• ExoCage™ body adds real rock-rig style and functional protection
• Rugged 3.8″ Geode™ wheels with beadlock-style sidewall protectors mount securely to aluminum 17 mm hex hubs
• Massive 7″ Canyon AT™ extreme-terrain tires with soft inserts generate awesome off-road grip
• Unique chassis design with integrated dual battery compartments
• Quick release battery doors
• Battery cooling vents
• Scalable battery compartments
• Smooth center skid plate shields the driveline
• Sealed receiver box protects the micro receiver from dirt, debris, and moisture
• Dual digital waterproof steering servos deliver a combined 250 oz-in of torque & 0.16-sec transit time
• Hard-anodized, PTFE-coated shock bodies with TiN coated shock shafts
• Sealed pivot ball suspension
• Sealed limited slip T-Lock™ (remote locking) differentials
• Ball-bearing-supported steering servo system with integrated servo saver
• Hex hardware throughout
• Compatible with many Revo® accessory upgrades
• Traxxas innovation built in!
• Ready-To-Drive®

Specifications:

• Length: 22.17 inches (563 mm)
• Front Track: 18.48 inches (470 mm)
• Rear Track: 18.58 inches (472 mm)
• Center Ground Clearance: 4.76 inches (121 mm)
• Weight: 175.66 ounces (4.98 kg) (w/o batteries)
• Height (overall): 12.6 inches (320 mm)
• Wheelbase: 14.84 inches (377 mm)
• Front Shock Length: 87 mm
• Rear Shock Length: 87 mm
• Front Tires (pre-glued): Canyon AT™ (7.1″ x 3.8″)
• Rear Tires (pre-glued): Canyon AT™ (7.1″ x 3.8″)
• Front Wheels:­ 3.8″ Geode™ (chrome)
• Rear Wheels: 3.8″ Geode™ (chrome)
• Speed Control Type: EVX-2 with Low Voltage Detection forward/reverse/brake
• Motor (electric):Titan® 775, High-Torque fan cooled (10-turn)
• Transmission: High-low two-speed
• Overall Drive Ratio: Stock, out-of-box: 25.34 (high gear) 70.18 (low gear)
• Differential Type: Bevel gear, sealed, limited slip
• Gear Pitch: 32-pitch
• Chassis Structure/Material: Molded composite Nylon tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering:­ Bellcrank
• Radio System:­ TQi™ 2.4GHz (4-channel)
• Skill Level: 2
• Required Batteries: 4 “AA” (transmitter) NiMH (x2) or 2-cell LiPo (x 2)

EVX-2 Specifications:

• Input voltage: 6-14 cells (7.2 to 16.8 volts) 4-cells (Two 2-cell) LiPo (14.8 volts)
• Case Size: 58mm x 51 mm x 27 mm
• Weight: 3.6 ounces
• Motor Limit (540 size): 10-turns
• Motor Limit (550 size): 12-turns
• Reverse Delay: None
• BEC Voltage: 6.0 volts DC
• BEC Current: 2.5 amps
• Power Wire: 14 Gauge / 76 mm
• Input Harness Wire: 26 Gauge / 240 mm
• Motor Wires: 14 gauge / 101 mm
• Thermal Protection: Thermal shutdown
• Low Voltage Detection: 2-Stage indicators, switchable (on and off)
• Profile selection: Sport Mode: 100% fwd, 100% brakes, 100% rev
• Race Mode: 100% fwd, 100% brakes, no rev.
• Training Mode*: 50% fwd, 100% brakes, 50% rev.
• Single-button setup: Yes, Traxxas EZ-Set®
