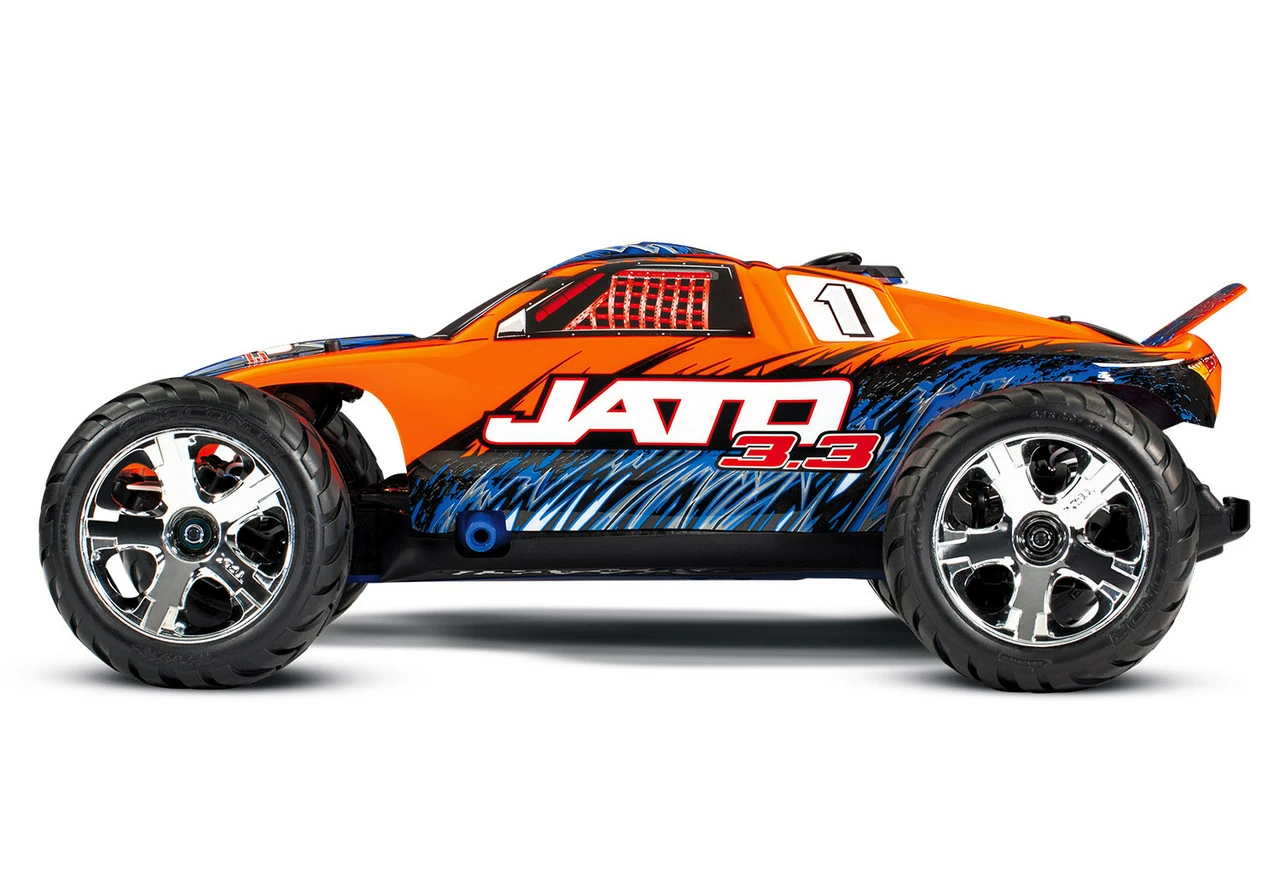

TRA55077-3ORG Traxxas 1/10 Nitro Jato 3.3 TSM TQi RTR Orange

TRA55077-3ORG Traxxas 1/10 Nitro Jato 3.3 TSM TQi RTR Orange

Note: Graves RC Coupons are not applicable with this product

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING



Traxxas 1/10 Nitro Jato 3.3 TSM TQi RTR Orange

Features:

• • Best-in-class acceleration, 0-60mph in less than 4.2 seconds!
  • Best-in-class top speed, 65+ mph!
  • The TRX^® 3.3 Racing Engine provides extreme power, brutal speed, and furious wheelie action.
  • TQi™ 2.4GHz radio system with Traxxas Link™ Wireless Module
    • TQi 2.4GHz High Output transmitter
    • Traxxas Stability Management^®
    • Traxxas Link™ Wireless Module
    • Factory installed speed, RPM, and temperature telemetry sensors
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
  • Resonator™ blue-anodized aluminum tuned pipe is engineered with precision to enhance the performance of the TRX 3.3 Racing Engine.
  • Front & rear sway bars provide superior handling and stability.
  • Super-sticky 2.8-inch Anaconda™ performance tires deliver asphalt-hugging street traction.
  • So fast, that the included wheelie bar is mandatory.
  • Incredible body graphics match the performance and speed of Jato 3.3.
  • Best in class suspension travel, 12 mm more than other 2WD racing trucks!
  • Adjustable internal two-speed allows unmatched acceleration and top speed without compromise.
  • Sealed gearbox protects the two-speed and other sensitive transmission components from dirt and rocks.
  • Sealed, limited-slip gear differential is fully tunable with standard silicone differential oils. Ball differentials simply can’t compete for tunability, efficiency and reliability.
  • Our engineers went to extreme lengths to develop the unique bellcrank steering system geometry that completely eliminates bump steer. An integrated servo saver protects the steering servo.
  • Torque-Control™ slipper clutch uses semi-metallic pads and heat-dissipating finned aluminum alloy pressure plates for smooth linear engagement and consistent traction control.
  • The semi-metallic brake disk provides smooth stopping power and virtually eliminates fade caused by heat build-up.
  • The Traxxas EZ-Start^® incorporates our latest revision of component and design technology to assure the most reliable operation. It is the only starting system to provide true, one-handed push-button engine starting. On-board diagnostics instantly troubleshoot any potential starting problems. EZ-Start is the safest and easiest starting system available.
  • 2-amp DC Peak Detecting Fast Charger
  • The low-profile 75 cc fuel tank is mounted in the center of the chassis to promote superior chassis balance and handling dynamics.
  • The TRX 3.3 Racing Engine is mounted in the middle of the chassis allowing near perfect side-to-side weight distribution.
  • Double-shear connections are used on critical suspension linkage to prevent separation in a collision.
  • True constant-velocity U-joint driveshafts use rubber seals to maintain smooth, trouble-free performance. These operate at the most extreme deflection angles and allow for the most suspension travel. Optional metal constant velocity driveshafts are available that reduce rotating mass for racing conditions.
  • Tough, 3 mm thick 6061 aluminum chassis plate is fully countersunk on the bottom, including the engine mounting screws.
  • Removable roll hoop helps protect critical chassis components and serves as a convenient carry handle.
  • Precise GTR™ shocks with composite bodies provide smooth, consistent damping performance. Threaded shock bodies allow precise ride height adjustment.
  • Integrated “buggy style” dirt guards join with the body to form a tightly sealed barrier against dirt and rocks.
  • Enclosed radio box protects sensitive electronics from dirt and fuel spills.
  • Jato’s exclusive 2-position receiver battery mounting (mid and rear) provides additional tuning options.
  • Precision metric hex hardware is used throughout.
  • Jato offers full suspension adjustability including caster, camber, toe, anti-squat, ride height, weight bias, and roll-center
  • Quick-Start quide included.



Includes:

Fully assembled, Ready-To-Race^®, with TQi™ 2.4GHz 2-channel radio system with Traxxas Stability Management^®, Traxxas Link Wireless Module, Telemetry Sensors, TRX 3.3 Racing Engine, and ProGraphix^® painted body.





Requires:

Fuel: Car blend with 10-20% nitro content
Batteries: 8 AA four for transmitter and four for receiver
Building and field equipment





Specifications:

Length	­	16.53 inches (420 mm)
Front Track	­	12.87 inches (327 mm)
Rear Track	­	13.00 inches (330 mm)
Weight (no fuel)	­	83.03 ounces (2.35 kg) (w/4 AA in rear + wheelie bar)
Height (overall)	­	5.70 inches (145 mm)
Wheelbase	­	11.22 inches long (285 mm) 11.14 inches short (283 mm)
Wheel Diameter	­	2.85 inches (72.4 mm)
Tire Diameter	­	4.13 inches (105 mm)
Front Tires	­	Anaconda™ 4.1 inches (105 mm)
Rear Tires	­	Anaconda™ 4.1 inches (105 mm)
Front Wheels	­	2.8″ All-Star™ mirror-chrome
Rear Wheels	­	2.8″ All-Star™ mirror-chrome
Front Shock Length	­	3.43 inches (87 mm), GTR™ aluminum
Rear Shock Length	­	3.43 inches (87 mm), GTR™ aluminum
Gear Ratio (1st Gear)	­	9.77:1 (total gear reduction)
Gear Ratio (2nd Gear)	­	7.29:1 (total gear reduction)
Gear Pitch	­	32 (0.8 module)
Steering	­	Bellcrank w/ integrated servo saver
Transmission	­	Auto two-speed
Differential Type	­	Hardened-steel bevel gear, sealed
Drive System	­	Shaft-driven 2WD
Chassis Type	­	3 mm plate, 6061-T6 aluminum
Radio System:	­	TQi™ 2.4GHz (2-Channel) with Traxxas Stability Management® and Traxxas Link Wireless Module
Telemetry:	­	Equipped with speed, RPM, battery voltage, and engine temperature
Charger:	­	Traxxas 2-amp DC Peak Detecting Fast Charger
Engine (fuel-powered):	­	TRX® 3.3 Racing Engine with EZ-Start®
Brake Type:	­	Semi-metallic disc with steel pads
Fuel Tank Capacity:	­	75 cc
Top Speed:	­	65+mph
Skill Level:	­	5
