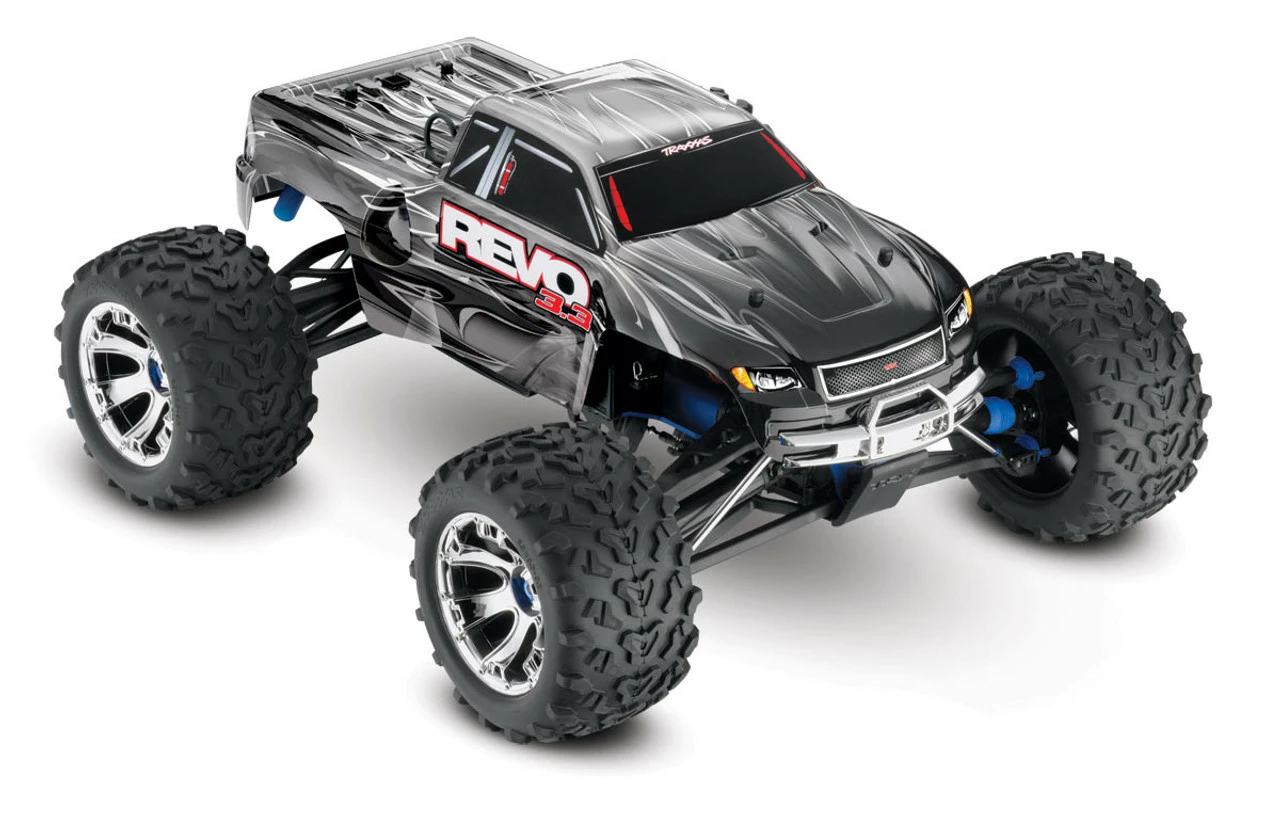

TRA53097-3SIL Traxxas 1/10 Revo 3.3 4WD Nitro RTR W/TQI TSM Silver R7

TRA53097-3SIL Traxxas 1/10 Revo 3.3 4WD Nitro RTR w/TQI TSM Silver R7

Note: Graves RC Coupons are not applicable with this product



Features:

• Traxxas Stability Management (TSM): Superior tuning algorithms run on high-speed electronic components to control wheel spin and steering direction on loose dirt, concrete and even ice and snow. TSM can be fine tuned or turned off by adjusting the multi-function knob on the TQi transmitter or the slider in the Traxxas Link app.
• Chassis: 6061-T6 aluminum 1/8″ (3mm) thick 3D semi-monocoque, 1.2″ (30mm) longer than Revo 2.5 chassis with chassis to engine brace to handle higher power of TRX 3.3 engine, integrated roll hoop and carry handle
• Drive: Four wheel drive
• Drive Type: Shaft driven, shafts are .71″ (18mm) diameter with rubber shielded half shafts and rubber shielded stub axle bearings
• Engine: Traxxas .20 cu in (3.3cc) racing engine with slide valve carburetor, EZ Start, and two high flow dual stage air filters
• EZ Start Battery: 1500mAh 6-cell with charger
• Exhaust: Polished resonator dual chamber aluminum tuned pipe
• Fuel Tank: Low profile 5.1oz (150cc) with flip top cap
• Radio: Traxxas TQi DSSS 2.4GHz high output with Traxxas Link Wireless Module that allows wireless connection to the Traxxas Link Application with the included Traxxas Link Module for instant Bluetooth connectivity to an intuitive high definition graphical user interface featuring Real-Time Telemetry, Customizable Dashboards, Steering/Throttle Expo, Steering/Braking Dual Rate, Servo Reversing, Endpoint Adjustment, Profile Customization and Sharing 5 channel receiver with 3 telemetry ports, factory installed telemetry sensors, and failsafe is included and enables model to be tuned from an iPhone 4S, 5, 5C 5S or iPod Touch 5th generation or later, iPad 3rd generation or later, or iPad Mini
• Clutch: Two shoe composite construction
• Transmission: Traxxas OptiDrive electronic transmission control for safe, smooth gear engagement-forward and reverse
• Ball Bearings: Full set included, rubber sealed bearings used in all exposed locations
• Shocks: 4 GTR inboard mounted, maintenance free, silicone oil-filled, hard anodized coated bodies with TiN shafts
• Main Gear: 38 tooth, plastic construction
• Gearbox: Sealed front and rear
• Differentials: Maintenance free, sealed with silicone X-rings and gaskets, limited slip action can be tuned using different viscosity oil
• Brakes: Alloy calipers, giant 1.6″ (40mm) diameter drilled and vented steel rotor and semi-metallic friction material
• Tires: 6.3″ (160mm) outer diameter Maxx with foam inserts, 3.3″ (84mm) wide, 3.8″ (96mm) inner diameter
• Wheels: 6-spoke chrome, Geode 3.8″ (96.5mm) diameter, 2.7″ (70mm) wide, 17mm hub size Tires and wheels are compatible with the Maxx series
• Body: Prographix wide-track, trimmed, decaled and painted
• Bumpers: Front and rear, plastic construction
• Suspension: Variable progressive two rocker design, suspension travel not limited to length of shocks Ride height, suspension travel, and progressive rate can be adjusted totally independent of each other Rubber sealed pivot balls can be adjusted with included tool without removing seals, steel pivot ball retaining rings
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Steering: Ball bearing enhanced with high-torque servo driving a heavy-duty servo saver





Includes:

Traxxas Revo 3.3 truck w/oil-filled shocks, TSM, 3.3 engine, EZ-Start, painted body, tires, wheels, foam inserts, TQi 2.4GHz radio, wireless module, two high torque ball bearing servos, docking base, RX & EZ-Start batteries, DC charger, fuel bottle, extra glow plug & air filter tool set, illustrated manual, decals, air filter, engine setup DVD, long travel rocker and spring set

REQUIREMENTS

Fuel: Traxxas 10%-20% Top Fuel
Radio Batteries: 4 AA batteries
Building and Track Equipment: Screwdrivers, hobby knife



Specifications:

Vehicle-
Length: 20.65″ (525mm)
Width: 16.125″ (414mm)
Height: 10.375″ (264mm) overall
Weight: 9.4lbs (4264g) no fuel
Wheelbase: 13.7″ (348mm) wheels on-center front-to-rear
Front and Rear Track: 16.125″ (409mm)
Center Ground Clearance: 4″ (101mm)
Gear Ratio 1st Gear: 23.85:1
Gear Ratio 2nd Gear: 15.22:1
Tires- Front and Rear: 5.75″ x 3.5″ (146 x 89mm)
Body-
Length: 19.4″ (494mm)
Width: 7.1″ (180mm) in front of rear wheels (widest point) 6.2″ (159mm) behind from wheels (thinnest point)
Height: 5.1″ (129mm)
