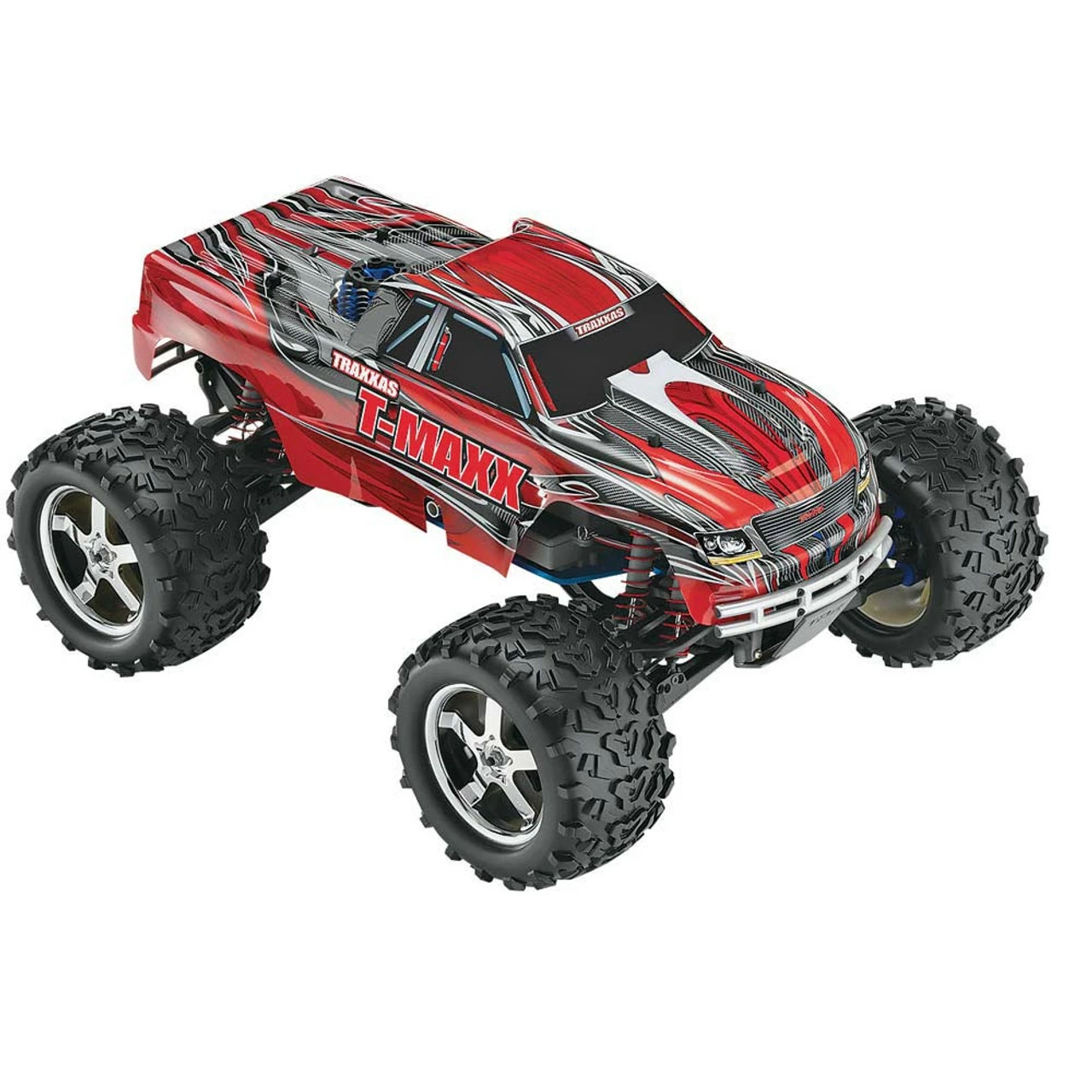

TRA49077-3RED Traxxas 1/10 Nitro T-Maxx 3.3 TSM 4WD RTR Red

TRA49077-3RED Traxxas 1/10 Nitro T-Maxx 3.3 TSM 4WD RTR Red

Note: Graves RC Coupons are not applicable with this product



Features:

• Traxxas Stability Management (TSM): Superior tuning algorithms run on high-speed electronic components to control wheel spin and steering direction on loose dirt, concrete and even ice and snow. TSM can be fine tuned or turned off by adjusting the multi-function knob on the TQi transmitter or the slider in the Traxxas Link app
• Chassis: 6061-T6 aluminum, .16″ (4mm) thick, blue in color, heavy duty braces, long wheelbase configuration
• Drive: Four wheel shaft driven with Revo spec driveline including sealed driveshafts, pivot balls and axle carrier
• Wheelie Bar: 4 snap-in adjustment positions to control degree of wheelie action, easily removable if additional control isn’t needed
• Radio: Traxxas TQi 2.4GHz high output with Traxxas Link automatic model recognition, telemetry enabled 5-ch micro receiver with dual channel 1 inputs, included Traxxas Link Wireless Module offers Bluetooth connectivity and enables model to be tuned from an iPhone or iPod Touch (Traxxas Link App must be downloaded if wanting to use an iPhone or iPod Touch) telemetry sensors for RPM, speed temperature, and voltage
• Engine: Traxxas .20 cu in (3.3cc) racing engine w/Slide Valve Carburetor, 12mm diameter IPS crankshaft, high volume dual stage air filter
• Starter: EZ-Start electric starting system with Traxxas’s exclusive Smart-Start technology that monitors critical starting functions, sensing and diagnosing potential problems for easy starting every time
• Battery: Traxxas Power Cell
• Battery Charger: DC powered
• Exhaust: Maxx Resonator dyno tuned dual chamber polished tuned pipe
• Brake: Semi metallic, giant 1.6″ (42mm) diameter
• Tires: 6.3″ (160mm) outer diameter, 3.8″ (96.5mm) inner diameter all terrain Maxx
• Wheels: Hurricane chrome wheels 3.8″ (96.5mm) diameter, 2.75″ (70mm) wide, 14mm hex size
• Transmission: Revo-Spec forward only two speed autoshifting with skid plate, optional reverse kit sold separately
• Differential: Revo-Spec sealed front and rear
• Ball Bearings: Full set, rubber sealed
• Fuel Tank: 4.2oz (125cc)
• Body: Trimmed and painted
• Shocks: Eight oil-filled Ultra with rubber pressure badders and double O-ring seals, up to ten shock mounting positions, nearly 4″ (102mm) travel
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Suspension: Sealed pivot ball WideMaxx independent
• Steering: Heavy duty bellcrank steering with integrated servo saver
• Skid Plates: Heavy-duty plastic, front and rear

Includes:

T-Maxx RTR 3.3 truck, TRX 3.3 engine, EZ Start electric starter, TSM, docking base, EZ Start battery, charger, fuel bottle, extra glow plug, metric hex hardware, air filter, two decal sheets setup DVD, antenna tube, painted body, illustrated instruction manual, TQi 2.4GHz radio system, installed telemetry sensors for RPM, speed, temperature, and voltage

Requires:

AA Batteries: 4 for transmitter, 4 for battery box
Fuel: 10%-20% or 33% Top Fuel from Traxxas, 20% recommended for break-in
Track Equipment

Specifications:

Chassis;
Length: 21″ (539mm)
Front Track: 16.4″ (417mm)
Rear Track: 16.5″ (417mm)
Height: 11″ (277mm)
Center Ground Clearance: 4″ (106mm)
Wheelbase: 13.2″ (335mm)
Wheel Diameter: 3.8″ (97mm)
Transmission: Auto two-speed, forward
Body;
Length: 19.6″ (499mm)
Width: 6.3″ (158mm) ahead of front wheels, narrowest point
Width: 8.2″ (209mm) at rear wheels, widest point
Height: 5.7″ (145mm)
