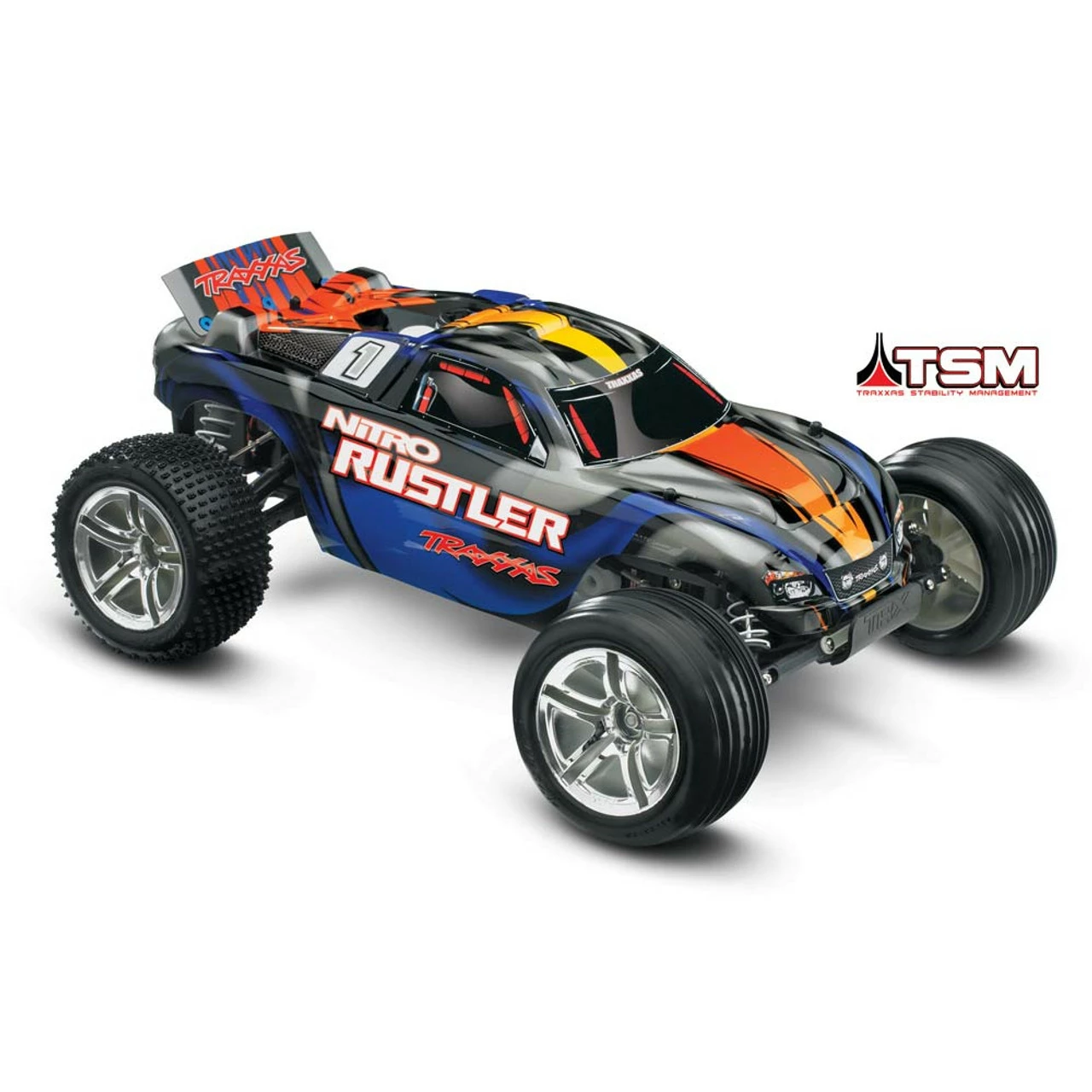

TRA44096-3BLE Traxxas 1/10 Nitro Rustler 2WD RTR TQ/TSM Blue

TRA44096-3BLE Traxxas 1/10 Nitro Rustler 2WD RTR TQ/TSM Blue

Note: Graves RC Coupons are not applicable with this product



Features:

• Traxxas Stability Management (TSM): Superior tuning algorithms run on high-speed electronic components to control wheel spin and steering direction on loose dirt, concrete and even ice and snow. TSM can be fine tuned or turned off by adjusting the multi-function knob on the TQi transmitter or the slider in the Traxxas Link app
• Chassis: T-6 aluminum anodized blue with fiber composite upper plate/front brace
• Radio: Traxxas TQ 2.4GHz radio system
• Engine: Traxxas 2.5 racing engine with EZ-Start electric starter, slide valve carb, two glow plugs, air filter and cylinder head protector, battery and charger for EZ-Start
• Exhaust: Composite tuned pipe with aluminum header
• Drive: Rear wheel with telescoping U-joint drive shafts
• Body: Pre-painted, pre-cut polycarbonate body
• Shocks: Four composite bodied oil-filled
• Slipper Clutch: Adjustable
• Suspension: 4-wheel independent
• Transmission: Ball bearing equipped, Magnum 281
• Differential: Planetary gear with steel internal gears
• Fuel Tank: 2.5oz (75cc) with flip-top lid and primer bulb
• Brake: Composite disc type
• Spur Gear: Nylon, 70 tooth 32-pitch
• Wheels: Chrome 2.0″ (51mm) wide, 2.8″ (71mm) diameter five-split spoke Jato
• Tires: Front, ribbed 2.8″ (71mm) inner diameter, 2″ (51mm) wide Rear, Traxxas Alias 2.8″ (71mm) inner diameter, 2″ (51mm) wide
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle suspension when viewed from the side of the car in relation to the chassis

Includes:

Assembled Nitro Rustler with TRX-2.5 racing engine and glow plug, TSM, EZ-Start electric starter, painted body with rear wing, decals, 2.4GHz radio system, tuned pipe, instruction sheet, extra glow plug, fuel bottle, tools, battery & charger

Requires:

“AA” Batteries: 8 (4 for transmitter and 4 for receiver)
Fuel: Car fuel with 10-15% nitromethane content
Misc. Items: Building and track equipment

Specifications:

Length: 17-1/4″ (438mm)
Front Track: 12-1/2″ (318mm)
Rear Track: 12-3/8″ (314mm)
Weight: 60 ounces (1701g) without radio
Height: 6″ (152mm)
Wheelbase: 11.3″ (287mm)
Fuel Capacity: 2.5 ounces (75cc)
Engine: TRX 2.5 racing w/EZ Start System
Gear ratio: Adjustable 8.43:1 to 12.64:1
Differential: Planetary gear
Brake: Disc
Chassis: Double-decker (bottom aluminum,top composite)
Spur gear: Nylon, 70 tooth 32-pitch
Clutch bell: 20 steel tooth
Caster block: Front 30 degrees

Manuals:

TRA44096-3-Manual-English

TRA44096-3-Parts-List-English
