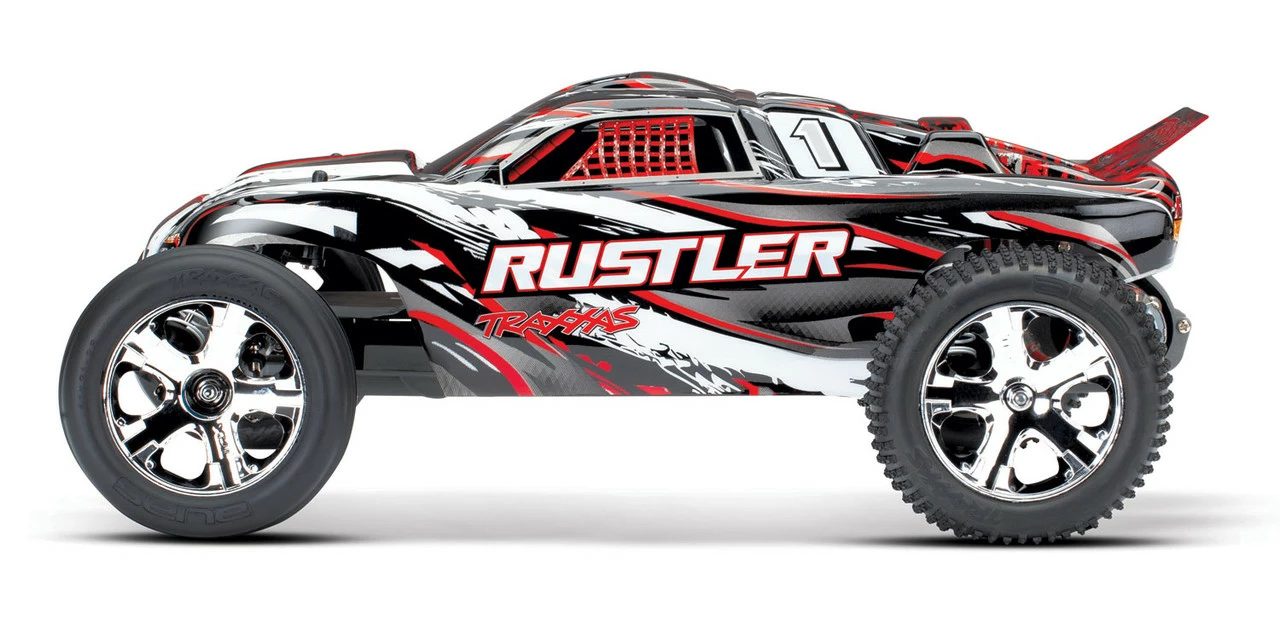

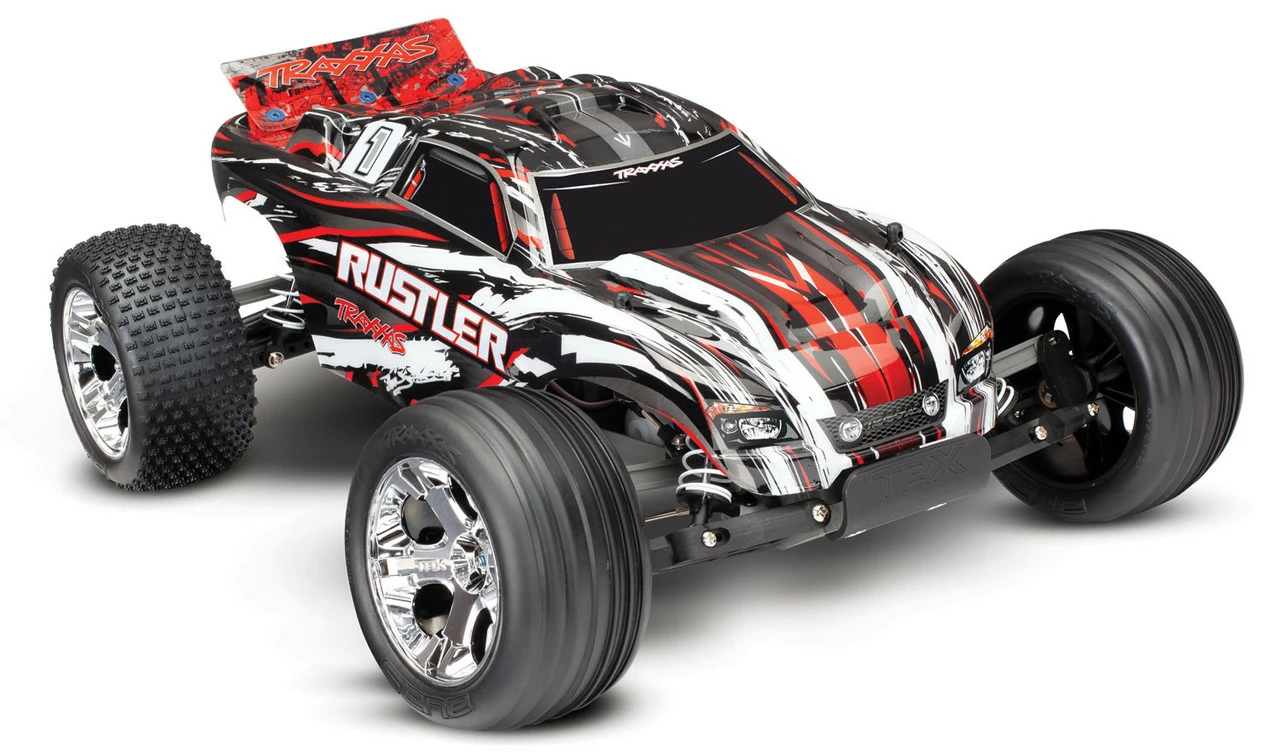

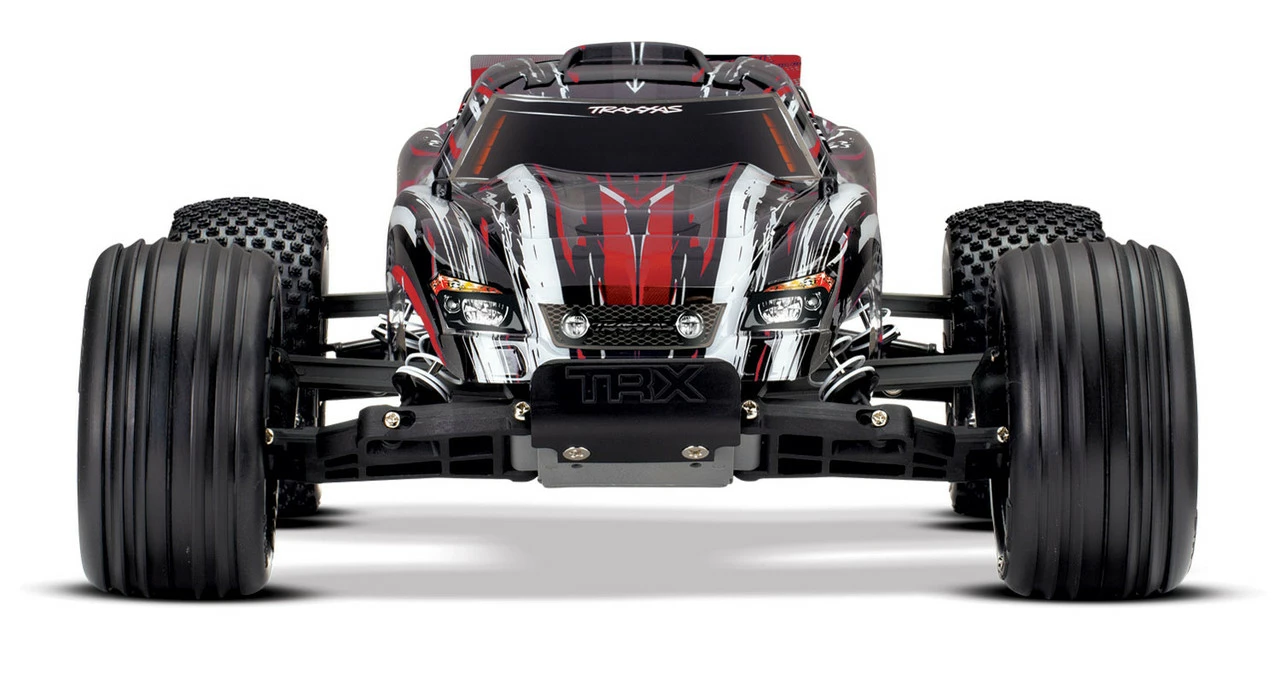

TRA37054-4RED TRAXXAS RUSTLER: 1/10 SCALE STADIUM TRUCK – RED

TRA37054-4RED TRAXXAS RUSTLER: 1/10 SCALE STADIUM TRUCK – RED

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



Features:



• Traxxas TQ 2.4GHz radio system
• Traxxas #6519 TQ 3-channel micro receiver
• Waterproof electronics permit driving in water, mud and snow
• Waterproof receiver box
• High-torque waterproof Traxxas #2056 steering servo
• Powerful Titan^® 12T 550 modified motor with internal cooling fan
• Rustler reaches speeds in excess of 35mph using the included
  optional 28-tooth pinion gear*
• High-performance waterproof XL-5™ electronic speed control
  • Innovative watersealed design
  • Three drive profiles
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake
    • Training Mode™ – 50% forward / brake / 50% reverse (patented)
  • 12-turn motor limit for 550 size motors
  • 15-turn motor limit for 540 size motors
  • Integrated on/off switch
  • Traxxas EZ-Set^® one-button setup
  • LiPo and NiMH compatible with two-stage low-voltage detection
  • High-efficiency MOSFET transistors
• Large axle carriers with 5×11 mm Oilite bushings
• Efficient Magnum 272™ three-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor
  guard for extra protection
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable planetary gear differential
• Telescoping U-joint driveshafts
• Fiber-composite monocoque chassis
• Speed control and waterproof receiver box are securely fastened to chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a new responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Alias™ step-pin rear tires and Alias ribbed front tires offer superior
  off-road traction
• Rustler’s tires include performance foam inserts and they come
  pre-glued on mirror-chrome 2.8″ All-Star™ wheels
• ProGraphix^® pre-painted body
  • Wing is securely attached to the body with precision hex hardware
• Rustler is backed by unparalleled Traxxas support and parts availability

Specifications:

Length:	­	17.5 inches (445 mm)
Front Track:	­	12.25 inches (311 mm)
Rear Track:	­	12.25 inches (311 mm)
Weight:	­	59.6 ounces (1.69 kg)
Height (overall):	­	7 inches (178 mm)
Wheelbase:	­	11.38 inches (289 mm)
Front Shock Length:	­	Long
Rear Shock Length:	­	XX-Long
Front Tires (pre-glued):	­	Alias™ Ribbed 2.8″
Rear Tires (pre-glued):	­	Alias™ Step-Pin 2.8″
Front Wheels:	­	2.8″ Mirror-Chrome (All-Stars™)
Rear Wheels:	­	2.8″ Mirror-Chrome (All-Stars™)
Electronic Speed Control:	­	XL-5™ Electronic Speed Control
Motor (electric):	­	Titan® 12T 550 (12-turn 550)
Steering Servo:	­	#2056 High Torque Waterproof
Transmitter:	­	TQ 2.4GHz Radio
Receiver:	­	#6519 TQ 3-Channel Micro
Gear Ratio (internal):	­	2.72 (final drive: 10.17)
Differential Type:	­	Planetary
Gear Pitch:	­	48-Pitch
Transmission:	­	Magnum 272™
Steering:	­	Bellcrank
Chassis Type:	­	Modified Tub
Chassis Material:	­	Composite Nylon
Top-Speed:	­	35+mph**
Skill Level:	­	1
*Battery Tray Dimensions:	­	166 mm x 47.5 mm x 28 mm
Required Items:	­	NiMH or LiPo Battery, Charger, 4 “AA” Batteries (Transmitter)



XL-5 (WATERPROOF) ESC SPECIFICATIONS

Input voltage: ­ 4-7 Cells (4.8 to 8.4 Volts DC) Case Size: ­ 31 mm x 55 mm x 15.5 mm Weight: ­ 2.44 ounces Motor Limit: ­ 15-turns** (540 Size) 12-turns** (550 Size) On Resistance Forward: ­ 0.007 Ohms On Resistance Reverse: ­ 0.014 Ohms BEC Voltage: ­ 6.0 VDC BEC Current: ­ 1A Power Wire: ­ 14 Gauge / 5 inches Input Harness Wire: ­ 26 Gauge / 9 inches PWM Frequency: ­ 1600 Hz Low Voltage Detection (LVD): ­ 2-Stage indicators, switchable (on or off) Thermal Protection: ­ Thermal shutdown Profile selection: ­ Sport Mode:     100% FWD, 100% brakes, 100% REV Race Mode:     100% FWD, 100% brakes, no REV Training Mode:*     50% FWD, 100% brakes, 50% REV Single-button setup: ­ Yes, Traxxas EZ-Set®
