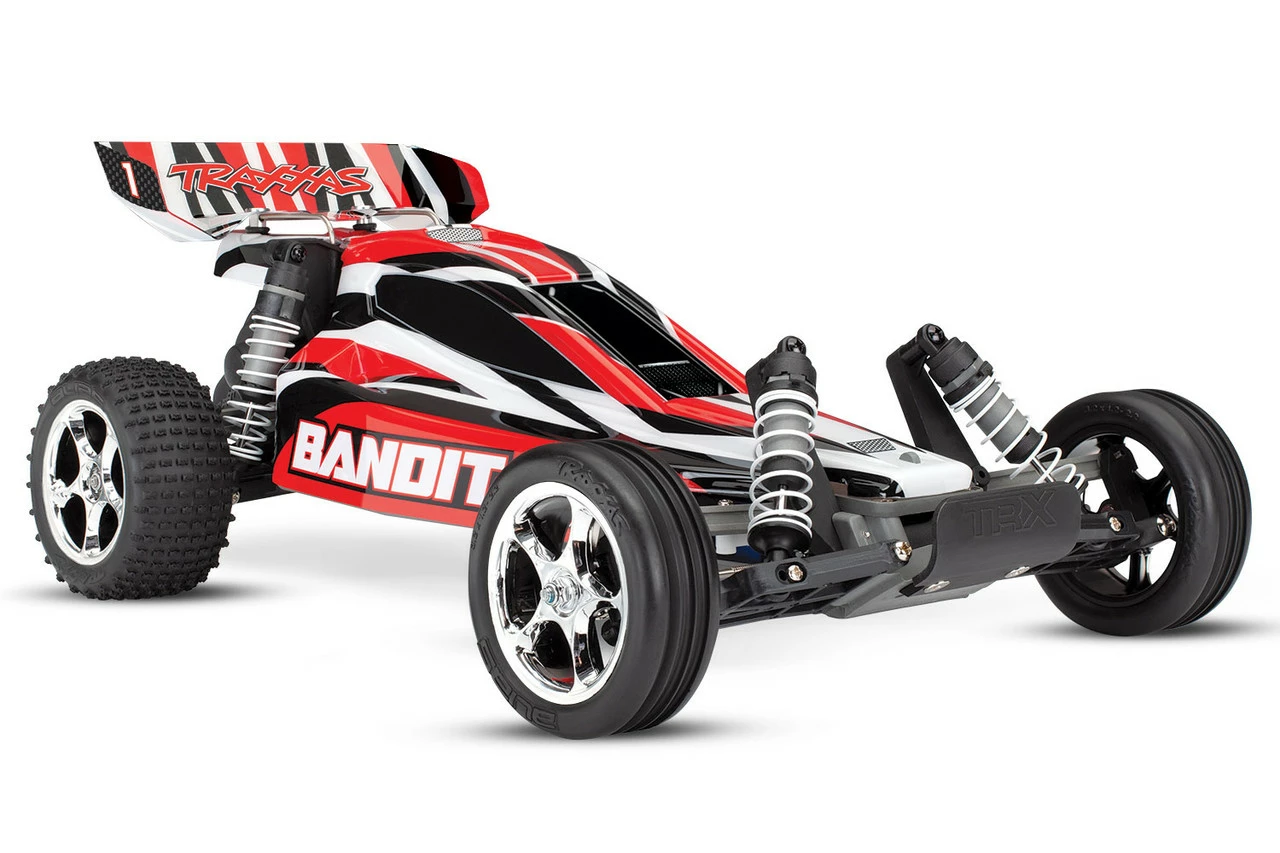

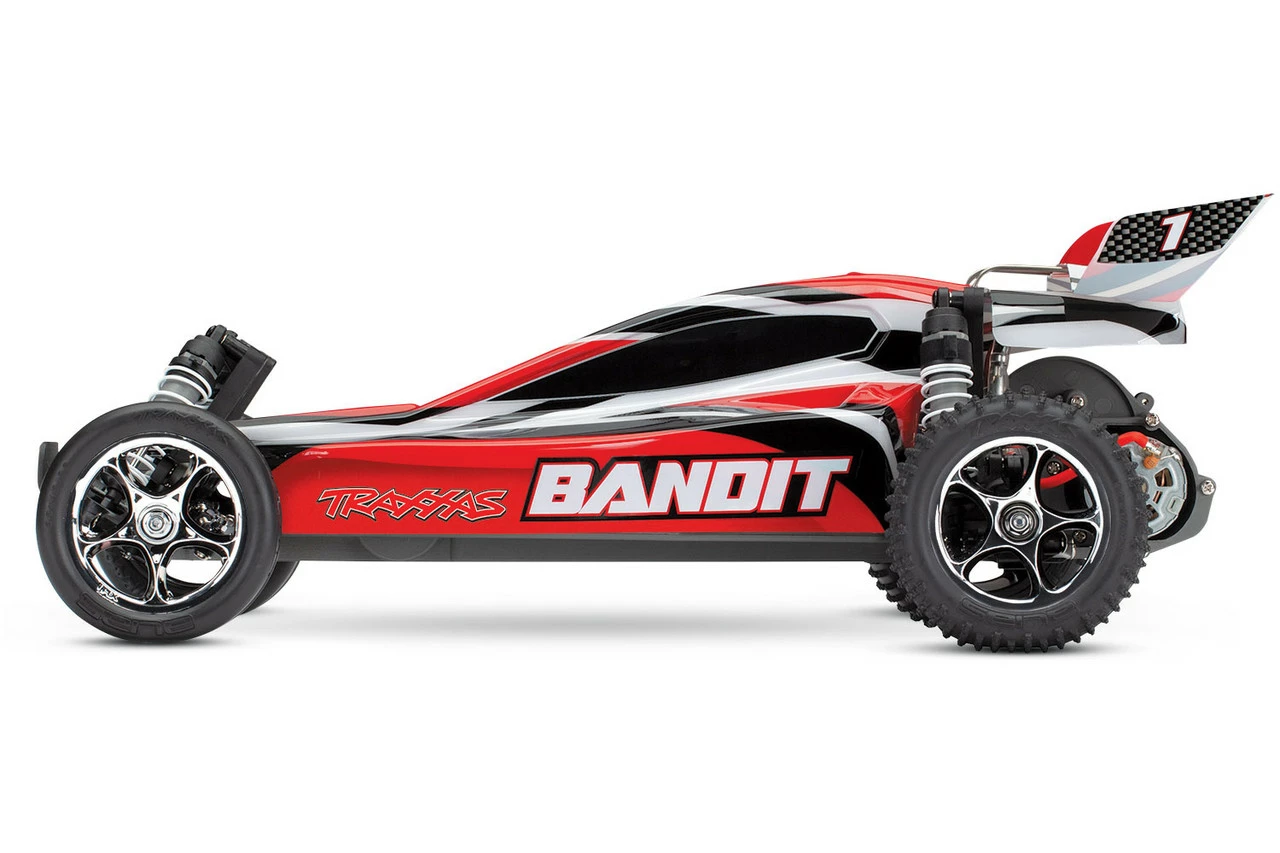

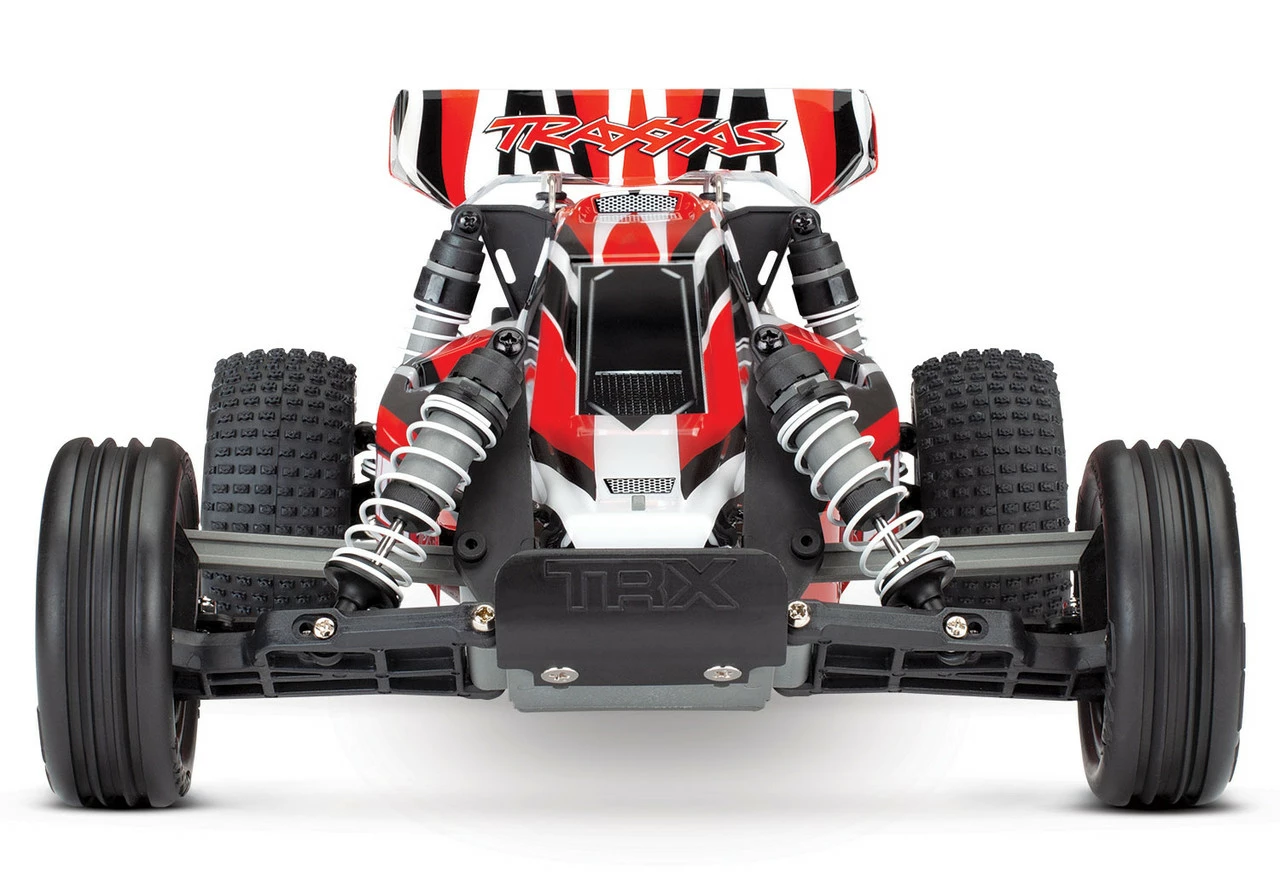

TRA24054-4RED Traxxas 1/10 Scale Bandit XL-5 Buggy RTR – Red

TRA24054-4RED Traxxas 1/10 Scale Bandit XL-5 Buggy RTR – Red



THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



Features

• Traxxas TQ 2.4GHz radio system
• Traxxas #6519 TQ 3-channel micro receiver
• Waterproof electronics permit driving in water, mud and snow
• Waterproof receiver box
• High-torque waterproof Traxxas 2056 steering servo
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• Bandit reaches speeds in excess of 35mph using the included
  optional 31-tooth pinion gear*
• High-performance waterproof XL-5™ electronic speed control
  • Innovative watersealed design
  • Three drive profiles
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake
    • Training Mode™ – 50% forward / brake / 50% reverse (patented)
  • 12-turn motor limit for 550 size motors
  • 15-turn motor limit for 540 size motors
  • Integrated on/off switch
  • Traxxas EZ-Set® one-button setup
  • LiPo and NiMH compatible with two-stage low-voltage detection
  • High-efficiency MOSFET transistors
  •
• Efficient Magnum 272™ three-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor
  guard for extra protection
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper clutch access
• Reliable planetary gear differential
• Telescoping U-joint driveshafts
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Easy access battery compartment
• New easy to remove and re-install wing mounting system
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a new responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Alias™ 2.2″ step-pin rear tires and Alias ribbed front tires offer superior
  off-road traction
• Bandit’s Alias step-pin rear tires come pre-glued on mirror-chrome five-spoke Tracer™ wheels
• ProGraphix® pre-painted body
• Bandit is backed by unparalleled Traxxas support and parts availability

BANDIT (#24054-4) SPECS

Length:   16.25 inches (413 mm) Front Track:   9.84 inches (250 mm) Rear Track:   9.84 inches (250 mm) Weight:   47.9 ounces (1.36 kg) Height (Overall):   7.01 inches (178 mm) Wheelbase:   11.25 inches (286 mm) Front Shock Length:   Long Rear Shock Length:   XX-Long Front Tires (Pre-Glued):   Alias™ Ribbed 2.2″ Rear Tires (Pre-Glued):   Alias™ Step-Pin 2.2″ Front Wheels:   2.2″ Mirror-Chrome (Tracer™) Rear Wheels:   2.2″ Mirror-Chrome (Tracer™) Electronic Speed Control:   XL-5™ Electronic Speed Control Motor (Electric):   Titan® 12T 550 (12-Turn 550) Steering Servo:   #2056 High Torque Waterproof Transmitter: ­ TQ 2.4GHz Radio Receiver:   #6519 3-Channel Micro Gear Ratio (Internal):   2.72 (Final Drive: 10.17) Differential Type:   Planetary Gear Pitch:   48-Pitch Transmission:   Magnum 272™ Steering:   Dual bellcrank with servo saver Chassis Type:   Molded tub Chassis Material:   Composite Nylon Top-Speed:   35+mph** Skill Level: ­ 1 *Battery Tray Dimensions: ­ 166 mm x 47.5 mm x 28 mm Required Items: ­ NiMH or LiPo Battery, Charger, 4 “AA” Batteries (Transmitter)



XL-5 (WATERPROOF) ESC SPECIFICATIONS

Input voltage: ­ 4-7 Cells (4.8 to 8.4 Volts DC) Case Size: ­ 31 mm x 55 mm x 15.5 mm Weight: ­ 2.44 ounces Motor Limit: ­ 15-turns** (540 Size) 12-turns** (550 Size) On Resistance Forward: ­ 0.007 Ohms On Resistance Reverse: ­ 0.014 Ohms BEC Voltage: ­ 6.0 VDC BEC Current: ­ 1A Power Wire: ­ 14 Gauge / 5 inches Input Harness Wire: ­ 26 Gauge / 9 inches PWM Frequency: ­ 1600 Hz Low Voltage Detection (LVD): ­ 2-Stage indicators, switchable (on or off) Thermal Protection: ­ Thermal shutdown Profile selection: ­ Sport Mode:     100% FWD, 100% brakes, 100% REV Race Mode:     100% FWD, 100% brakes, no REV Training Mode:*     50% FWD, 100% brakes, 50% REV Single-button setup: ­ Yes, Traxxas EZ-Set®
