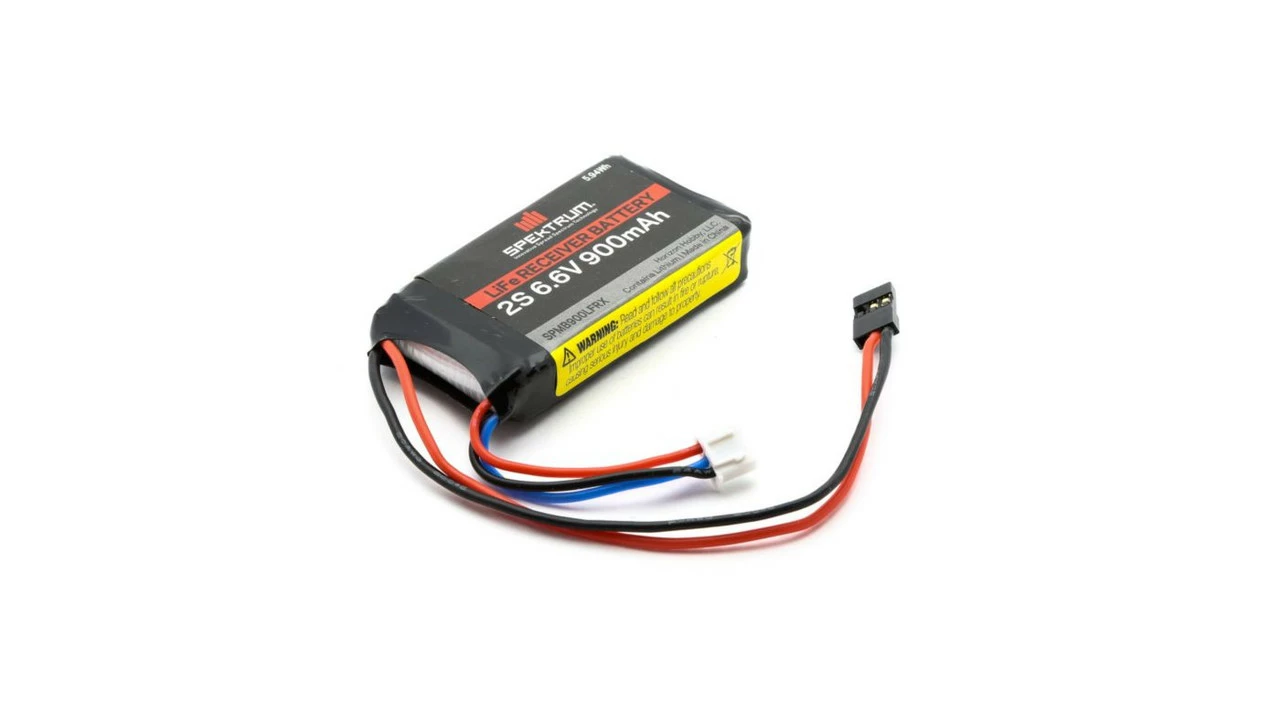

SPMB900LFRX Spektrum 6.6V 900mAh 2S LiFe Receiver Battery

SPMB900LFRX Spektrum 6.6V 900mAh 2S LiFe Receiver Battery

FOR QUALITY CONTROL THIS LIPO BATTERY WILL BE CHECKED FOR VOLTAGE AND RESISTANCE

Note: Graves RC Coupons are not applicable with this product



Specifications:

Application:	Aircraft Receiver, Aircraft Ignition
Balance Lead Length:	50mm (1.97 in)
Battery Balance Connector:	JST_XH
Battery Voltage:	6.6V
Capacity:	900mAh
Cell Configuration:	2S1P
Charge Lead Length:	150mm (5.91 in)
Charge Protection Circuitry:	No
Connector Type:	JR
Hard Case:	No
Height:	14mm (0.55 in)
Length:	69mm (2.72 in)
Maximum Charge Current:	900mA
Maximum Charge Rate:	1C
Maximum Continuous Discharge Current:	18A
Maximum Continuous Discharge Rate:	20C
Minimum Discharge Voltage:	5.0V
Normal/Standard Charge Current:	180mA
Normal/Standard Charge Rate:	0.2C
Shape:	Flat
Watt Hours:	5.94Wh
Weight:	58g (2.05 oz)
Width:	37mm (1.46 in)
Wire Gauge:	20 AWG
