SIGRC84EGVARFB Sig Rascal 110 ARF White/Blue

SIGRC84EGVARFB Sig Rascal 110 ARF White/Blue

THIS IS AN OVERSIZE ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

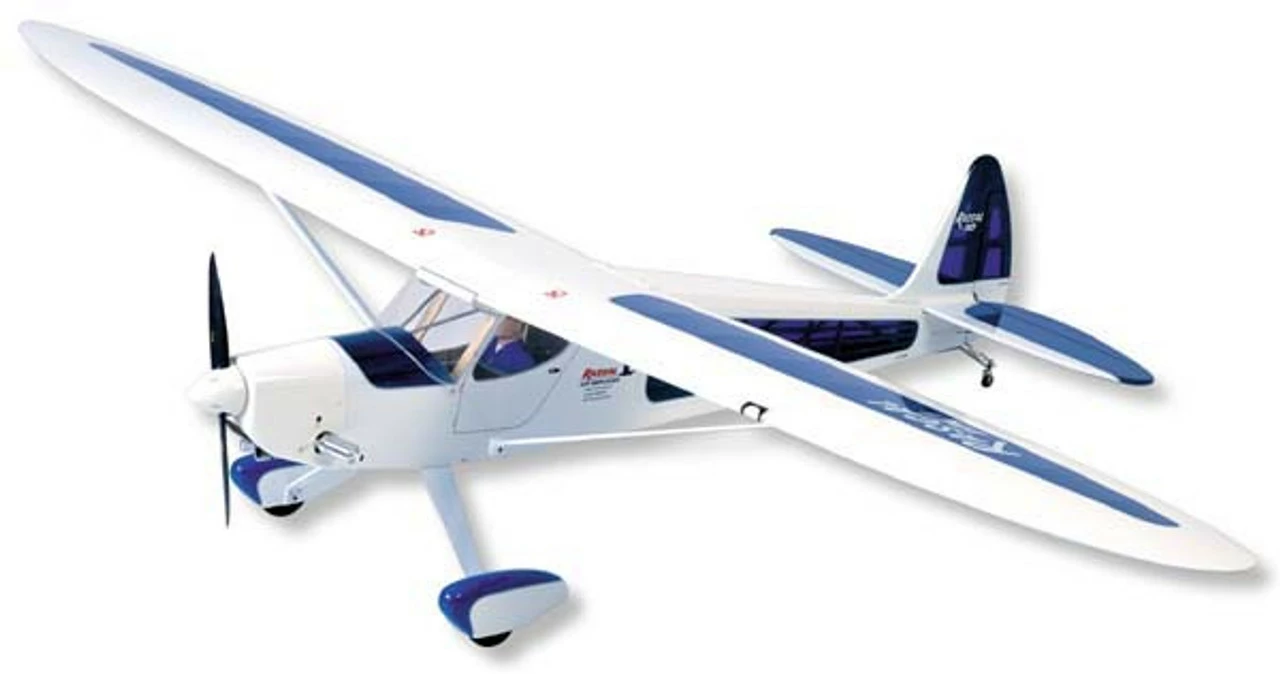

The Rascal 110 EG ARF is a giant size sport model that provides outstanding flying characteristics using a wide range of power systems. Whether you prefer glow engines, gas engines, or electric power, the Rascal’s classic good looks and dream-come-true flying characteristics will quickly make it your favorite R/C airplane. “Smooth”, “Solid”, “Comfortable”, “Gentle as a Cub and aerobatic”, “a Cub on steroids”, are some of the words Rascal pilots use to describe flying a “110”.

Streamlining and a high performance airfoil allow the Rascal 110 to do aerobatics that are impossible for most high wing airplanes. Breeze through inside and outside loops, slow rolls, point rolls, inverted flight, cuban 8s, and even knife edge flight.

The light wing loading of the Rascal 110 also makes it a versatile workhorse.

Float flying, banner or glider tow, onboard photography and video (several universities and the military are using them), parachute drop, night flying with add-on lights, and just about any other load carrying task is easy for the giant Rascal 110.

The Rascal 110 is a beautifully handcrafted all-wood ARF.

Assembly is fast and simple. All the parts were CAD-drawn, laser-cut, and jig assembled, which means that everything fits the way it should.

Features:

• Quick And Easy Assembly
• Factory Jig Built All-Wood Airframe
• Factory Painted Fiberglass Cowling & Wheel Pants
• Factory Painted Spring Aluminum Landing Gear
• CNC Laser Cut For Perfect Parts Fit
• Covered With Premium UltraCote® (aka ORACOVER®)
• Factory Painted Airfoil Shaped Wing Struts
• Complete Leaf-Spring Tailwheel Assembly
• Illustrated Step-By-Step Assembly Manual

Available in two color schemes, the Rascal 110 EG ARF is expertly covered with premium UltraCote® (aka ORACOVER®) Transparent Red or Transparent Blue with White trim.

Includes:

• A fiberglass cowling,
• Fiberglass wheel pants,
• Aluminum landing gear,
• Leaf-spring tailwheel assembly,
• Airfoiled aluminum wing struts,
• Molded windows,
• Complete hardware,
• Decals, and an illustrated step-by-step assembly manual

Specifications:

Wingspan:	110 in.	2794 mm
Wing Area:	1522 sq. in.	98.2 dm²
Length:	75.75 in.	1924 mm
Flying Weight:	11 -13 lbs.	4990 – 5897 g
Wing Loading:	17 – 20 oz./sq.ft.	51-60 g/dm²
Radio Required: (not included)	5-Channel with 7 Heavy-Duty Servos Ailerons(2), Elevator(1), Rudder(1), Throttle(1), Flaps(2)
Glow Power: (not included)	2-Stroke 1.2 – 1.5 cu. in. (19.7 – 24.6 cc) 4-Stroke 1.2 – 1.8 cu. in. (19.7 – 29.5 cc)
Gas Power: (not included)	1.2 – 1.5 cu.in. (19.7 – 24.6 cc)
Electric Power:	1600 watt (6320 – 250kv) Brushless Motor; 80A ESC; Lipo Battery Pack

Manuals:

SIGRC84EGVARFB-Manual-English
