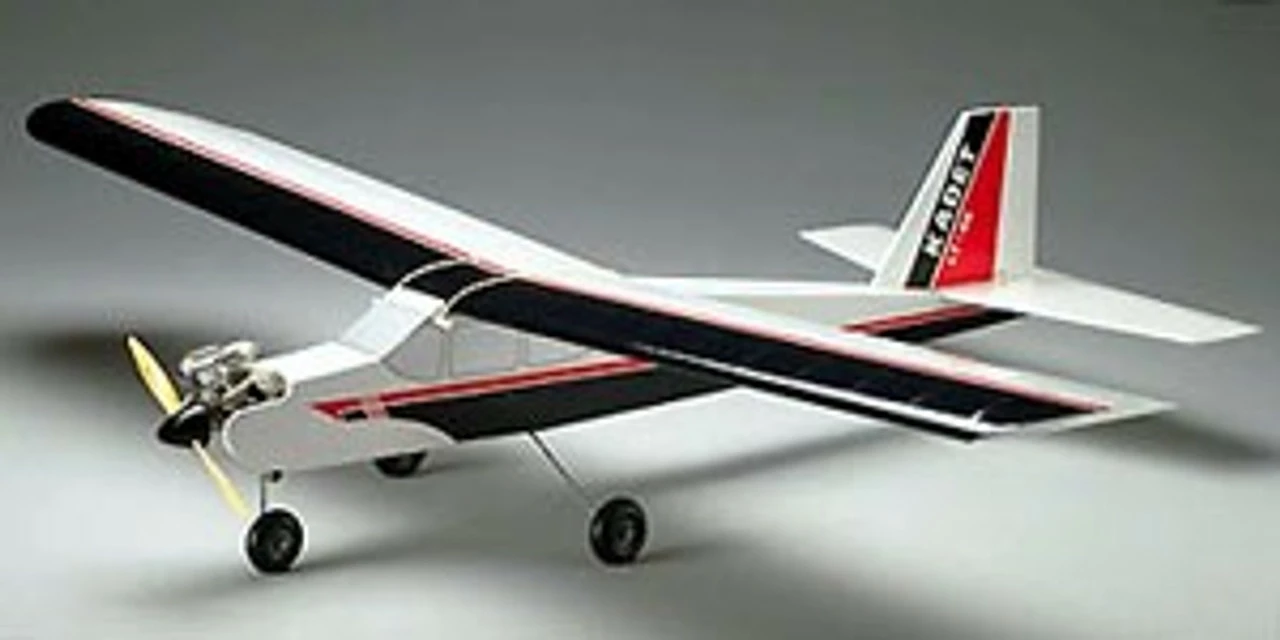

When the first SIG KADET came out in 1972, it was the only airplane on the market totally designed from the ground up for learning to fly R/C. It quickly became the airplane of choice for new R/C flyers at many model clubs! Since then, thousands of new pilots have successfully learned to fly R/C with a KADET!



“The R/C trainer with a BIG difference”

It’s gentle flying characteristics made it a legend in its own time. This KADET LT-40 blends the perfect aerodyamics of the original SIG KADET with a more modern, simpler, and much faster building type of construction. Like all SIG KADETS, the KADET LT-40 behaves perfectly in flight, with true hands off stability on all axis. If the student pilot gets disoriented, simply let go of the control sticks and the LT-40 will recover itself and return to level flight within seconds.

Because the LT-40 is bigger than the average .40 size trainer, it has a much lighter wing loading, which lets it fly slower! Slower speed gives the student pilot more time to think and react to what the model is doing, thus making it easier to learn to fly R/C.



This is the easiest building KADET kit yet! Every major part of this kit has been pre-shaped, sawn, die-cut, laser-cut, routed, or whatever it takes to make it ready-to-install right out of the box. A photo-illustrated assembly manual takes you through every step of construction and pre-flight.

Every major part of this kit has been pre-shaped, sawn, die-cut, laser-cut, routed, or whatever it takes to make it ready-to-install right out of the box. A photo-illustrated instruction manual takes you through every step of construction and pre-flight.

Features:

• Du-Bro Fuel Tank
• SIG Spinner
• KAVAN Wheels
• SIG Easy Hinges
• Engine Mounts
• Decals
• Ultra-Simple Lite-Ply Fuselage
• Top Quality SIG Balsa, Plywood, & Spruce
• Simple, Strong Wing Design With Spruce Spars
• CAD Drawn Plans For Precise Parts Fit
• Complete Hardware Pack Includes Control Horns, Pushrods, Wheel Collars, Etc.

Specifications:

Recommended
Engines: .30-.40 cu. in. 2-Stroke
.40-.50 cu. in. 4-stroke
Wingspan: 70 in.
Wing Area: 900 sq. in.
Weight: 5.5 to 6 lbs.
Wing Loading: 14 to 15.5 oz./sq.ft.
Radio Required: 4-Channel

Set Up Specifications:

Elevator		9/16	inch	14	mm	Up and Down
Rudder		1	inch	25	mm	Right and Left
Ailerons Up		3/8	inch	10	mm
Ailerons Down		3/8	inch	10	mm
Center of Gravity		4	inch	102	mm	From the leading edge
Dihedral		3	degrees	3	degrees	Per Wing Panel
Incidence		+ 1-1/2 degree wing, 0 degree stabilizer
Engine Offset		6 degree down,  6 degree right

Accessories:

Main Wheels		3	inch	76	mm	2
Tail Wheels		2  3/4	inch	70	mm	1
Fuel Tank		8	ounce	237	cc	1
Spinner		2	inch	51	mm	1
Covering		3 rolls depending on trim scheme

Manuals:

SIGRC67-Manual-English
