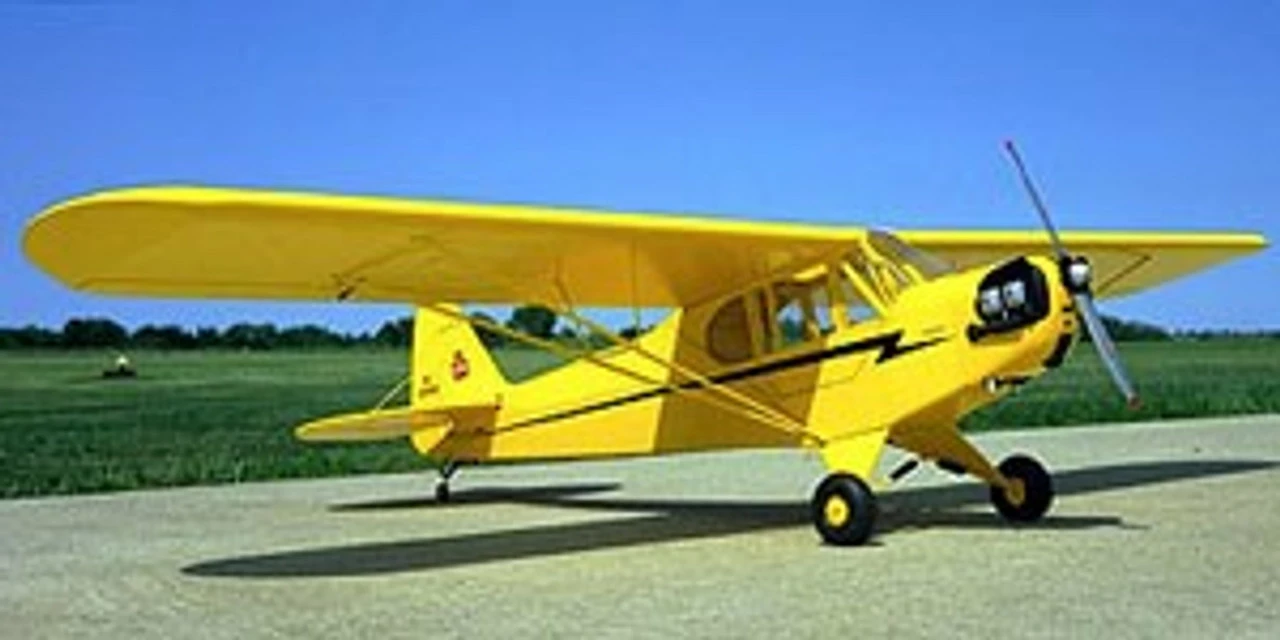

SIGRC48 SIG CUB J3 1/4S

SIGRC48 SIG CUB J3 1/4S

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING



“America’s Favorite Light Plane”

The yellow Piper J-3 Cub is one of aviation’s genuine classics. More than 20,000 Cubs were built between 1937 – 1947, and for years after that, it was the most commonly seen airplane at airports all over the country. Forgiving flight characteristics, light wing loading, and hands-off stability made it perfect for America’s weekend pilots. The Cub design is ideal for R/C flying and makes an excellent first-time 1/4-scale building project.

Features:

• Die-Cut Parts
• Aileron Pushrods
• Formed Main Landing Gear Wires
• Spruce & Aluminum Wing Struts
• Brass Tube Jury Struts
• Adjustable Tail Brace Wires
• Easy-to-Transport 2-Piece Wing Design
• Authentic Decals
• 4 Sheets of Full-Size Plans
• Photo-Illustrated Instruction Book
• Scale Data on the Full-Size Airplane
• Easy-to-Build Balsa, Plywood, & Spruce Construction
• Molded ABS Plastic Engine Cowling
• Molded ABS Plastic Scale Dummy Engine
• Molded ABS Plastic Bungee Covers & Air Cleaner Details
• Fiberglass Elevator & Rudder Pushrods
• Scale-Like Leaf-Spring Steerable Tailwheel Assembly
• Complete Hardware Pack Includes Nylon Hinges, R/C Links & Threaded Rods, Control Horns, Wing Bolts, Blind Nuts, Etc.

Specifications:

Recommended Engines:
.60-.90 cu. in. 2-Stroke
.90-1.60 cu. in. 4-stroke
Wingspan: 105 in.
Wing Area: 1600 sq. in.
Weight: 14 to 16 lbs.
Length: 67 in.
Radio Required: 4-Channel

Set Up Specifications:

Elevator		1  3/8	inch	35	mm	Up and Down
Rudder		1  3/4	inch	44	mm	Right and Left
Ailerons		1	inch	25	mm	Up and Down
Center of Gravity		4  3/8	inch	111	mm	Back from leading edge
Dihedral		1/2	inch	13	mm	At W-4 rib
Incidence		+1 degree wing, 0 degree stabilizer
Engine Offset		1-1/2 degree down, 0 degree right

Accessories:

Pilot		1/4	scale	1/4	scale	1
Main Wheels		4  1/2	inch	114	mm	2
Tail Wheels		1  1/2	inch	38	mm	1
Fuel Tank		16	ounce	473	cc	1
Spinner		May use a Prop Nut of a size to fit the engine selected
Covering		4 rolls depending on trim scheme

Manuals:

SIGRC48-Manual-English
