OSM71531000 OS ENGINES Bubbleless Clunk

OSM71531000 OS ENGINES Bubbleless Clunk

Note: Graves RC Coupons are not applicable with this product

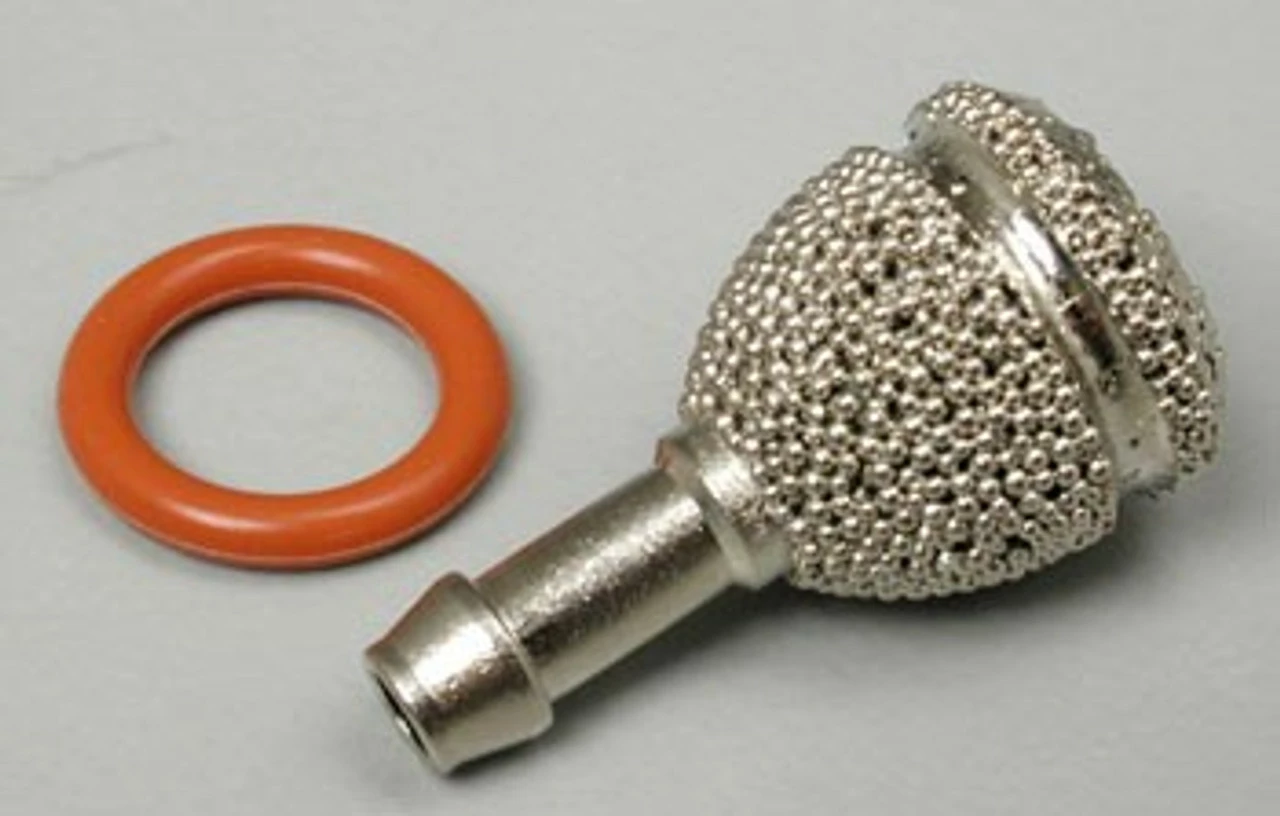

This is a Bubbleless Fuel Pick-Up (clunk) Weight for Aircraft Fuel Tanks.
The weight attaches to fuel tubing and is put into an aircraft’s fuel tank.

FEATURES

Plated throughout to prevent corrosion
Mesh design prevents bubbles from entering the fuel line and
causing damage to the engine.
Fuel fitting barb and weight are positively joined together to
eliminate risk of coming apart
Silicone-rubber O-ring prevents internal damage to fuel tank
Used for glow fuel only.



INCLUDES

One Bubbleless Fuel Pick-Up Weight
One Rubber O-Ring
One Instruction Sheet



REQUIREMENTS

Assembly into the fuel tank with standard fuel tubing.





SPECIFICATIONS

Length Including Fuel Fitting: 21.3mm (.840″)
Widest Diameter: 11.4mm (.450″)
O-ring Diameter: 8.5mm (.335″)
