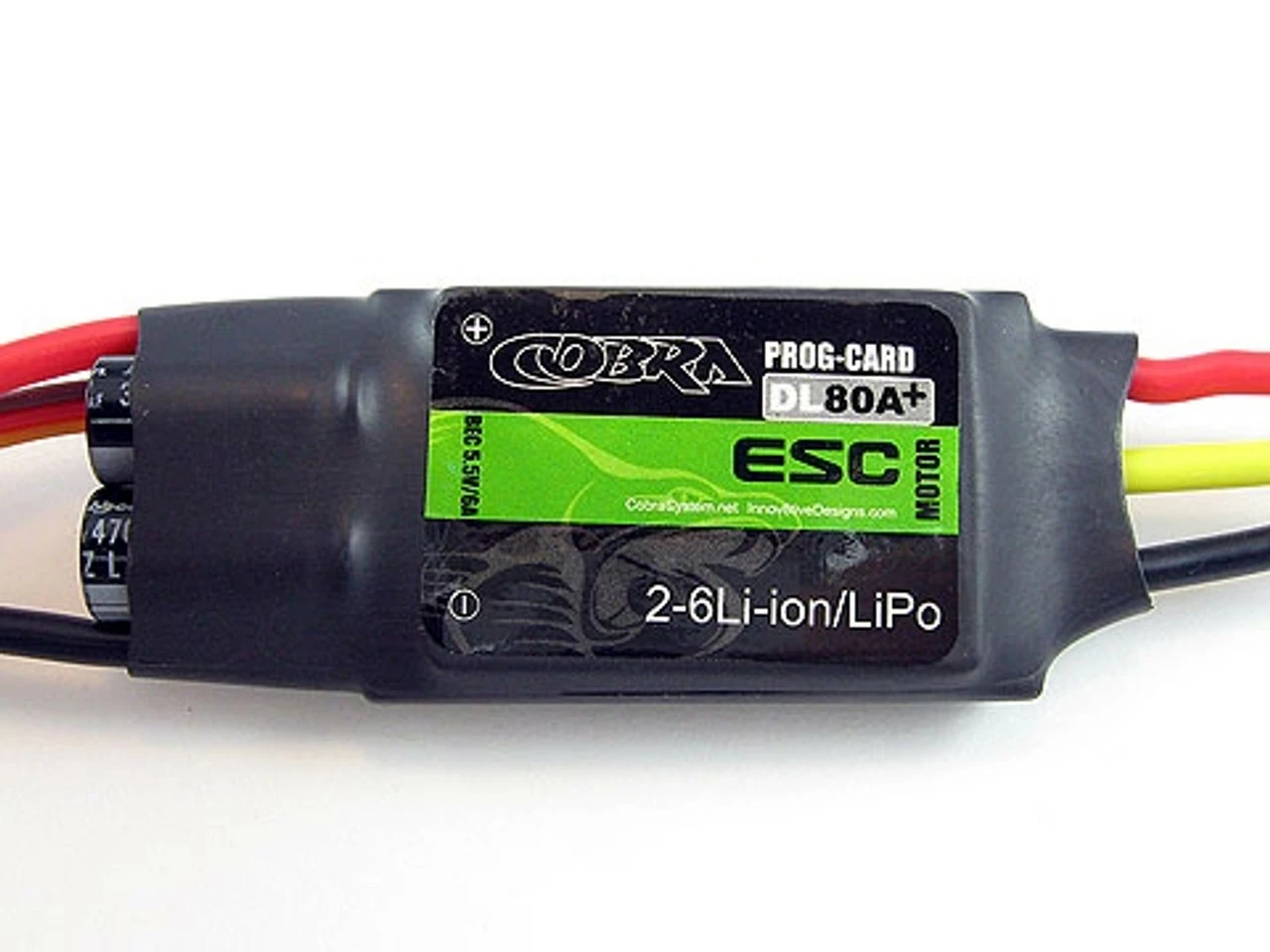

IND-C80A-ESC Cobra 80A ESC W/6A Switching BEC

IND-C80A-ESC Cobra 80A ESC w/6A Switching BEC



Cobra 80A ESC w/6A Switching BEC

Features:

• Easy Set-up and Operation
• Basic Programming available through Throttle Stick
• Throttle Range automatically detected and set for smooth, linear throttle response
• Three different types of Low Voltage Cut-off available for Li-Po, Ni-XX or LiFe batteries
• Three different LVC levels for each cell type: 3.2, 3.0 or 2.8 Volts/cell for Li-Po battereis, 0.9, 0.8 or 0.6 Volts/cell for Ni-XX batteries and 2.8, 2.5 or 2.2 Volts/cell for LiFe batteries
• LVC type can be set to Hard Cut-off or Power Reduction Mode
• Three different brake levels, Hard, Medium or Off
• Three different timing modes, High, Low and Auto
• Three different Motor Acceleration Rates, High, Medium and Low ﾕ Safe Start-Up: The ESC will not arm until the throttle is in the idle position
• Locked-Rotor Protection: If the motor is blocked so the prop cannot rotate, the ESC will automatically shut down to prevent damage
• PWM Frequency is set to 8KHz for best operation on a wide range of motors
• Over Temp Protection: Shuts down the ESC output if temperature exceeds 230F (110C)
• Auto Power Cut-off: If the throttle signal is lost for more than 3 seconds, the throttle will reduce to idle to prevent fly-aways.

Specifications:

Weight (With Output Connectors) …………….. 60.1 grams (2.12 oz)
Max Continuous Current ……………………………………….. 80 Amps
Burst Current rating (15s) ……………………………………. 100 Amps
Operating Voltage Range ………………………………….. 6 to 26 Volts
Number of Li-Po cells …………………………………………. 2 to 6 cells
Number of Ni-XX cells ………………………………………. 6 to 20 cells
Number of Li-Fe cells …………………………………………. 2 to 7 cells
BEC Output ………………………………………….. 6 amps @ 5.5 Volts
ESC Size (inc. Caps) …….. 72 x 33 x 14mm (2.83 x 1.30 x 0.55 in)
