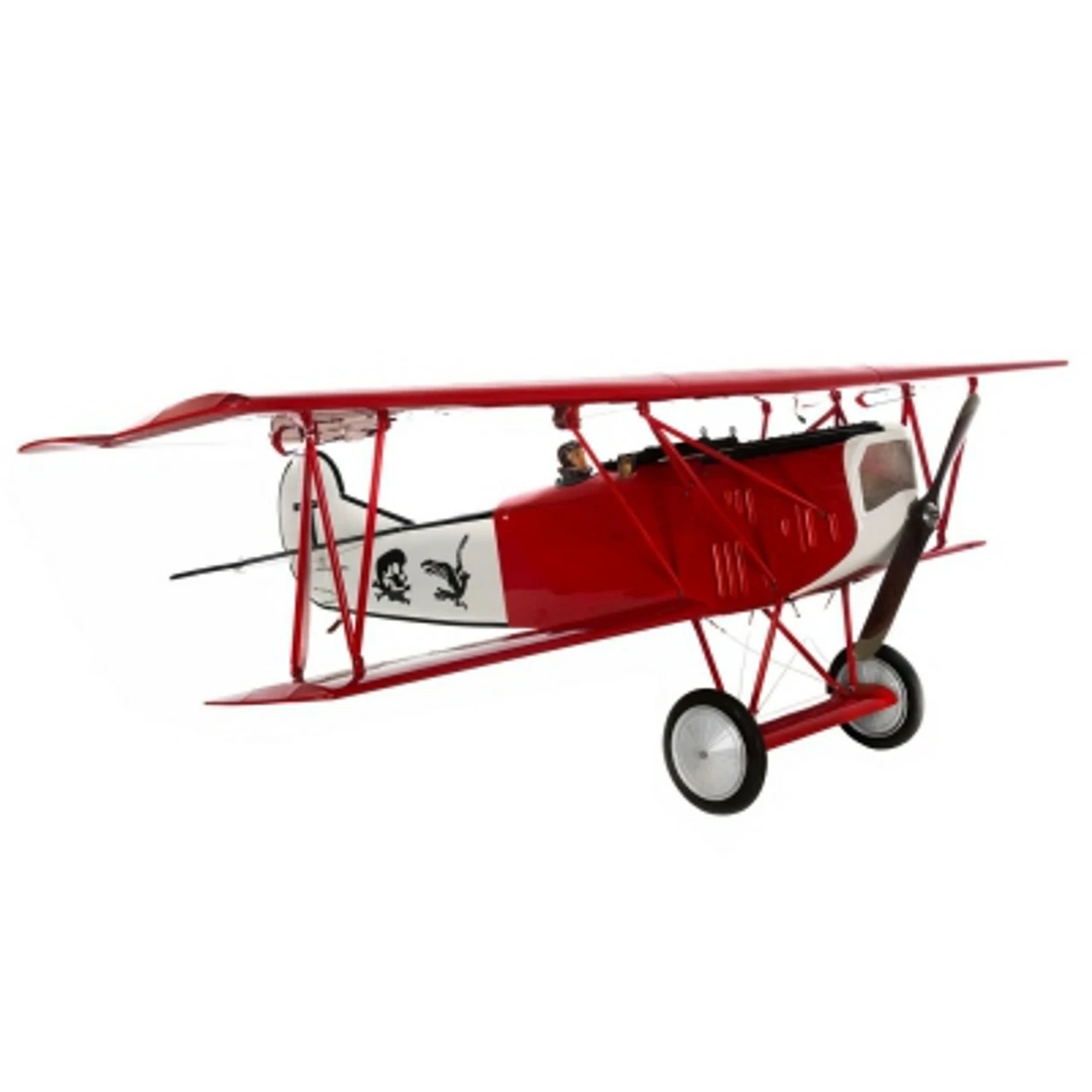

HAN2890 Hangar 9 Fokker D.VII 30-60cc ARF

HAN2890 Hangar 9 Fokker D.VII 30-60cc ARF

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

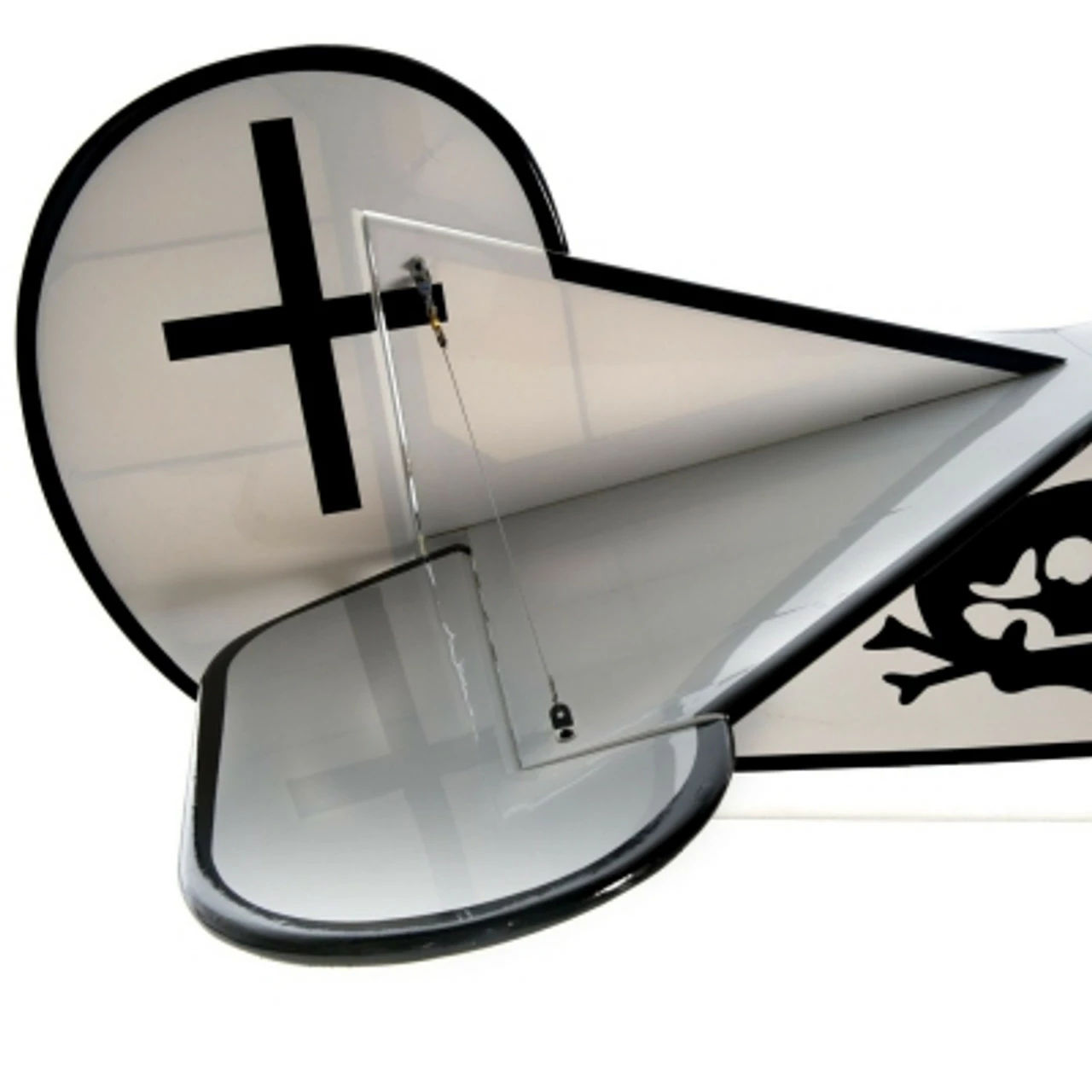

Construction: Laser cut balsa and ply, functional tail flying wires, large top hatch for easy access to electronics and flight batteries
Wings: Three-piece top wing, two-piece bottom wing with aluminum joiner tube
Cowl: Painted fiberglass
Covering: Hangar 9 UltraCote
Landing Gear: Main, shock absorbing with 8 vintage scale wheels and and matching paint finish, sprung wooden tail skid

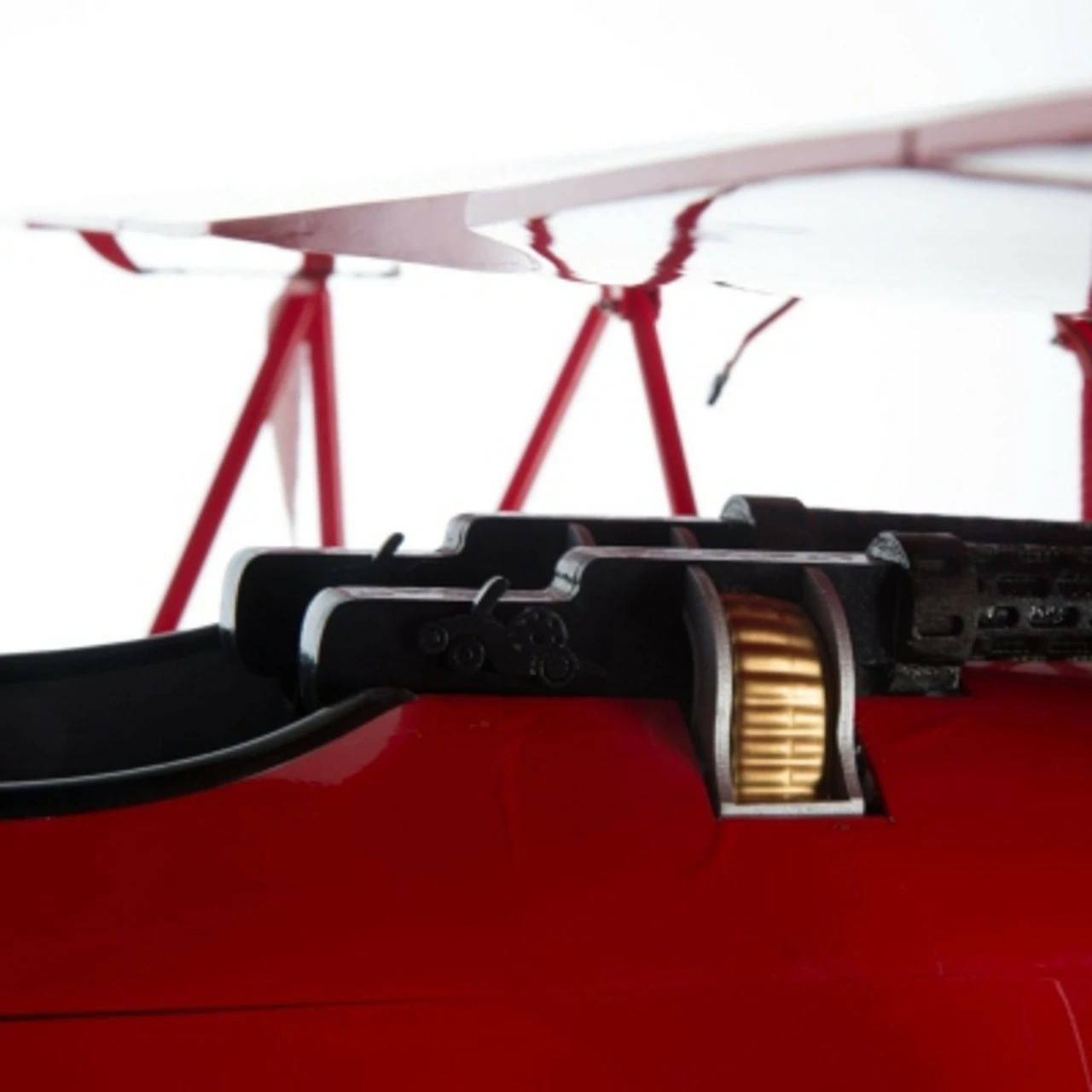

Cockpit: Scale pilot and instrument details, machine guns included for added realism





INCLUDES

14 scale ARF Electric or Gasoline Powered Hangar 9 ARF Fokker D.VII Airplane, Fuel Tank, Landing Gear, Pilot Figure





REQUIREMENTS

Radio: At least 4-channel
Servos: Six standard size, high torque, five servos if powered by electric motor, servo extensions
Receiver Battery: 2S 7.4V 4000mAh
Propeller, Adhesives, Building and Field Equipment
Electric Power
Brushless Motor: Rimfire 1.70 63-62-200 outrunner recommended
ESC: Compatible with selected motor
Gasoline:
2-Stroke Engine: 30-60cc
Ignition switch and battery





SPECIFICATIONS

Wingspan: 87 (2210mm)
Wing Area: 2340 sq in (156.8 sq dm)
Length: 72 (1829mm)
Flying Weight: 23 – 28lbs (10.4 – 13kg)
Airfoil: Semi-symmetrical
Approximate Assembly Time: 20 hours
Center of Gravity, CG: 7 (178mm) behind leading edge of top wing section

Control Throws:
Low Rate High Rate
Ailerons: up 1 (25mm) up 1-916 (40mm) down 2532 (20mm) down 1-316 (30mm)
Elevator: up 1-38 (35mm) up 1-3132 (50mm) down 1 (25mm) down 1-916 (40mm)
Rudder: LeftRight 1-3132 (50mm) LeftRight 3-18 (80mm)
