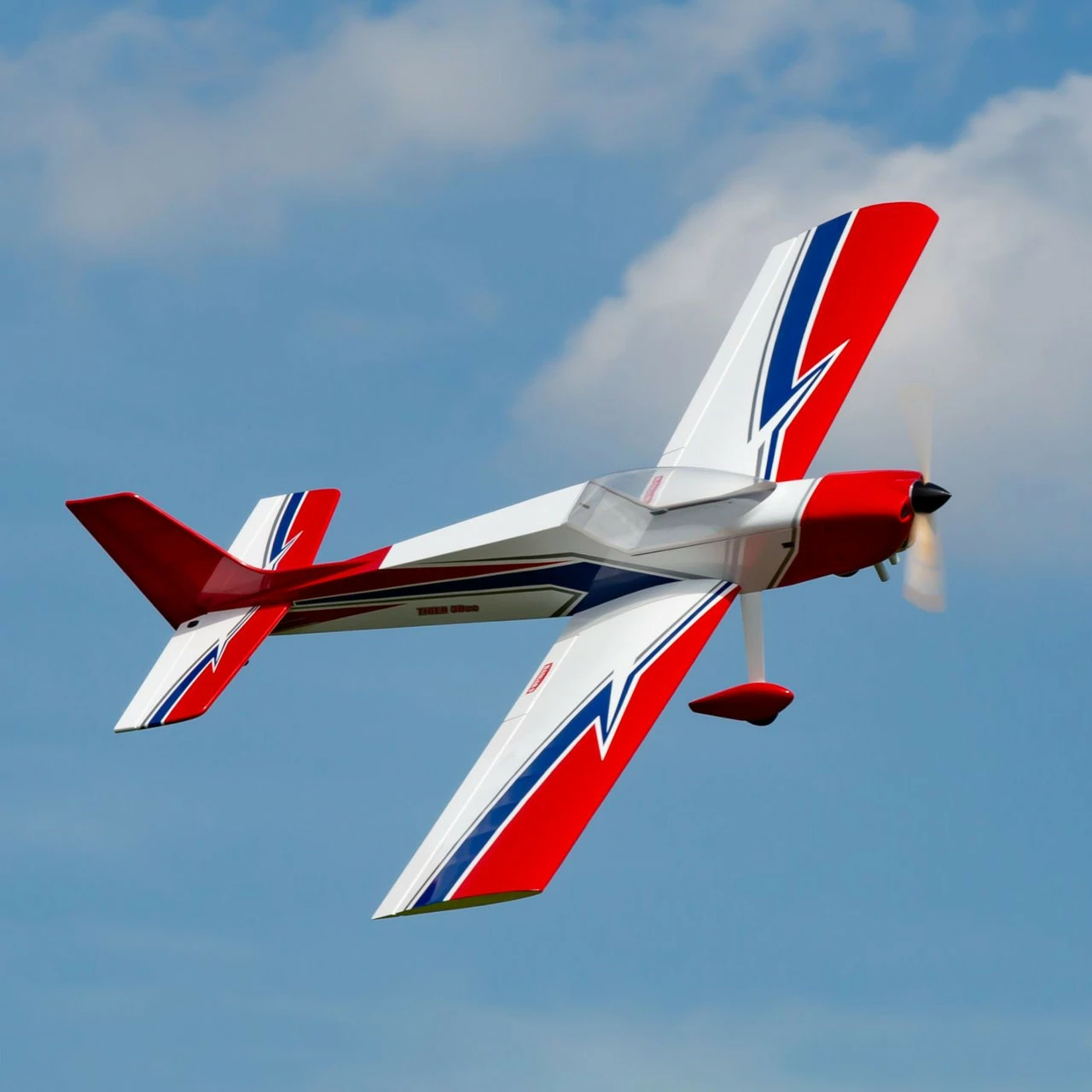

HAN2370 Hangar 9 Tiger 30cc EP ARF 90″

HAN2370 Hangar 9 Tiger 30cc EP ARF 90″

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

Construction: Laser cut balsa and plywood, prehinged control surfaces
Wing: Two-piece bolt-on, full-span ailerons with option for functional flaps, 15″ (381mm) wing tube

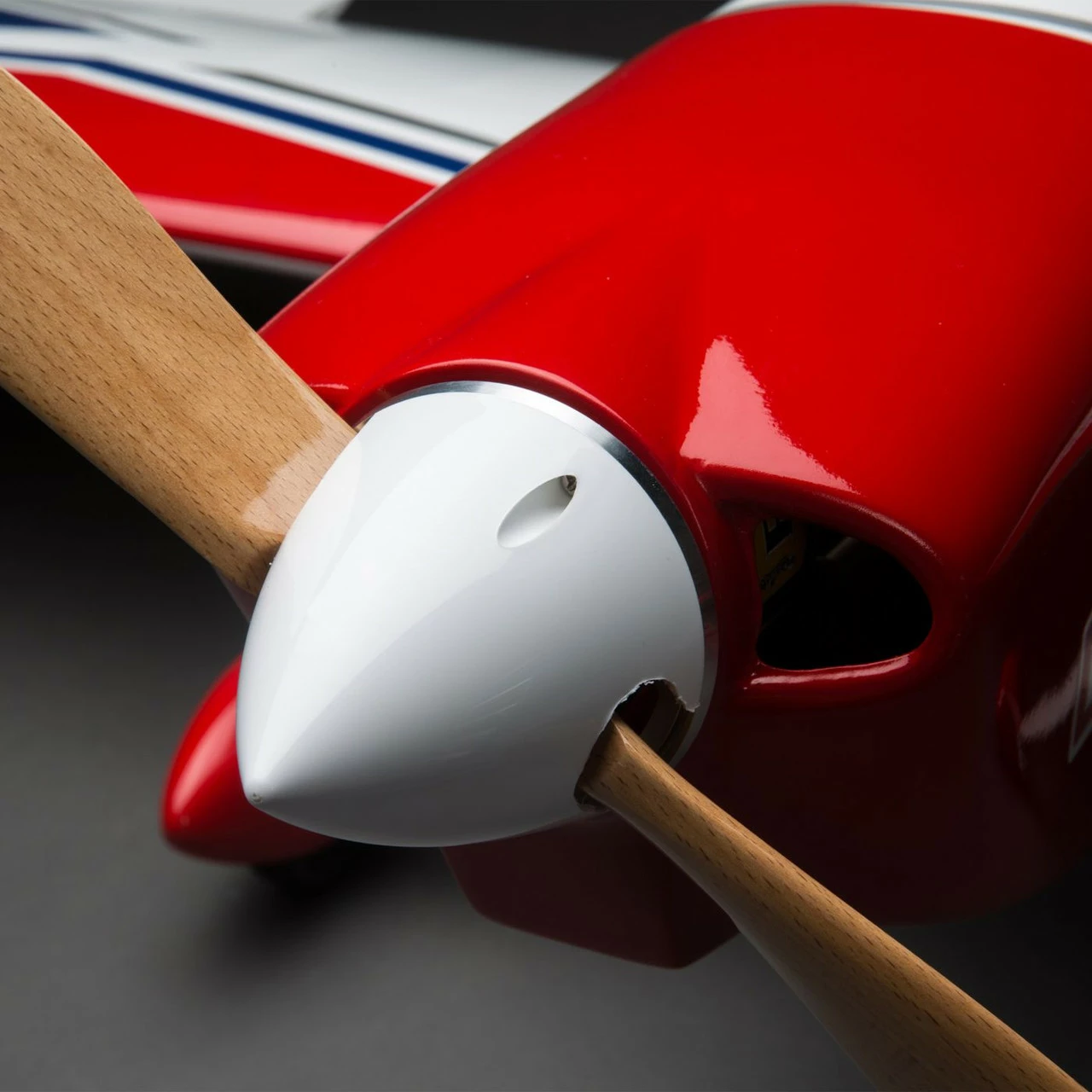

Cowl: Fiberglass
Canopy: Clear plastic
Covering: Top Flite MonoKote*
Landing Gear: Main, One-piece prebent painted aluminum, steerable tail wheel
Canopy: Clear plastic with painted pilot figure
Motor Mount: Plywood
Engine Mount: Plywood with aluminum standoffs
Fuel Tank: 14oz (25cc)

INCLUDES

ARF Hangar 9 Tiger 30cc Airplane with prebuilt Fuselage, Wing and Tail Surfaces, Landing Gear, Engine and Motor Mounts, Fuel Tank, Decals, Hardware and Instruction Manual

REQUIREMENTS

Radio: At least 6-channel
Servos: 5-8 standard size high-torque
9″ Heavy Duty Extensions: Four
18″ Heavy Duty Extensions: Two
Building and Field Equipment

For Electric Motor Power;
Brushless Motor: RimFire 1.70 63-62-200 outrunner
ESC: 120A
Propeller: 18x10E
LiPo Batteries: Two 6S 5000mAh Spektrum SPMX50006S30 recommended
Battery Charger and Charging Bag: Compatible with selected batteries
ESC connectors to match selected battery

For Gasoline Engine Power;
Engine: 35cc DLE – 35RA or O.S. GT33 recommended
Propeller: 18×10
Receiver Battery: At least 2000mAh 7.4V LiPo
Throttle Servo, Switch Harness, Fuel Filler, 2 Cycle Oil

SPECIFICATIONS

Wingspan: 90″ (2.28m)
Length: 78″ (1.98m)
Wing Area: 1417.5 sq in (91.45 sq dm)
Wing Loading: 26-29 oz/sq ft (79.34-88.49 g/sq dm)
Airfoil: Semi-symmetrical
Configuration: Low wing
Flying Weight: 16-18 lbs (7.25-8.16 kg)
Center of Gravity (CG): 3.5 – 5″ (89 – 127mm) measured from the leading edge of the wing at the fuselage side

Control Throws
Aileron Low Rate: up 1-1/2″ (38mm) / down 1.25″ (32mm)
Aileron High Rate: up 2″ (51mm) / down 1-3/4″ (44mm)
Elevator Low Rate: up and down 1/2″ (13mm)
Elevator High Rate: up and down 3/4″ (17.8mm)
Rudder Low Rate: left and right 1″ (25.4mm)
Rudder High Rate: left and right 2″ (50.8mm)

Aileron Expo: low 15% / high 20%
Elevator Expo: low 15% / high 20%
Rudder Expo: low 10% / high 15%

Manuals:

HAN2370-Manual-Multilingual
