GPMQ4930 Great Planes Set Screw Prop Adapter 3.0mm To 5mm

GPMQ4930 Great Planes Set Screw Prop Adapter 3.0mm to 5mm



Great Planes Set Screw Prop Adapter 3.0mm to 5mm

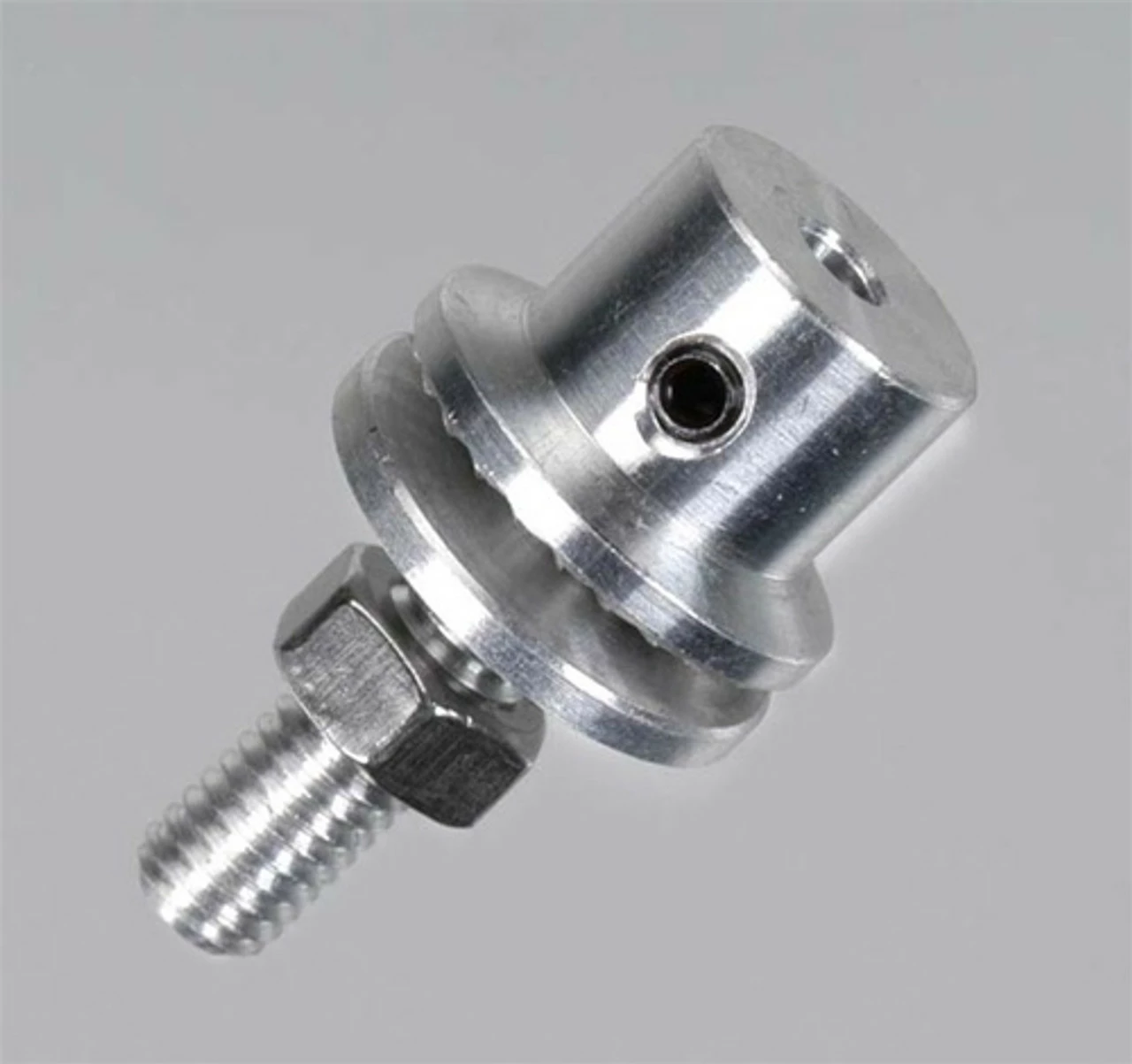

This is the Great Planes ElectriFly 3.0mm – 5mm Prop Adapter with Set Screw and Propeller Nut.



Features:

• Compatible with any electric flight motor having a 3mm diameter shaft
• Mounts onto the shaft coming out of the gearbox or motor with the included set screw. The propeller mounts onto this with the included nut
• Aluminum prop drive
• Metal hardware
• One year quality guarantee
• Fits a 3mm motor shaft with a 5mm prop shaft



Includes:

One Prop Adapter
One 3.5x5mm Set Screw
One 5/16 Propeller Nut





Technical Specifications:

Length: 1.1″ (28.9mm) end to end .69″ (17.6mm) complete shaft w/.45″ (11.3mm) threaded portion.
Diameter: 3/16″ (4.76mm) prop shaft
.12″ (3mm) ID for motor shaft
.66″ (17mm) largest part of hub (thrust washer portion)
.43″ (11mm) smallest part of hub
