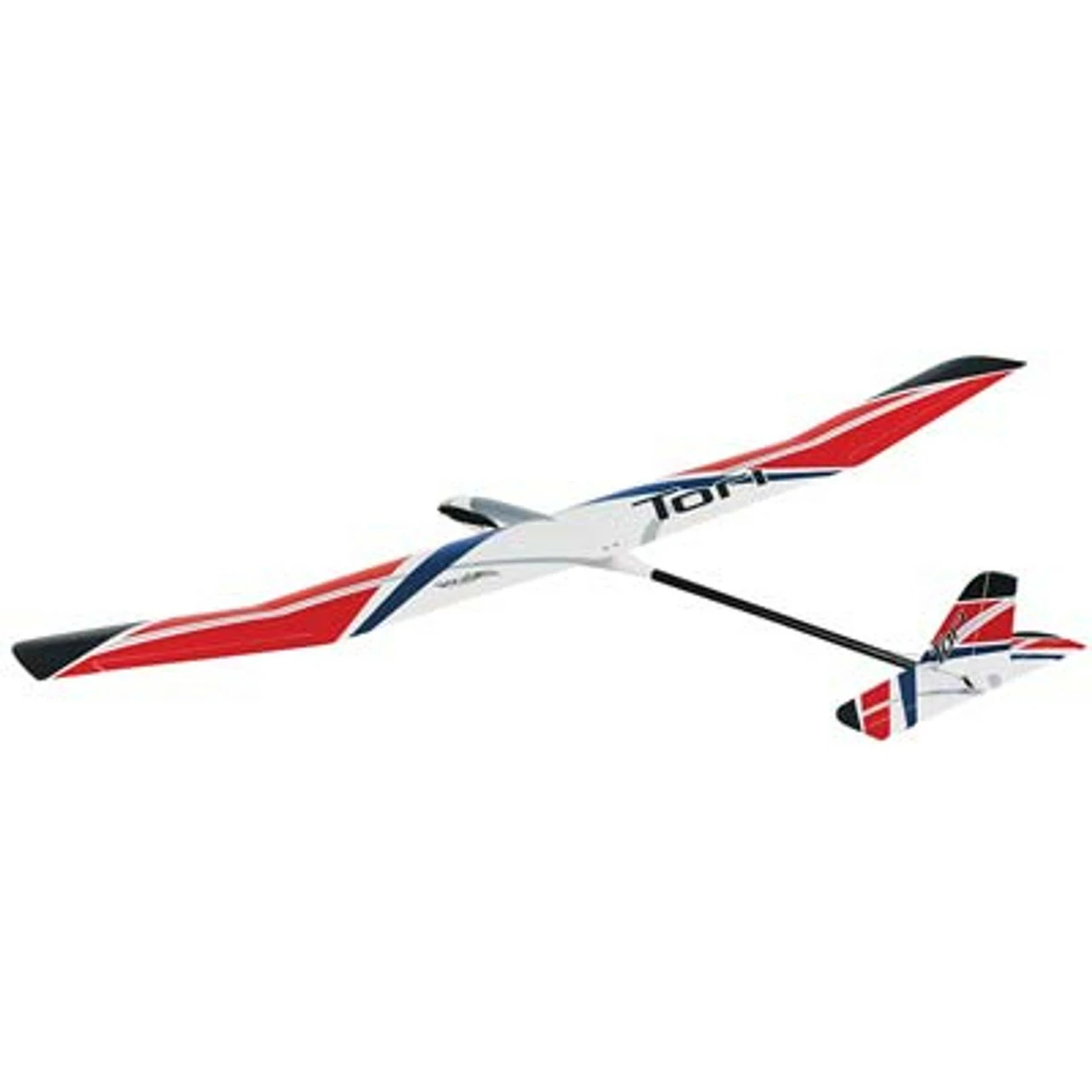

GPMA1818 Great Planes Tori 2M EP Glider ARF

GPMA1818 Great Planes Tori 2M EP Glider ARF

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING



FEATURES

Construction: Carbon boom, fiberglass fuselage, servo tray in fuselage is sized for the Tactic TSX5 micro servos, but may be enlarged for other servos, pre-hinged control surfaces for easy assembly
Wing: One-piece
Covering: High quality heat shrink film
Propeller: 12×6.5 folding
Spinner: Machined aluminum



INCLUDES

Preassembled Wing, Fuselage and Tail Sections, Spinner and Folding Prop Assembly and Instruction Manual



REQUIREMENTS

Radio: At least 4-channel
Servos: Four Tactic TSX5 micro high-speed recommended
Motor: Great Planes Rimfire .10 Outrunner 35-30-1250 outrunner
ESC: 40A
Battery: 2S 2200mAh OR 3S 1800mAh LiPo
Battery Charger: Compatible with selected battery
Building and field equipment





SPECIFICATIONS

Wingspan: 78.5 (1995mm)
Length: 42 (1065mm)
Wing Area: 498 sq in (32.1 sq dm)
Wing Loading: 8.4 – 9.0 oz sqft (25.6 – 27.5g sq dm)
Weight: 29-31oz (822-879g)
Center of Gravity: 2 – 3 (50 – 75mm) back from leading edge of wing approximatey where it meets the fuselage
Control Throws Low Rate High Rate
Elevator, up & down: 516 (8mm) 15 12 (13mm) 25
Rudder, right & left: 34 (19mm) 20 1 (25mm) 28

Ailerons, Low Rate up 38 (10mm) 19, down 14 (6mm) 13
High Rate up 58 (16mm) 33, down 38 (10mm) 19
