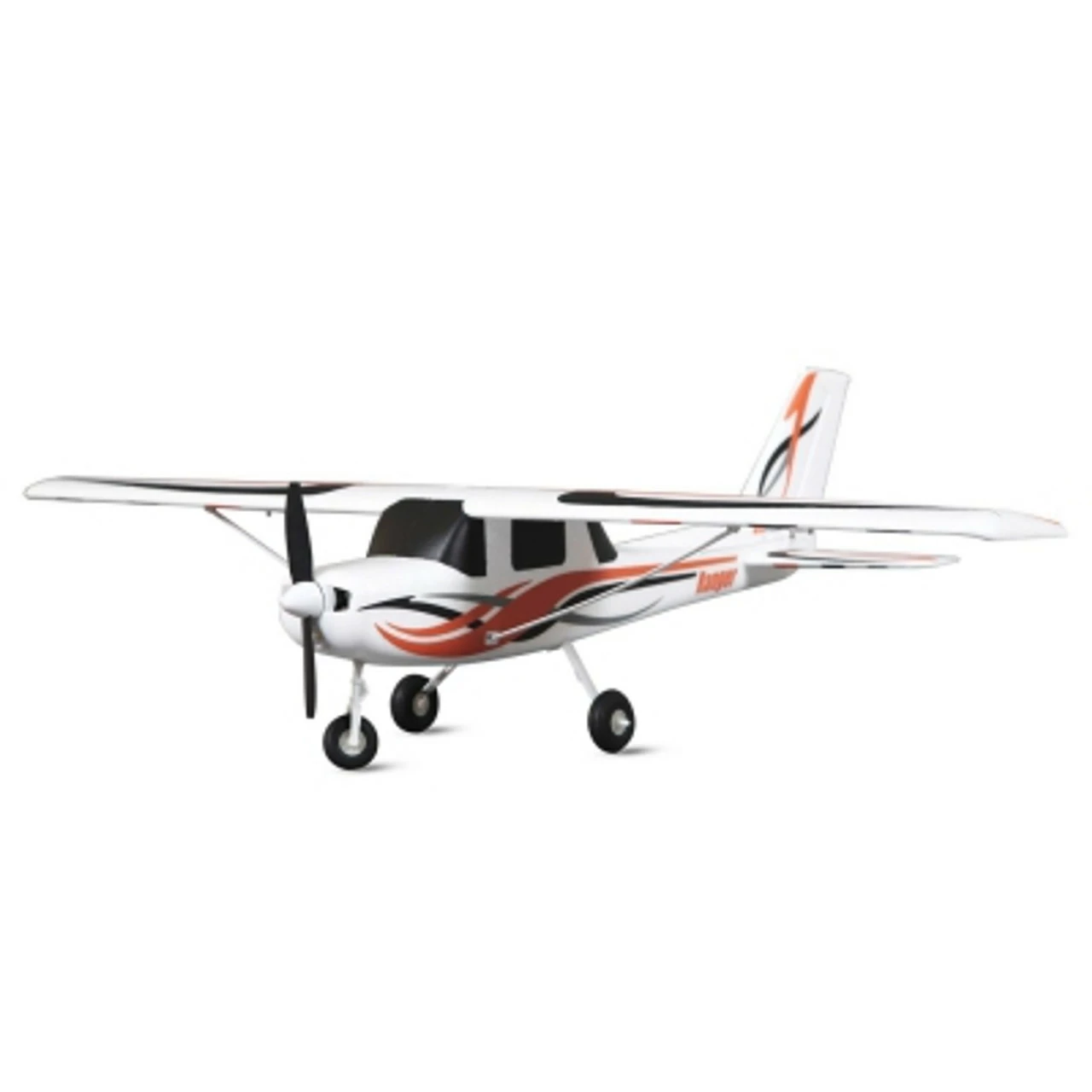

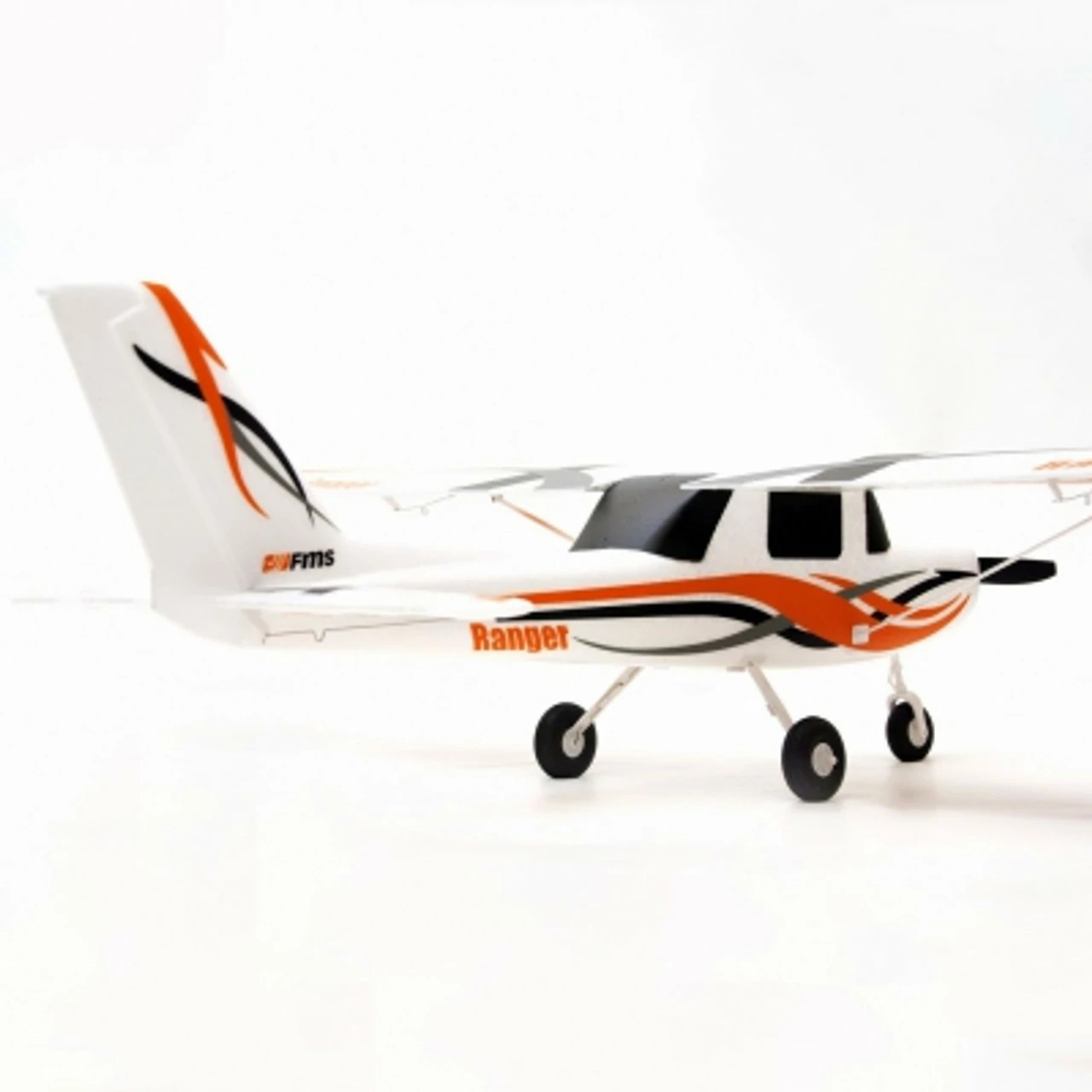

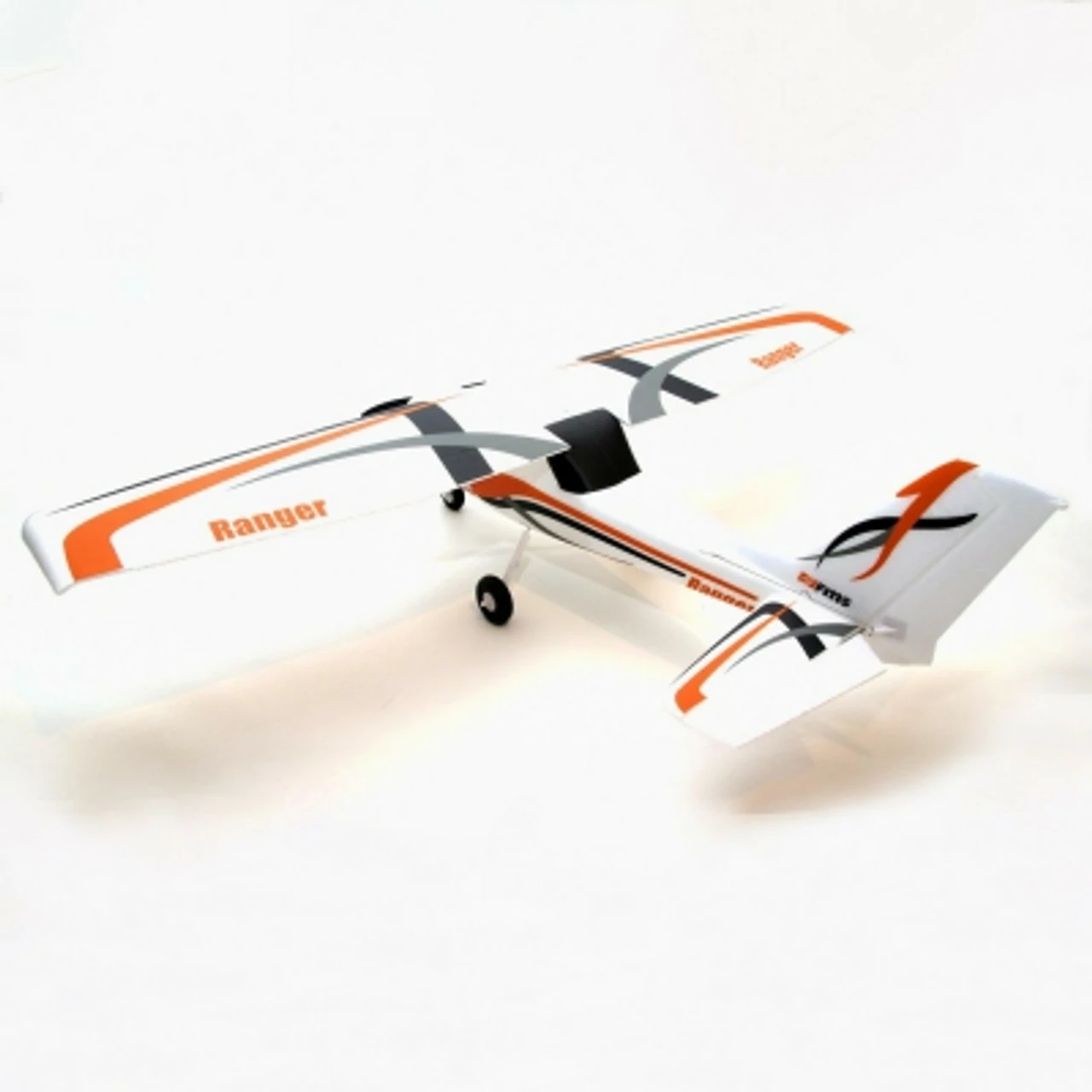

FMM123P FMS Ranger 850mm PNP

FMM123P FMS Ranger 850mm PNP

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

Construction: EPO foam
Wing: One-piece
Brushless Motor: 2315 3850Kv
Electronic Speed Control: 12A ESC/receiver combo with JST battery connector
Flight Controller: Includes GPS system with flight perimeter fence and return to home functions, beginner, intermediate and fully manual flight modes
Servos: Four 1.9g micro servos (2-ailerons, 1-rudder, 1-elevator)
Landing Gear: Tricycle style, prebent wire
Propeller: 6×5″ 2-blade





INCLUDES

FMS Ranger 850mm PNP (Plug-N-Play) Airplane with four Servos, Prop Flight Controller, ESC/Receiver and Instruction Manual





REQUIREMENTS

Transmitter: 6-channel
LiPo Battery: 7.4V 850mAh 25C with JST connector





SPECIFICATIONS

Length: 25.8″ (657mm)
Wingspan: 33.5″ (850mm)
Wing Loading: 7.7oz/sq in (23.6g/sq dm)
Wing Area: 190.5 sq in (12.3 sq dm)
Takeoff Weight: 10.2oz (290g)
Center of Gravity, CG: 1.6 – 2.0″ (40 – 50mm) back from the leading edge of the wing at the fuselage side

Control Throws Low Rate High Rate
Elevator, Up Down: 0.59″ (15mm) 0.79″ (20mm)
Aileron, Up Down: 0.79″ (20mm) 0.98″ (25mm)
Rudder, Left/Right: 0.59″ (15mm) 0.79″ (20mm)
