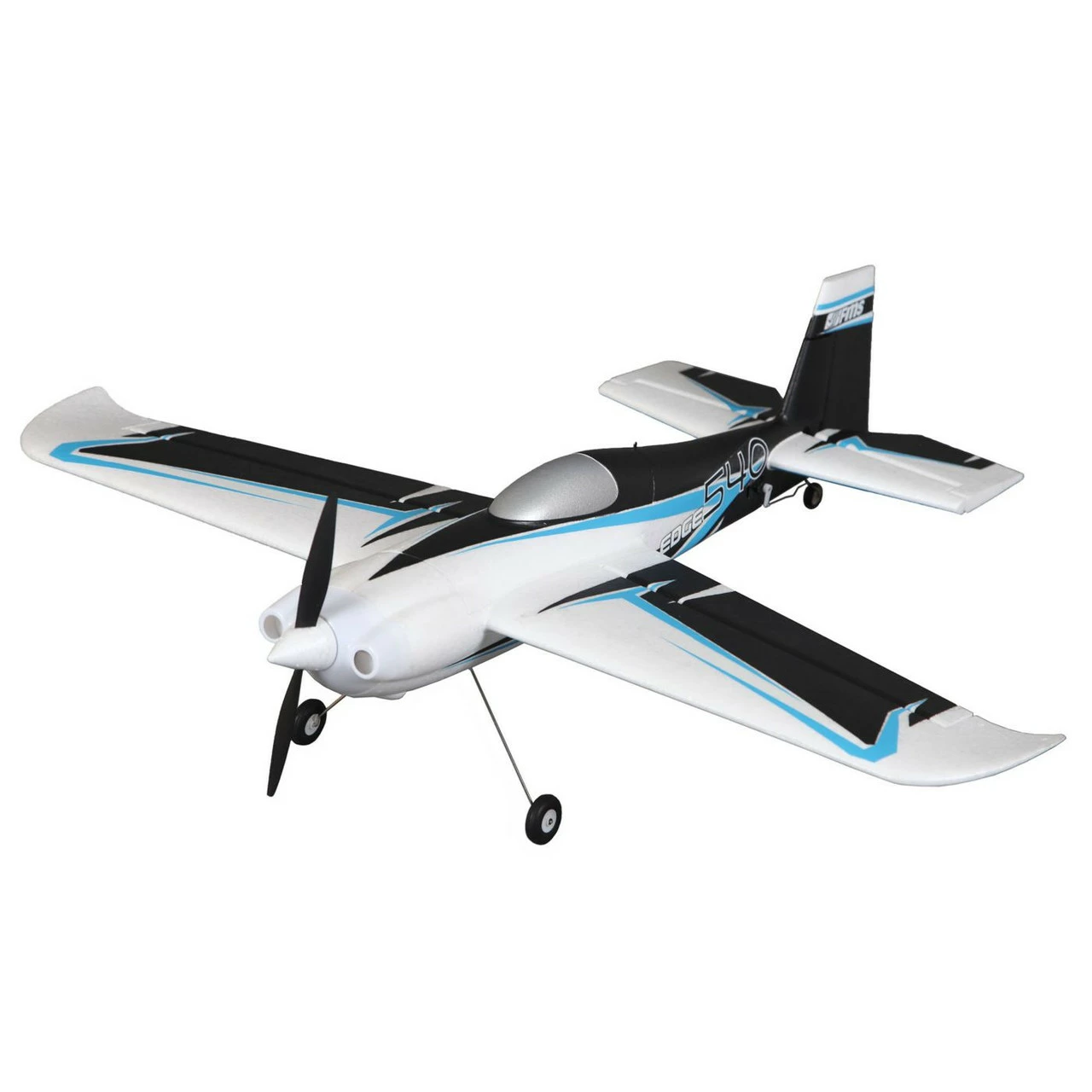

FMM120P FMS Edge 540 750mm

FMM120P FMS Edge 540 750mm

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

Construction: EPO foam with blue, white and black trim scheme
Wing: Two-piece
Brushless Motor: 2212 2250Kv
Electronic Speed Control: 20A with T-plug
Servos: Four 5g (2-ailerons, 1-rudder, 1-elevator)
Canopy: Latch type
Landing Gear: Tricycle style, prebent wire
Propeller: 8×3.5 black plastic



INCLUDES

FMS 750mm Edge 540 PNP (Plug-n-Play) with Motor, ESC, four Servos, Propeller and Instruction Manual



REQUIREMENTS

Transmitter and Receiver: 4-channel
Battery: 7.4V 1300mAh 20C with T-plug
Battery Charger: To match selected battery
Field equipment



SPECIFICATIONS



Approximate Assembly Time:	Less than 1 Hour
CG (Center of Gravity):	2.2-2.5″ (55-65mm) back from leading edge of wing measured at the fuselage
Charger:	Sold separately
Completion Level:	Plug-N-Play
Control Throw – High (Ailerons):	Up/Down, 2.0″ (50mm)
Control Throw – High (Elevator):	Up/Down 1.6″ (40mm)
Control Throw – High (Rudder):	Left/Right 1.8″ (45mm)
Control Throw – Low (Ailerons):	Up/Down 1.2″ (30mm)
Control Throw – Low (Elevator):	Up/Down 0.79″ (20mm)
Control Throw – Low (Rudder):	Left/Right 0.98″ (25mm)
Flying Weight:	13.7oz (390g) approximate
Landing Gear:	Fixed main LG and steerable tail wheel
Length:	27.6″ (702mm)
Material:	Ultra-lightweight EPO foam
Minimum Required Radio:	4-channel
Minimum Speed Control:	20A included
Motor Size:	2212 2250Kv
Propeller Size:	8.3×5″
Recommended Motor Battery:	7.4V 1300mAh 20C w/T-plug, sold separately
Retracts:	No
Servos:	Four 5g
Transmitter Range:	Full
Trim Scheme Colors:	Black, white and blue
Wingspan:	29.5″ (750mm)
