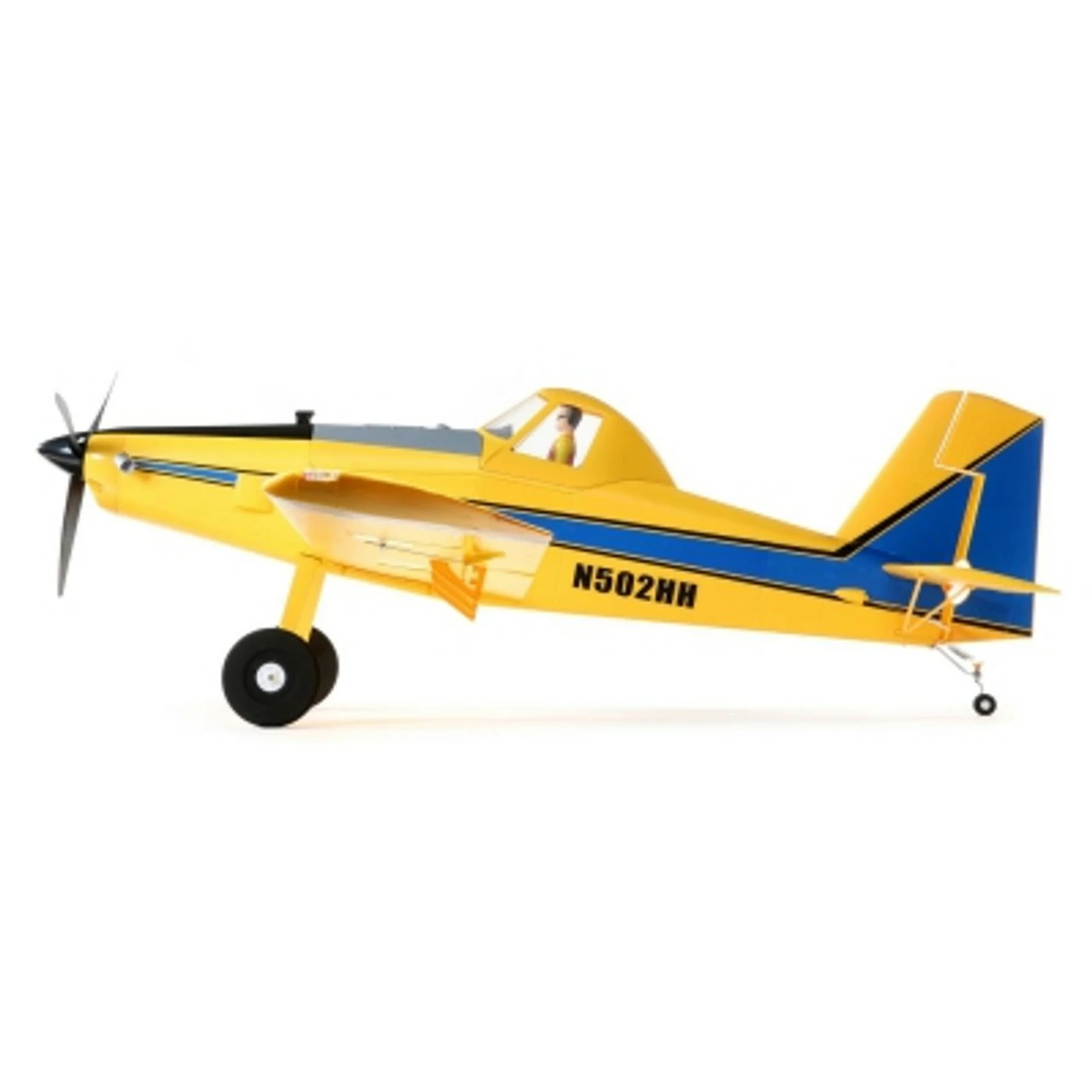

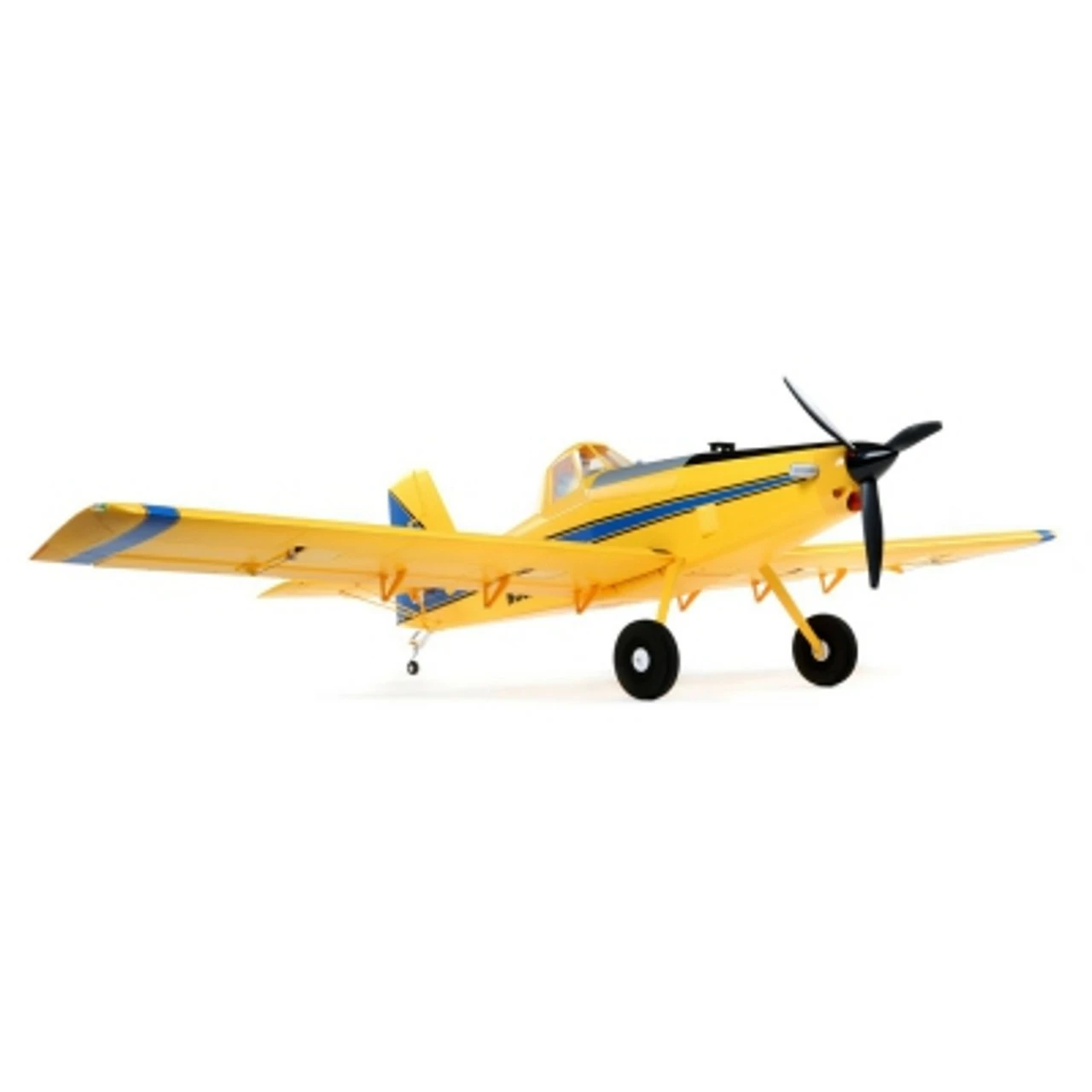

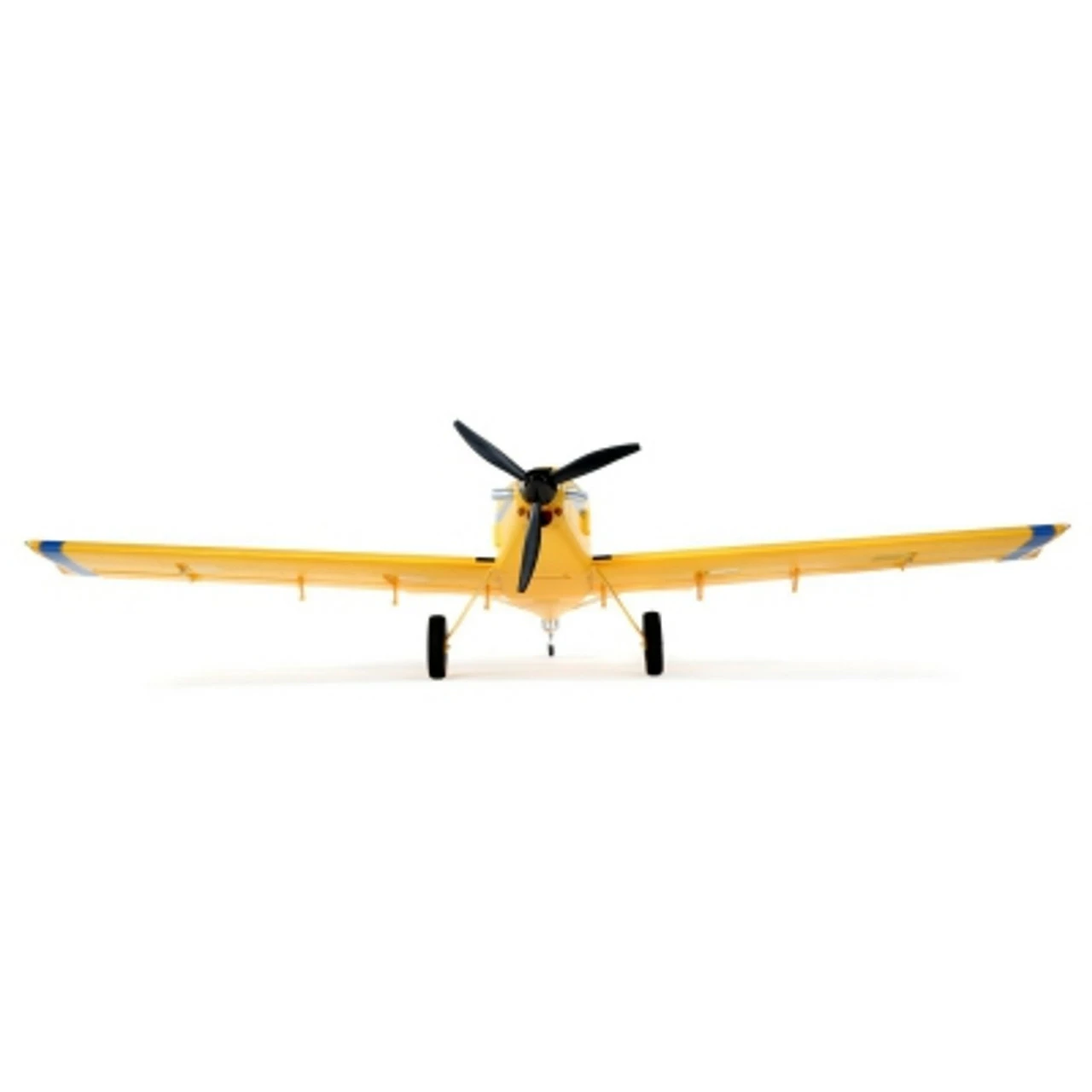

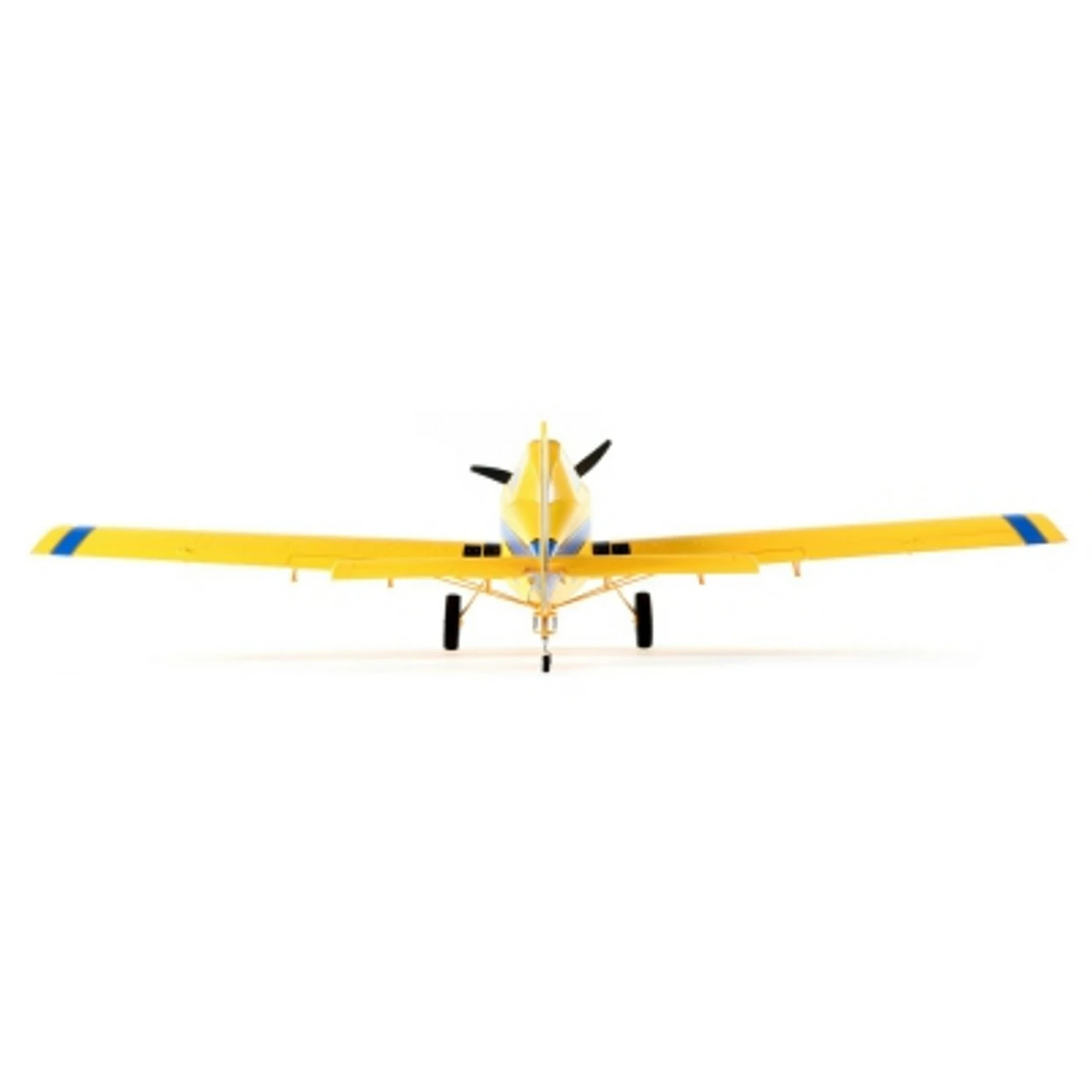

EFL16450 E-flite Air Tractor 1.5m BNF Basic W/AS3X & SAFE Select

EFL16450 E-flite Air Tractor 1.5m BNF Basic w/AS3X & SAFE Select

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

Construction: Composite-reinforced, hollow-core construction with EPO material with yellow and blue color scheme
Wing: 2-piece flat bottom airfoil with slotted flaps for improved slow speed handling, and also to enable Short Take Off and Landing (STOL) capabilities
Motor: 10 size brushless outrunner
Electronic Speed Control: 50A brushless
Receiver: Spektrum AR637TA 2.4GHz 6-ch DSMX with AS3X (Artificial Stabilization-3-aXis)
Servos: Six metal gear, five 9G SPMSA332, one 9G SPMSA330R reverse servo
LED Lights: Landing navigation and strobe lights factory installed and powered from flight battery
Landing Gear: One-piece main, steerable tailwheel
Propeller: 11×7.5 3-blade



INCLUDES

E-flite Air Tractor BNF (Bind-n-Fly) Basic
50A ESC
Spektrum AR637TA 6-ch Receiver
Brushless Outrunner Motor
Six Servos
Instruction Manual



REQUIREMENTS

Transmitter: 6-channel
Motor Battery: 2200 – 3200mAh 3S – 4S LiPo with EC3 or IC3 connector
Battery Charger and LiPo Charging Bag: To match selected battery





SPECIFICATIONS

Wingspan: 59 (1498mm)
Length: 38.5 (977.9mm)
Wing Area: 472 sq in (30.5 sq dm)
Flying Weight: 59 – 62oz (1681 – 1766g)
Center of Gravity: 2.5 (65mm) +- 5mm back from leading edge of wing
Airfoil: Flat bottom
Configuration: Low wing
Control Throws: Low Rate High Rate
Ailerons: .63 (16mm) .86 (22mm)
Elevator: .27 (7mm) .4 (10mm)
Rudder: .32 (8mm) .43 (11mm)
Expo:
Ailerons: 5 15
Elevator: 5 10
Rudder: 5 10
Skill Level: 2, some experience required
