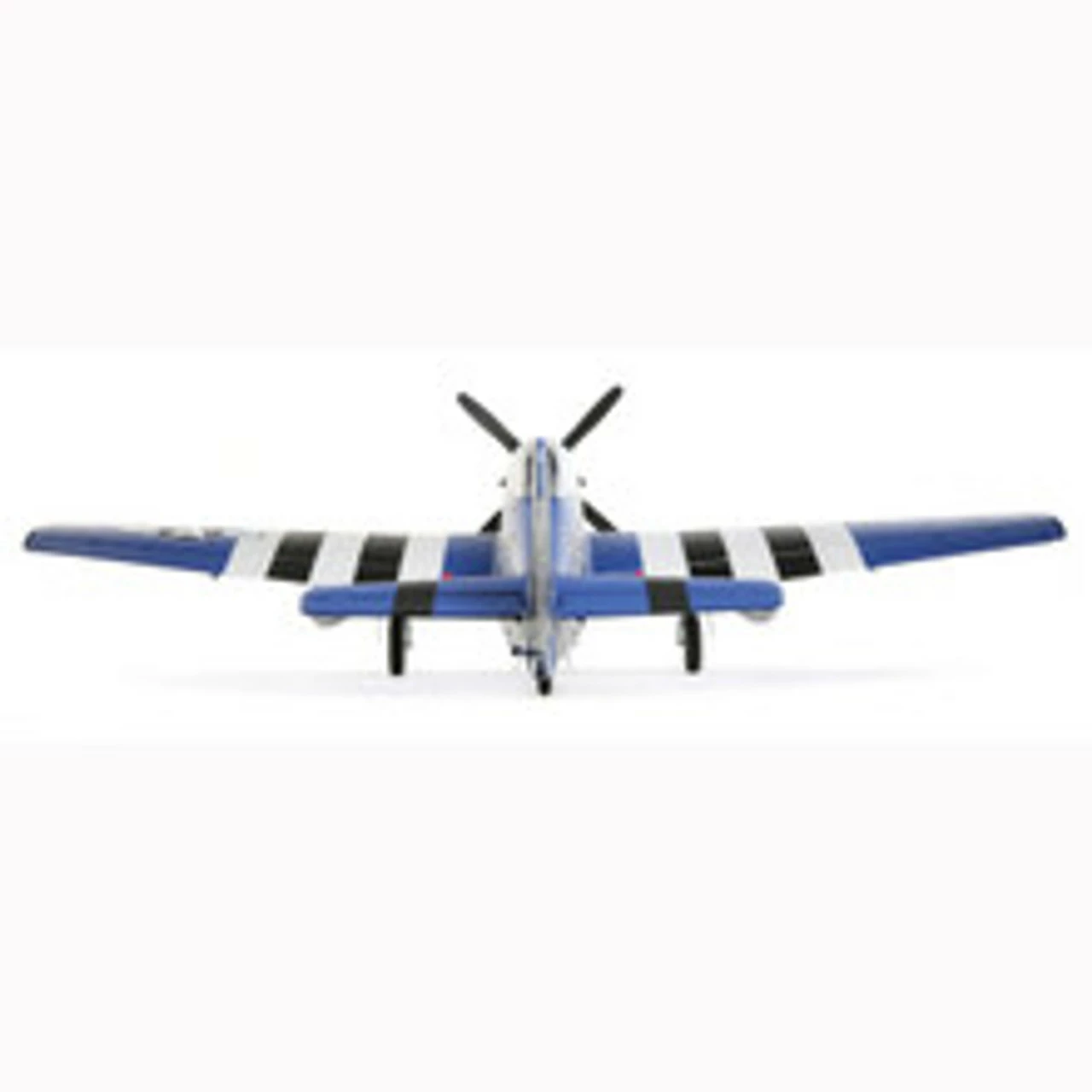

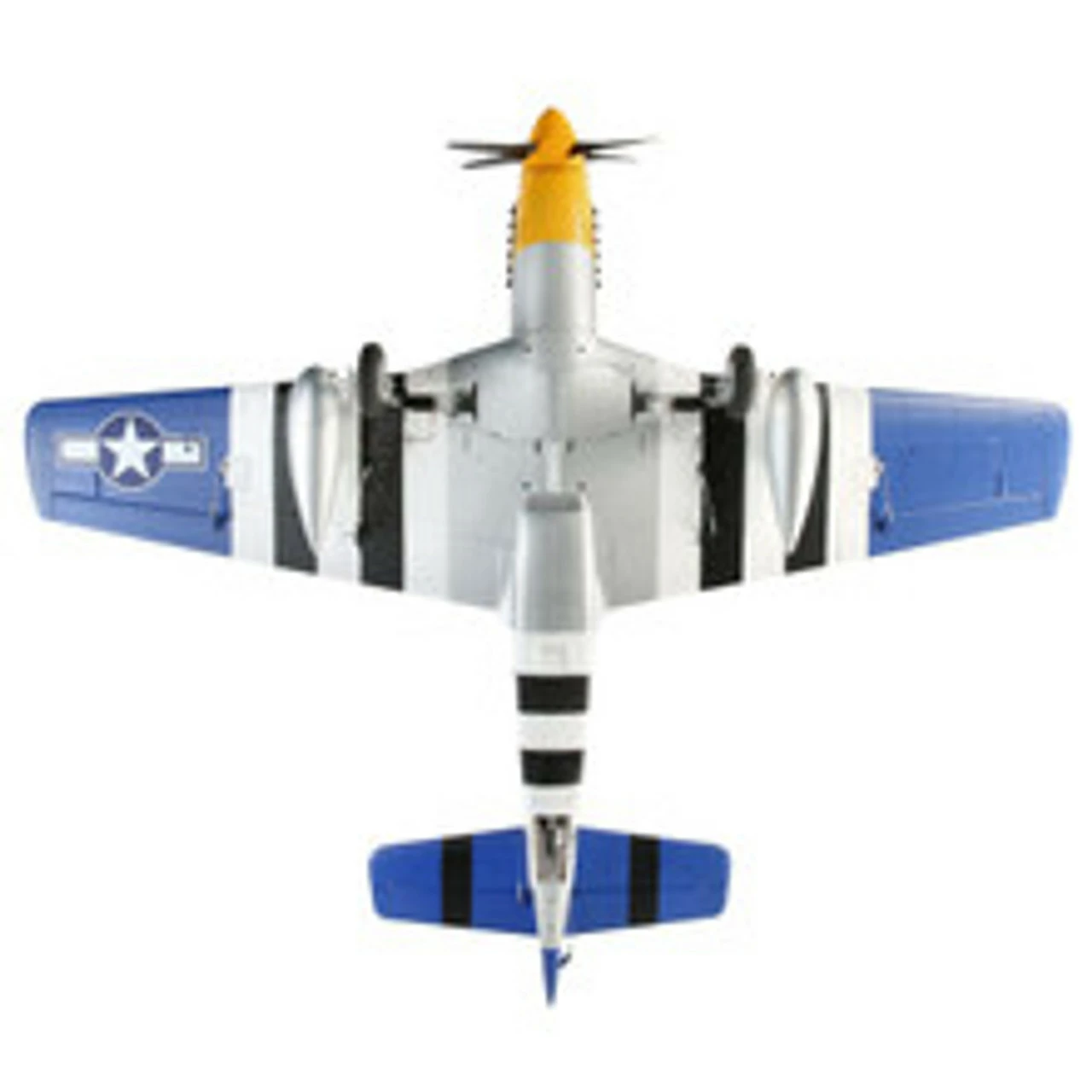

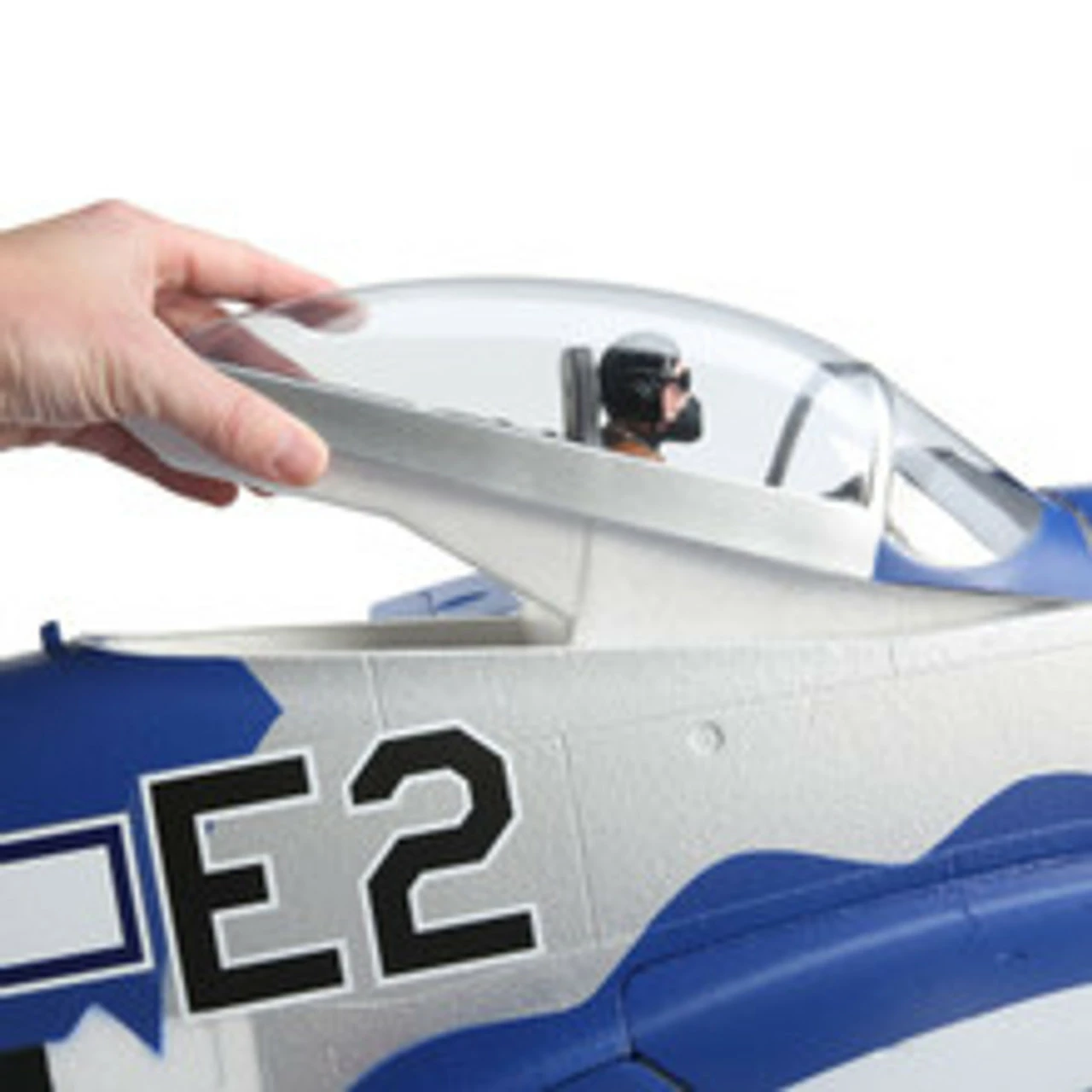

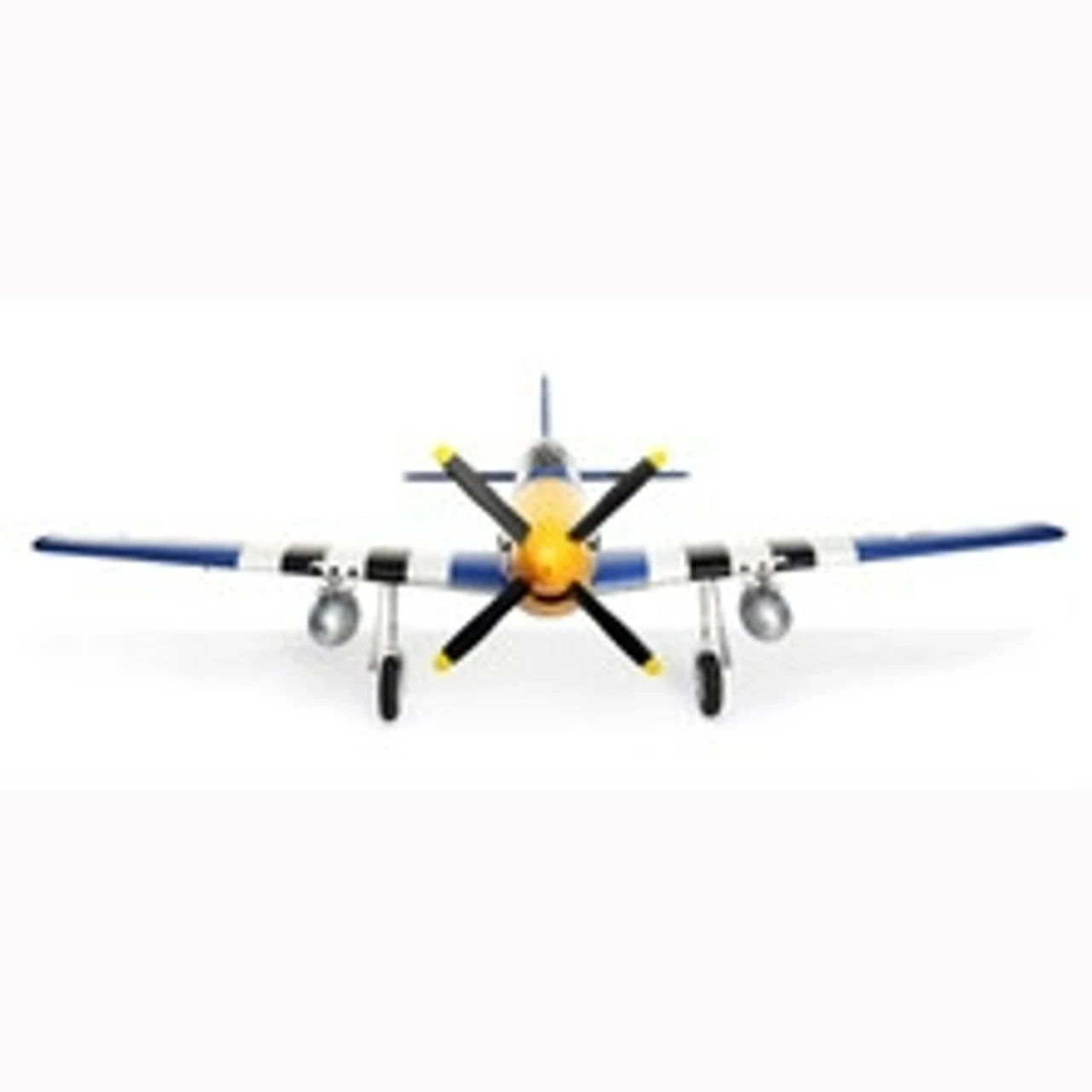

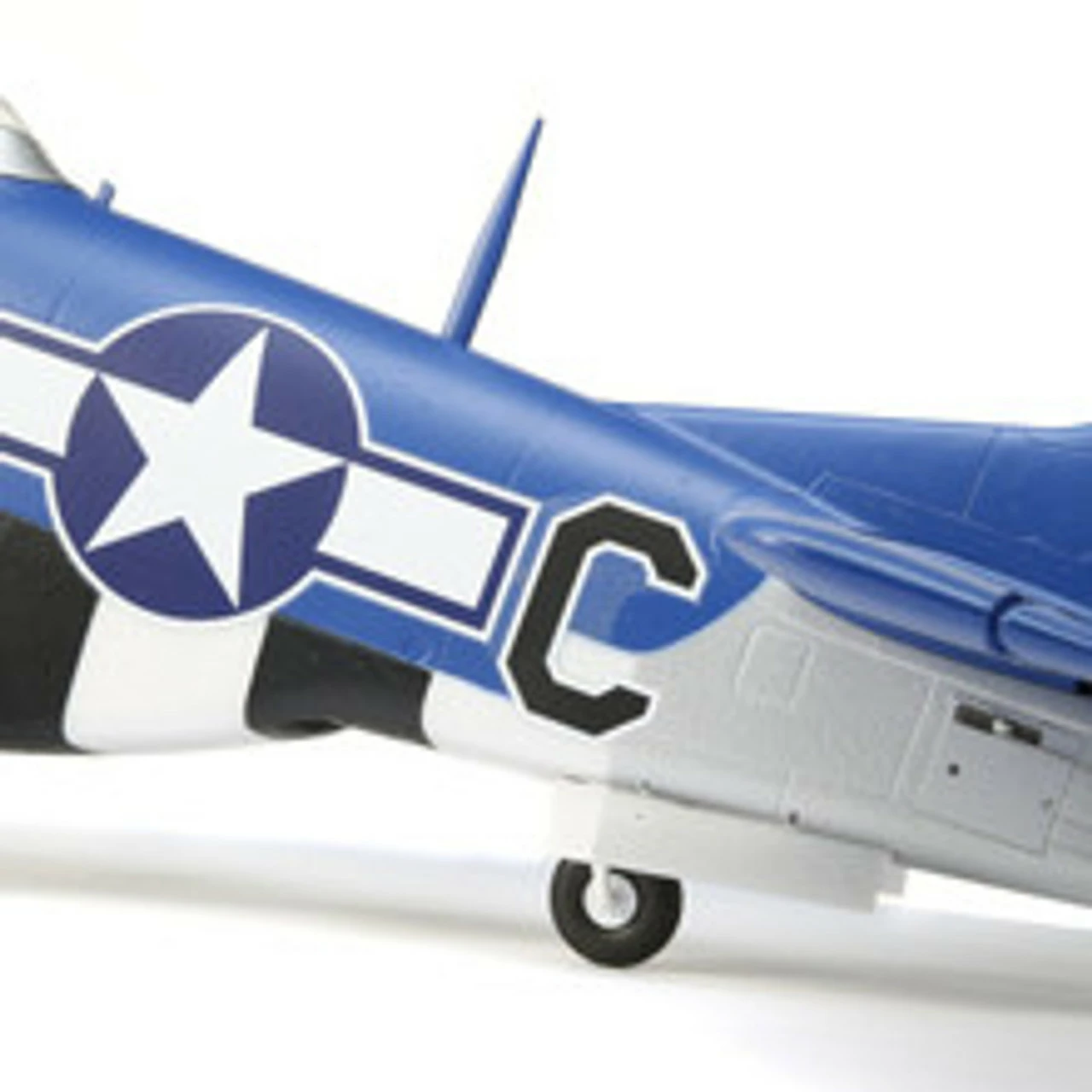

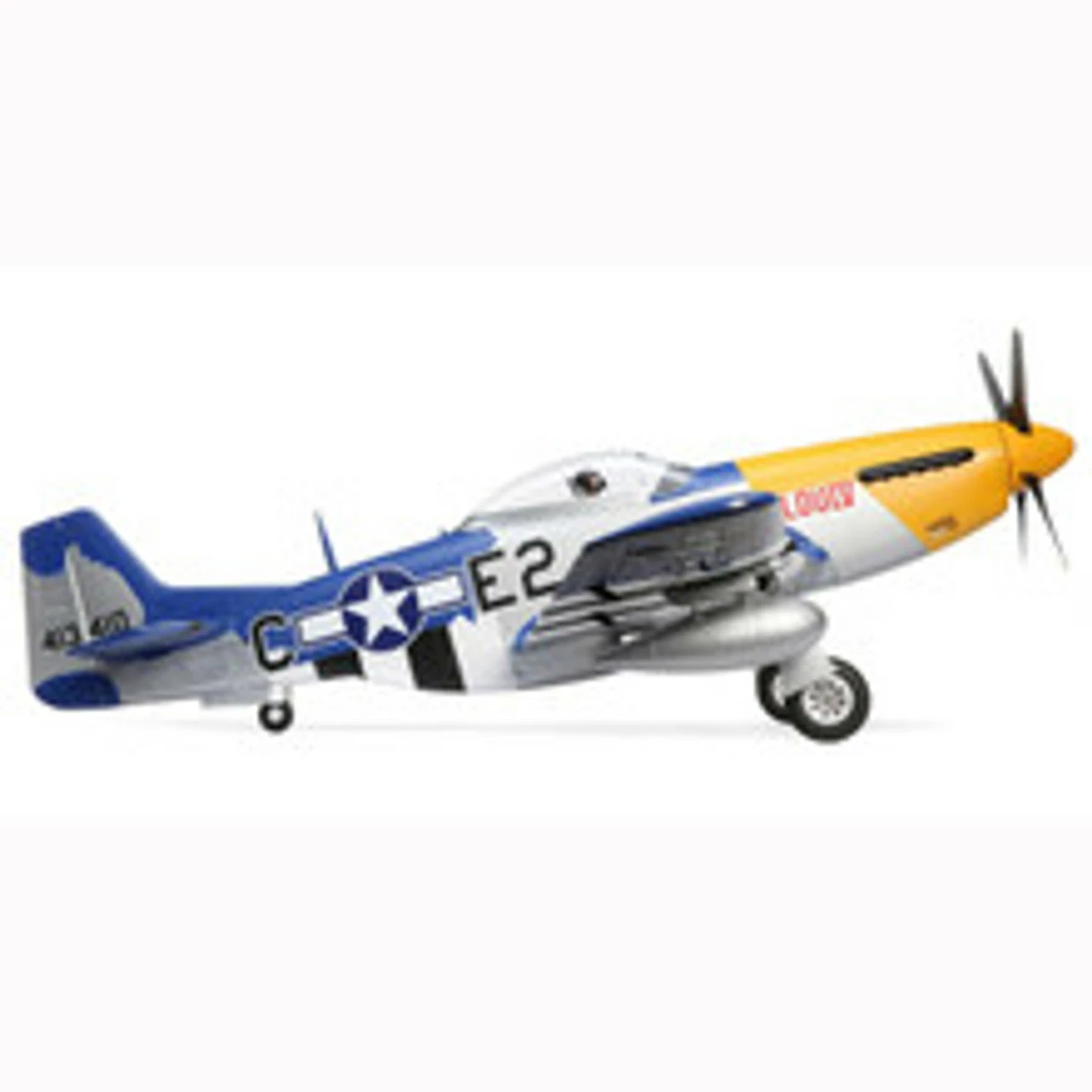

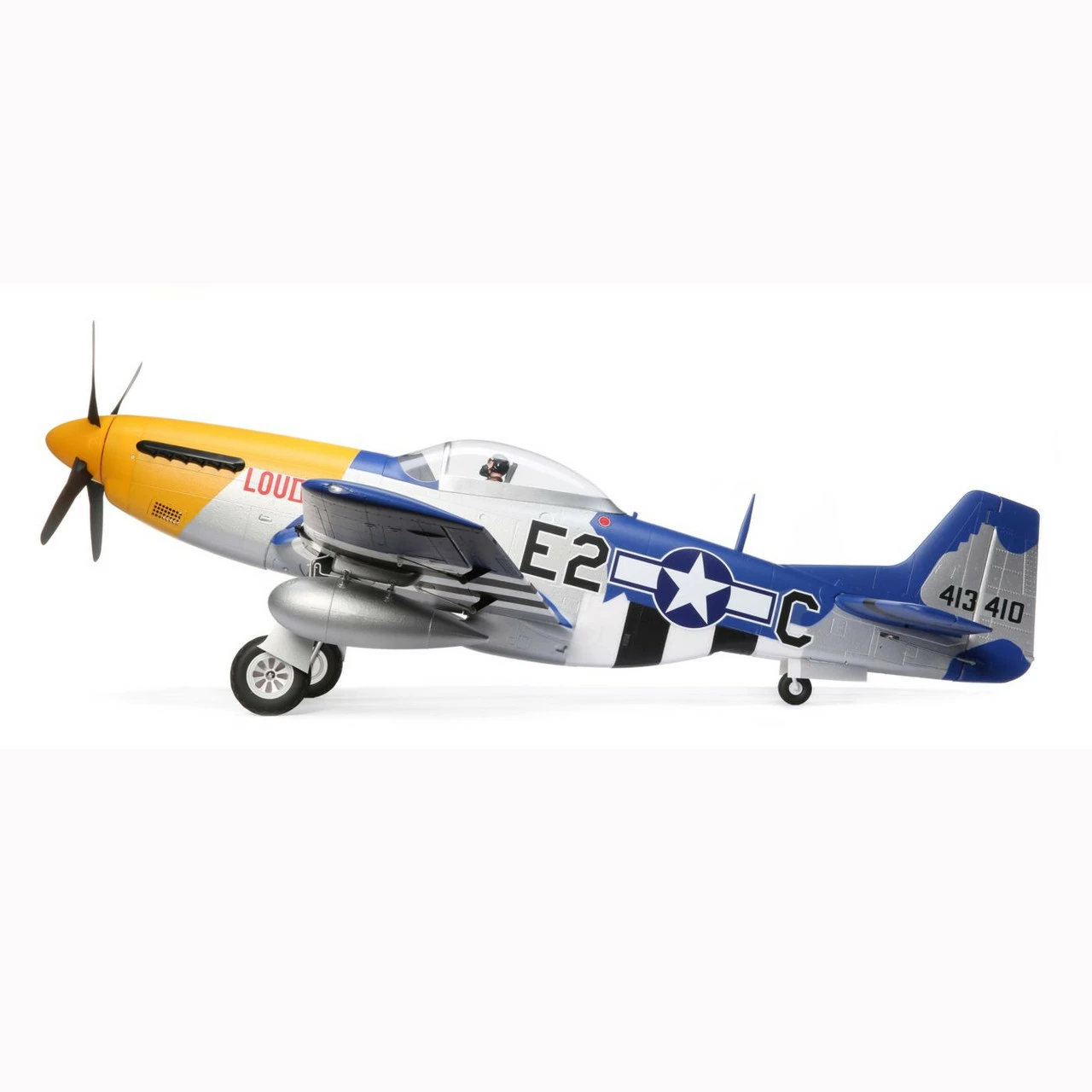

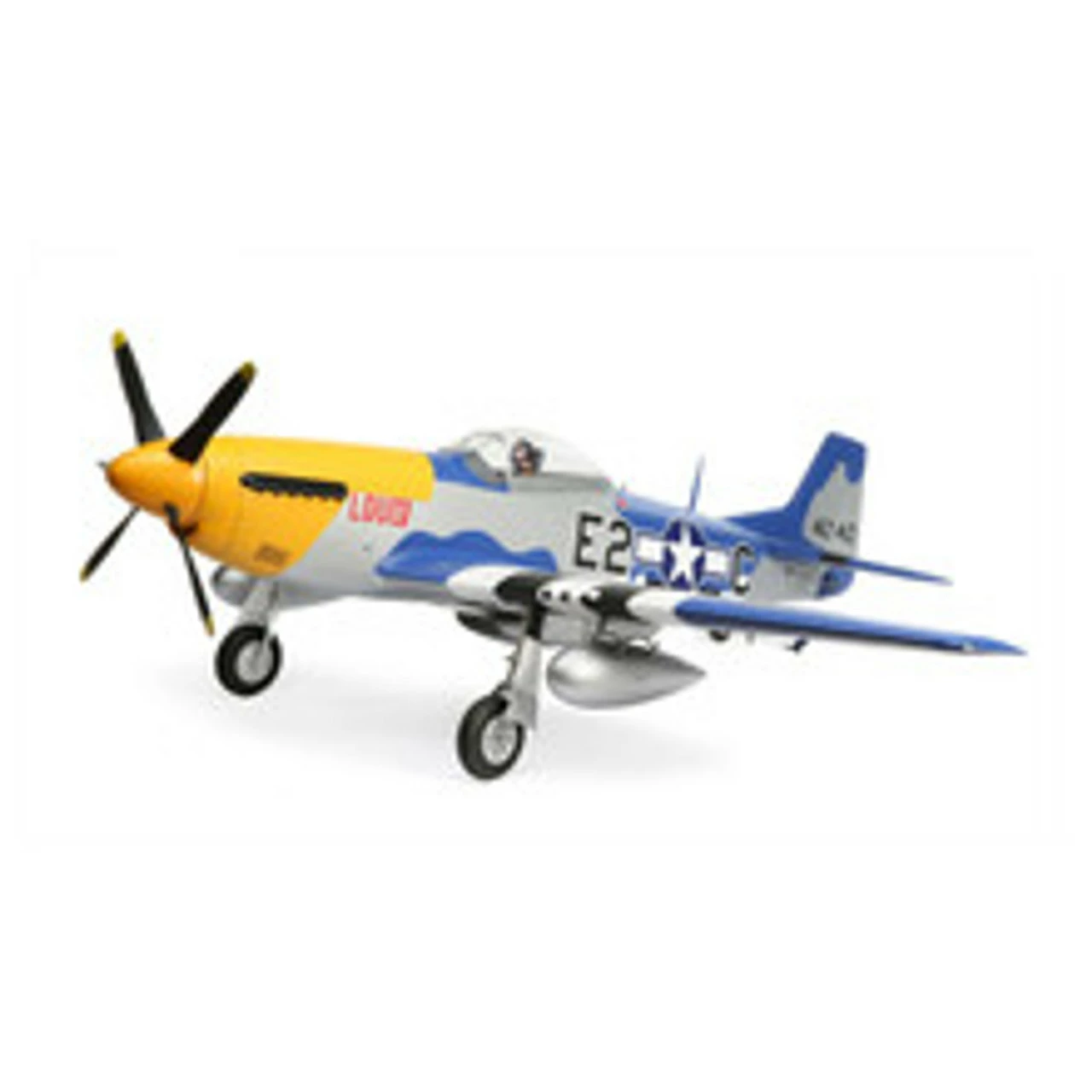

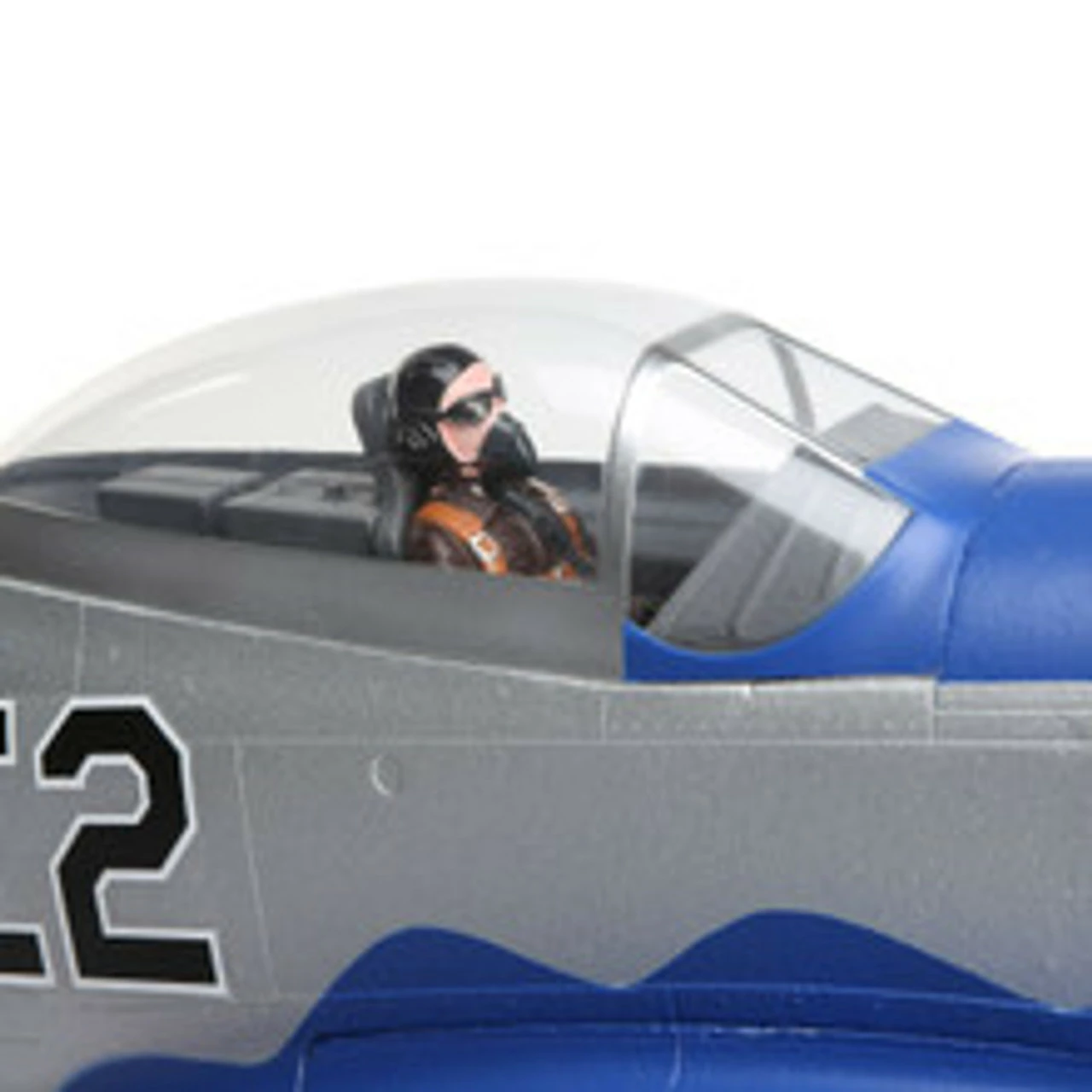

EFL01250 E-flite P-51D Mustang 1.5m BNF Basic

EFL01250 E-flite P-51D Mustang 1.5m BNF Basic

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

Construction: EPO foam with carbon fiber and wood reinforcement, no glue required for assembly
Trim Scheme: Painted Lou IV
Wing: 3-piece, center section with main gear, plus outer panels that snap into place without fasteners
Electronic Speed Control: 100A Spektrum Avian Smart ESC with IC5
battery connector
Motor: Brushless 4650 – 460kV
Receiver: Spektrum AR637TA with AS3X (Artificial Stabilization-3aXis) technology that senses and counters the effects of wind and turbulence, SAFE Select features include Pitch and Bank Angle Limits, Automatic Self-Leveling and Easy Switch Assignment-No Programming Required
Landing Gear: Electric retracts with ball bearing equipped wheels and diamond tread pattern tires
Servos: Nine total with ball link linkages
Propeller: 15.5×11 4-blade

INCLUDES

E-flite P-51D Mustang 1.5m BNF (Bind-n-Fly) Basic with Motor, ESC, Receiver, Servos, Propeller and Instruction Manual

REQUIREMENTS

Transmitter: At least 6-channel
LiPo Battery: 6S 22.2V 3200-7000mAh with IC5 or EC5 connector
Battery Charger: Compatible with selected battery

SPECIFICATIONS

Wingspan: 59 (1500mm)
Length: 52 (1320mm)
Flying Weight: 7.5lbs – 8lbs (3.4kg – 6.3kg)
Approximate Assembly Time: Less than 1 hour
Skil Level: 2, some experience required
Center of Gravity, CG: 4.9 – 5.4 (124 – 137mm) back from leading edge of wing measured at wing root
Control Throws: Low Rate High Rate
Elevator, up: 0.51 (13mm) 0.51 (13mm)
down: 0.39 (10mm) 0.39 (10mm)
Aileron, updown: 0.47 (12mm) 0.59 (15mm)
Rudder, leftright: 0.59 (15mm) 0.87 (22mm)
Flaps: Take-off 1.1 (27mm), Landing 2.4 (60mm)

EXPO Low Rate High Rate
Elevator: 70 100
Aileron: 70 100
Rudder: 70 100

Manuals

EFL01250-Manual-English
