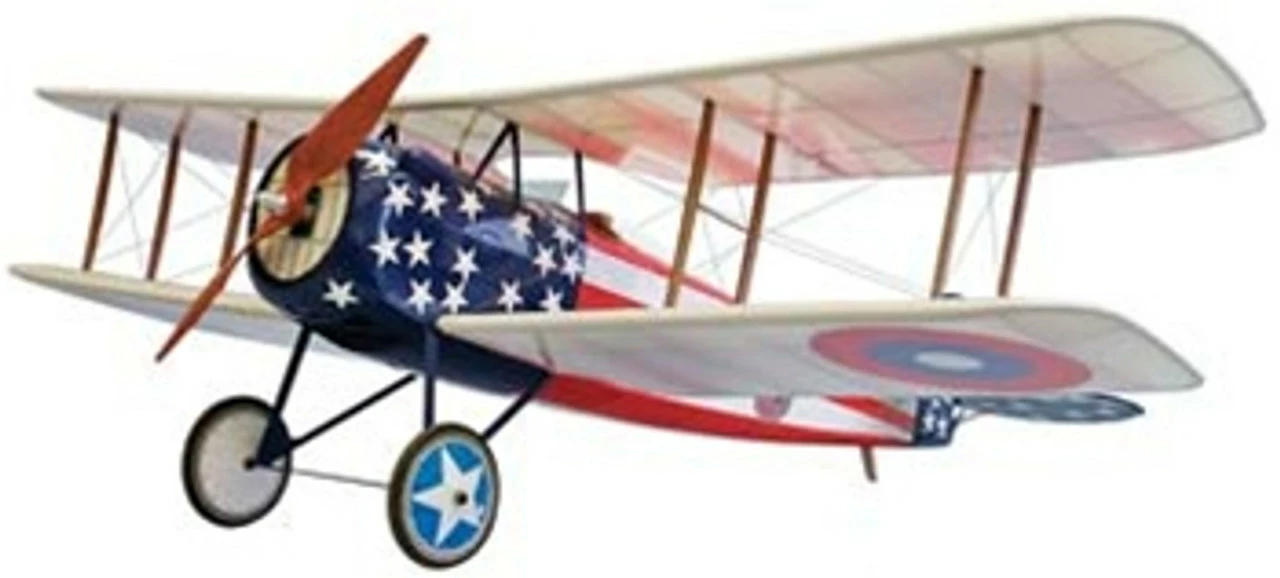

DUM1816 Dumas Spad XIII Kit 35″

DUM1816 Dumas Spad XIII Kit 35″



Features:

Construction: Laser cut balsa
Covering: Tissue, red in color
Cowl: Vacuum molded
Hub Caps: Vacuum molded-for inside and outside of wheels
Landing Gear: .062″ (1.6mm) diameter wire, requires bending
Decals: One sheet peel and stick vinyl



Includes:

Dumas Spad XIII Kit with covering tissue, decals, landing gear wire cowl, hub caps instructions, two plan sheets and interplane thread rigging



Requires:

Radio: 3-channel with micro receiver & two sub micro servos,
Motor: Speed 280 w/2.8:1 or higher gear drive,
Electronic Speed Control: 5A with BEC,
Battery: 2 cell 1200mAh LiPo battery
Battery Charger: LiPo compatible,
Wheels: 3″ ultra light weight,
Propeller: 9×4.7 electric,
Building and field equipment



Technical Specifications:

Wingspan: 35″ (889mm)
Length: 26.75″ (679mm)
Wing Area: 400 sq in (25.84 sq dm)
Airfoil: Flat bottom
Center of Gravity: 2.25″ (57mm) back from leading edge of top wing at fuselage size
Control Throws-
Elevator: 3/4″ (19mm)
Rudder: 1-1/4″ (32mm)
