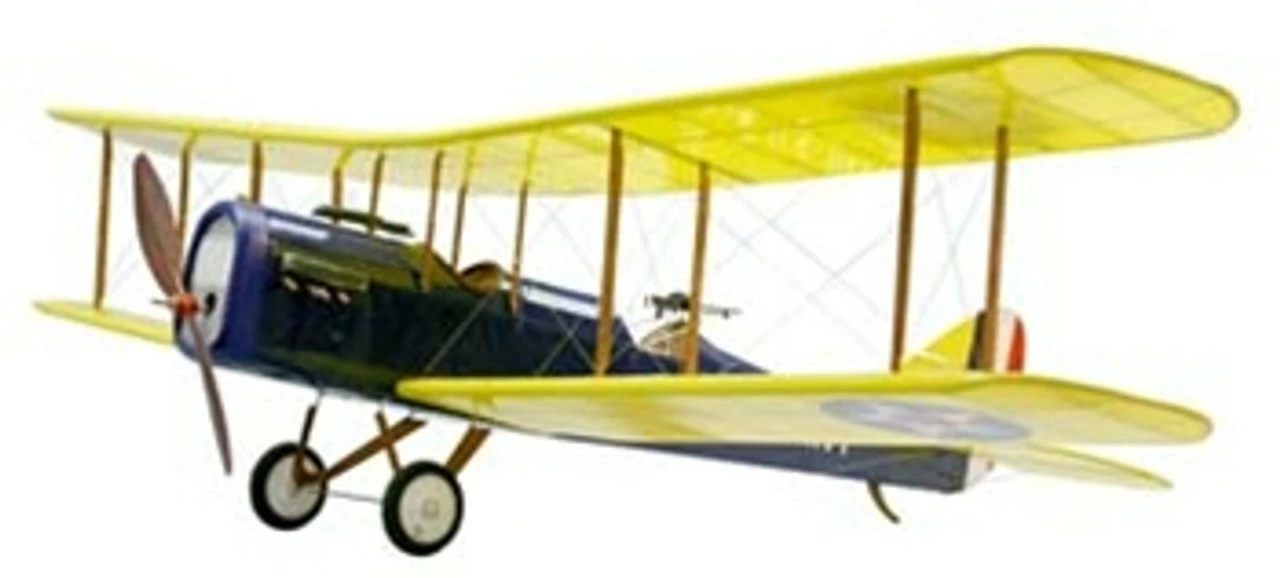

DUM1812 Dumas DH-4 Park Flyer Kit 35″

DUM1812 Dumas DH-4 Park Flyer Kit 35″



Features:

Construction: Hand selected laser cut balsa
Vacuum molded cowl
Rudder and Elevator Control: Wire pushrod
Servo Placement: Mounted in rails on fuselage
Landing Gear: 1/16″ diameter wire front, tail wire skid requires bending

Includes:

All balsa, lightweight colored (blue and yellow) tissue covering, two 2″ (51mm) diameter plastic main wheels, tail wire skid, CA hinges and all hardware to comlete the kit, instruction manual, two full-size plan sheets, and vacuum molded cowling.

Requires:

GWS IPS (indoor power system) motor with “A” ratio gear drive
3 channel radio system (minimum)
3 micro servos
5A ESC w/BEC
2 cell 700mAh LiPo battery
GWS 8×6 prop,
Building and field equipment



Technical Specifications:

Length: 25″ (635mm)
Wingspan: 35″ (889mm)
Wing Area: 329sq.in. (22.74 sq dm)
Airfoil: Flat bottom
Center of Gravity (CG): 1-13/16″ (46mm) back from the leading edge of the TOP wing
Control Throws-
Elevator, Up and Down: 5/8″ (11mm)
Rudder, Left and Right: 3/4″ (20mm)
