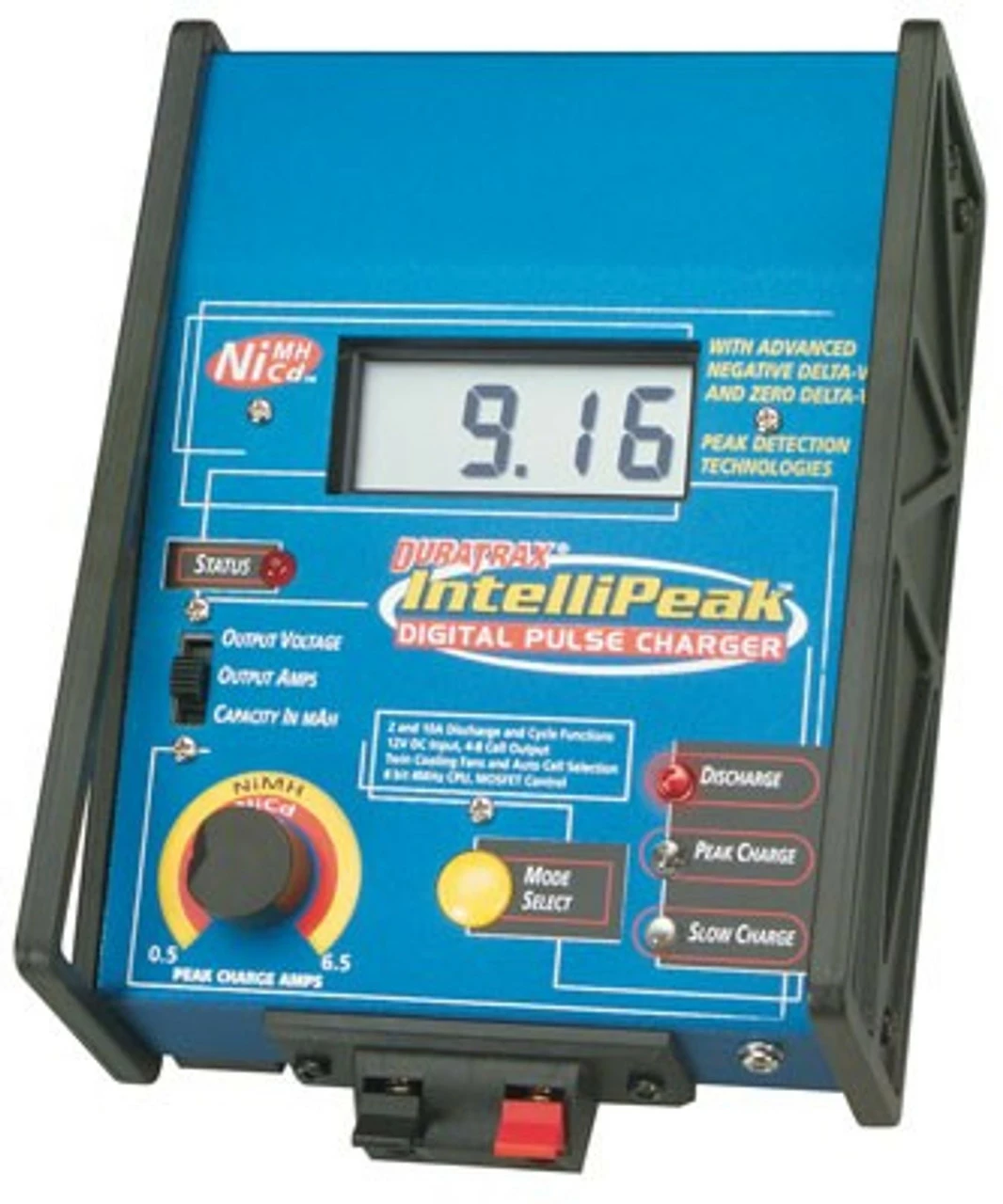

DTXP4130 Duratrax IntelliPeak AC/DC Digital Pulse Charger

DTXP4130 Duratrax IntelliPeak AC/DC Digital Pulse Charger

Note: Graves RC Coupons are not applicable with this product



This is an IntelliPeak AC/DC Digital Pulse Charger for Charging/Discharging Nickel-Cadmium (NiCd) and Nickel-Metal Hydride (NiMH) Battery Packs. Note: Do Not Charge -OR- Discharge Battery Cells smaller than Sub-C Size (“Sub-C” is one size smaller than a “C” size). *** Five-Year Warranty ***



Features:

• Peak charges Nickel Cadmium and Nickel Metal Hydride batteries using two specialized Peak Charging technologies, plus Discharging and Cycling features not commonly found in other chargers.
• “Negative Delta V” peak detection for NiCds, plus advanced “Zero Delta V” Peak Detection technology specifically for NiMHs, providing full charges without overcharging.
• Built-in Artificial Intelligence to eliminate false peaks
• Multi-function LCD, with selectable switch for viewing charge amps, charge voltage, or battery capacity in milliamps. (see COMMENTS)
• Auto-selects Peak Detection method by identifying cell chemistry.
• Auto-identifies the quantity of cells being charged
• Computerized control, 8-bit 4MHz CPU with 8K ROM, 1K RAM, 1-channel 16-bit analog-to-digital converter.
• High efficiency P-Channel MOSFET drive transistors
• 11-15V DC input.
• Incredibly small, detachable, 12V 7A AC power supply with built-in cooling fan for at home use.
• Output: 4-7 cells on DC, 4-8 cells on AC
• Adjustable fast charge current of .5A-6.5A
• Pulsed fast charge, with 8-bit pulse width modulated current control output.
• 100mA TRICKLE charge
• Discharge voltage cutoff: 2.6V
• 10 and 2AA fixed Discharge rates, selectable by switch. Fixed 2.6V Discharge cutoff voltage (see COMMENTS). Not designed for Discharging A or AA size (and smaller) cells (see COMMENTS).
• Cycle functions: Select a single Discharge/Charge cycle for periodic pack conditioning, or continuous “auto-repeat” cycles for reviving batteries that have developed a memory, or for breaking in a new pack.
• Four multi-function, high intensity LED indicators. Status light glows during Charge and flashes when nearing peak.
• Audible mode select tone signals for easy set-up
• Twin built-in miniature fans keep the charger cool, increasing efficiency and lifespan.
• Reverse polarity and overload protection
• Designed to charge sub-C battery pack



Includes:

• One IntelliPeak AC/DC Digital Pulse Charger
• One Prewired Standard Battery Connector
• One AC Power Supply
• One Instruction Sheet
• One DuraTrax Decal Sheet



Requires:

11-15V DC, OR 110V AC (US Standard AC)



Technical Specifications:

• Battery Types: Nickel Cadmium (NiCd) Nickel Metal Hydride (NiMH)
• Charger Type: Pulsed Current, Peak Detecting
• Peak Detection Method: Negative Delta V and Zero Deta V
• AC Input Voltage: 110V (US Standard AC)
• DC Input Voltage: 11-15V
• Number of Cells: 4-7 cells DC or 4-8 cells with AC power supply
• NiCd Fast Charge: .5-6.5A
• NiMH Fast Charge: .5-6.5A
• TRICKLE Charge Rate: 100mA
• Discharge Rate: 2 or 10A selectable
• Discharges down to a fixed voltage of 2.60V
• Width: 4.4″
• Height: 2.25″
• Depth: 5.5″
• Weight- Charger: 16.6oz (without power supply)
• Weight- Power Supply: 7.2oz
• LCD Readout: (4) ½” tall, seven-segment digits
