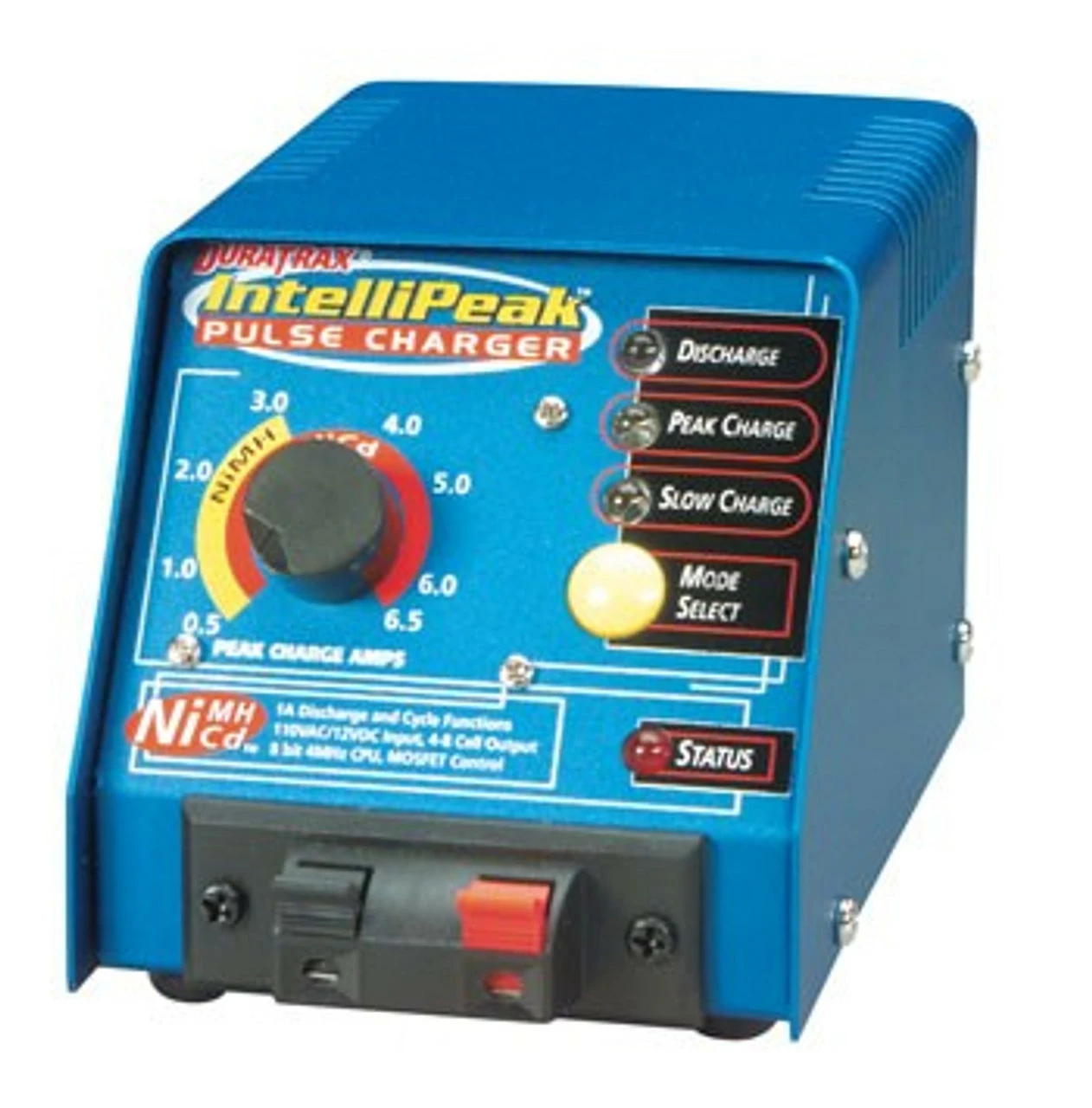

DTXP4100 Duratrax IntelliPeak AC/DC Pulse Charger

DTXP4100 Duratrax IntelliPeak AC/DC Pulse Charger

Note: Graves RC Coupons are not applicable with this product



This is an IntelliPeak AC/DC Pulse Charger for Charging/Discharging Nickel Cadmium (NiCd) and Nickel Metal Hydride (NiMH) Battery Packs. Note: Do Not Discharge Battery Cells smaller than Sub-C Size (“Sub-C” is one size smaller than a “C” size). *** Five-Year Warranty ***



Features:



• Peak charges Nickel-Cadmium batteries using specialized peak charging technology as well as Nickel-Metal Hydride batteries, plus Discharging and Cycling features not commonly found in other chargers.
• “Negative Delta V” Peak Detection for NiCds and NiMHs
• Built-in Artificial Intelligence to eliminate false peaks
• Auto-identifies the quantity of cells being charged
• Computerized control, 8-bit 4MHz CPU with 8K ROM, 1K RAM, 1-channel 16-bit analog-to-digital converter.
• High efficiency P-Channel MOSFET drive transistors
• 11-15V DC input
• Built-in AC Power Supply
• Output: 4-7 cells on DC, 4-8 cells on AC
• Adjustable fast Charge current of .5-4A AC, .5-6.5A DC (Note: 3A maximum Charge rate recommended with NiMH packs.)
• Pulsed fast Charge, with 8-bit pulse width modulated current control output.
• 100mA TRICKLE Charge
• 1A fixed Discharge rate. Fixed 2.60V Discharge cutoff voltage- (see COMMENTS). Not designed for Discharging A or AA size (and smaller) cells (see COMMENTS).
• Cycle functions: Select a single Discharge/Charge cycle for periodic pack conditioning, or continuous “auto-repeat” cycles for reviving batteries that have developed a memory, or breaking in a new pack.
• Four multi-function, high intensity LED indicators. Status light glows during charge, flashes when nearing peak.
• Audible mode select tone signals for easy set-up
• Reverse polarity and fused overload protection
• Designed to charge sub-C battery packs.



Includes:



• One IntelliPeak AC/DC Pulse Charger w/5′ AC Power Cord
• One Standard Battery Connector with wire lead (Kyosho-type)
• One DC power cord with alligator clips
• One Instruction Sheet
• One DuraTrax Decal Sheet



Requires:



• DC power source of 11-15V OR AC 110V AC (US Standard)
• Battery pack with and Standard Connector (Tamiya-type)



Technical Specifications:

• Battery Types: Nickel-Cadmium (NiCd) Nickel-Metal Hydride (NiMH)
• Charger Type: Pulsed Current, Peak Detecting
• Peak Detection Method: Negative Delta V
• AC Input Voltage: 110V (US Standard AC)
• DC Input Voltage: 11-15V
• Number of Cells: 4-7 cells DC or 4-8 cells with AC Power Supply
• NiCd Fast Charge: .5-4A AC .5-6.5A DC
• NiMH Fast Charge: .5-3A (3A is the maximum recommended rate)
• TRICKLE Charge Rate: 100mA
• Discharge Rate: 1A fixed
• Discharges down to a fixed voltage of 2.6V.
• Width: 3″
• Height: 3.125″
• Depth: 5″
• Weight- Charger: 3lb
• Meter Display: No
• Fuse: 3A mini buss
