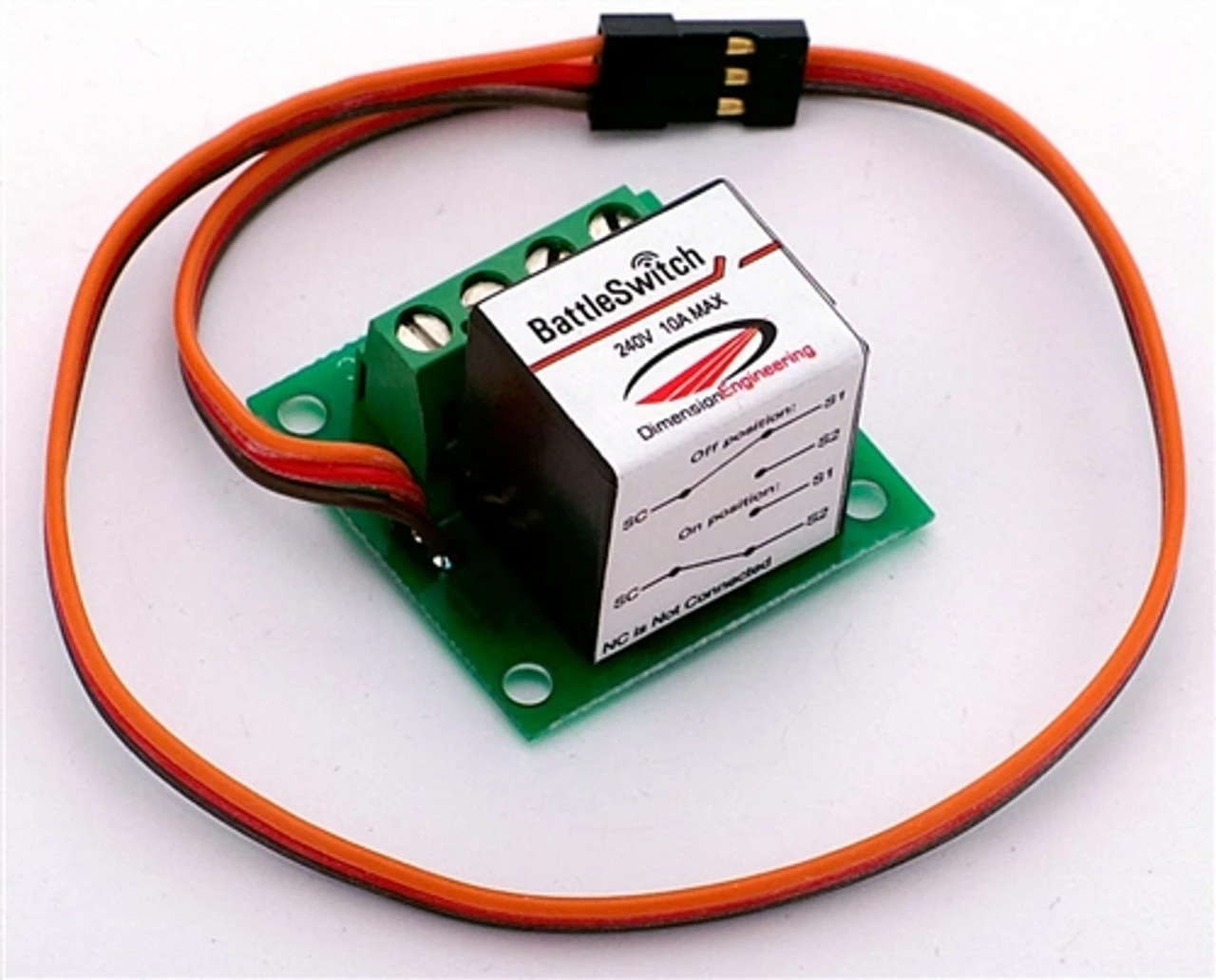

DIMENSIONENGINEERING DEBATTLESWITCH DIMENSION ENGINEERING BattleSwitch Radio Controlled 10A Relay

DEBATTLESWITCH DIMENSION ENGINEERING BattleSwitch Radio Controlled 10A Relay



Features:

• Control of powerful auxiliary weapons in RC combat.
• Control of glow plugs in RC nitro vehicles.
• Control of high powered lighting systems on large RC aircraft, boats, cars.
• Control of domestic appliances and home automation.
• Control of non-critical automotive electronics such as glow wire.
• Control of nearly any application that can be toggled with a switch.

Dimensions:

1.25″ x 1.25″ x 0.9″
32mm x 32mm x 23mm
12 inch servo pigtail

Technical Specifications:

Max relay voltage: 240VAC
Max relay current: 10A @ 28VDC, 12A @ 120VAC, 10A @ 240VAC.
Relay resistance: 100 mΩ max
3.5V to 5.5V operating voltage (on servo pigtail)
30mA typical draw from receiver
