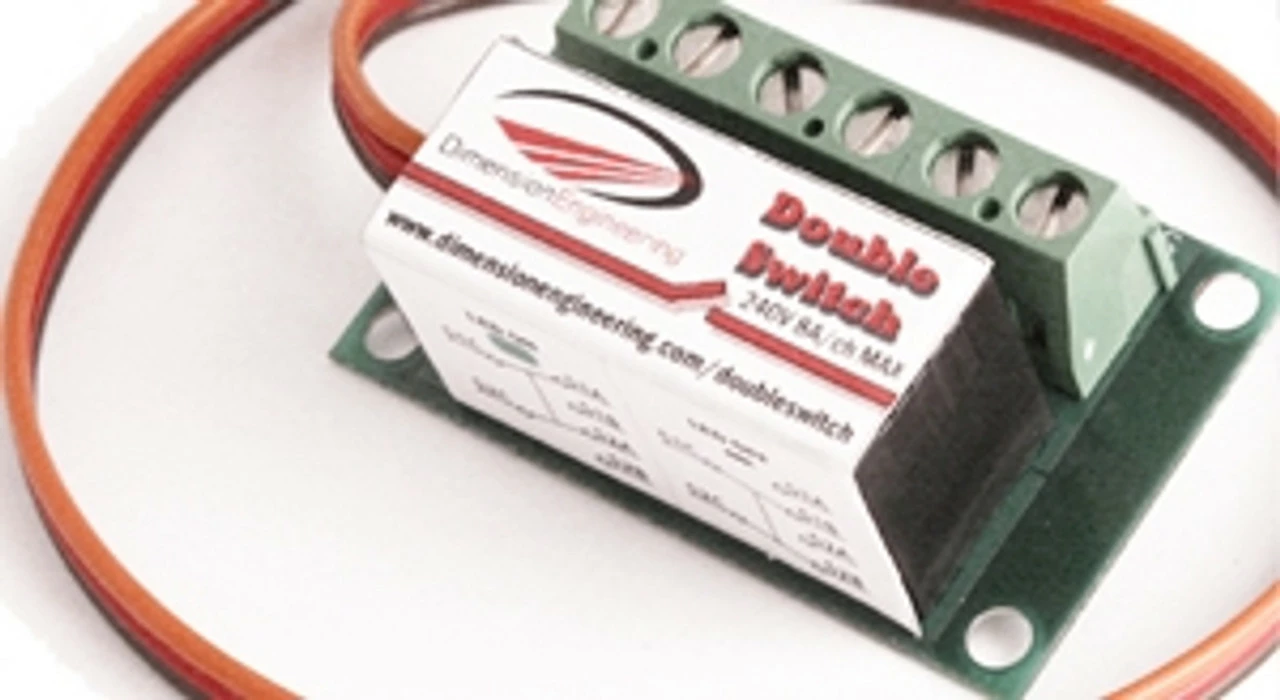

DEDOUBLESWITCH DIMENSIONENGINEERING DoubleSwitch Radio Controlled Dual 8A Relay

DEDOUBLESWITCH DIMENSIONENGINEERING DoubleSwitch Radio Controlled Dual 8A Relay



Applications:

Control of powerful auxiliary weapons in RC combat.
Control of glow plugs in RC nitro vehicles.
Control of high powered lighting systems on large RC aircraft, boats, cars.
Control of domestic appliances and home automation.
Control of non-critical automotive electronics such as glow wire.
Control of nearly any application that can be toggled with a switch.

Technical Specifications:

Max relay voltage: 240VAC
Max relay current: 8A @ 12VDC, 8A @ 240VAC.
Relay resistance: 100 mΩ max
3.5V to 5.5V operating voltage (on servo pigtail)
40mA typical draw from receiver

Dimensions:

1.65″ x 1″ x 0.72″
42mm x 26mm x 18mm
12 inch servo pigtail
