Castle Creations Phoenix Edge 120 HV 50V 120 Amp ESC

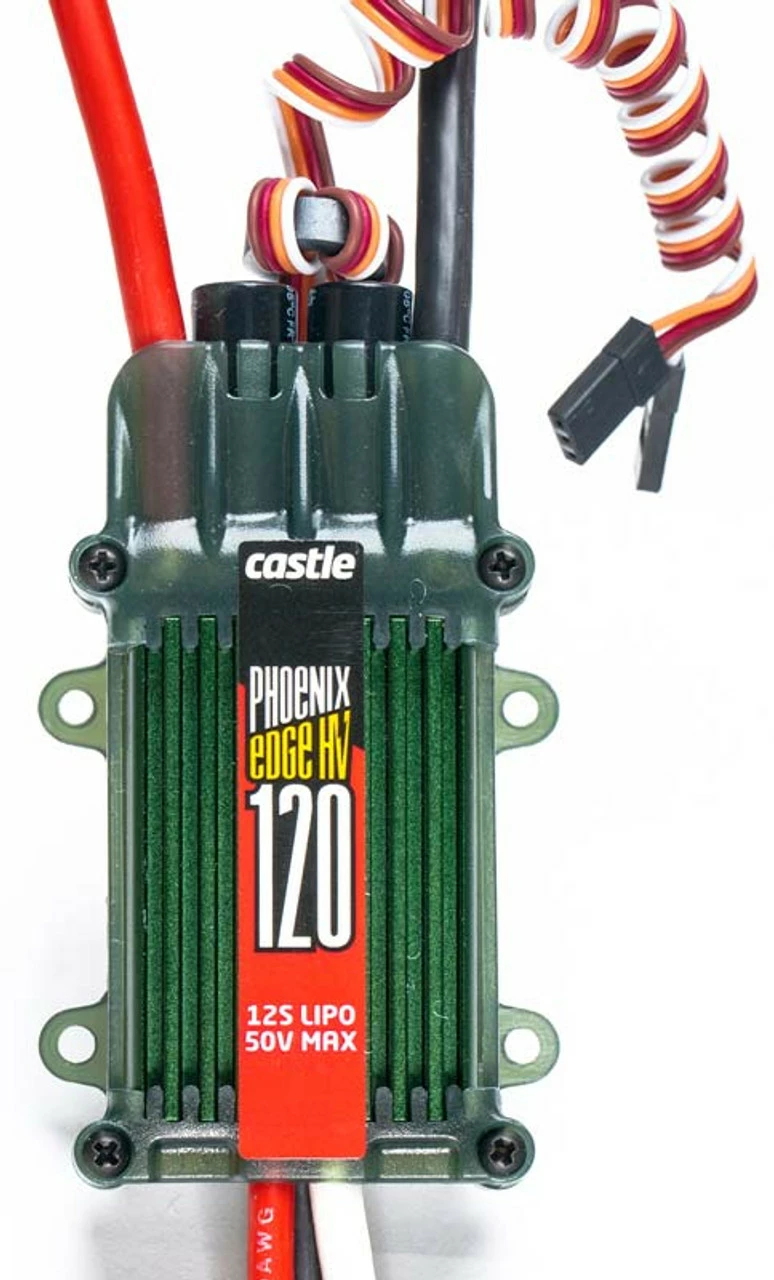

This is the Phoenix Edge HV 120 Amp 50V Electronic Speed Control from Castle Creations.

Features:

• Ideal for 550, 600 or 700 class helis and giant scale fixed wing aircraft
• Programmable using Castle Link USB Adapter, CSEM6301
• User programmable white auxiliary wire can be used for governor gain input adjustments, serve as an audible beacon after a crash, act as an RPM output for 3 axis gyros that support RPM sensors, and used as an ESC or receiver arming lock
• One year limited warranty through Castle Creations beginning at date of purchase

Includes:

Phoenix Edge HV 120 Amp 50V ESC with Instruction Sheet

Requires:

Battery and motor connectors of modeler’s choice

Technical Specifications:

Input Voltage: 3S-12S LiPo
Max Continuous Amps at Full Throttle: 120
Dimensions: 2.0 x 3.3 x 0.9″ (50.8 x 83.6 x 23.2mm)
Weight: 5.2oz (148.8g) with wires 2.4oz (69.4g) without wires

Manuals:

CSEM0104-Manual-English

CSEM0104-Quick-Start-Guide-English

CSEM0104-Wiring-Guide-English
