CSE010000401 Castle Creations CC BEC Pro 20A 12S Switching Regulator

CSE010000401 Castle Creations CC BEC Pro 20A 12S Switching Regulator

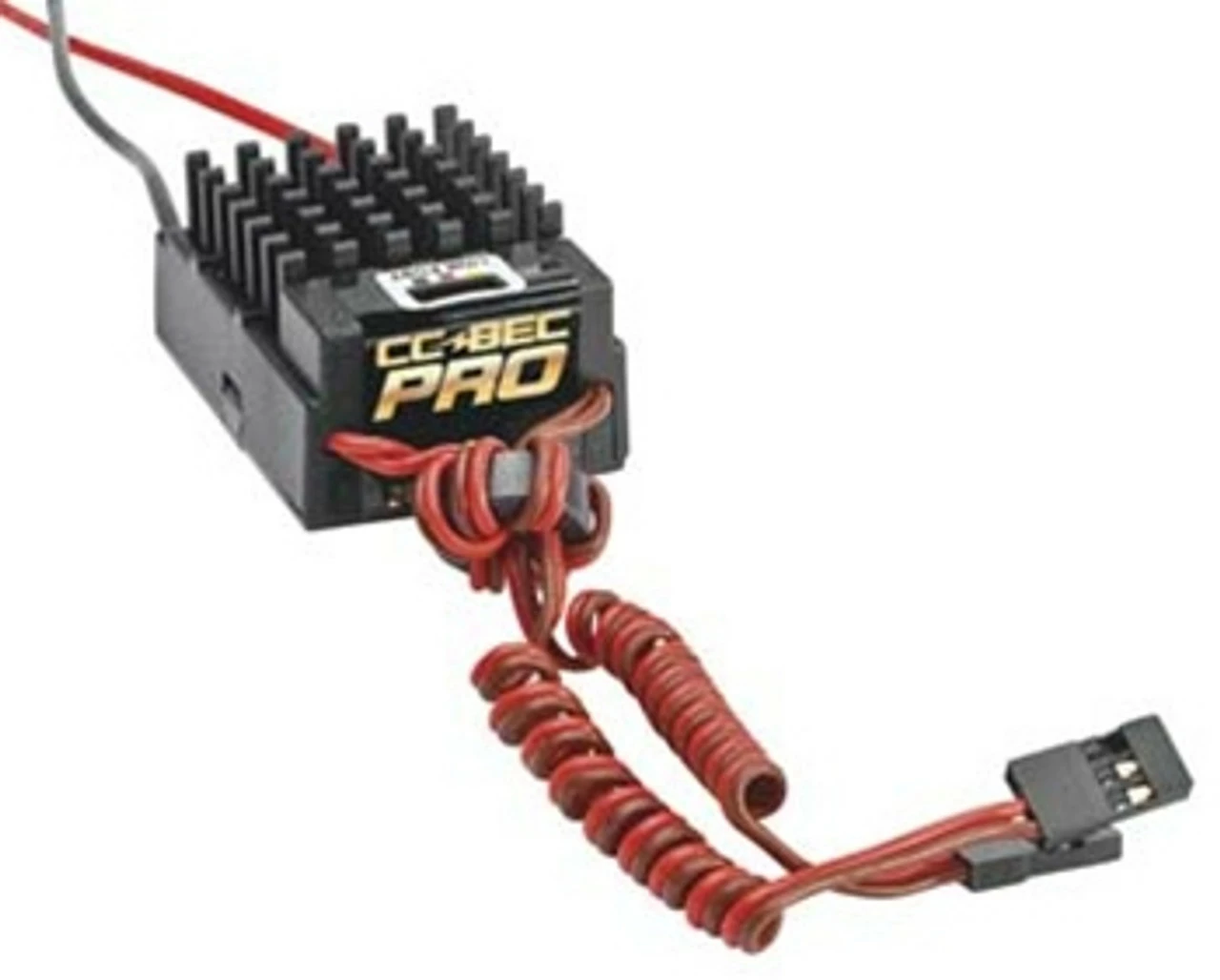

This is the CC BEC Pro High Output Switching Battery Eliminator Circuit (BEC) from Castle Creations.

Features:

• Ideal for use in larger RC cars, electric aircraft, and electric helis 500 size and larger that have high power demands for their radio system
• Also works well in larger electric powered RC aircraft and RC crawlers and monster trucks that use high powered servos

Includes:

CC BEC Pro High Output Switching BEC with connectors and instruction sheet

Requires:

Installing between battery and receiver

Technical Specifications:

Max Input: 12S LiPo (50.4V)

Max Output Current: 20 amps peak

Adjustable Output Voltage: 4.8V-12.5V

Max Continuous Current: Input Voltage Max Continuous Output Current

16V 15A

24V 13A

32V 11A

40V 9A

48V 8A

Length: 1.69″ (43mm)

Width: 1.3″ (33mm)

Height: 0.94″ (24mm)

Weight (w/o wires): 1 oz (29 g)

Manuals:

CSE010000401-Manual-English

CSE010000401-Wiring-Guide-English

CSE010000401-Connect-to-Castle-Link-English
