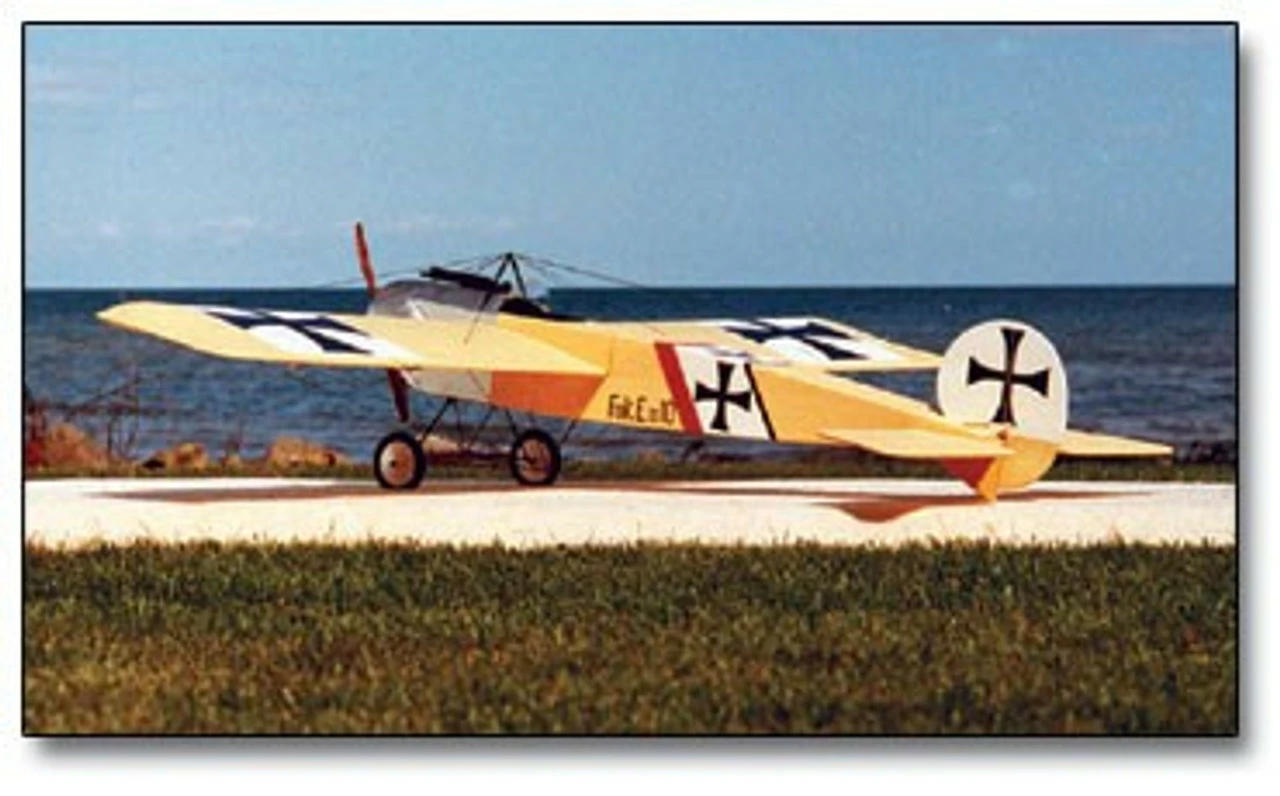

BAL417 BALSA USA FOKKER EINDECKER 60/90

BAL417 BALSA USA FOKKER EINDECKER 60/90

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

“

“

THIS KIT IS DESIGNED FOR A GAS OR GLOW ENGINE.

A SKILLED HOBBYIST CAN MAKE THE REQUIRED MODIFICATIONS TO CONVERT IT TO ELECTRIC POWER.



The wing construction uses a unique “egg crate” type of assembly. Here the ribs lock onto a full-length, die-cut shear web for perfect alignment. The main spars are pre-slotted and this shear web/rib assembly locks into these slots top and bottom. This greatly increases the strength and simplicity of the wing construction without any weight penalty. The fuselage features die-cut fuselage sides and doublers for ease of construction. The fuselage is not a difficult to build “stick box” The Eindecker is very easy to build and you won’t spend hours rigging it up at the flying field. Just plug in the aileron servos, bolt on the wing, and you are ready to go flying.

Features:

• Rolled Full-Size Plans
• Photo Illustrated Instructions
• Fall-Out(TM) Die Cut Parts
• Quality AAA Balsa plywood and basswood
• Brand name hardware pack
• Pre-bent landing gear
• Simple construction
• Decals (numbers only)

Requires:

486 4-3/8″ Wm. Bros Vintage wheels.
MD417 Maltese Crosses
G901 1/4 Spandau Machine Gun

Technical Specifications:

Weight 7-1/2 to 8 lbs
Wing Span 80″
Wing Area 1155 Sq In
Engine .61-.91 4-Stroke .46-.61 2-Stroke
Length 56-1/2″
