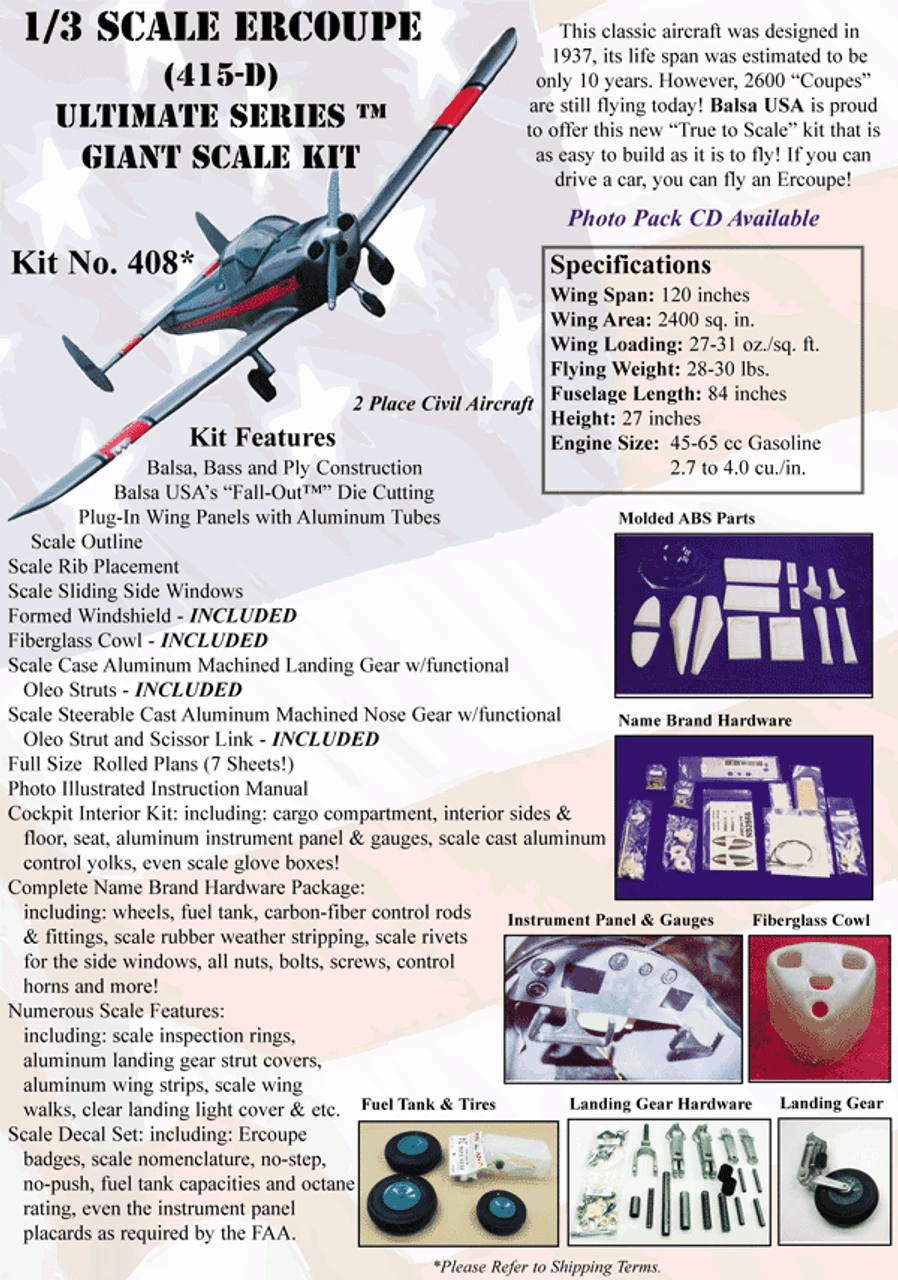

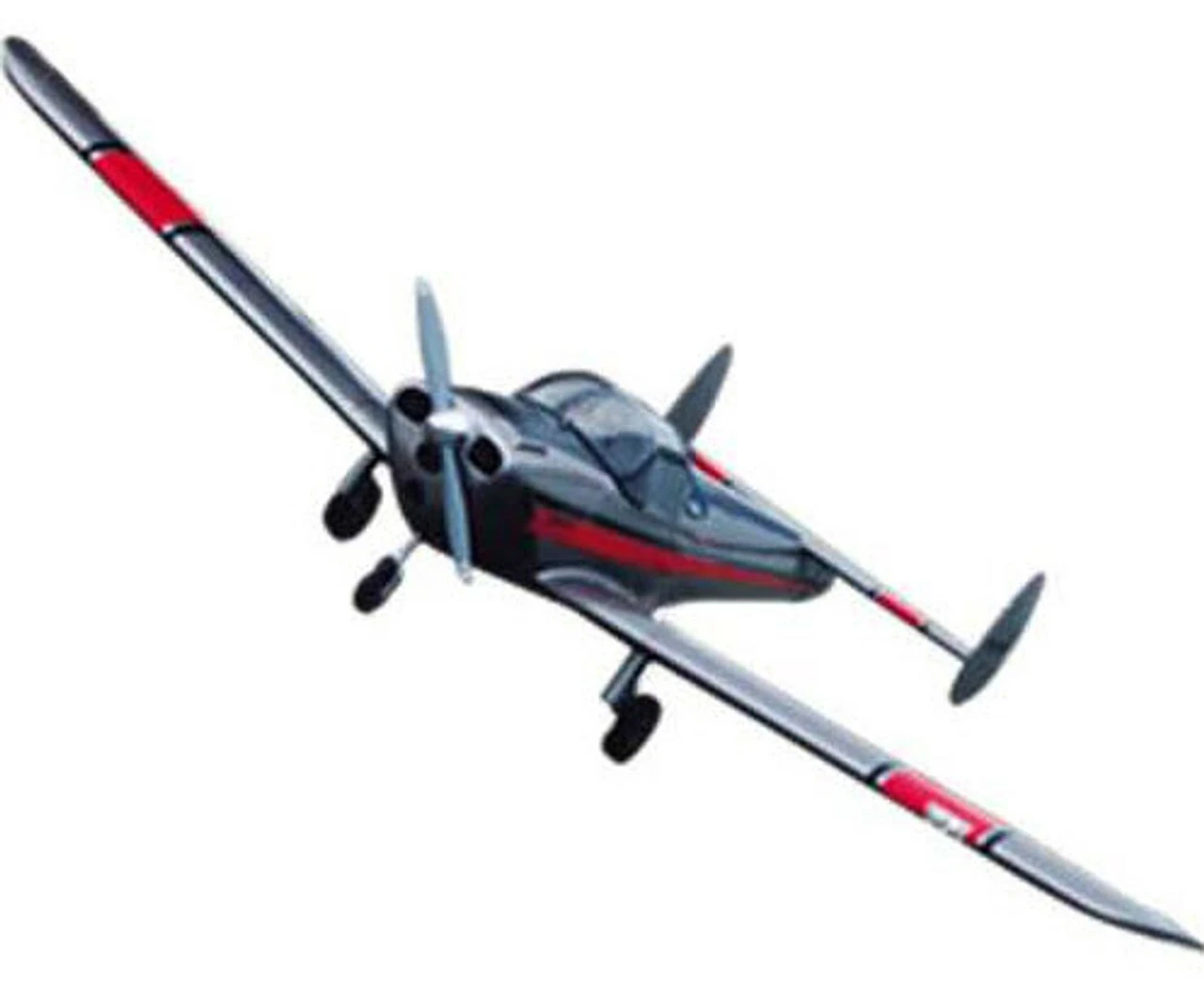

BAL408 Balsa USA 1/3 Scale Ercoupe Kit

BAL408 Balsa USA 1/3 Scale Ercoupe Kit

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING



FEATURES

• Balsa, Bass and Ply Construction
• Balsa USA’s “Fall -Out” Die Cutting
• Plug-In Wing Panels with Aluminium Tubes
• Scale Outline
• Scale Rib Placement
• Scale Sliding Side Windows
• Formed Windshield – Included
• Fibreglass Cowl – Included

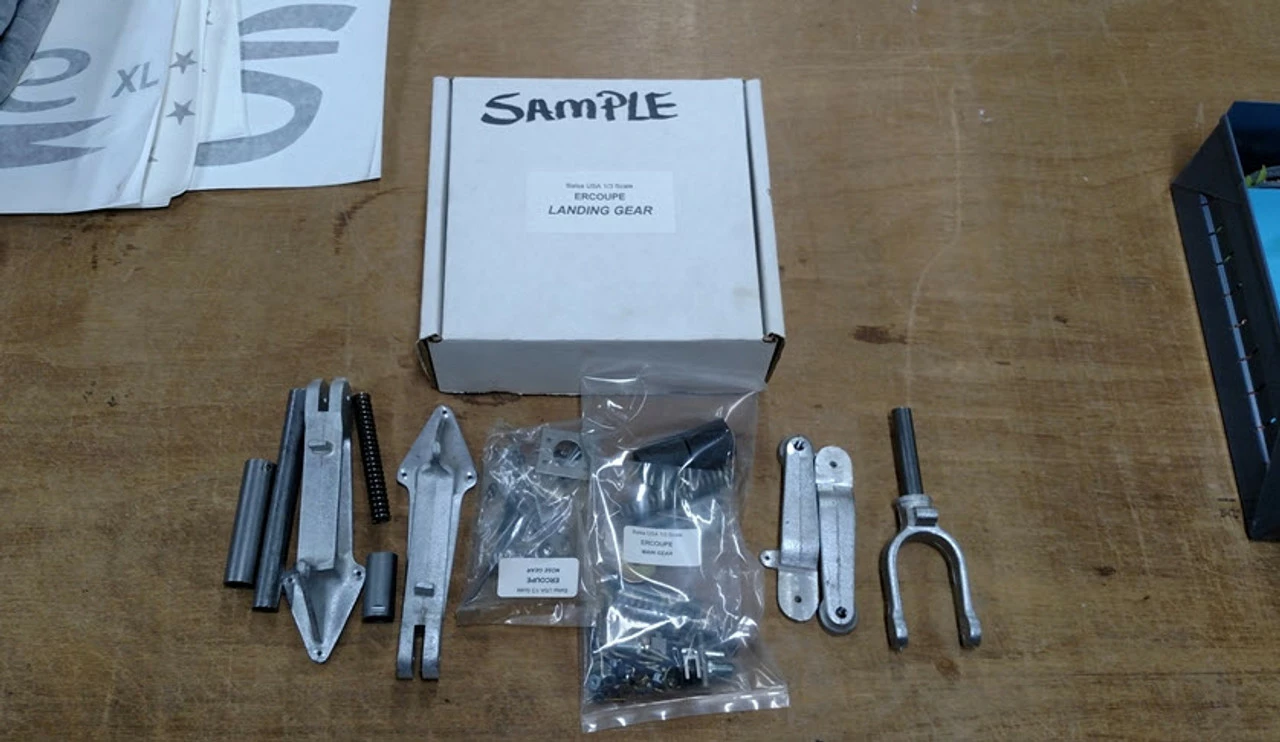

• Scale Case Aluminium Machined Landing Gear with functional Oleo Strut – Included
• Scale Steerable Cast Aluminium Machined Nose Gear with functional Oleo Strut and Scissor Link – Included

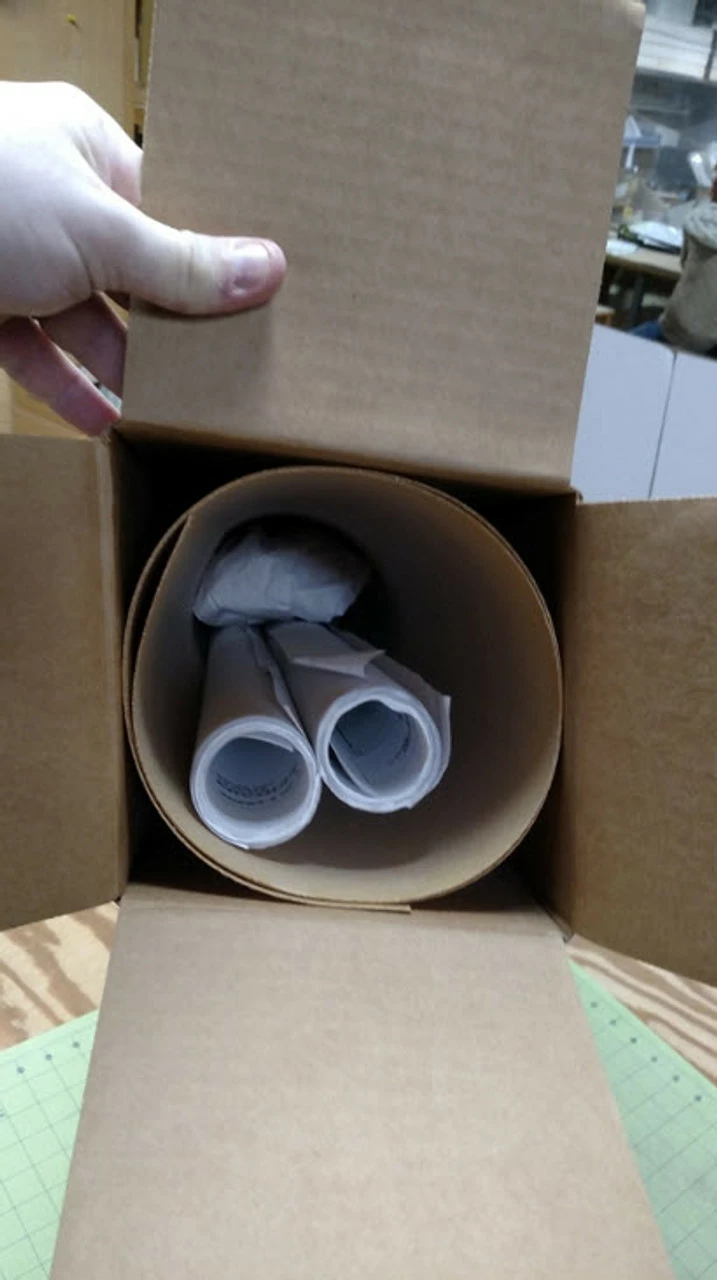

• Full Size Rolled Plans (7 Sheets!)
• Photo Illustrated Instruction Manual
• Cockpit Interior Kit: including: cargo compartment, interior sides and floor, seat, aluminium instrument panel and guages, scale cast aluminium control yolks, even scale glove boxes!
• Complete Name Brand Hardware Package: including: wheels, fuel tank, carbon-fiber control rods and fittings, scale rubber weather stripping, scale rivets for the side windows, all nuts, bolts, screws, control horns and more!
• Numerous Scale Features: including: scale inspection rings, aluminium landing gear strut covers, aluminium wing strips, scale wing walks, clear landing light cover and etc.
• Scale Decal Set: including: Ercoupe badges, scale nomenclature, no-step, no-push, fuel tank capacities and octane rating, even the instrament panel placards as required by the FAA



SPECIFICATIONS

• Wing Span: 120 inches
• Wing Area: 2400 sq. in.
• Wing Loading: 27-31 oz./sq. ft.
• Flying Weight: 28-30 lbs
• Fuselage Lenght: 84 Inches
• Height: 27 inches
• Engine Size: 45-65 cc Gasoline – 2.7 to 4.0 cu./in.
• Center of Gravity: 5-1/8 inches back from the leading edge of the Wing.
