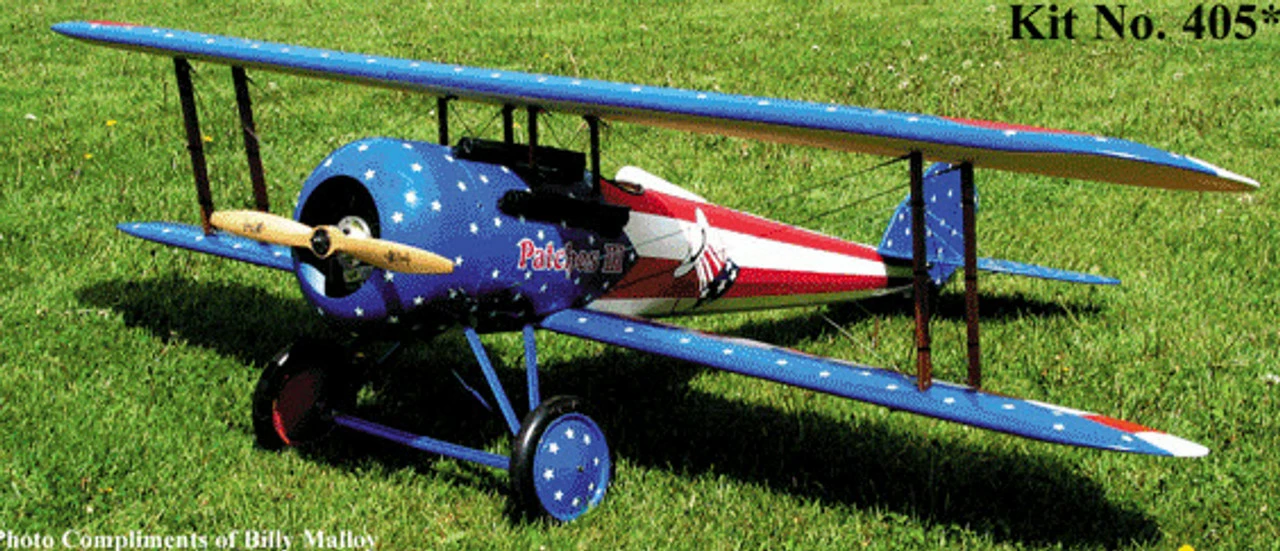

BAL405 Balsa USA 1/3 Scale Nieuport 28c-1 Kit

BAL405 Balsa USA 1/3 Scale Nieuport 28c-1 Kit

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING



Specifications

• Wing Span: 107 inches
• Wing Area: 3000 sq. in.
• Wing Loading:  21 1/2 – 24 1/2 oz./sq. ft.
• Flying Weight:  28-32 lbs.
• Fuselage Length:  83 inches
• Height:  32 inches
• Engine Size: 45-65 Gasoline / 2.7 to 4.0 cu./in. Glow
• Cowl Diameter:  13 1/2 inches
• Center of Gravity: 6-3/4 inches back from the leading edge of the Top Wing.
• Control Throws:
• Elevator: 2 inches up and down.
• Rudder: 4 inches left and right (or all you can get!)
• Ailerons: 1-3/4 inches up and down.
• Aileron Differential: 2 inches up and 1 inch down (differential recommended).
• Incidence:
• Top Wing: +1-2 Degrees
• Bottom Wing: -1-0.0 Degrees
• Tail: 0.0 Degrees
• Engine Thrust Line: 2 Degrees DOWN, 1-2 Degrees RIGHT.
