AXI03020 Axial SMT10 1/10 Scale Monster Truck Raw Builders Kit

AXI03020 Axial SMT10 1/10 Scale Monster Truck Raw Builders Kit

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

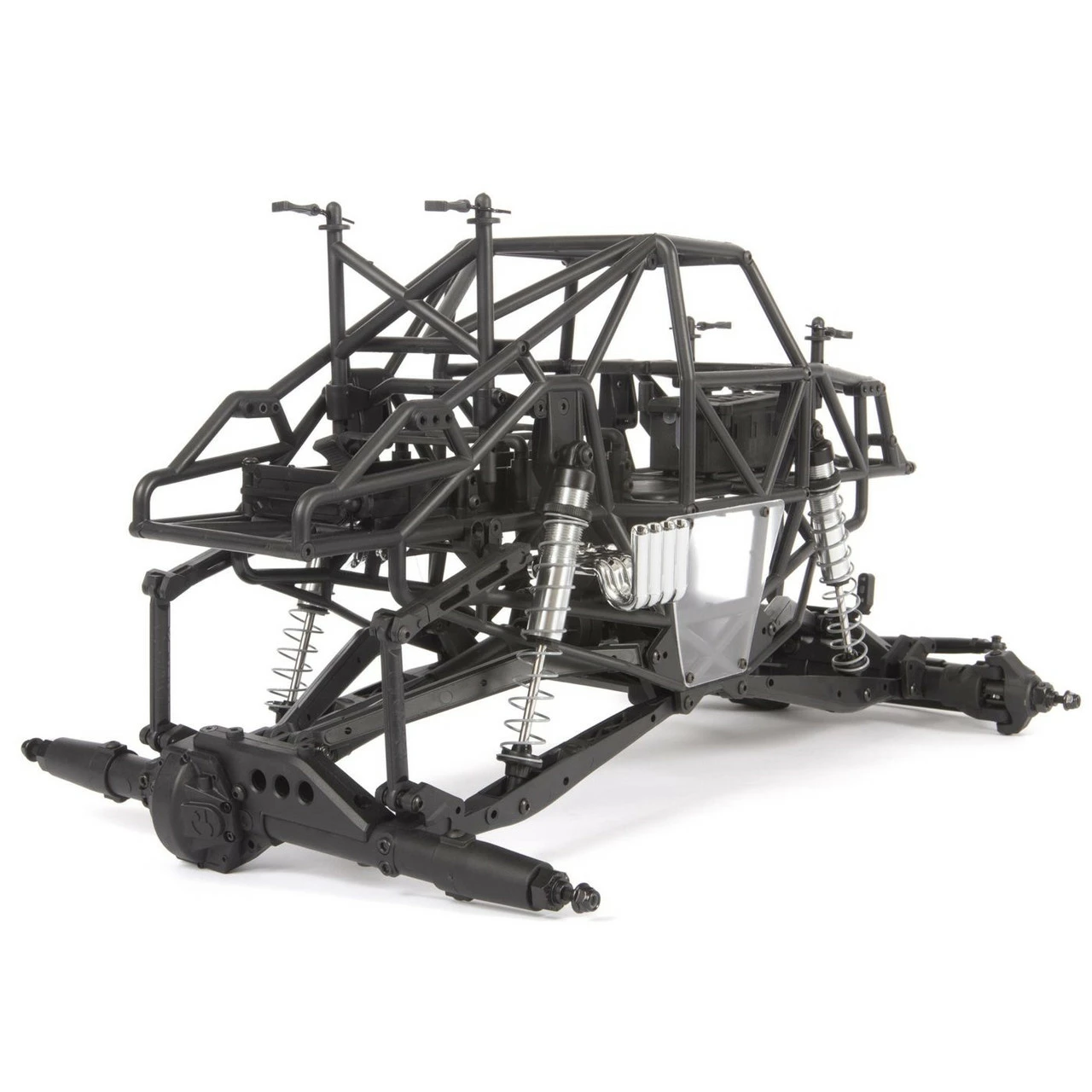

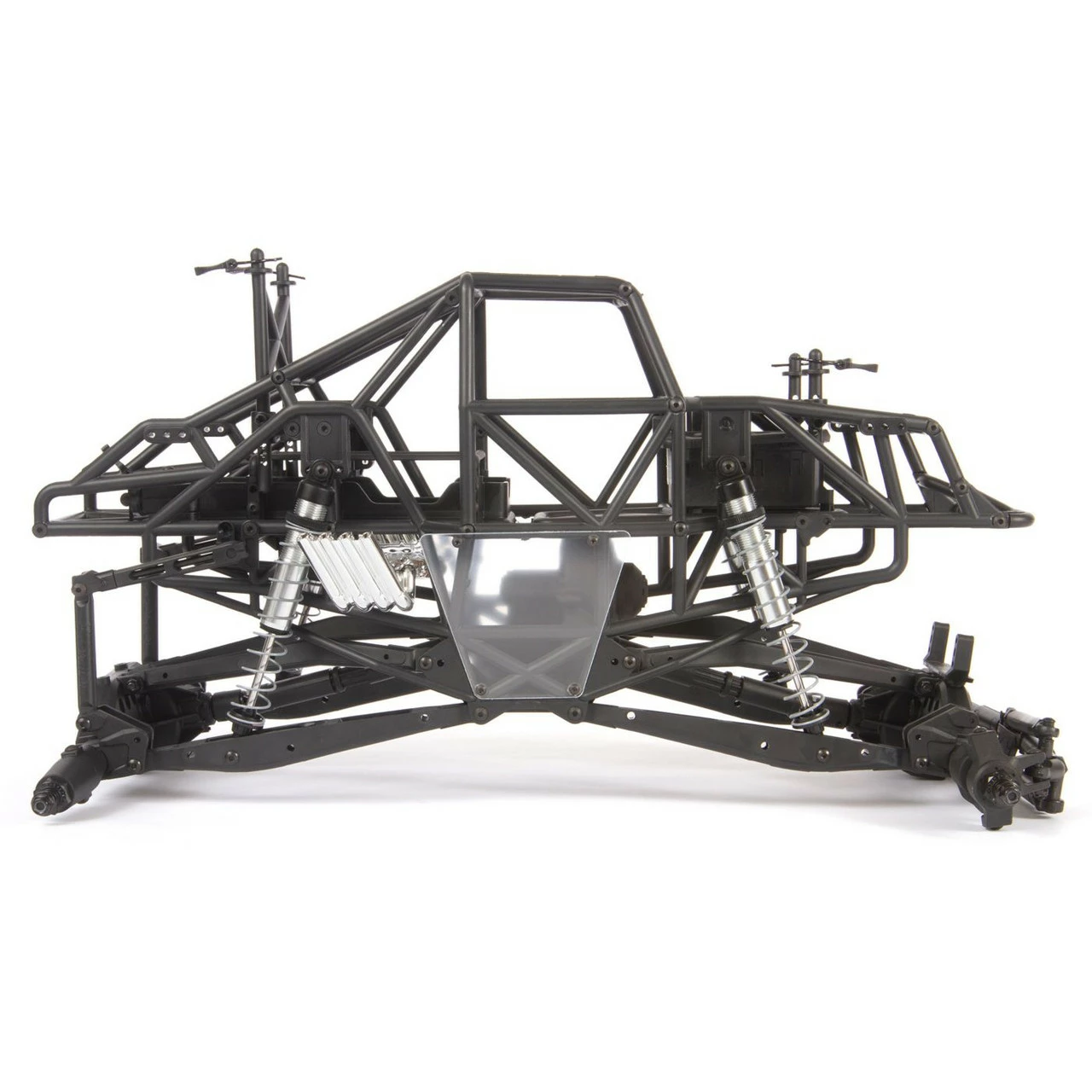

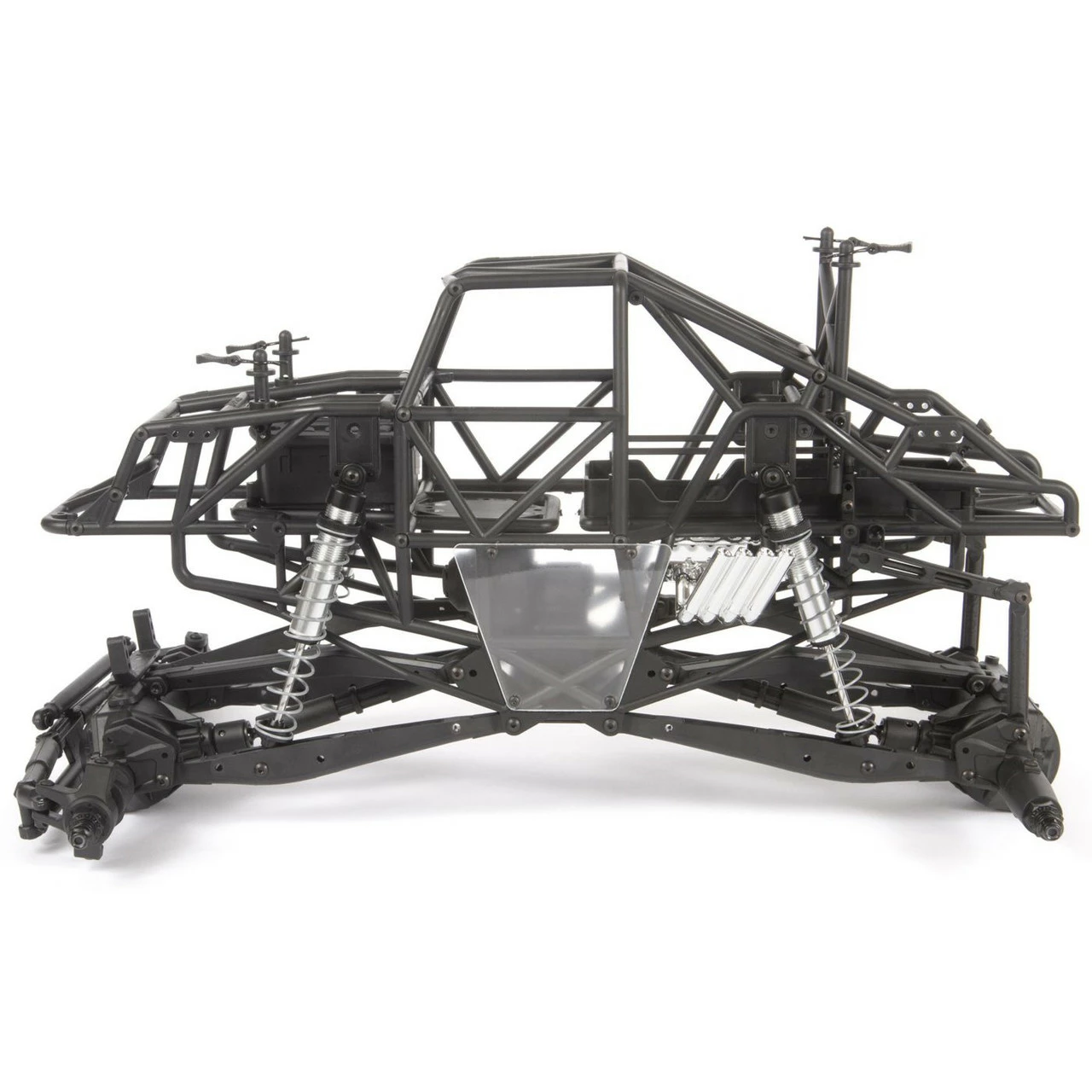

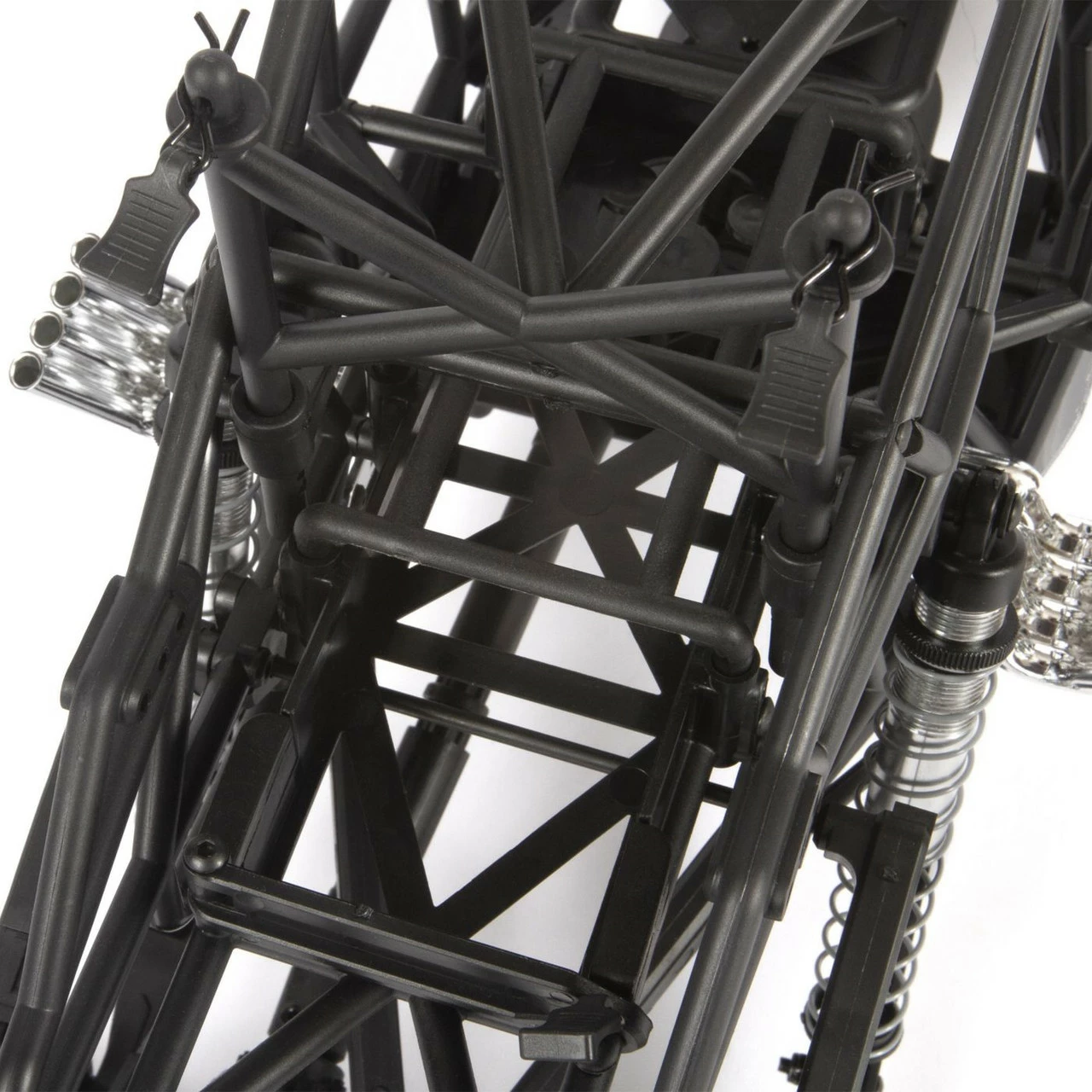

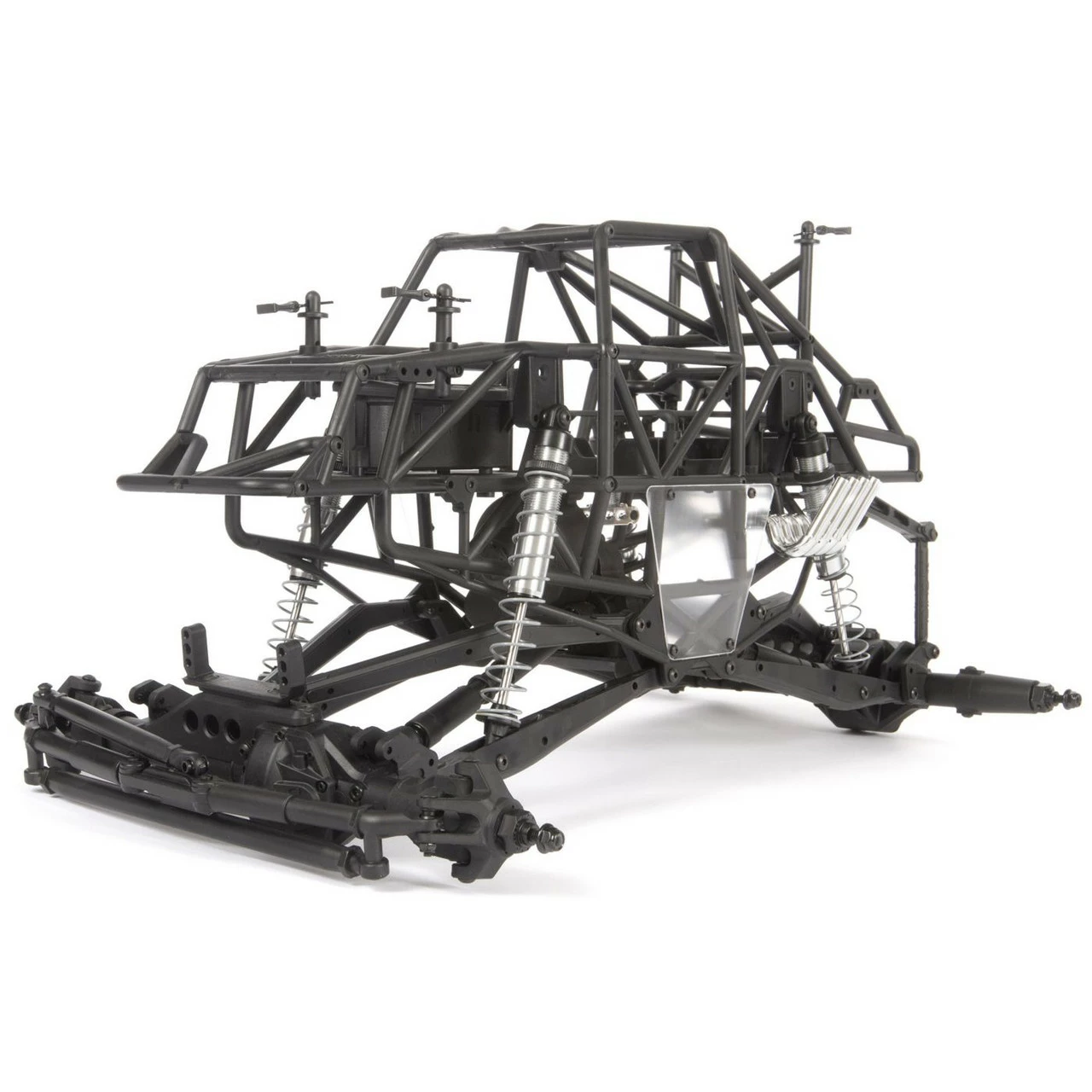

Chassis: Composite molded tube frame, black in color
Drive: Four wheel straight axle
Driveshafts: WB8 HD updated design with larger diameter crosspin for extra strength
Transmission: AX10 dual Pad slipper system with pad on each side of spur gear for increased surface area, all meatl internal gears

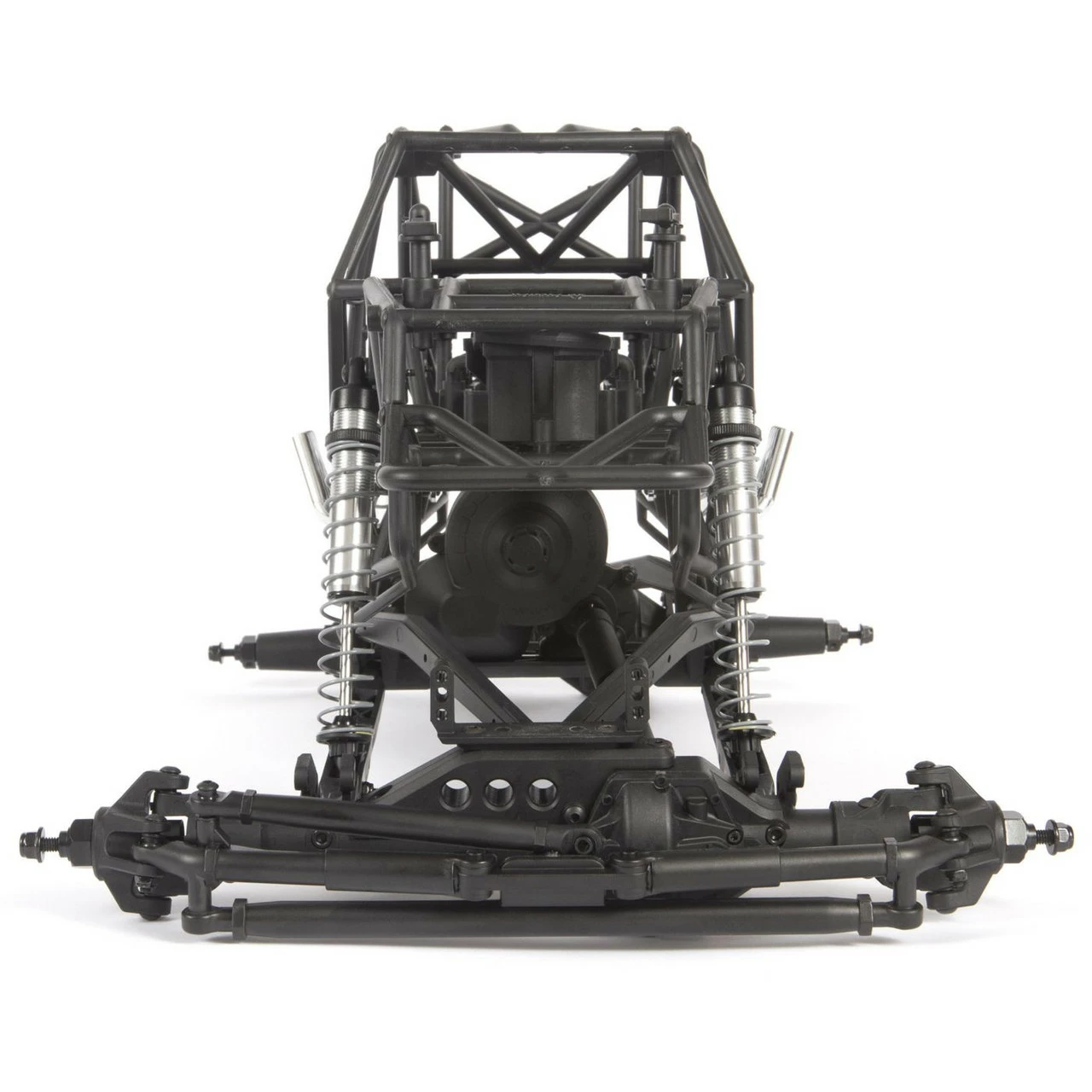

Axle: AR60 OCP-Axle constructed of high-strength composite material, off-center pumpkin design, axle tubes reinforced with a boxed-in axle truss
Steering: Heavy duty tire rod, drag link and simulated scale hydraulic ram steering link, steering knuckles updated for dual shear – also eliminates secondary bolt on plate
Suspension: Solid axle 4-link, rear sway bar, optional sway bar may be added to front (front sway bar not included)

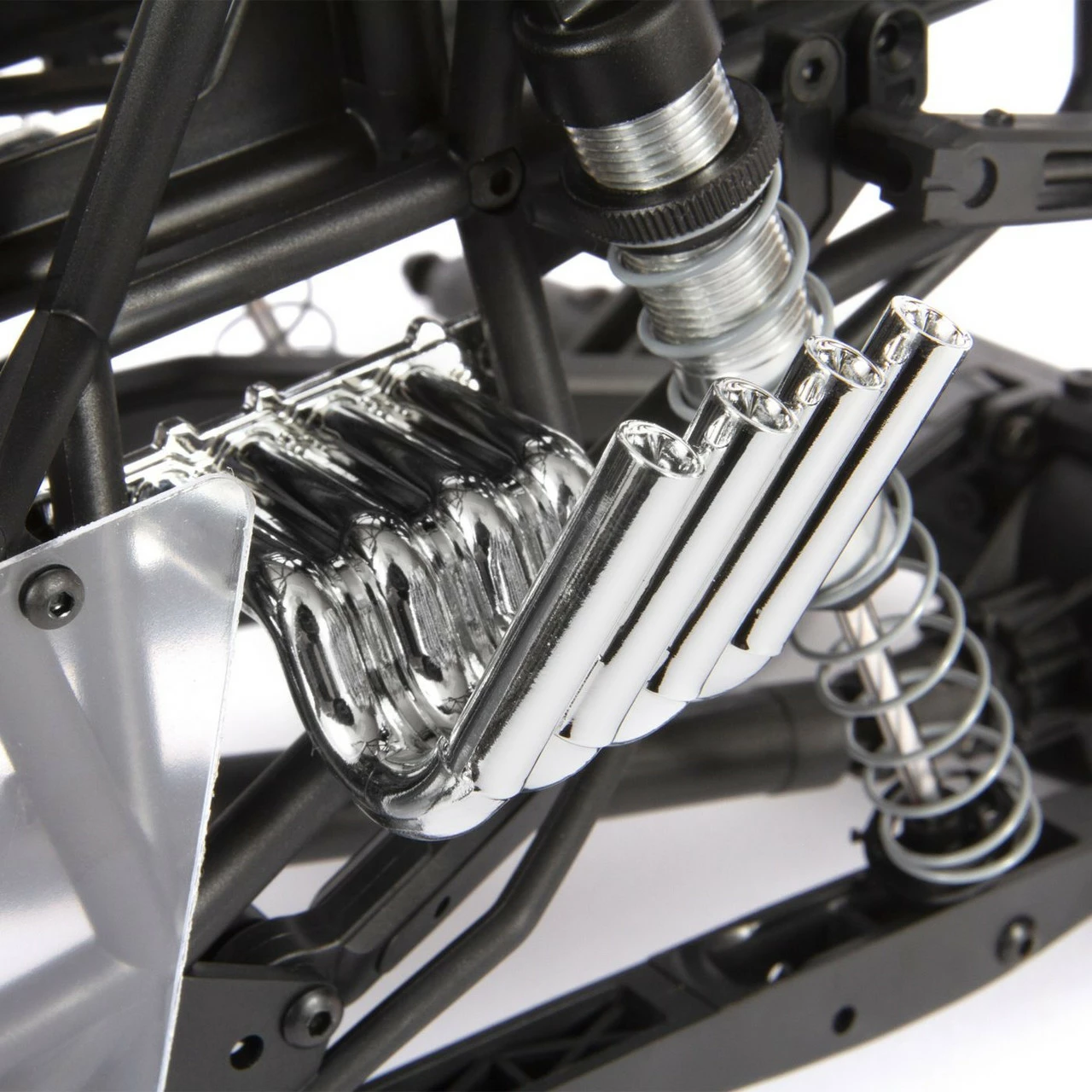

Shocks: Aluminum body oil-filled with multiple mounting positions

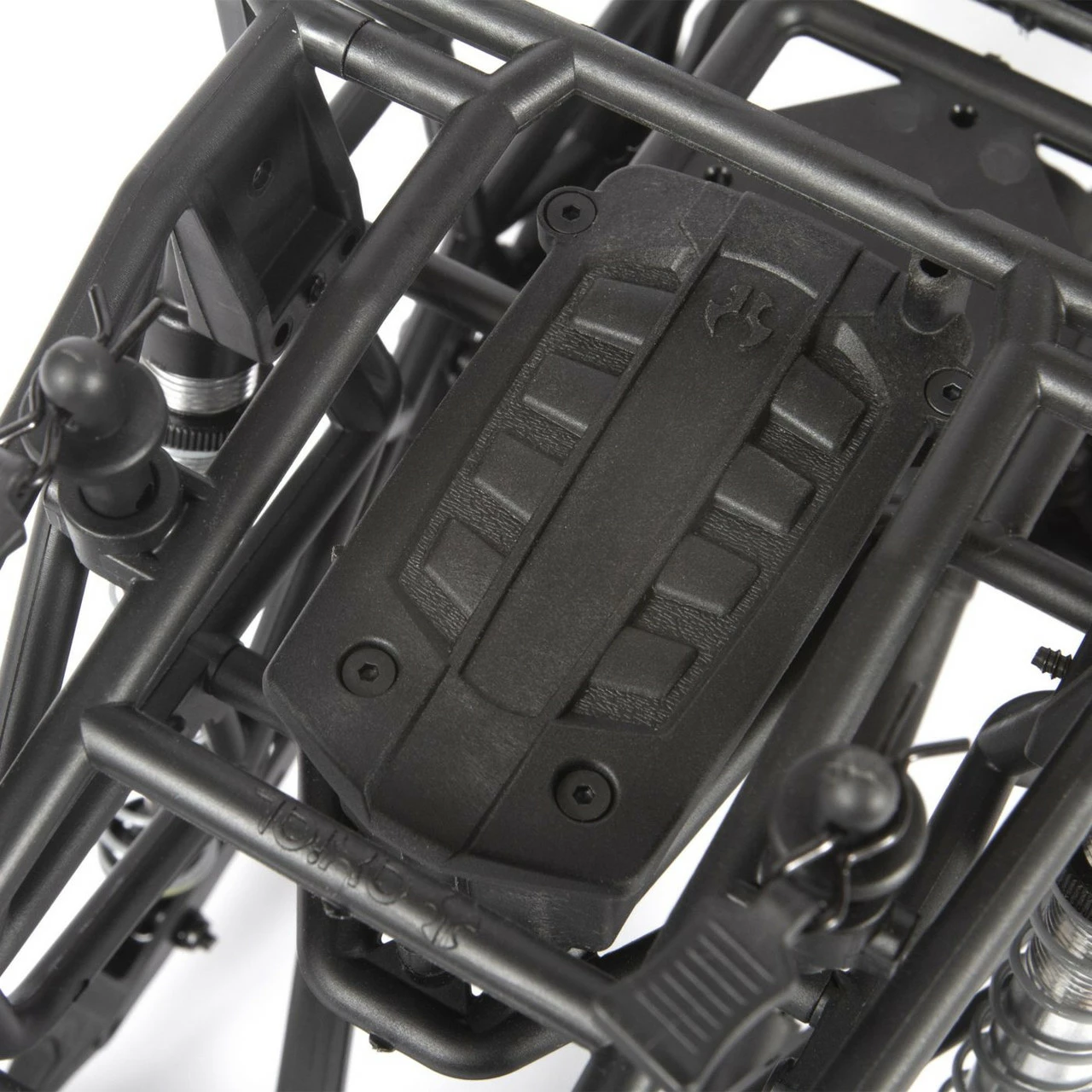

Battery Tray: Adjustable height allows room for most standard 2S batteries, battery accessible from rear of vehicle
Receiver Box: Waterproof
Ball Bearings: Full set included

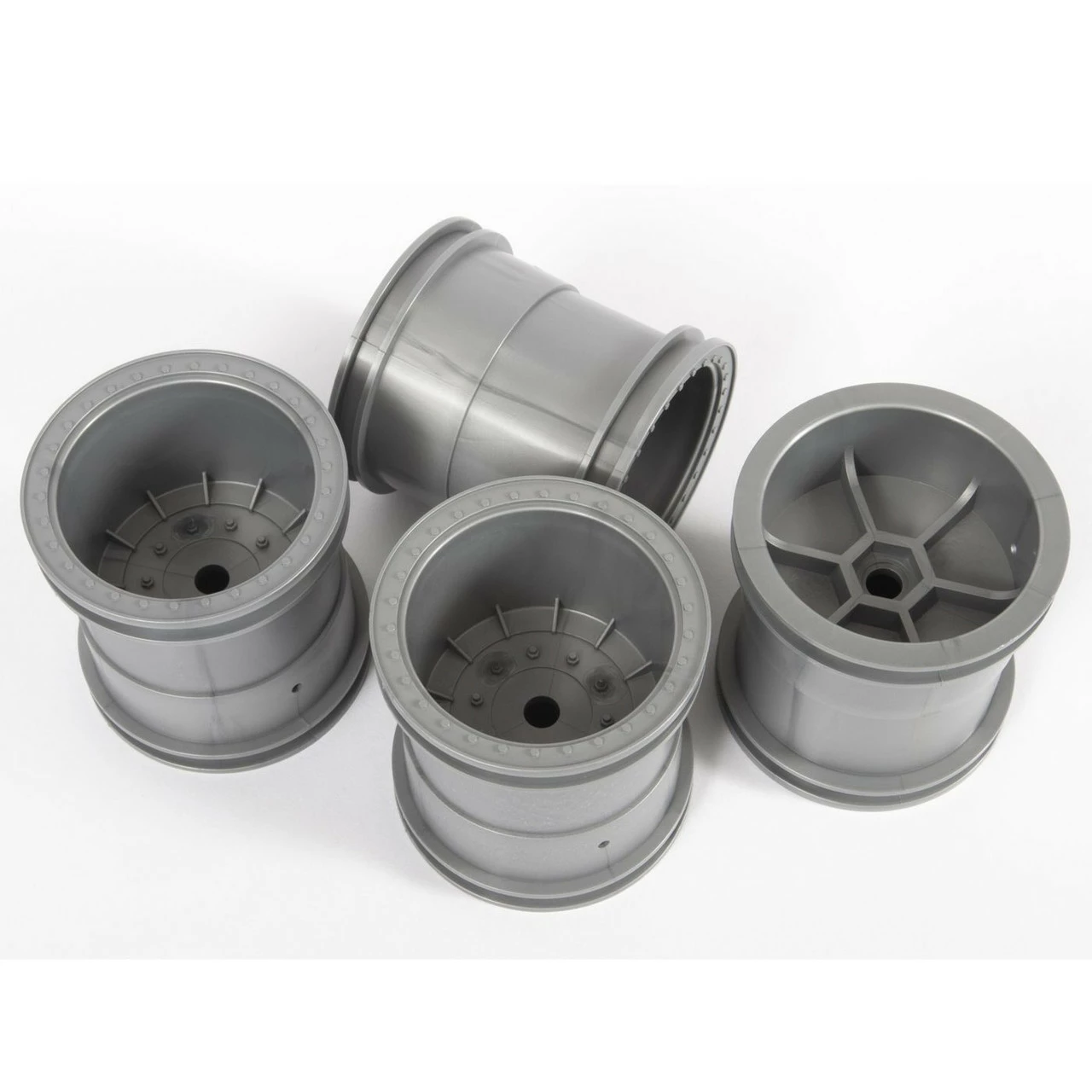

Wheels: 2.2 (56mm) diameter nylon, gray in color





INCLUDES

Axial SMT10 110 scale RAW Builders Monster Truck Kit with Instruction Mamual





REQUIREMENTS

Radio System: 2-channel
Motor: 550 size (NOTE, primary motor listed in Optional
Parts and Accessories is only 2S LiPo, or 7.2V NiMH compatible)
Electronic Speed Control: Compatible with selected motor
Tires: 1:10 scale Monster Truck
Body: Axial Grave Digger recommended
LiPo Battery: 7.4V 5000mAh 2S 30C LiPo Hardcase w EC3 connector recommended
Battery Charger and Charging Bag: Compatible with selected battery
Tools and track equipment





SPECIFICATIONS

Wheelbase: 13.9 (353mm)
Track: 9.6 (244mm) distance fron outer edges of tires measured side-to-side
Internal Gear Ratio: 2.6:1 transmission
Final Drive Ratio: 7.6:1 transmission and axle
Approximate Assembly Time: 5-7 hours
Experience Level: Intermediate
