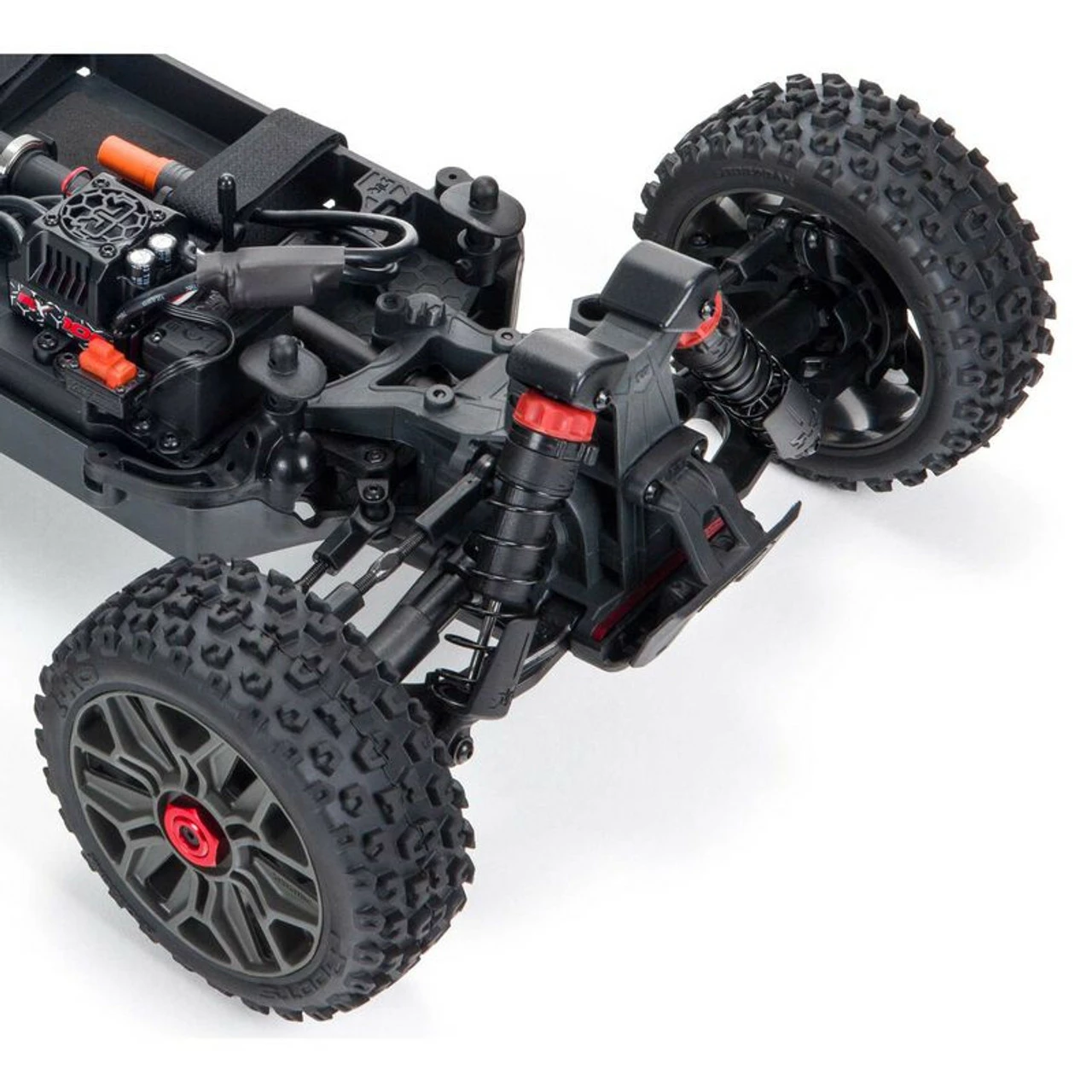

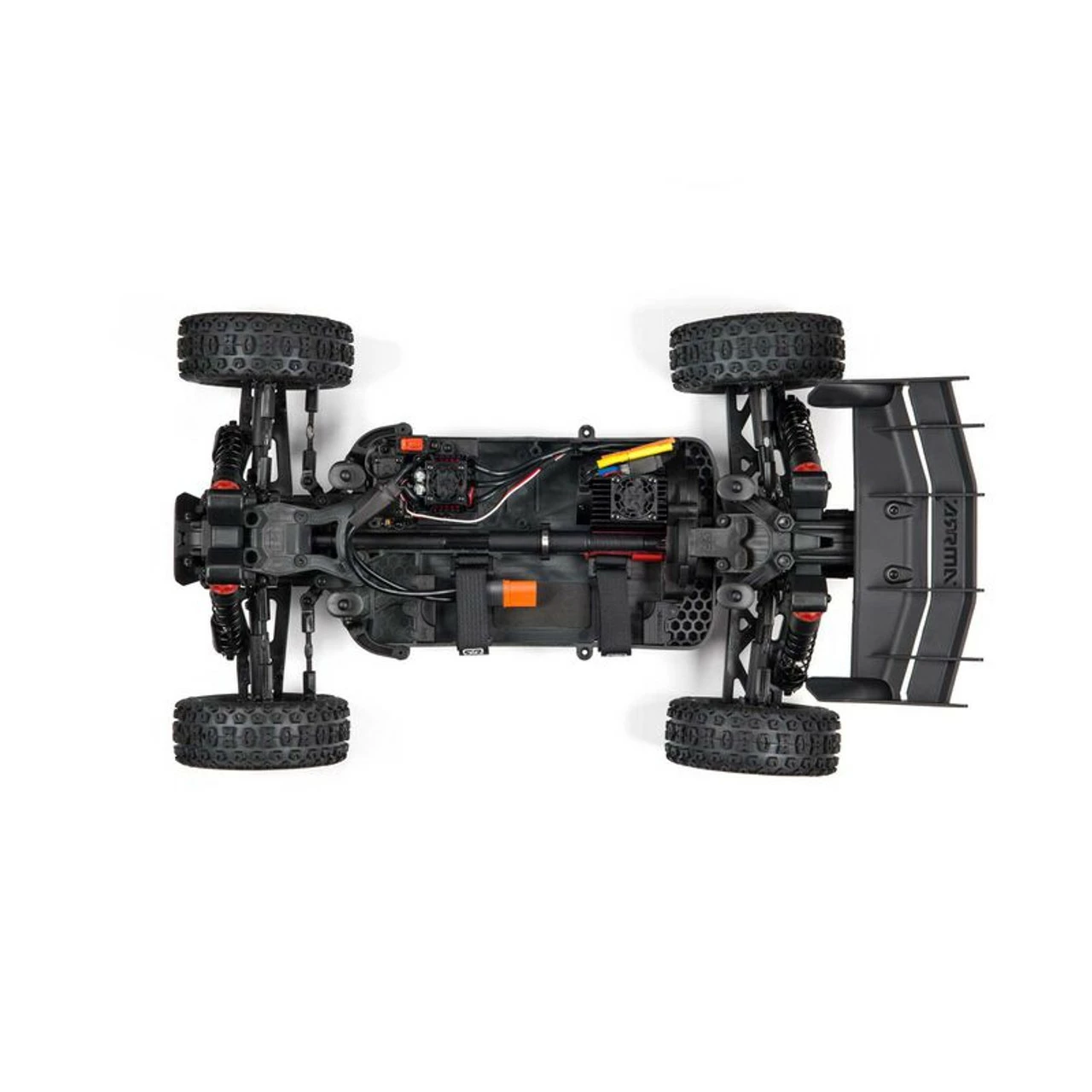

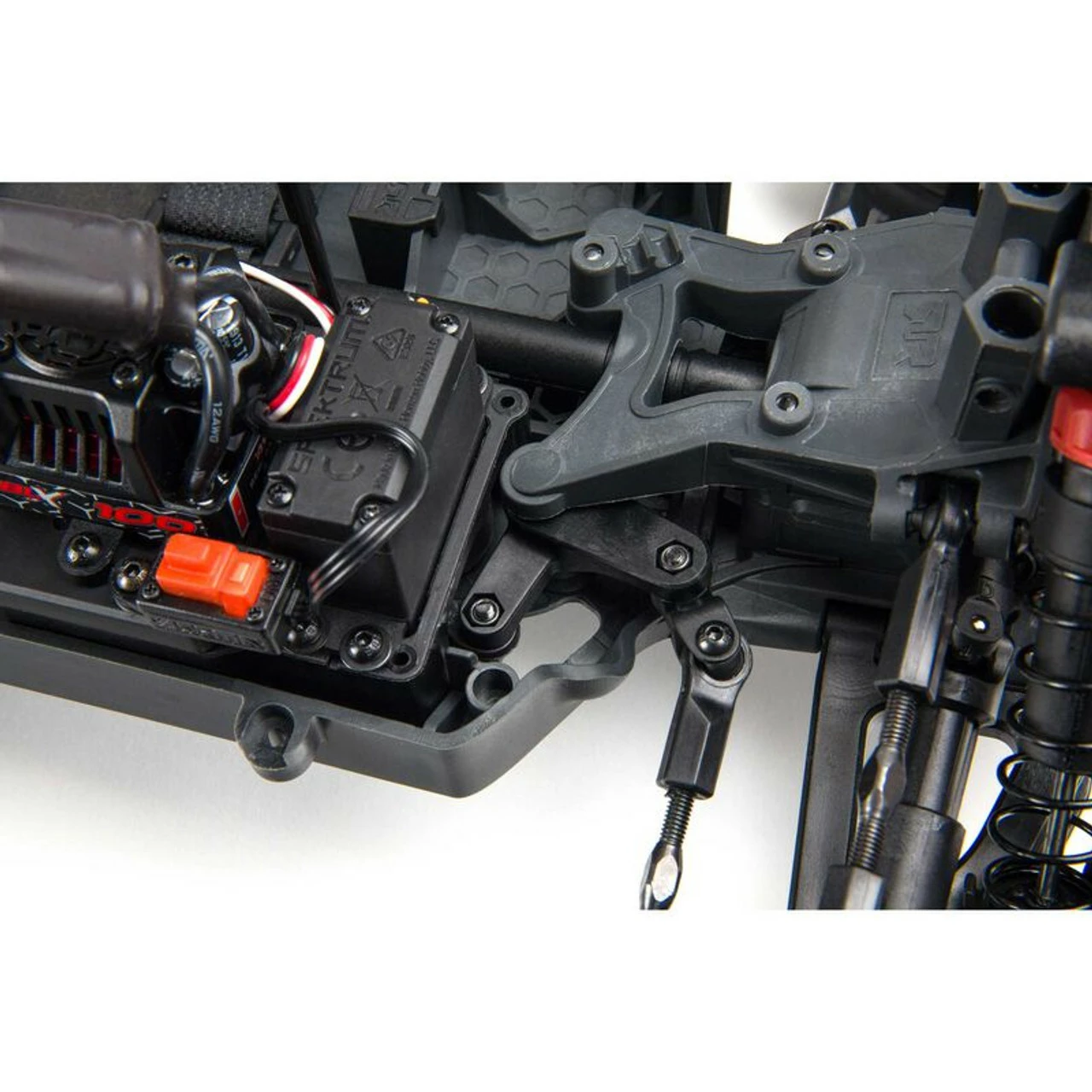

ARA4306V3 ARRMA 1/8 TYPHON 4X4 V3 3S BLX Brushless Buggy RTR, Red
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Note: Graves RC Coupons are not applicable with this product Â
Â
Features
- Stronger chassis and retained hinge pin plates
- Steering with more clearance for stones
- Castellated slipper pad and sliding gear mesh
- Plastic locknut for slipper
- 23T Spline servo saver
- 37T 1.35Mod diffs with silicone O-rings
- Power Module with sliding gear mesh and improved dirt management
- Rubber shielded bearings throughout
- Oil-filled shocks with silicone O-rings
- Tough gunmetal colored multi-spoke wheels
- Vented multi-terrain dBoots® 2-HO™ tires
- BLX100 2S/3S waterproof* ESC *For details on waterproof standards, refer to the instruction manual.
- IC5â„¢ connectors (EC5â„¢) compatible
- Signature easy-access modular design
- Easy-access power module
- Easy-access electronics module
- Easy-access diff module removal front and rear
- Double wishbone suspension front and rear
- Metal-geared differentials
- Adjustable ride height
- Adjustable body mounts
- Adjustable turnbuckles
- High-speed center driveshaft support
- High downforce wing
- 2-year limited warranty (see website for details)
- 50+ MPH (80+ km/h) speed achievable in optimum driving conditions on 3S LiPo
Â
In The Box
- (1) ARRMA® TYPHON™ 4X4 3S BLX 1/8 Scale 4WD Electric Speed Buggy RTR
- (1) BLX100 2S/3S Waterproof* ESC
- (1) Spektrumâ„¢ Firmaâ„¢ 3660 3200Kv Brushless Motor
- (1) Spektrumâ„¢ 2.4GHz SLT3â„¢ 3-Channel Transmitter
- (1) Spektrumâ„¢ SLR300 Receiver
- (1) Spektrumâ„¢ SPMS651 Waterproof* Metal-Geared Digital Servo
- (1) Product Manual
Needed to Complete
- (1) 2S LiPo or 3S Hardcase LiPo Battery
- (1) Compatible Charger
- (4) AA Batteries
- LiPo Safe Charging Bag
Â
Specifications:
| Ball Bearings | Full Ball Bearing Drivetrain |
| Battery | Sold Separately |
| Body | Painted, decalled and trimmed |
| Charger | Sold Separately |
| Chassis | Molded Composite |
| Completion Level | Ready-To-Run |
| Differential | 2 Gear Diffs |
| Drivetrain | 4WD |
| Final Drive Ratio | 10.83 |
| Front Track | 12.05 in (306mm) |
| Power Type | Electric |
| Gear Pitch | 0.8MOD |
| Ground Clearance | 1.65 in (42mm) |
| Internal Gear Ratio | 2.85 |
| Motor Type | Brushless – Sensorless |
| Pinion | 15T |
| Product Height | 7.68″ (195 mm) |
| Product Length | 20.12″ (511 mm) |
| Product Weight | 5.68lbs (2576g) |
| Product Width | 12.05″ (306 mm) |
| Radio | Included |
| Rear Track | 12.05 in (306mm) |
| Receiver | Included |
| Scale | 1/8 |
| Servos | Included |
| Shock Type | Oil-Filled, Coil-Over Springs |
| Speed Control | Included |
| Spur Gear | 57T |
| Suspension | Independent |
| Vehicle Type | Buggy |
| Water-Resistant | Yes |
| Wheelbase | 12.91 in (328mm) |
Manuals:
ARRMA-Typhoon-Manual-Multilingual
ARRMA-Typhoon-Exploded-View
