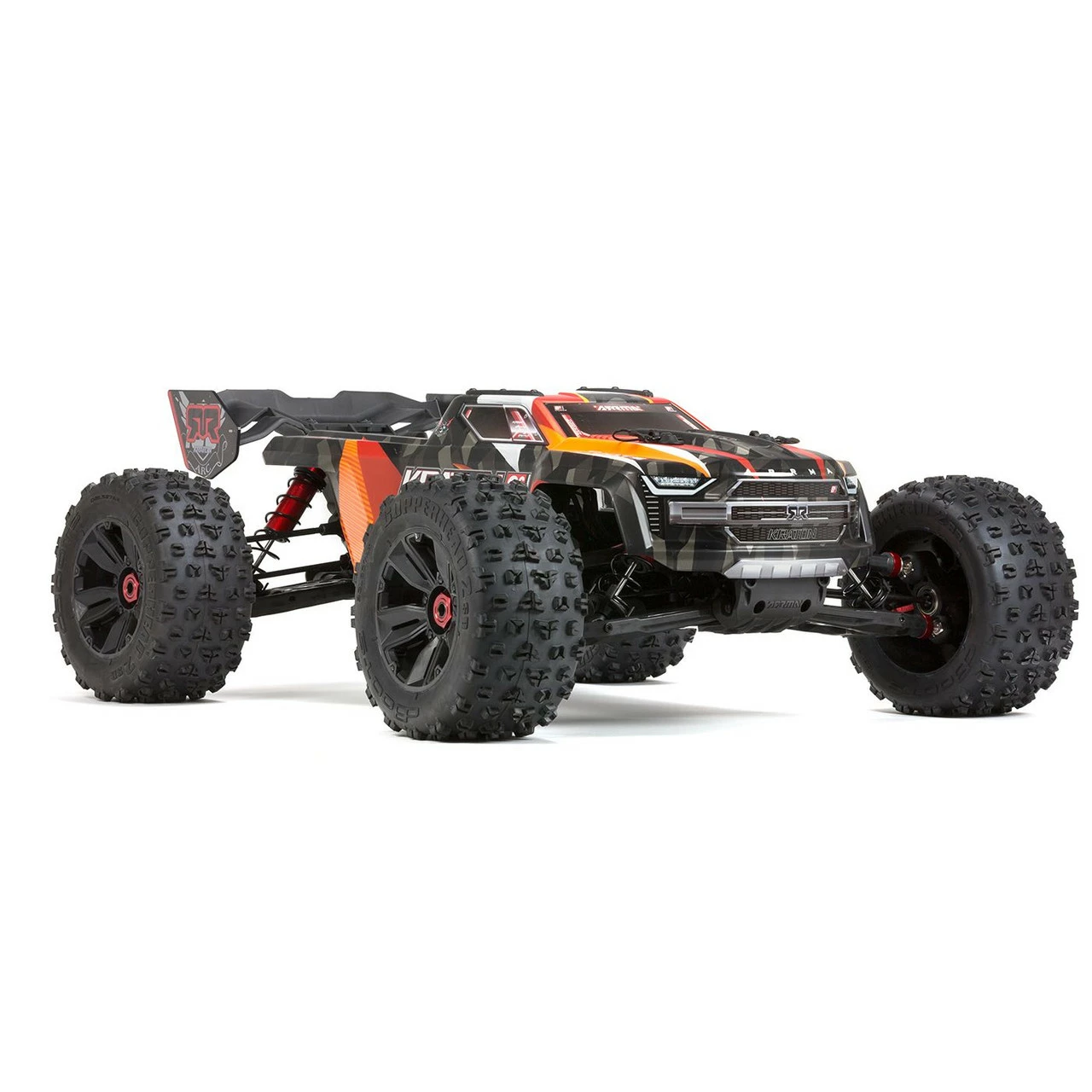

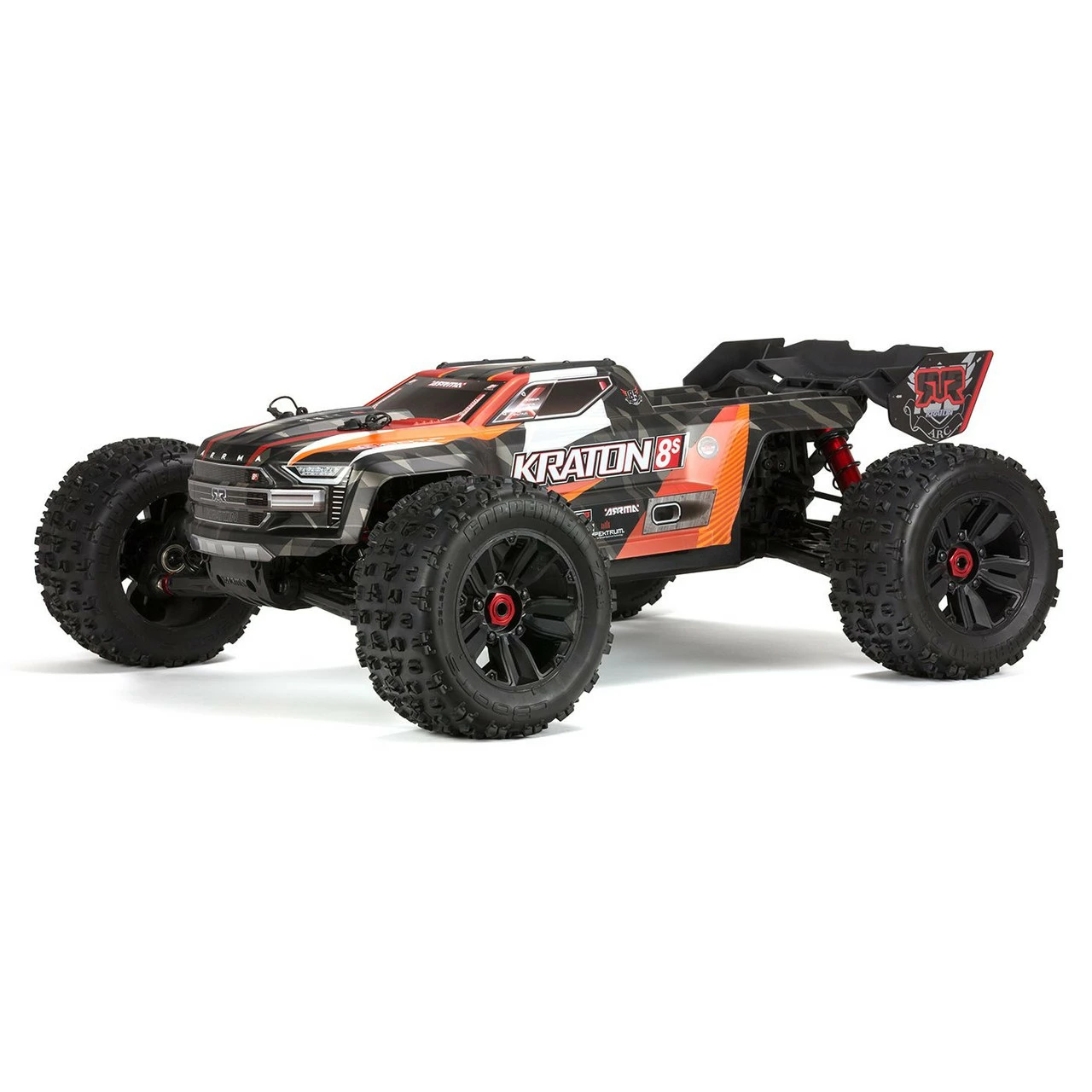

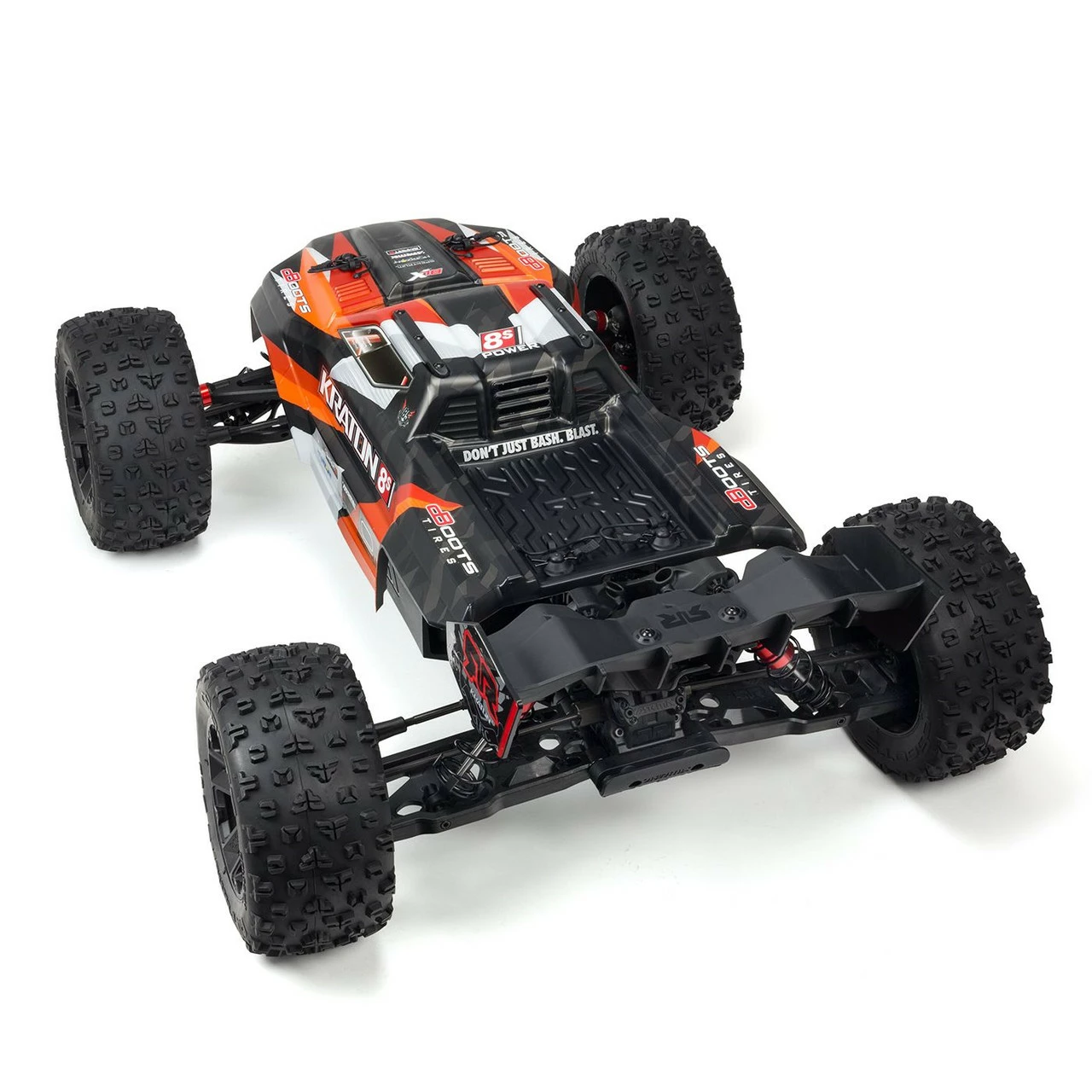

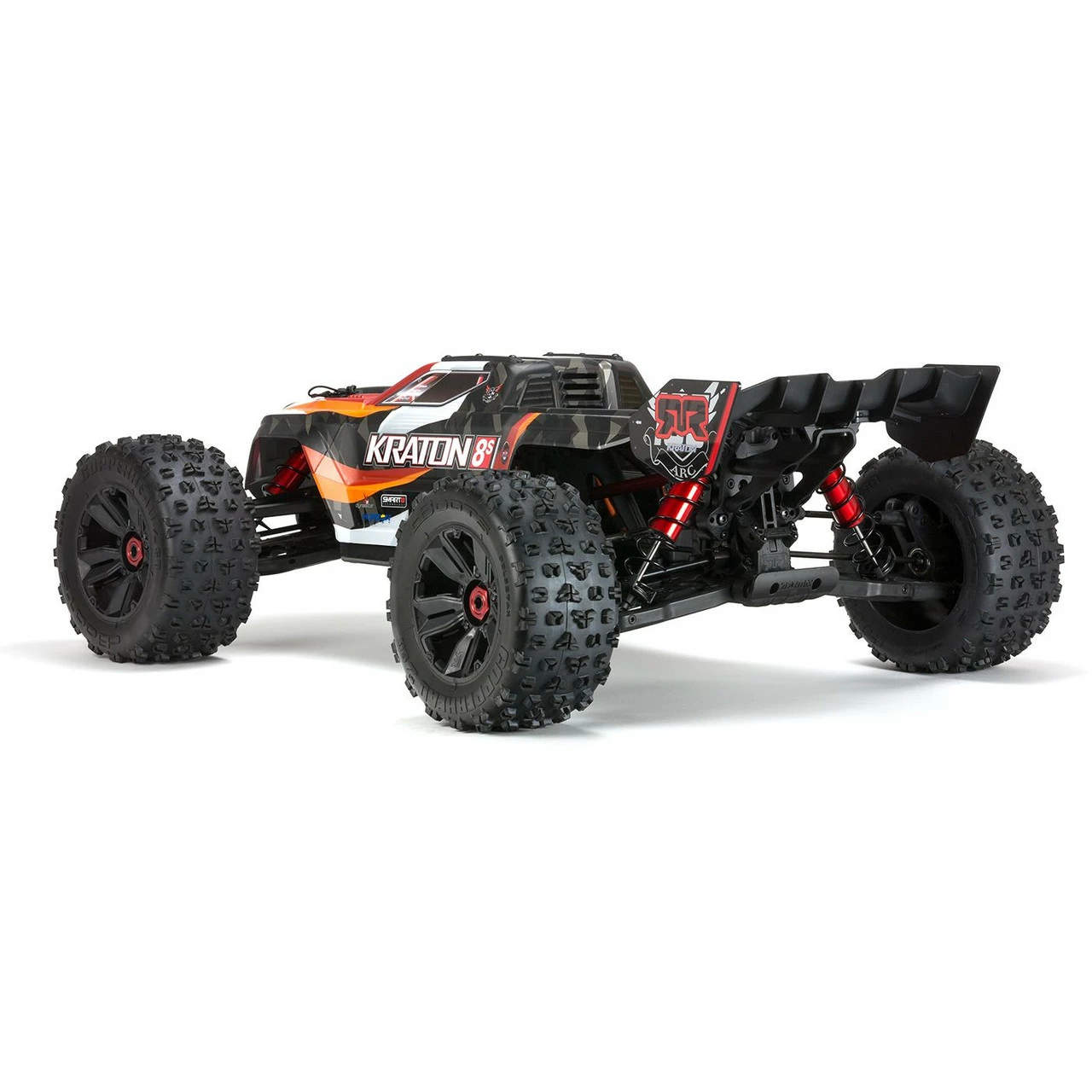

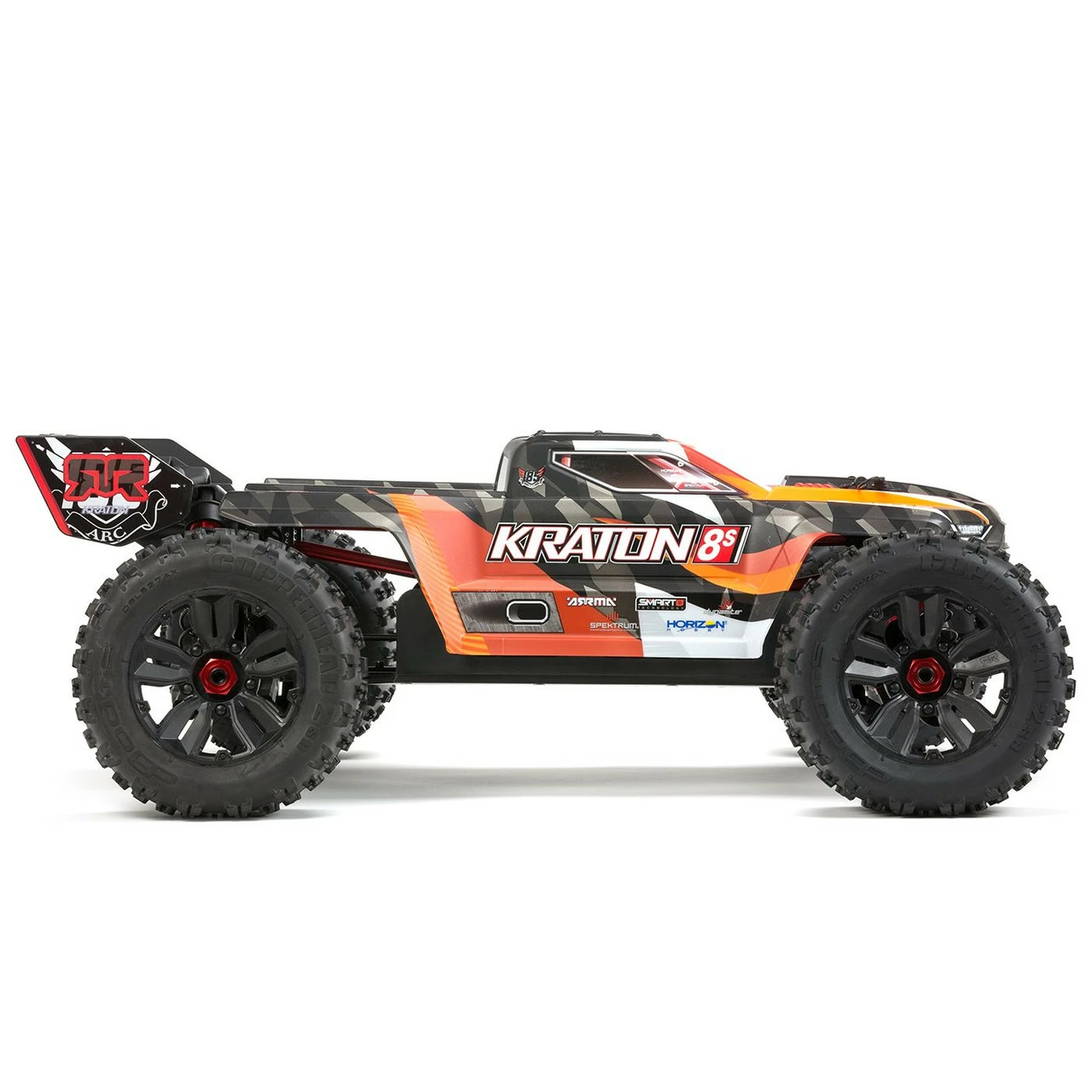

ARA110002T2 ARRMA 1/5 KRATON 4X4 8S BLX Speed Monster Truck RTR: Orange

ARA110002T2 ARRMA 1/5 KRATON 4X4 8S BLX Speed Monster Truck RTR: Orange

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

Chassis: 6061-T6 aluminum 0.16″ (4mm) thick with composite side pods and triangular center brace
Drive: Four wheel steel shafts
Differentials: Front, center and rear bevel gear equipped
Motor: Smart Firma 4985 non-sensored brushless, adjustable aluminum motor mount
Radio: Spektrum DX2e 2-channel w/SR6100AT 3-ch AVC (Active Vehicle Control) that allows driver to dial-in extra stability, fully telemetry compatible with included motor and ESC
Electronic Speed Control: Spektrum Firma Smart 160 w/IC5 battery connector
Shocks: Oil-filled coil-over, 20mm bore
Body: Painted and trimmed with decals applied, high downforce wing, integrated body protection tower
Steering Servo: High-torque Spektrum SPMS905, torque 530oz/in (36kg/cm), speed 0.20sec at 6V
Steering: Heavy duty dual spring servo saver
Tires: dBoots Copperhead 2 SB with medium foam inserts
Wheels: Multi-spoke, 24mm hex



INCLUDES

Arrma 1/5 scale Kraton 8S BLX Speed Monster Truck
Spektrum DX2E Active 2.4GHz Radio w/SR6100AT AVC Receiver
Spektrum Firma 160A Smart ESC
Spektrum Firma 1250Kv Brushless Motor
Spektrum S905 Metal Gear Digital Servo



REQUIREMENTS

Batteries: Two 4S 5000mAh 50C with IC5 connectors
Battery Charger 2X 100W recommended, and Charging Bag
AA Batteries: Four for transmitter
Track equipment



SPECIFICATIONS

Length: 29.92″ (760mm)
Width: 23.70″ (602mm)
Height: 10.47″ (266mm)
Ride Height: 2.56″ (65mm)
Wheelbase: 19.33 (491mm)
Weight: 24.2lbs (11kg) without battery
Track: Front and Rear 23.70″ (602mm) distance between outer edges of wheels measured side-to-side
Internal Gear Ratio: 9.06
Final Drive Ratio: 25.06:1
Wheel Diameter: 4.88″ (124mm)
Wheel Width: 3.54″ (90mm)
Wheel Hex Size: 24mm
Tire Diameter: 7.99″ (203mm)
Battery Dimensions: 5.47 x 1.8 x 1.4″ (139 x 46 x 38mm)
Spur Gear: 47T
Pinion Gear: 17T
Gear Pitch: 1.0 module
Silicone Shock Oil Viscosity: 500cSt
Silicone Differential Oil Viscosity: 100k/1M/100kcSt
Front Spring Rate: 2.54N/mm
Rear Spring Rate: 2.21N/mm
Max Servo Torque: 528oz/in (38kg/cm)
