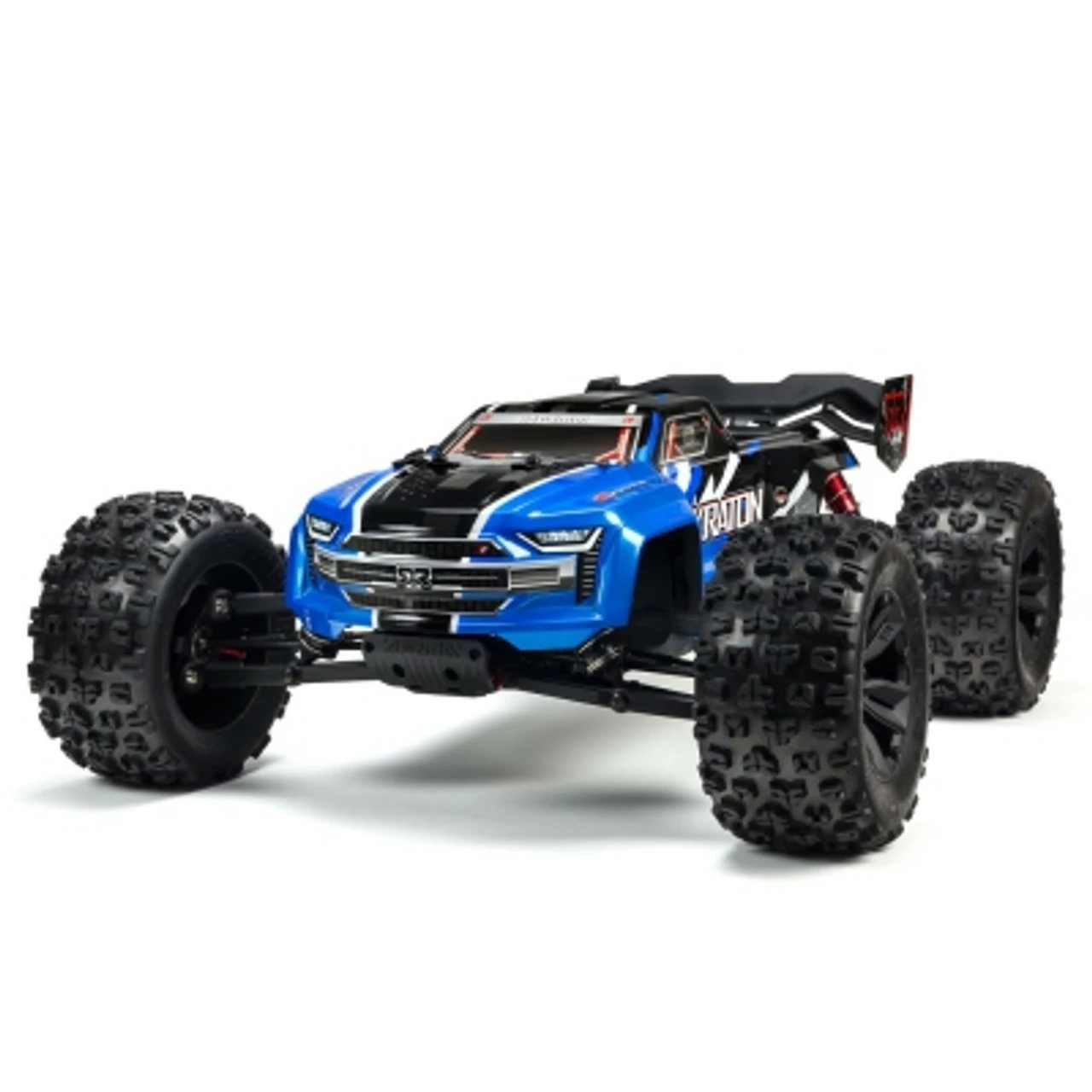

ARA106040T2 ARRMA 1/8 KRATON 6S 4WD BLX Speed Monster Truck RTR Blue And Black

ARA106040T2 ARRMA 1/8 KRATON 6S 4WD BLX Speed Monster Truck RTR Blue and Black

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product



FEATURES

Chassis: 0.12″ (3mm) thick 6061-T6 aluminum, aluminum center brace and composite side pods
Drive: Four wheel with steel driveshafts
Radio: Spektrum STX2, 2-channel with SRX200 receiver
Steering Servo: ADS-15M waterproof metal gear with 195 oz-in (15 kg-cm) torque @ 6V and “never loose” aluminum servo saver metal horn and 25T spline
Motor: BLX4074 2050Kv 4-pole non-sensored brushless
ESC: Waterproof BLX185 150A 6S with built-in cooling fan, and IC5 battery connector (EC5 compatible)
Shocks: 16mm anodized aluminum body, oil filled, aluminum top and bottom caps, 0.16″ (4mm) diameter shaft, filled with 1000cst silicone shock oil
Shock Towers: Black anodized aluminum 0.16″ (4mm) thick
Suspension: Pivot ball with anti-roll bar
Body: Trimmed and painted with new matte trim scheme, new mounts, new low-drag wing and upgraded wing mount
Differentials: Three metal gear, front and rear filled with 10,000cst viscosity silicone diff oil, and center filled with 100,000cst oil
Tires: dBoots COPPERHEAD2, diameter 6.65″ (169mm) with medium foam inserts
Wheels: Split spoke matte black in color, diameter 3.82″ (97mm), 17mm hex
Ball Bearings: Full set included
Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis



INCLUDES

RTR Arrma Kraton 6S BLX Speed Truck with Painted Body, 2.4GHz Radio, Waterproof Steering Servo and Receiver Box, BLX185 ESC, 2050Kv Brushless Motor, 12T Pinion Gear, 50T Spur Gear, extra Pinion Gear, Instruction Manual, two IC5 Battery Connectors and Bridging Wire for single pack use



REQUIREMENTS

LiPo Battery: One 4S or 6S battery with IC5 or EC5 connector, or two 2S or 3S batteries with IC5 or EC5 connector, Arrma recommends 35C 5000mAh batteries
Battery Charger: To match selected battery
AA Batteries: Four for transmitter
LiPo charging bag & track equipment



SPECIFICATIONS

Length: 23.39″ (594mm)
Width: 18.15″ (461mm)
Height: 7.68″ (195mm)
Wheelbase: 14.84″ (377mm)
Weight: 10.67lbs (4.85kg) without battery
Maximum Battery Dimensions: 6.22 x 1.89 x 2.76″ (158 x 48 x 70mm)
Ground Clearance: 1.85″ (47mm)
Final Drive Ratio: 17.92:1
Final Gear Ratio Range: 9.77 – 17.92
Gear Pitch: 1.0 Module
Spur Gear: 50T
Pinion Gear: 12T
Torque Split: 50/50
Front Spring Rate: 1.09N/mm
Rear Spring Rate: 0.87N/mm
Diff Crown Gear Specification: 43T 0.9m
Diff Pinion Gear Specification: 10T 0.9m
